2012 FIAT DOBLO COMBI load capacity

139
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AN
D
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICA TIONS
INDEX

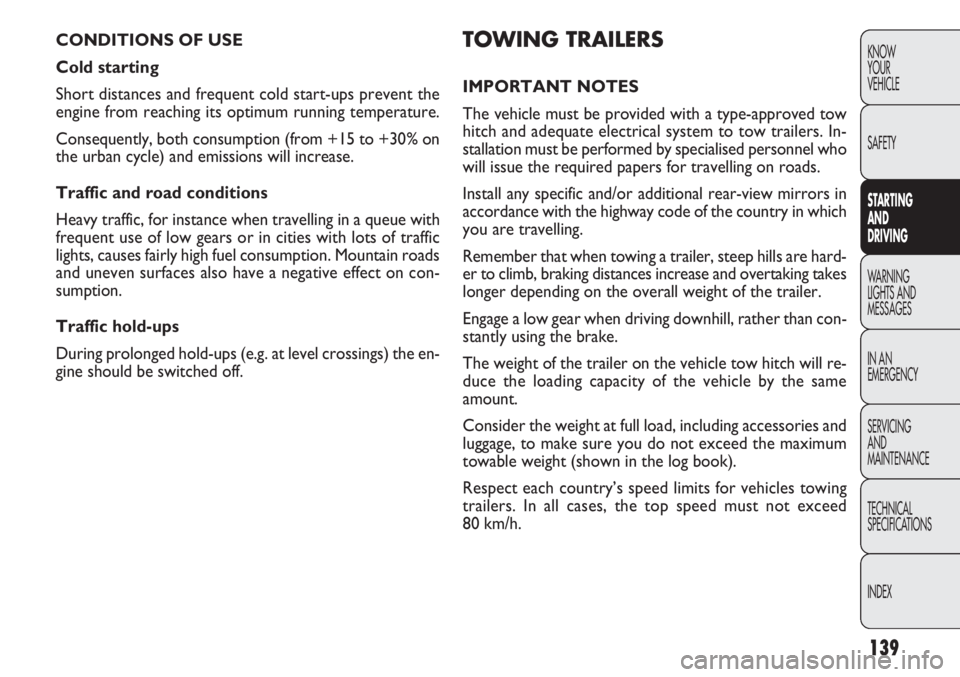

TOWING TRAILERS
IMPORTANT NOTES
The vehicle must be provided with a type-approved tow
hitch and adequate electrical system to tow trailers. In-
stallation must be performed by specialised personnel who
will issue the required papers for travelling on roads.
Install any specific and/or additional rear-view mirrors in
accordance with the highway code of the country in which
you are travelling.
Remember that when towing a trailer, steep hills are hard-
er to climb, braking distances increase and overtaking takes
longer depending on the overall weight of the trailer.
Engage a low gear when driving downhill, rather than con-
stantly using the brake.
The weight of the trailer on the vehicle tow hitch will re-
duce the loading capacity of the vehicle by the same
amount.
Consider the weight at full load, including accessories and
luggage, to make sure you do not exceed the maximum
towable weight (shown in the log book).
Respect each country’s speed limits for vehicles towing
trailers. In all cases, the top speed must not exceed
80 km/h.
CONDITIONS OF USE
Cold starting
Short distances and frequent cold start-ups prevent the
engine from reaching its optimum running temperature.
Consequently, both consumption (from +15 to +30% on
the urban cycle) and emissions will increase.
Traffic and road conditions
Heavy traffic, for instance when travelling in a queue with
frequent use of low gears or in cities with lots of traffic
lights, causes fairly high fuel consumption. Mountain roads
and uneven surfaces also have a negative effect on con-
sumption.
Traffic hold-ups
During prolonged hold-ups (e.g. at level crossings) the en-
gine should be switched off.

237
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIO

NS
INDEX
1.4
1360 800
725
1090
1450
2160
1000 500
100
601390 800
725
1090
1310
2190
1000 500
100
601430 800
725
1090
1310
2230
1300 500
100
60
1.3 Multijet1.6 Multijet2.0 Multijet
1470 800
725
1120
1450
2270
1500 500
100
60
DOBLÒ COMBI N1 SHORT WHEELBASE EXTRA CAPACITY WEIGHTS
Weights (kg)
Unladen weight (with all fluids,
fuel tank filled to 90%
and without optional extras)
Payload including
the driver (*):
Payload
excluding the driver (*):
Maximum permitted loads (**)
– front axle:
– rear axle:
– total:
Towable loads
– braked trailer:
– non-braked trailer:
Maximum load on roof (***):
Maximum load on the ball joint
(braked trailer):
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen \
vehicle weight increases, thus reducing the specified payload.
(**) Loads that must not be exceeded. The user is responsible for arranging g\
oods in the luggage compartment and/or load carryin g plat-
form within the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat\
bars/box).

240
KNOWYOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICAT IO

NS
INDEX
1.4
1260 900
825
1090
1450
2160
1000 500
100
601400
1000 925
1090
1450
2325
1000 500
100
601290
1000 925
1090
1450
2290
1000 500
100
601330
1000 925
1090
1450
2330
1300 500
100
60
2.0 Multijet
1370
1000 925
1120
1450
2370
1500 500
100
60
1.3 Multijet 1.6 Multijet
1.4 T-JET
CARGO SHORT WHEELBASE EXTRA CAPACITY WEIGHTS
Weights (kg)
Unladen weight (with all fluids,
fuel tank filled to 90%
and without optional extras)
Payload including
the driver (*):
Payload
excluding the driver (*):
Maximum permitted loads (**)
– front axle:
– rear axle:
– total:
Towable loads
– braked trailer:
– non-braked trailer:
Maximum load on roof (***):
Maximum load on the ball joint
(braked trailer):
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen \
vehicle weight increases, thus reducing the specified
payload.
(**) Loads that must not be exceeded. The user is responsible for arranging g\
oods in the luggage compartment and/or load carryin g plat-
form within the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat\
bars/box).

242
KNOWYOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICAT IO

NS
INDEX
1280 900
825
1090
1450
2180
1000 500
–
60
1.4
1350
1000 925
1090
1450
2350
1300 500
–
60
2.0 Multijet
1390
1000 925
1120
1450
2390
1500 500
–
601420
1000 925
1090
1450
2345
1000 500
–
60
1.6 Multijet
1.4 T-JET
CARGO SHORT WHEELBASE HIGH-ROOF EXTRA CAPACITY WEIGHTS
Weights (kg)
Unladen weight (with all fluids, fuel tank filled to
90% and without optional extras)
Payload including the driver (*):
Payload excluding the driver (*):
Maximum permitted loads (**)
– front axle:
– rear axle:
– total:
Towable loads
– braked trailer:
– non-braked trailer:
Maximum load on roof (***):
Maximum load on ball joint (braked trailer):
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen \
vehicle weight increases, thus reducing the specified
payload.
(**) Loads that must not be exceeded. The user is responsible for arranging g\
oods in the luggage compartment and/or load carryin g plat-
form within the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat\
bars/box).
