The light will stay on for about 15 minutes after
turning the key to STOP: if during this time, a door
or the tailgate is opened, the light will switch on
again for 15 minutes.
Opening the tailgate using the key with
remote control
Press button
even with the alarm on (for
versions/markets, where provided). Luggage
compartment opening is indicated by the double
flashing of the direction indicators; tailgate closing is
indicated by single flashing (only with the alarm
switched on). If the tailgate is opened when the
alarm is fitted, the system will:
❒switch off the volume sensing protection;
❒switch off the anti-lift protection;
❒switch off the tailgate control sensor.
When the tailgate is closed again, all the functions
are restored.
CLOSING
Lower the tailgate, pressing near the lock until you
hear it click into place.
Do not fit additional objects onto the
rear parcel shelf or tailgate (speakers,
spoilers, etc .), except when contemplated
by the manufacturer, to ensure the correct
operation of the side gas shock absorbers of the
tailgate itself.
WARNING
Never exceed the maximum allowed
load in the luggage compar tment (see
the "Technical data" chapter). Also make sure
that the objects you placed in the luggage
compar tment have been properly secured, to
avoid them from being projected forward
following sudden braking, causing injury to
passengers.
WARNING
When travelling, do not put any object
on the rear parcel shelf because they
can injure passengers in the event of an
accident or sudden braking.
EXTENDING THE LUGGAGE
COMPARTMENT
The luggage compartment can be partially (1/3 or
2/3) or totally extended by splitting the rear seat.
Partial extension (1/3 or 2/3) Fig. fig. 88-
fig. 89
Extending the luggage compartment on the right
side makes it possible to carry two passengers
on the left part of the rear seat. Extending the left
98GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

side of the luggage compartment allows you to
carry one passenger on the right part of the rear
seat.
Proceed as follows:
❒completely lower the rear seat head restraints;❒move the seat belt to the side, making sure that
it is fully extended and not twisted;
❒fold the desired cushion forwards fig. 90 working
in the point shown by the arrow;
❒lift lever A fig. 91 retaining the backrest and fold
the latter forwards. When you lift the lever, you
will see a red band B.
Full extension
Tilting the rear seat completely forwards allows
maximum loading volume.
Proceed as follows:
❒completely lower the rear seat head restraints;
❒move the seat belts to the side, making sure that
they are correctly extended and not twisted;
❒fold the cushions forwards as described above;
fig. 88
F0Q0681
fig. 89
F0Q0682
fig. 90
F0Q0684
99GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

❒remove the rear parcel shelf fig. 92 and release
the upper ends of links A fig. 93 by removing
the eyelets from the pins and pushing them in the
direction indicated by the arrow;
❒when the cushion is folded down, tilt the rear
seat backrests completely forwards as described
above so as to obtain a continuous loading
surface.
REPOSITIONING THE REAR SEAT
Move the seat belts to the side, making sure that
they are correctly extended and not twisted. Lift
the backrests and push them back until you hear
both fastening mechanisms click in. Check that the
red band B fig. 94 on the side of levers A is no
longer visible.The red band B indicates that the backrest is not
secured. Return the cushions to the horizontal
position holding the central seat fastening tongue
raised.
fig. 91
F0Q0683
fig. 92
F0Q0686
fig. 93
F0Q0687
100GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

WARNING
Make sure that the backrest is
correctly secured on both sides (red
bands B fig. 94 not visible) to prevent it from
moving forward in the event of sharp braking,
causing injuries to passengers.

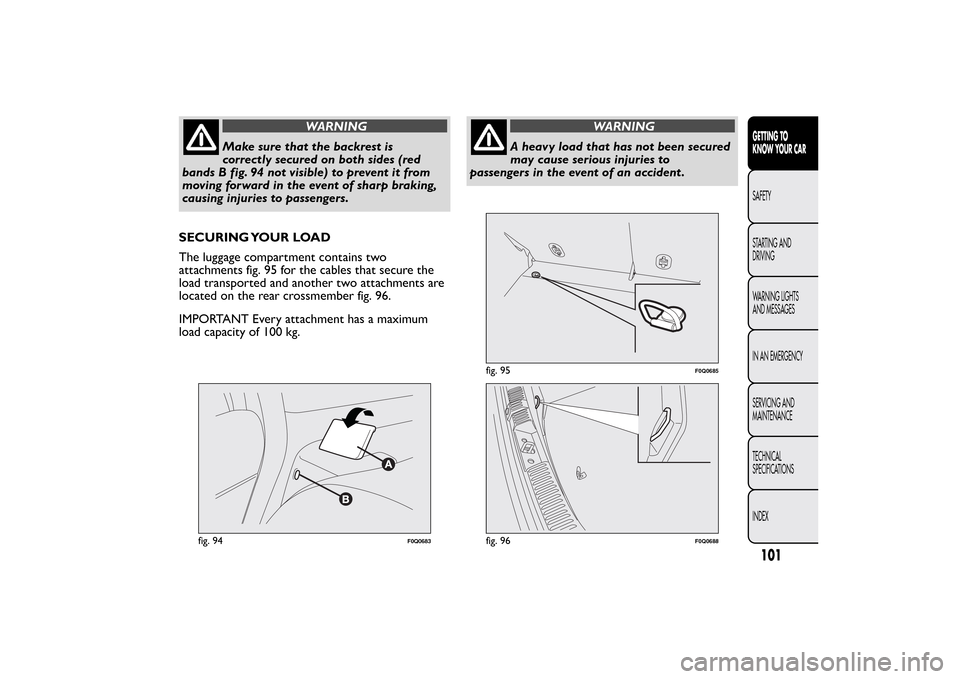

SECURING YOUR LOAD
The luggage compartment contains two
attachments fig. 95 for the cables that secure the
load transported and another two attachments are
located on the rear crossmember fig. 96.
IMPORTANT Every attachment has a maximum
load capacity of 100 kg.
WARNING
A heavy load that has not been secured
may cause serious injuries to
passengers in the event of an accident .
fig. 94
F0Q0683
fig. 95
F0Q0685
fig. 96
F0Q0688
101GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

WARNING
If you are travelling in an area with
limited opportunities for refuelling and
you wish to bring petrol with you in a reserve
tank, you must do so in compliance with
current regulations and using an approved
tank, appropriately secured to the load
securing attachments.However, bydoing so,
you increase the risk of fire in case of an
accident with your vehicle.
CARGO BOX
It consists of a preformed box fig. 97, which is
located in the luggage compartment and can be
used to store objects, making it possible to have a
flat loading surface.
BONNETOPENING
Proceed as follows:
❒pull lever A fig. 98 in the direction indicated by
the arrow;
❒pull lever B fig. 99 and lift the bonnet.
❒lift the bonnet and, at the same time, release the
bonnet stay C fig. 100 from its locking device,
then insert the end of the stay into the housing
D.
WARNING
The bonnet may drop suddenly if the
supporting rod is not positioned
correctly.
fig. 97
F0Q0002
fig. 98
F0Q0689
102GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Use both hands to lift the bonnet . Before
lifting, check that the windscreen wiper
arms are not raised from the windscreen,
that the car is stationary and that the
handbrake is engaged.CLOSING
Proceed as follows:
❒hold the bonnet up with one hand and with the
other remove the stay C fig. 100 from the
housing D and fit it back in its locking device;
❒lower the bonnet to approximately 20
centimetres from the engine compartment and
let it drop. Make sure that the bonnet is
completely closed and not only fastened by the
safety catch by trying to open it. If it is not
perfectly closed, do not try to press the bonnet
lid down but open it and repeat the procedure.
If the bonnet is not closed properly, the warning
light
or the symbol
switch on in the
instrument panel (together with the dedicated
message on the display) (see “Warning lights and
messages” chapter).
IMPORTANT Always check that the bonnet is
closed correctly to avoid it opening while the car is
travelling.WARNING
Perform these operations only when
the car is stationary.
fig. 99
F0Q0690
fig. 100
F0Q0748
103GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

ROOF RACK/SKI RACKThe attachments provided are located in the areas
illustrated in fig. 101 and are only accessible with
the doors open. Lineaccessori Fiat has a dedicated
roof rack/ski rack for this car.
WARNING
After travelling for a few kilometres,
check to ensure that the fixing screws
for the attachments are well tightened.
WARNING
Never exceed the maximum permitted
loads (see chapter "Technical
specifications").
WARNING
Evenly distribute the load and take into
account , when driving, the increased
responsiveness of the car to side wind.Fully comply with the regulations in
force concerning maximum clearance.
fig. 101
F0Q0785
104GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
