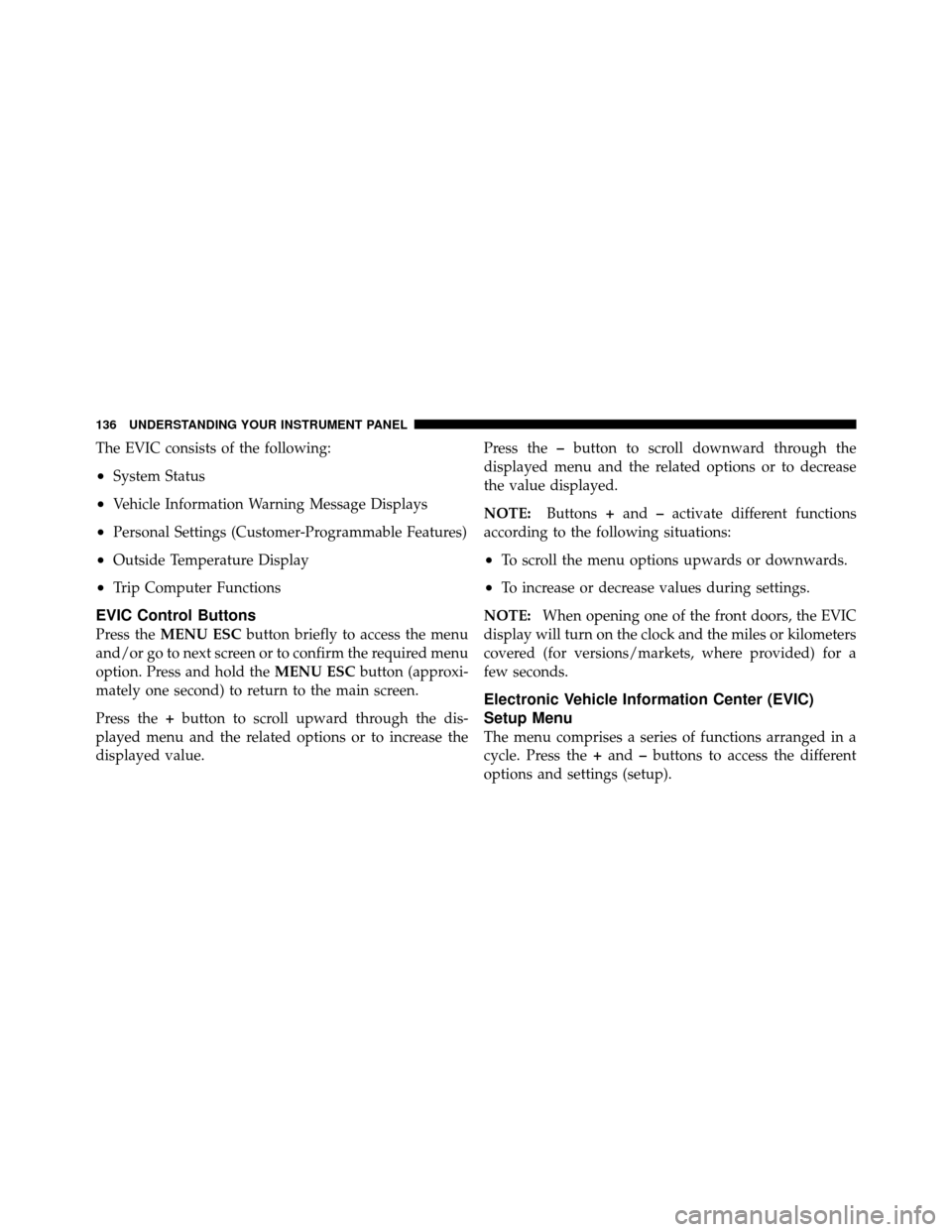

The EVIC consists of the following:
•System Status
•Vehicle Information Warning Message Displays
•Personal Settings (Customer-Programmable Features)
•Outside Temperature Display
•Trip Computer Functions
EVIC Control Buttons
Press theMENU ESC button briefly to access the menu
and/or go to next screen or to confirm the required menu
option. Press and hold the MENU ESCbutton (approxi-
mately one second) to return to the main screen.
Press the +button to scroll upward through the dis-
played menu and the related options or to increase the
displayed value. Press the
–button to scroll downward through the
displayed menu and the related options or to decrease
the value displayed.
NOTE: Buttons+and –activate different functions
according to the following situations:
•To scroll the menu options upwards or downwards.
•To increase or decrease values during settings.
NOTE: When opening one of the front doors, the EVIC
display will turn on the clock and the miles or kilometers
covered (for versions/markets, where provided) for a
few seconds.
Electronic Vehicle Information Center (EVIC)
Setup Menu
The menu comprises a series of functions arranged in a
cycle. Press the +and –buttons to access the different
options and settings (setup).
136 UNDERSTANDING YOUR INSTRUMENT PANEL

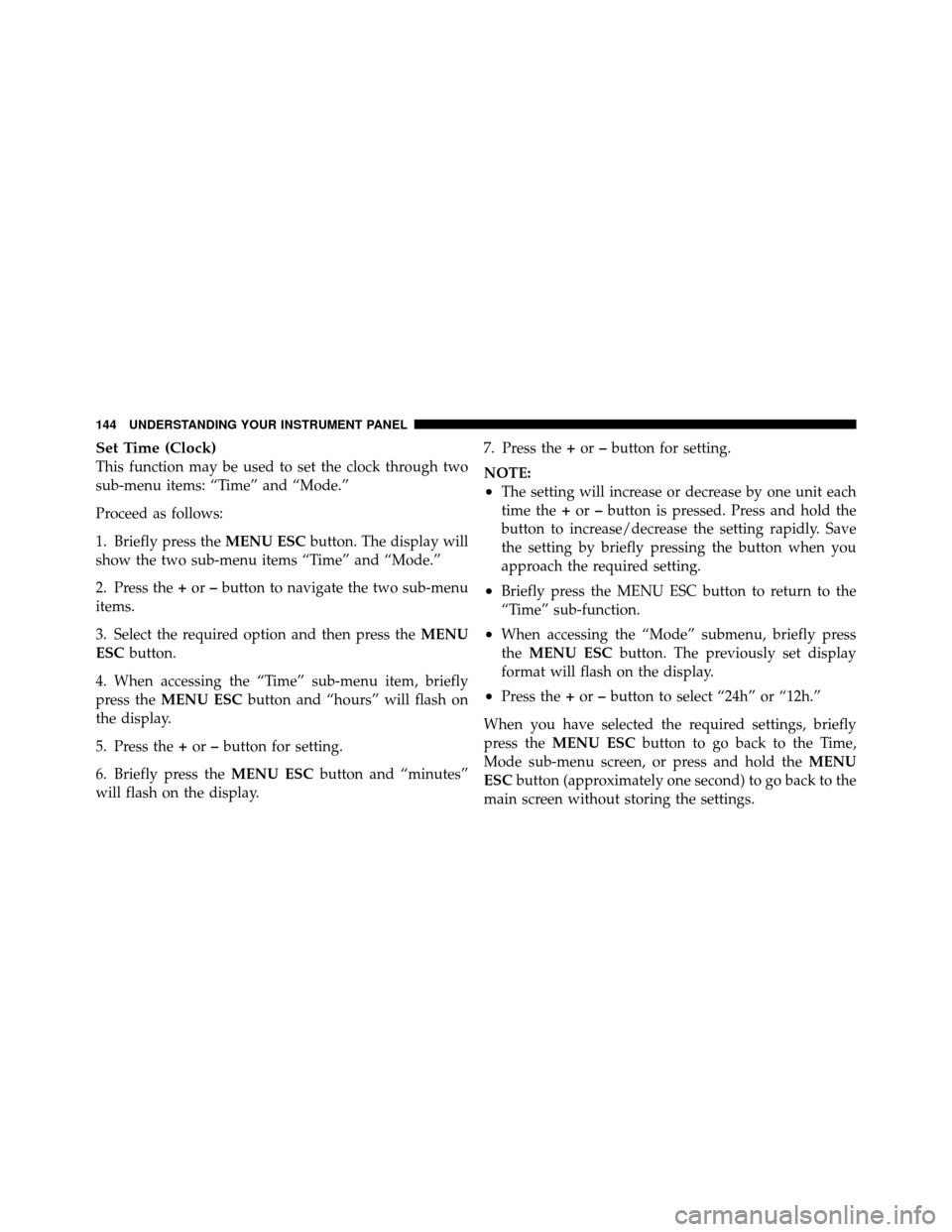

Set Time (Clock)
This function may be used to set the clock through two
sub-menu items: “Time” and “Mode.”
Proceed as follows:
1. Briefly press theMENU ESCbutton. The display will
show the two sub-menu items “Time” and “Mode.”
2. Press the +or –button to navigate the two sub-menu
items.
3. Select the required option and then press the MENU
ESC button.
4. When accessing the “Time” sub-menu item, briefly
press the MENU ESC button and “hours” will flash on
the display.
5. Press the +or –button for setting.
6. Briefly press the MENU ESCbutton and “minutes”
will flash on the display. 7. Press the
+or –button for setting.
NOTE:
•The setting will increase or decrease by one unit each
time the +or –button is pressed. Press and hold the
button to increase/decrease the setting rapidly. Save
the setting by briefly pressing the button when you
approach the required setting.
•Briefly press the MENU ESC button to return to the
“Time” sub-function.
•When accessing the “Mode” submenu, briefly press
the MENU ESC button. The previously set display
format will flash on the display.
•Press the +or –button to select “24h” or “12h.”
When you have selected the required settings, briefly
press the MENU ESC button to go back to the Time,
Mode sub-menu screen, or press and hold the MENU
ESC button (approximately one second) to go back to the
main screen without storing the settings.
