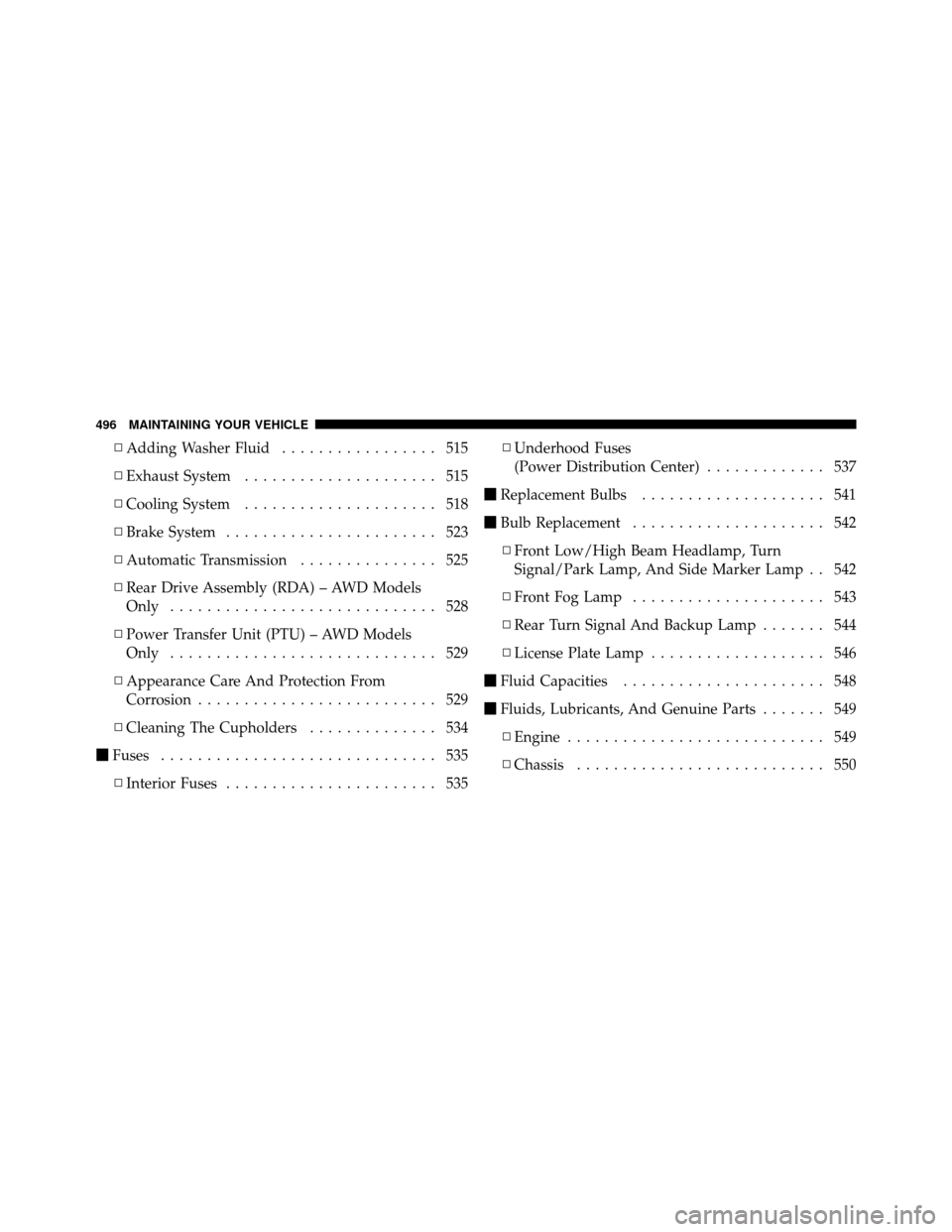

▫Adding Washer Fluid ................. 515
▫ Exhaust System ..................... 515
▫ Cooling System ..................... 518
▫ Brake System ....................... 523
▫ Automatic Transmission ............... 525
▫ Rear Drive Assembly (RDA) – AWD Models
Only ............................. 528
▫ Power Transfer Unit (PTU) – AWD Models
Only ............................. 529
▫ Appearance Care And Protection From
Corrosion .......................... 529
▫ Cleaning The Cupholders .............. 534
 Fuses .............................. 535
▫ Interior Fuses ....................... 535 ▫
Underhood Fuses
(Power Distribution Center) ............. 537
 Replacement Bulbs .................... 541
 Bulb Replacement ..................... 542
▫ Front Low/High Beam Headlamp, Turn
Signal/Park Lamp, And Side Marker Lamp . . 542
▫ Front Fog Lamp ..................... 543
▫ Rear Turn Signal And Backup Lamp ....... 544
▫ License Plate Lamp ................... 546
 Fluid Capacities ...................... 548
 Fluids, Lubricants, And Genuine Parts ....... 549
▫ Engine ............................ 549
▫ Chassis ........................... 550
496 MAINTAINING YOUR VEHICLE

CavityCartridge
Fuse Mini-
Fuse Description
F151 30 Amp
Pink Headlamp Washer
Motor – If Equipped
F152 25 Amp
Natural Diesel Fuel Heater –
If Equipped
F153 20 Amp
Yellow Fuel Pump
F156 10 Amp
Red Brake/Electronic
Stability Control
Module
F157 10 Amp
Red Transfer Case Mod-
ule – If Equipped
F158 10 Amp
Red Active Hood Mod-
ule – If Equipped
F159 10 Amp
Red Spare
F160 20 Amp
Yellow Interior LightsCavity
Cartridge
Fuse Mini-
Fuse Description
F161 20 Amp
Yellow Horn
F162 50 Amp
Red Cabin Heater #1/
Vacuum Pump – If
Equipped
F163 50 Amp
Red Cabin Heater #2 – If
Equipped
F164 25 Amp
Natural Powertrain Auto
Shutdown
F165 20 Amp
Yellow Powertrain
Shutdown
F166 20 Amp
Yellow Spare
F167 30 Amp
Green Powertrain
Shutdown
F168 10 Amp
Red Air Conditioner
Clutch
7
MAINTAINING YOUR VEHICLE 539

REPLACEMENT BULBS
All the inside bulbs are brass or glass wedge base.
Aluminum base bulbs are not approved and should not
be used for replacement.
LIGHT BULBS – Interior Bulb Number
Courtesy/Reading Lamps (Incandescent)........ 578
Courtesy/Reading Lamps (Optional LED) ...... LED
(Serviced at Authorized Dealer)
Glove Box Lamp ......................... 194
Cargo Lamp ............................ 579
Optional Door Map Pocket/Cupholder ........ LED
(Serviced at Authorized Dealer)
NOTE: For lighted switches, see your authorized dealer
for replacement instructions. LIGHTS BULBS – Exterior
Bulb No.
Low Beam Headlamp ..................... 9006
High Beam Headlamp .................... 9005
Front Park/Turn Signal .................3757AK
Side Marker Lamp ........................ 168
Front Fog Lamp ...................... PSX24W
Center High Mounted Stop Lamp (CHMSL) ..... LED
(Serviced at Authorized Dealer)
License Lamp ........................... 168
LIGHTS BULBS – Rear (LED Version) Bulb No.
Rear Tail/Stop Lamp ..................... LED
(Serviced at Authorized Dealer)
Rear Tail (Liftgate) Lamp .................. LED
(Serviced at Authorized Dealer)
Rear Turn Signal Lamp .................WY21W
Backup Lamp ......................... W21W
7
MAINTAINING YOUR VEHICLE 541

LIGHTS BULBS – Rear (Bulb Version) Bulb No.
Rear Tail/Stop Lamp................... P27/7W
Rear Tail (Liftgate) Lamp ................P27/7W
Rear Turn Signal Lamp ................PY27/7W
Backup Lamp ........................ P27/7W
BULB REPLACEMENT
Front Low/High Beam Headlamp, Turn
Signal/Park Lamp, And Side Marker Lamp
1. Open the hood.
NOTE:It may be necessary to remove the air cleaner
filter housing and position the Totally Integrated Power
Module (TIPM) aside to replace certain lamps in the left
headlamp housing.
2. Rotate the applicable bulb and connector assembly
14
turn counterclockwise and remove the assembly from the
headlamp housing. 3. Disconnect the bulb from the harness connector and
then connect the replacement bulb.
1 — Front Turn Signal/Park Lamp Bulb
2 — Side Marker Lamp Bulb
3 — Low Beam Headlamp Bulb
4 — High Beam Headlamp Bulb
542 MAINTAINING YOUR VEHICLE

CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
4. Install the bulb and connector assembly into the
headlamp housing and rotate it
14turn clockwise to lock
it in place.
Front Fog Lamp
NOTE: Turn the steering wheel to the right if replacing
the left front fog lamp or to the left if replacing the right
front fog lamp to allow for easier access to the front of the
wheel well.
1. Remove the fasteners retaining the front lower wheel
well access panel and remove the access panel. 2. Remove the electrical connector from the fog lamp
housing.
3. Squeeze the two tabs on the side of the bulb socket and
pull straight out from the fog lamp.
7
MAINTAINING YOUR VEHICLE 543
