2012 DODGE GRAND CARAVAN Owners Manual

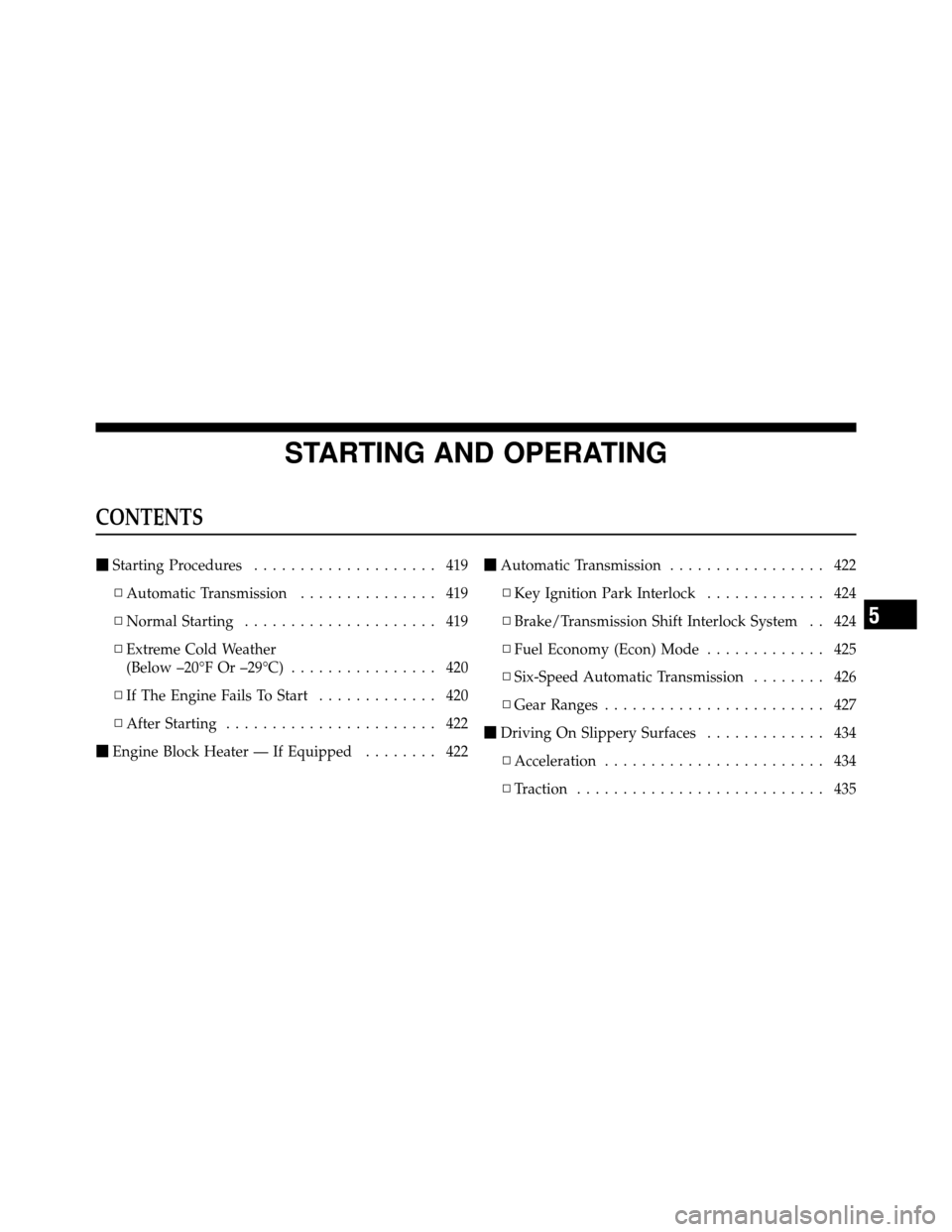

STARTING AND OPERATING
CONTENTS
Starting Procedures .................... 419
▫ Automatic Transmission ............... 419
▫ Normal Starting ..................... 419
▫ Extreme Cold Weather
(Below –20°F Or –29°C) ................ 420
▫ If The Engine Fails To Start ............. 420
▫ After Starting ....................... 422
 Engine Block Heater — If Equipped ........ 422
Automatic Transmission ................. 422
▫ Key Ignition Park Interlock ............. 424
▫ Brake/Transmission Shift Interlock System . . 424
▫ Fuel Economy (Econ) Mode ............. 425
▫ Six-Speed Automatic Transmission ........ 426
▫ Gear Ranges ........................ 427
 Driving On Slippery Surfaces ............. 434
▫ Acceleration ........................ 434
▫ Traction ........................... 435
5

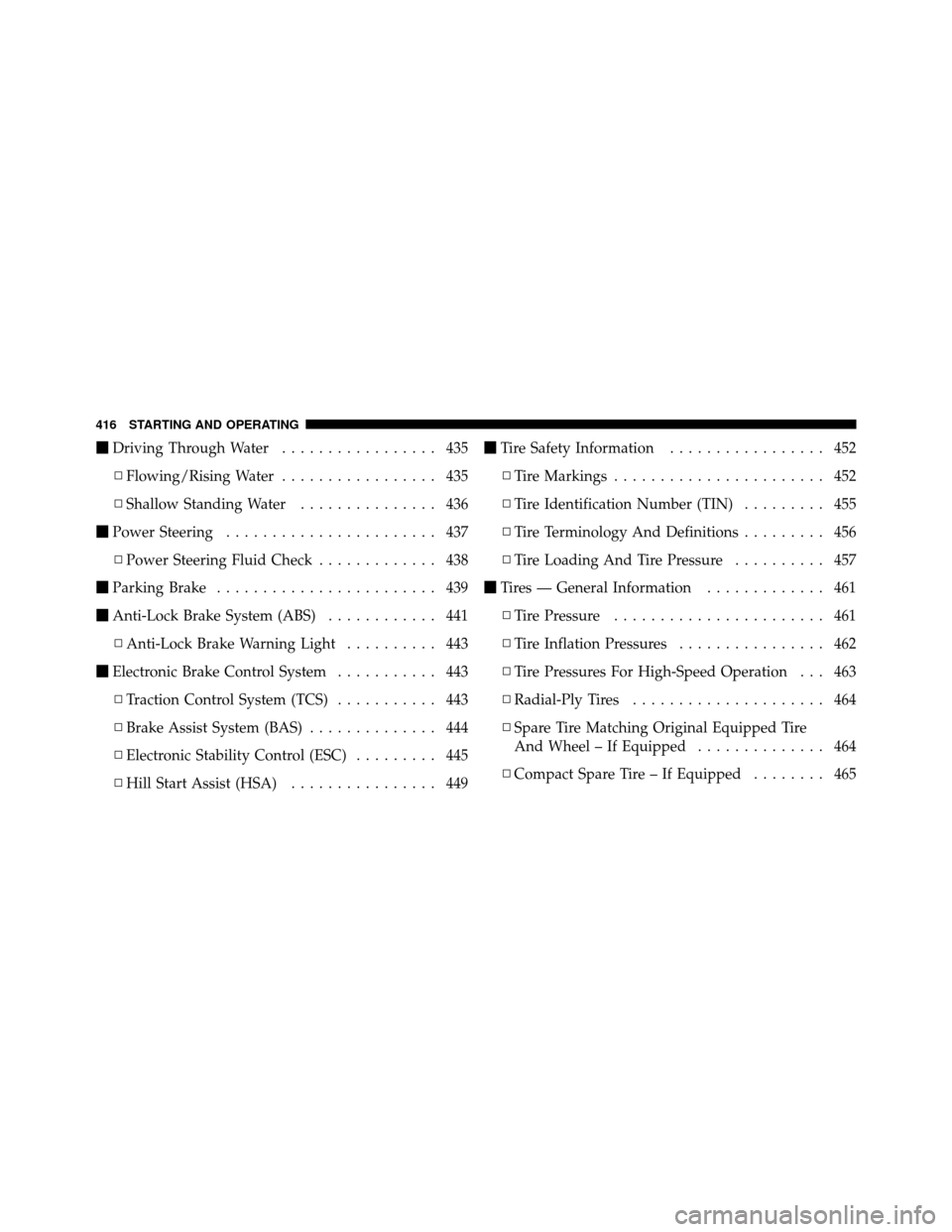

Driving Through Water ................. 435
▫ Flowing/Rising Water ................. 435
▫ Shallow Standing Water ............... 436
 Power Steering ....................... 437
▫ Power Steering Fluid Check ............. 438
 Parking Brake ........................ 439
 Anti-Lock Brake System (ABS) ............ 441
▫ Anti-Lock Brake Warning Light .......... 443
 Electronic Brake Control System ........... 443
▫ Traction Control System (TCS) ........... 443
▫ Brake Assist System (BAS) .............. 444
▫ Electronic Stability Control (ESC) ......... 445
▫ Hill Start Assist (HSA) ................ 449
Tire Safety Information ................. 452
▫ Tire Markings ....................... 452
▫ Tire Identification Number (TIN) ......... 455
▫ Tire Terminology And Definitions ......... 456
▫ Tire Loading And Tire Pressure .......... 457
 Tires — General Information ............. 461
▫ Tire Pressure ....................... 461
▫ Tire Inflation Pressures ................ 462
▫ Tire Pressures For High-Speed Operation . . . 463
▫ Radial-Ply Tires ..................... 464
▫ Spare Tire Matching Original Equipped Tire
And Wheel – If Equipped .............. 464
▫ Compact Spare Tire – If Equipped ........ 465
416 STARTING AND OPERATING

▫Full Size Spare – If Equipped ............ 466
▫ Limited-Use Spare – If Equipped ......... 466
▫ Tire Spinning ....................... 467
▫ Tread Wear Indicators ................. 468
▫ Life Of Tire ........................ 468
▫ Replacement Tires .................... 469
 Tire Chains .......................... 470
 Snow Tires .......................... 472
 Tire Rotation Recommendations ........... 472
 Tire Pressure Monitor System (TPMS) ....... 473
▫ Base System ........................ 476
▫ Premium System – If Equipped .......... 478
Fuel Requirements ..................... 482
▫ 3.6L Engine ........................ 482
▫ Reformulated Gasoline ................ 482
▫ Gasoline/Oxygenate Blends ............. 483
▫ E-85 Usage In Non-Flex Fuel Vehicles ...... 483
▫ MMT In Gasoline .................... 484
▫ Materials Added To Fuel ............... 484
▫ Fuel System Cautions ................. 485
▫ Carbon Monoxide Warnings ............ 486
 Flexible Fuel — If Equipped .............. 486
▫ E-85 General Information ............... 486
▫ Ethanol Fuel (E-85) ................... 488
▫ Fuel Requirements ................... 488
5
STARTING AND OPERATING 417

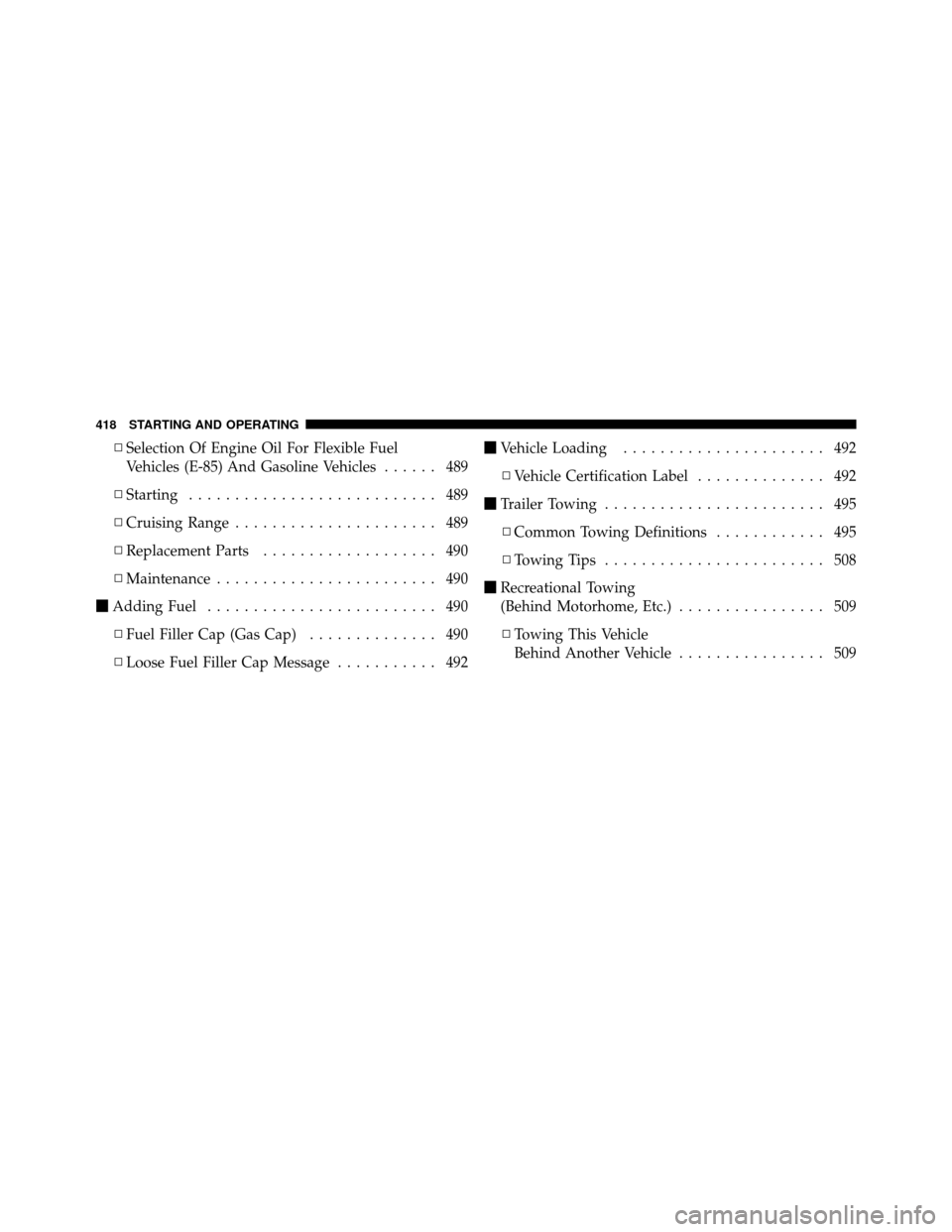

▫Selection Of Engine Oil For Flexible Fuel
Vehicles (E-85) And Gasoline Vehicles ...... 489
▫ Starting ........................... 489
▫ Cruising Range ...................... 489
▫ Replacement Parts ................... 490
▫ Maintenance ........................ 490
 Adding Fuel ......................... 490
▫ Fuel Filler Cap (Gas Cap) .............. 490
▫ Loose Fuel Filler Cap Message ........... 492
Vehicle Loading ...................... 492
▫ Vehicle Certification Label .............. 492
 Trailer Towing ........................ 495
▫ Common Towing Definitions ............ 495
▫ Towing Tips ........................ 508
 Recreational Towing
(Behind Motorhome, Etc.) ................ 509
▫ Towing This Vehicle
Behind Another Vehicle ................ 509
418 STARTING AND OPERATING

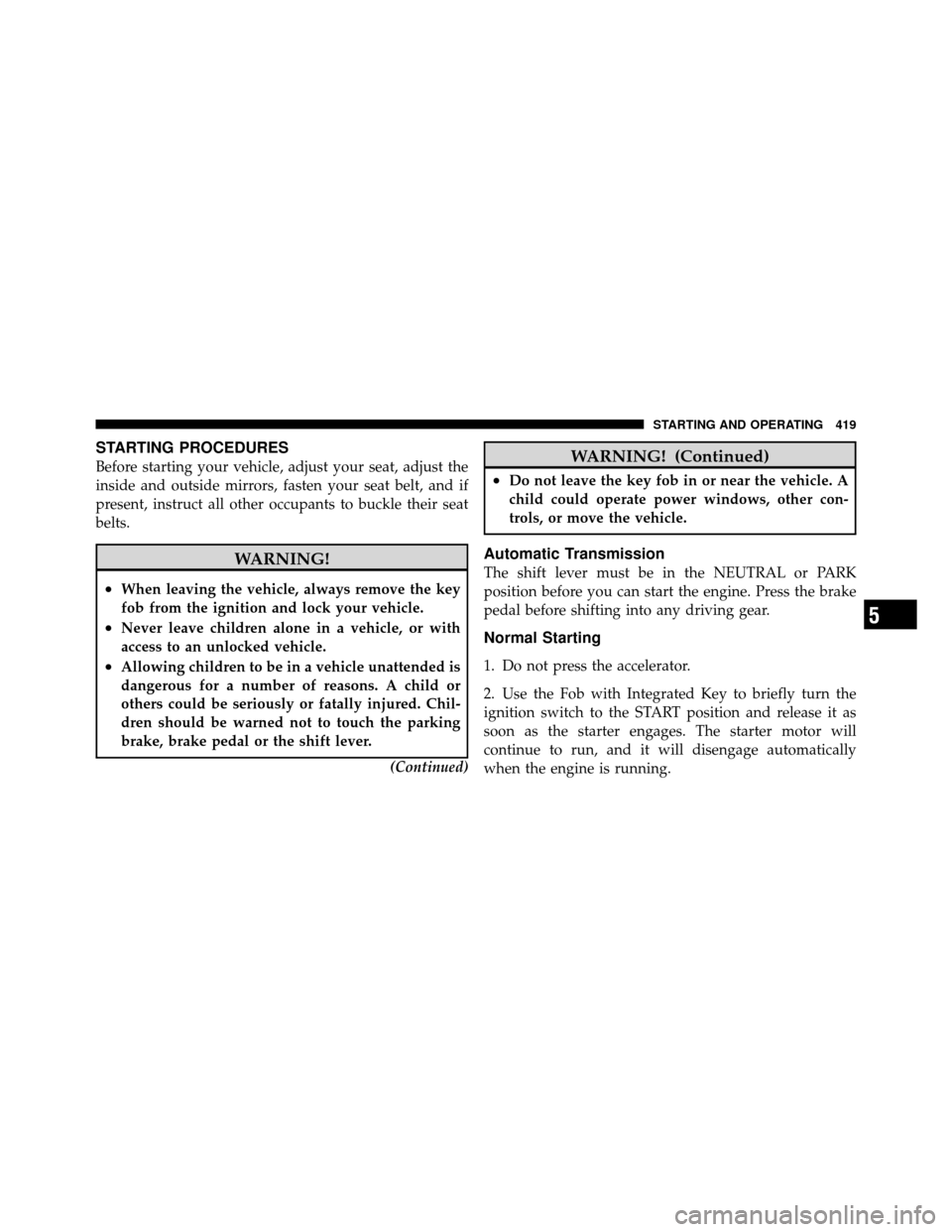

STARTING PROCEDURES
Before starting your vehicle, adjust your seat, adjust the
inside and outside mirrors, fasten your seat belt, and if
present, instruct all other occupants to buckle their seat
belts.
WARNING!
•When leaving the vehicle, always remove the key
fob from the ignition and lock your vehicle.
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
•Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the shift lever.(Continued)
WARNING! (Continued)
•Do not leave the key fob in or near the vehicle. A
child could operate power windows, other con-
trols, or move the vehicle.
Automatic Transmission
The shift lever must be in the NEUTRAL or PARK
position before you can start the engine. Press the brake
pedal before shifting into any driving gear.
Normal Starting
1. Do not press the accelerator.
2. Use the Fob with Integrated Key to briefly turn the
ignition switch to the START position and release it as
soon as the starter engages. The starter motor will
continue to run, and it will disengage automatically
when the engine is running.
5
STARTING AND OPERATING 419

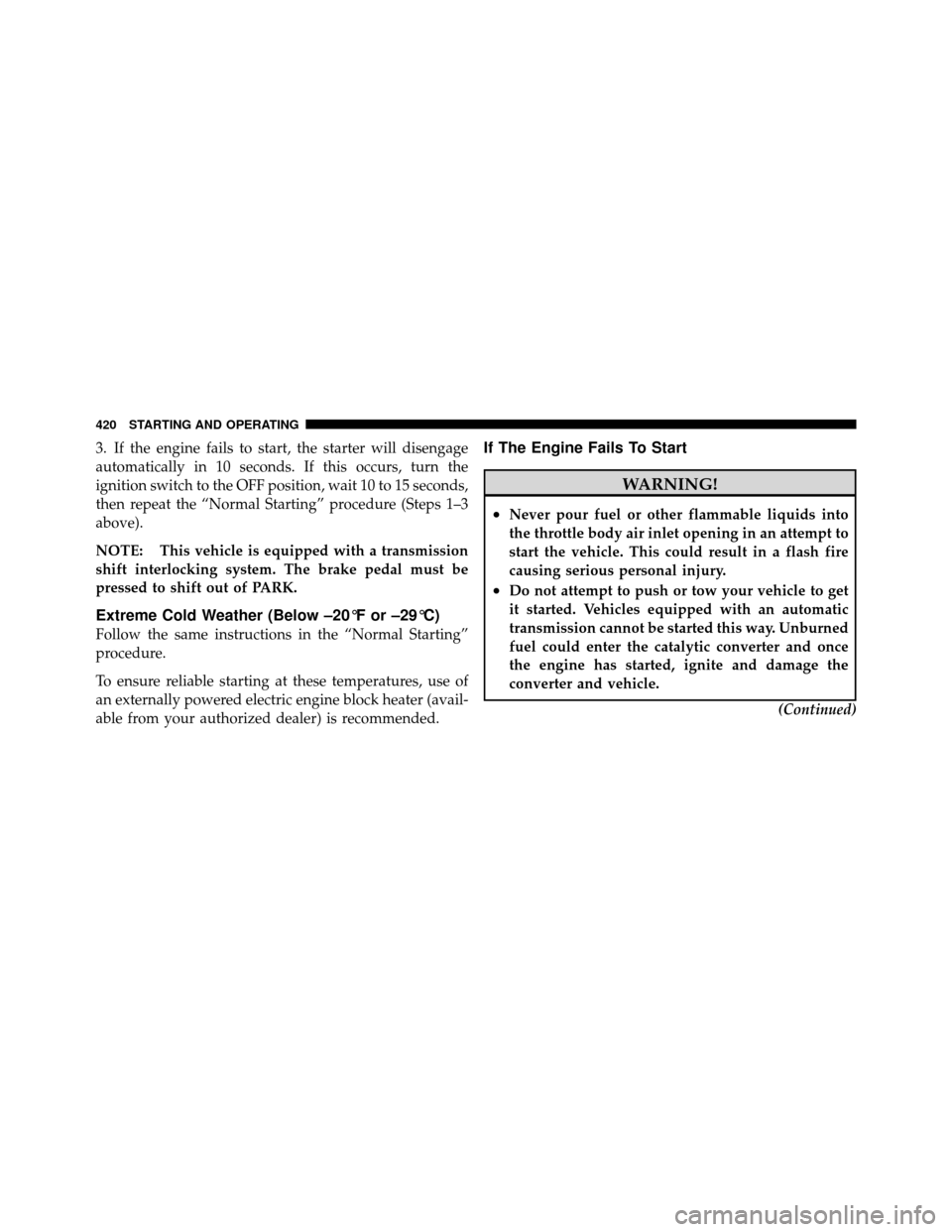

3. If the engine fails to start, the starter will disengage
automatically in 10 seconds. If this occurs, turn the
ignition switch to the OFF position, wait 10 to 15 seconds,
then repeat the “Normal Starting” procedure (Steps 1–3
above).
NOTE: This vehicle is equipped with a transmission
shift interlocking system. The brake pedal must be
pressed to shift out of PARK.
Extreme Cold Weather (Below –20°F or –29°C)
Follow the same instructions in the “Normal Starting”
procedure.
To ensure reliable starting at these temperatures, use of
an externally powered electric engine block heater (avail-
able from your authorized dealer) is recommended.
If The Engine Fails To Start
WARNING!
•Never pour fuel or other flammable liquids into
the throttle body air inlet opening in an attempt to
start the vehicle. This could result in a flash fire
causing serious personal injury.
•Do not attempt to push or tow your vehicle to get
it started. Vehicles equipped with an automatic
transmission cannot be started this way. Unburned
fuel could enter the catalytic converter and once
the engine has started, ignite and damage the
converter and vehicle.(Continued)
420 STARTING AND OPERATING

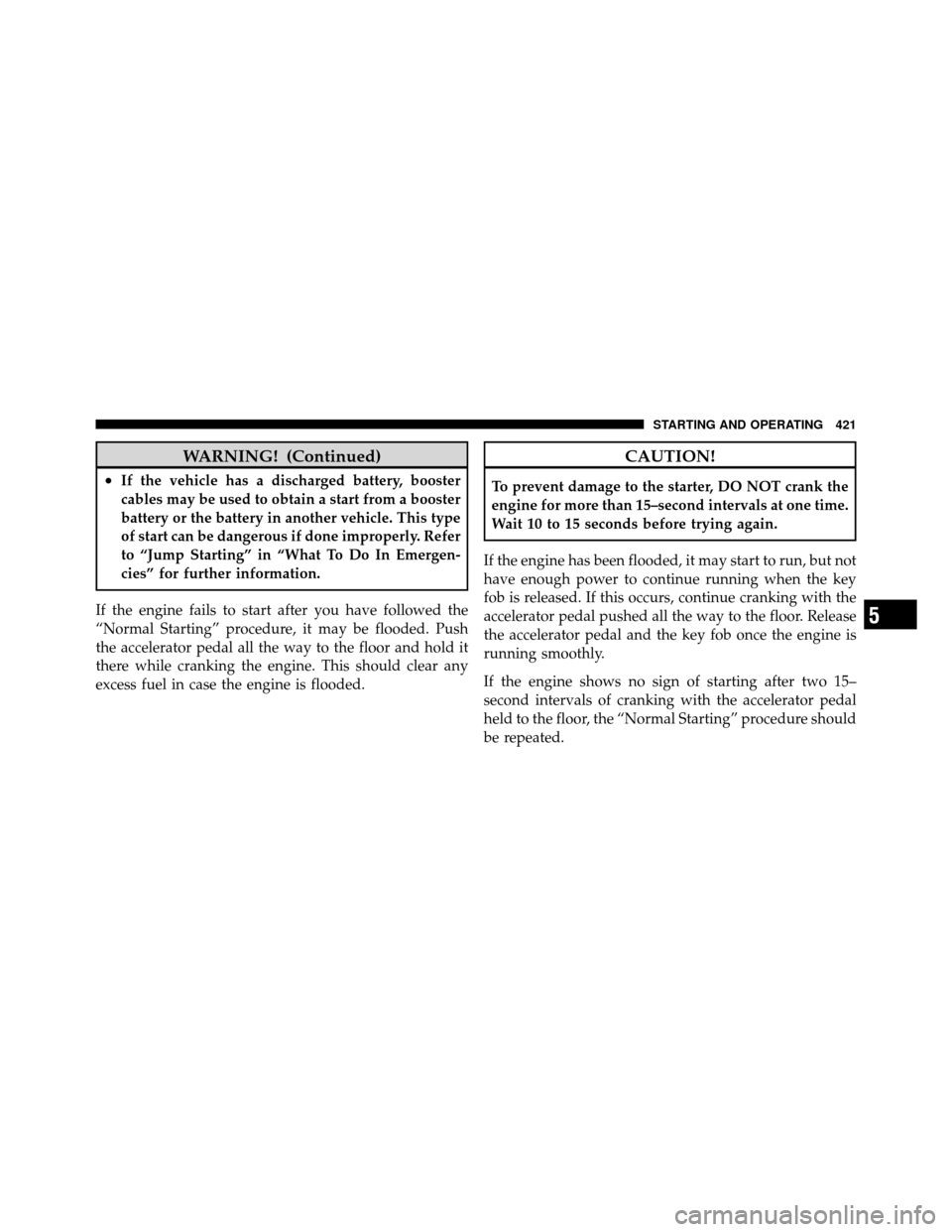

WARNING! (Continued)
•If the vehicle has a discharged battery, booster
cables may be used to obtain a start from a booster
battery or the battery in another vehicle. This type
of start can be dangerous if done improperly. Refer
to “Jump Starting” in “What To Do In Emergen-
cies” for further information.
If the engine fails to start after you have followed the
“Normal Starting” procedure, it may be flooded. Push
the accelerator pedal all the way to the floor and hold it
there while cranking the engine. This should clear any
excess fuel in case the engine is flooded.
CAUTION!
To prevent damage to the starter, DO NOT crank the
engine for more than 15–second intervals at one time.
Wait 10 to 15 seconds before trying again.
If the engine has been flooded, it may start to run, but not
have enough power to continue running when the key
fob is released. If this occurs, continue cranking with the
accelerator pedal pushed all the way to the floor. Release
the accelerator pedal and the key fob once the engine is
running smoothly.
If the engine shows no sign of starting after two 15–
second intervals of cranking with the accelerator pedal
held to the floor, the “Normal Starting” procedure should
be repeated.
5
STARTING AND OPERATING 421
