2012 DODGE CHARGER fog light

▫Ventilated Seats — If Equipped .......... 185
▫ Manual Seats — If Equipped ............ 187
▫ Head Restraints ..................... 189
▫ Folding Rear Seat .................... 191
 Driver Memory Seat — If Equipped ........ 193
▫ Programming The Memory Feature ....... 194
▫ Linking And Unlinking The Remote Keyless
Entry Transmitter To Memory ........... 195
▫ Memory Position Recall ................ 196
▫ Easy Entry/Exit Seat
(Available With Memory Seat Only) ....... 196
 To Open And Close The Hood ............ 198
 Lights ............................. 199
▫ Headlight Switch .................... 199 ▫
Automatic Headlights — If Equipped ...... 200
▫ Headlights On With Wipers (Available With
Automatic Headlights Only) ............ 200
▫ Smartbeam™ — If Equipped ............ 200
▫ Headlight Time Delay ................. 201
▫ Daytime Running Lights (DRL) — If
Equipped .......................... 202
▫ Lights-On Reminder .................. 202
▫ Fog Lights — If Equipped .............. 203
▫ Multifunction Lever .................. 204
▫ Turn Signals ........................ 204
▫ Lane Change Assist ................... 205
▫ High/Low Beam Switch ............... 205
▫ Flash-To-Pass ....................... 205
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 89

CAUTION!
To prevent possible damage, do not slam the hood to
close it. Lower the hood, until it is open approxi-
mately 6 in (15 cm), and then drop it. This should
secure both latches. Never drive your vehicle unless
the hood is fully closed, with both latches engaged.
WARNING!
Be sure the hood is fully latched before driving your
vehicle. If the hood is not fully latched, it could open
when the vehicle is in motion and block your vision.
Failure to follow this warning could result in serious
injury or death.

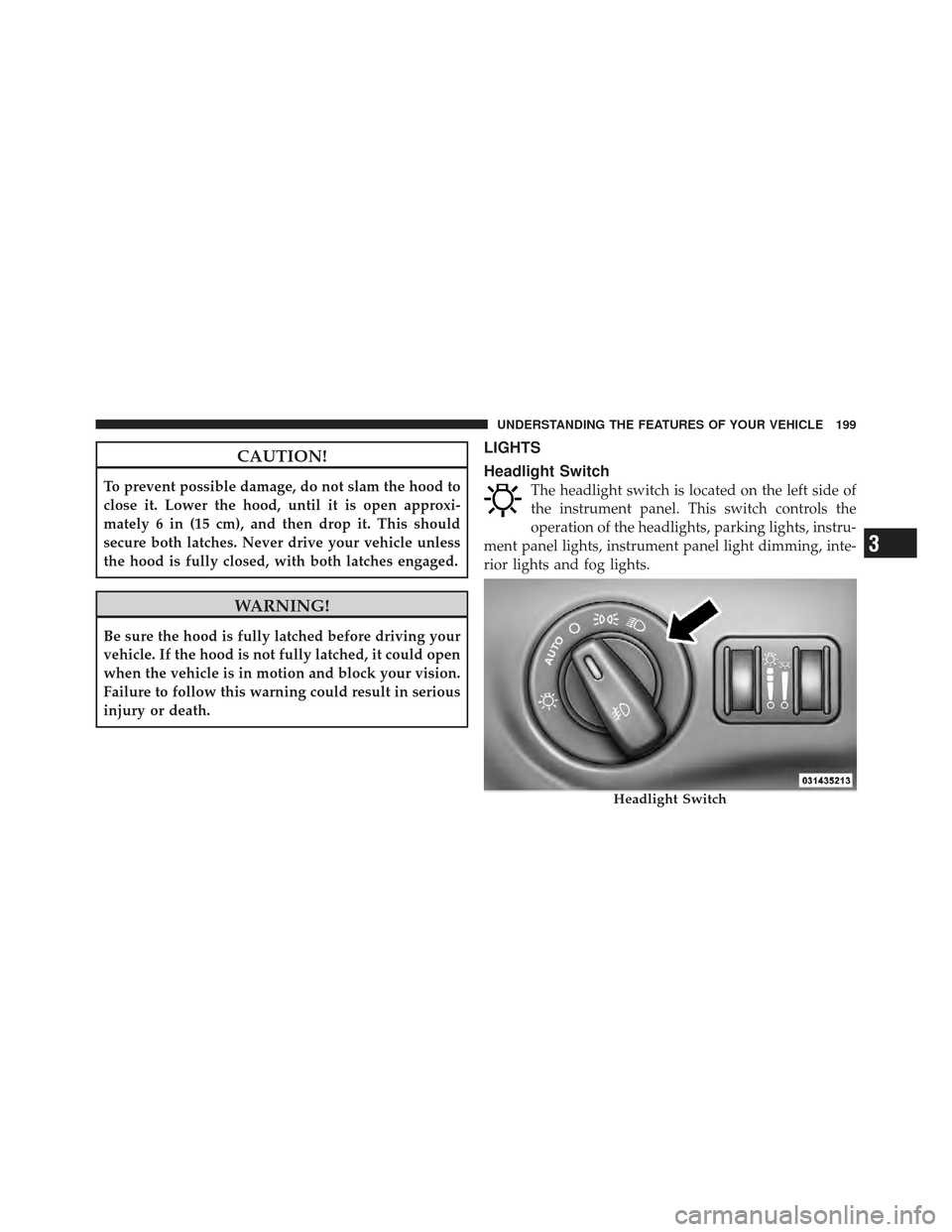

LIGHTS
Headlight Switch
The headlight switch is located on the left side of
the instrument panel. This switch controls the
operation of the headlights, parking lights, instru-
ment panel lights, instrument panel light dimming, inte-
rior lights and fog lights.
Headlight Switch
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 199

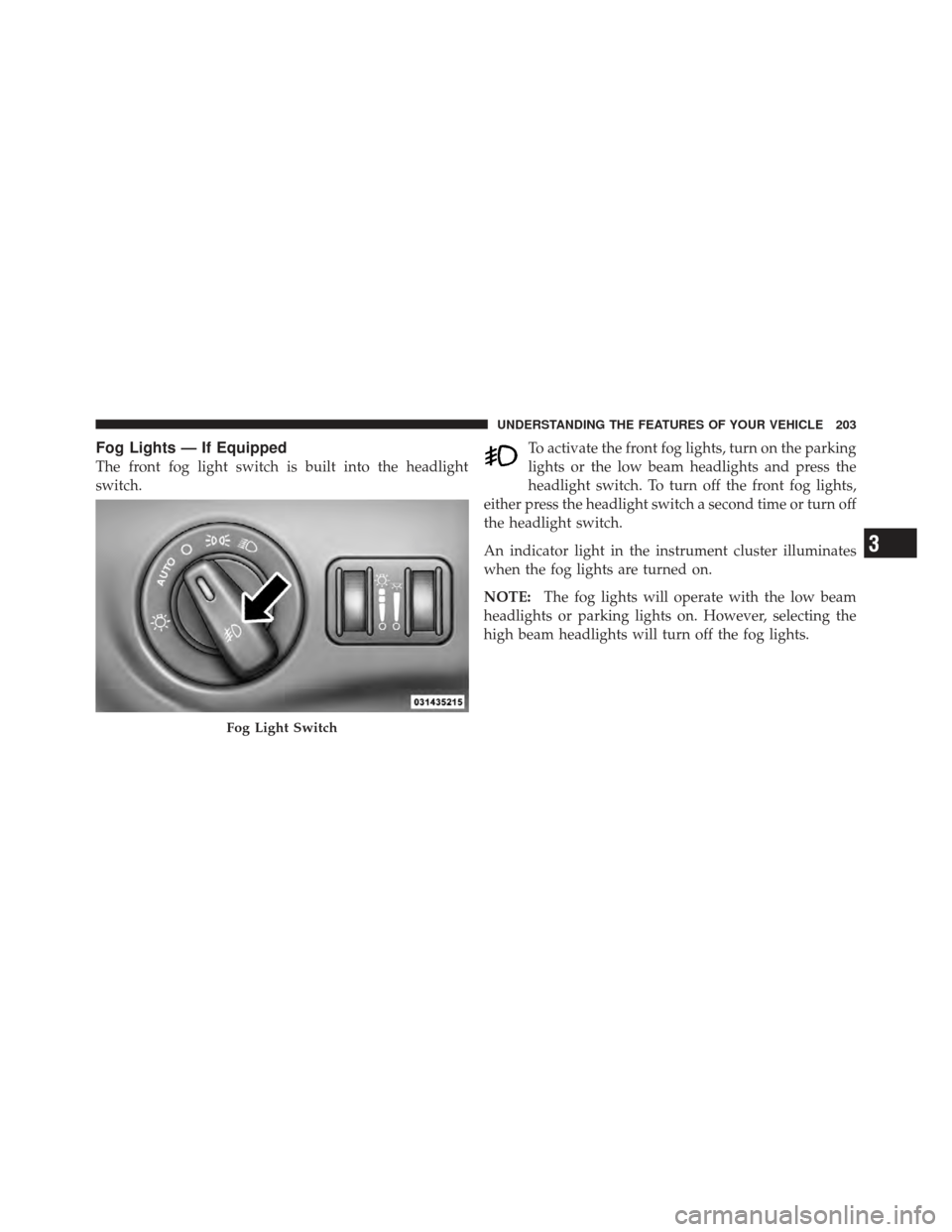

Fog Lights — If Equipped
The front fog light switch is built into the headlight
switch.To activate the front fog lights, turn on the parking
lights or the low beam headlights and press the
headlight switch. To turn off the front fog lights,
either press the headlight switch a second time or turn off
the headlight switch.
An indicator light in the instrument cluster illuminates
when the fog lights are turned on.
NOTE: The fog lights will operate with the low beam
headlights or parking lights on. However, selecting the
high beam headlights will turn off the fog lights.
Fog Light Switch
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 203

INSTRUMENT CLUSTER DESCRIPTIONS
1. Tachometer
This gauge measures engine revolutions-per-minute
(RPM x 1000).
2. AWD (All Wheel Drive) Indicator — If Equipped
The AWD indicator will illuminate when All Wheel Drive
(AWD) is activated.
3. Park/Headlight ON Indicator — If EquippedThis indicator will illuminate when the park
lights or headlights are turned on.
4. Turn Signal Indicators The arrow will flash with the exterior turn signal
when the turn signal lever is operated.
If the vehicle electronics sense that the vehicle is driven
more than 1 mile (1.6 km) with either turn signal on, a continuous chime will sound to alert you to turn the
signals off. If either indicator flashes at a rapid rate, check
for a defective outside light bulb.
5. Front Fog Light Indicator — If Equipped
This indicator will illuminate when the front fog
lights are on.
6. High Beam Indicator This indicator shows that the high beam head-
lights are on. Push the multifunction lever forward
to switch the headlights to high beam, and pull toward
yourself (normal position) to return to low beam.
7. Odometer Display / Electronic Vehicle Information
Center (EVIC) Display
Odometer Display
The odometer display shows the total distance the ve-
hicle has been driven.
290 UNDERSTANDING YOUR INSTRUMENT PANEL

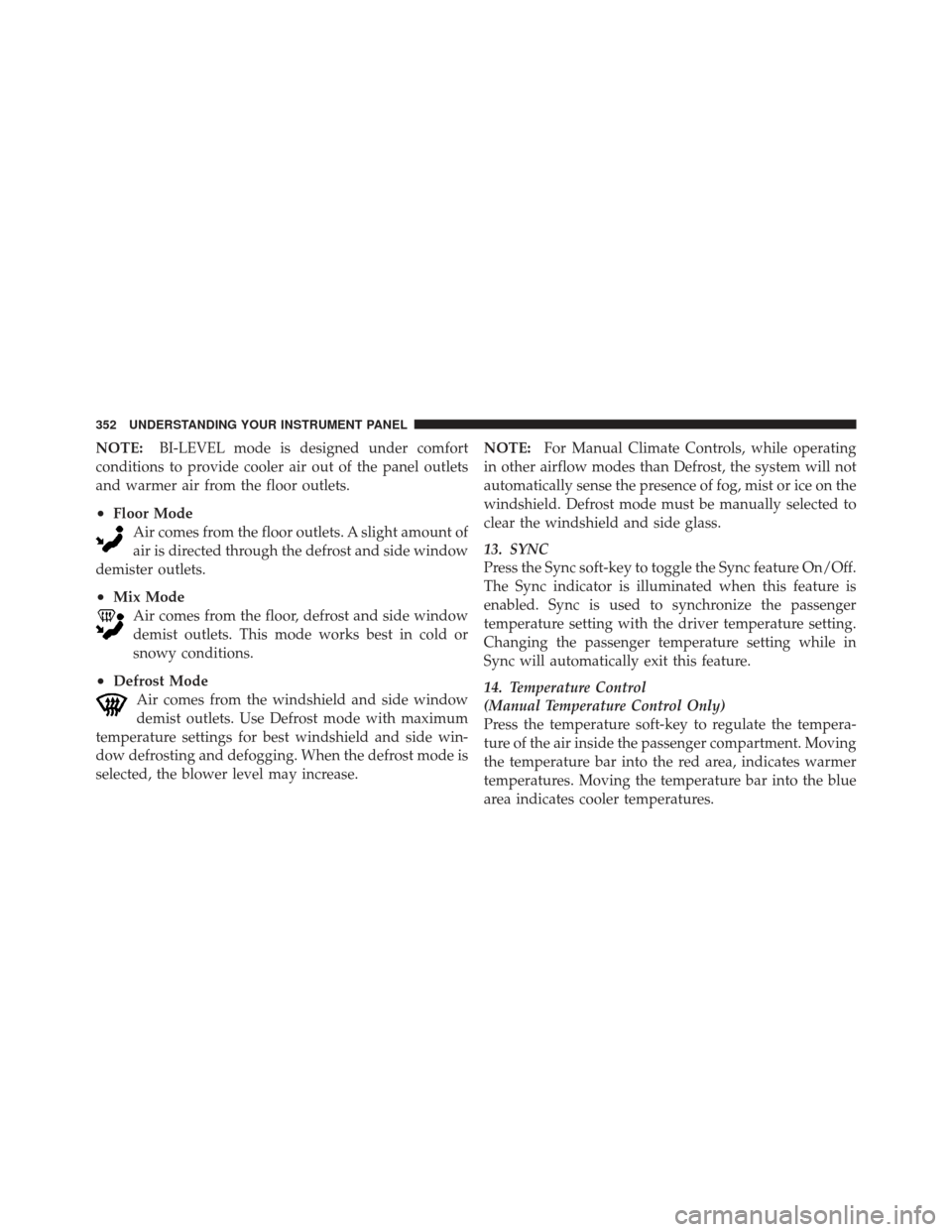

NOTE:BI-LEVEL mode is designed under comfort
conditions to provide cooler air out of the panel outlets
and warmer air from the floor outlets.
•Floor Mode Air comes from the floor outlets. A slight amount of
air is directed through the defrost and side window
demister outlets.
•Mix Mode Air comes from the floor, defrost and side window
demist outlets. This mode works best in cold or
snowy conditions.
•Defrost Mode Air comes from the windshield and side window
demist outlets. Use Defrost mode with maximum
temperature settings for best windshield and side win-
dow defrosting and defogging. When the defrost mode is
selected, the blower level may increase. NOTE:
For Manual Climate Controls, while operating
in other airflow modes than Defrost, the system will not
automatically sense the presence of fog, mist or ice on the
windshield. Defrost mode must be manually selected to
clear the windshield and side glass.
13. SYNC
Press the Sync soft-key to toggle the Sync feature On/Off.
The Sync indicator is illuminated when this feature is
enabled. Sync is used to synchronize the passenger
temperature setting with the driver temperature setting.
Changing the passenger temperature setting while in
Sync will automatically exit this feature.
14. Temperature Control
(Manual Temperature Control Only)
Press the temperature soft-key to regulate the tempera-
ture of the air inside the passenger compartment. Moving
the temperature bar into the red area, indicates warmer
temperatures. Moving the temperature bar into the blue
area indicates cooler temperatures.
352 UNDERSTANDING YOUR INSTRUMENT PANEL

FlashersHazard Warning ..................... 464
Turn Signal .................... 85,204,290
Flat Tire Changing ....................... 465
Flexible Fuel Vehicles Cruising Range ...................... 443
Engine Oil ......................... 442
Fuel Requirements ................. 440,441
Maintenance ........................ 443
Replacement Parts .................... 443
Starting ........................... 443
Flooded Engine Starting ................... 367
Floor Console .......................... 279
Fluid Capacities ......................... 538
Fluid Leaks ............................. 85
Fluid Level Checks Automatic Transmission ................ 517
Brake ............................. 514
Cooling System ...................... 509 Engine Oil
......................... 495
Transfer Case ....................... 518
Fluid, Brake ........................... 540
Fluids ................................ 539
Fluids, Lubricants and Genuine Parts .......... 539
Fog Lights .......................... 203,290
Folding Rear Seat ........................ 191
Forward Collision Warning ..............243,304
Freeing A Stuck Vehicle ................... 479
Fuel ................................. 436
Additives .......................... 439
Clean Air .......................... 437
Conserving ......................... 310
Ethanol ........................... 437
Filler Door (Gas Cap) .................. 294
Gasoline ........................... 436
Gauge ............................ 294
Light ............................. 304
Materials Added ..................... 439
576 INDEX

Fog ............................203,290
Hazard Warning Flasher ............... 464
Headlight Switch ..................... 199
Headlights ...................... 199,535
Headlights On Reminder ............... 202
Headlights On With Wipers ..........200,211
High Beam ......................... 205
High Beam Indicator .................. 290
High Beam/Low Beam Select ............ 205
Illuminated Entry ..................... 20
Instrument Cluster ................... 199
Intensity Control ..................... 207
Interior ............................ 207
License ............................ 537
Lights On Reminder .................. 202
Low Fuel .......................... 304
Malfunction Indicator (Check Engine) ...... 293
Map Reading ....................... 205
Parade Mode (Daytime Brightness) ........ 209Passing
............................ 205
Reading ........................ 205,256
Seat Belt Reminder ................... 298
Security Alarm (Theft Alarm) ............ 295
Service ......................... 533,534
Service Engine Soon
(Malfunction Indicator) ................ 293
SmartBeams ........................ 200
Theft Alarm (Security Alarm) ............ 295
Tire Pressure Monitoring (TPMS) .......291,426
Traction Control ..................... 402
Turn Signal ....................... 85,204
Vanity Mirror ........................ 98
Warning (Instrument Cluster Description) . . . 290
Load Leveling System .................... 283
Loading Vehicle ...................... 447,449
Capacities .......................... 449
Tires .............................. 409
580 INDEX
