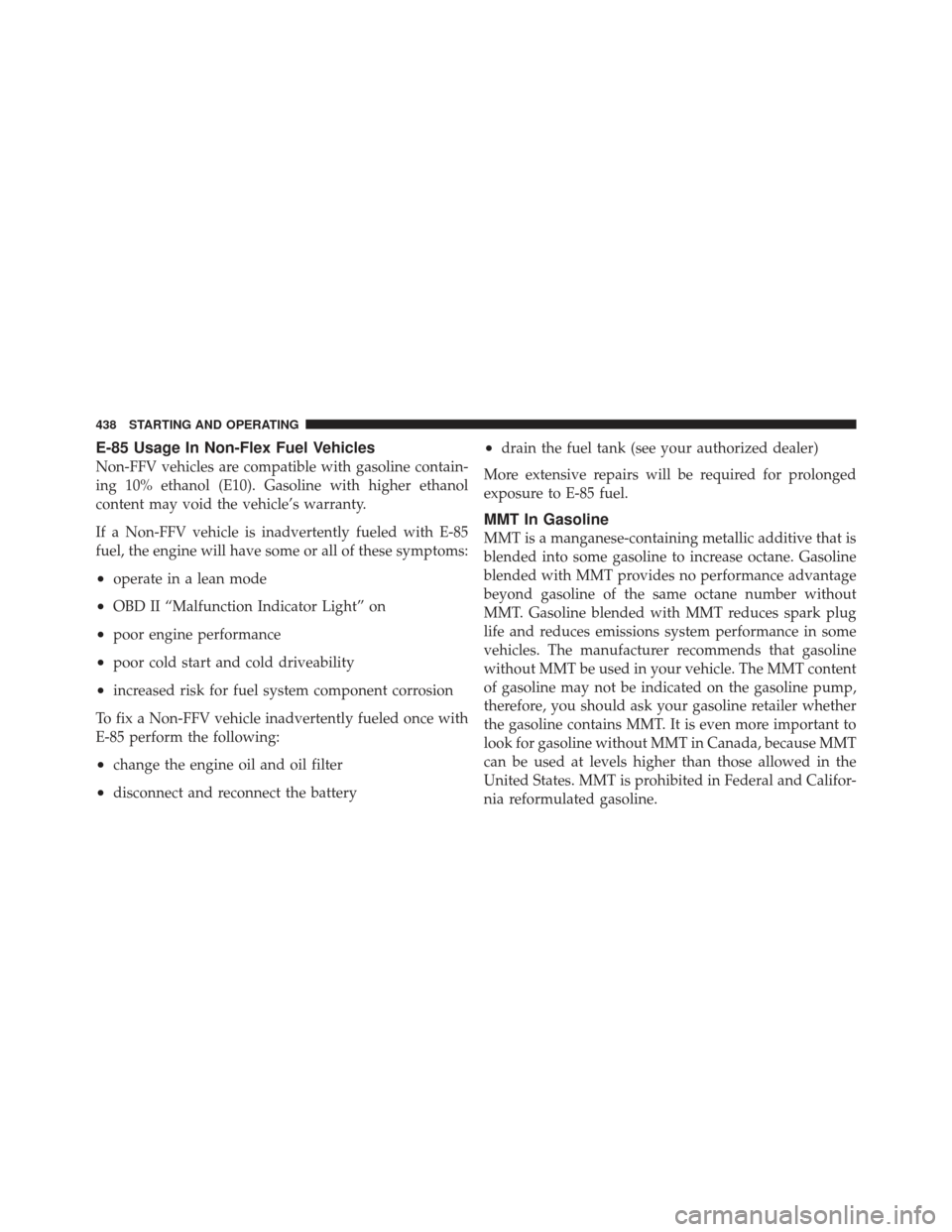

E-85 Usage In Non-Flex Fuel Vehicles
Non-FFV vehicles are compatible with gasoline contain-
ing 10% ethanol (E10). Gasoline with higher ethanol
content may void the vehicle’s warranty.
If a Non-FFV vehicle is inadvertently fueled with E-85
fuel, the engine will have some or all of these symptoms:
•operate in a lean mode
•OBD II “Malfunction Indicator Light” on
•poor engine performance
•poor cold start and cold driveability
•increased risk for fuel system component corrosion
To fix a Non-FFV vehicle inadvertently fueled once with
E-85 perform the following:
•change the engine oil and oil filter
•disconnect and reconnect the battery
•drain the fuel tank (see your authorized dealer)
More extensive repairs will be required for prolonged
exposure to E-85 fuel.
MMT In Gasoline
MMT is a manganese-containing metallic additive that is
blended into some gasoline to increase octane. Gasoline
blended with MMT provides no performance advantage
beyond gasoline of the same octane number without
MMT. Gasoline blended with MMT reduces spark plug
life and reduces emissions system performance in some
vehicles. The manufacturer recommends that gasoline
without MMT be used in your vehicle. The MMT content
of gasoline may not be indicated on the gasoline pump,
therefore, you should ask your gasoline retailer whether
the gasoline contains MMT. It is even more important to
look for gasoline without MMT in Canada, because MMT
can be used at levels higher than those allowed in the
United States. MMT is prohibited in Federal and Califor-
nia reformulated gasoline.
438 STARTING AND OPERATING

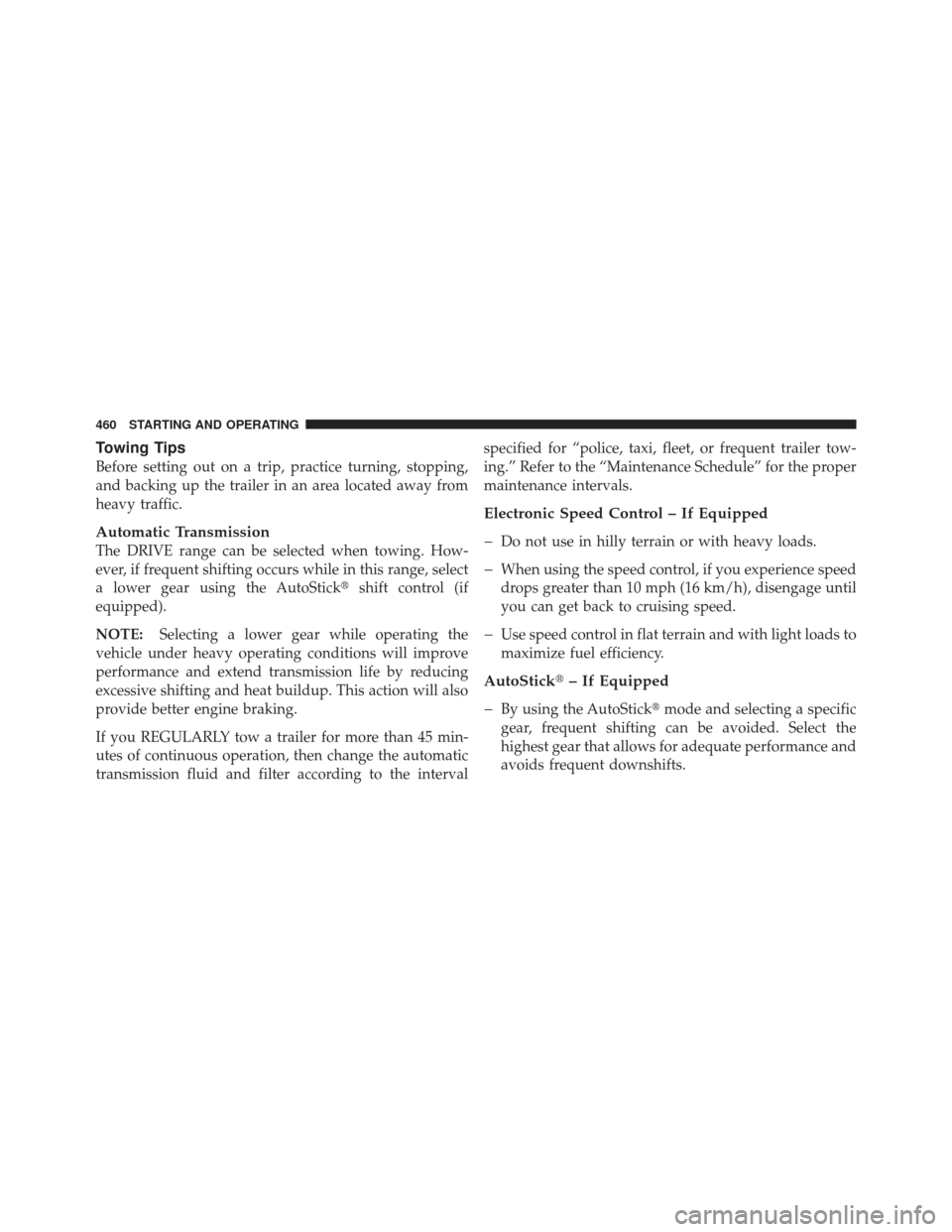

Towing Tips
Before setting out on a trip, practice turning, stopping,
and backing up the trailer in an area located away from
heavy traffic.
Automatic Transmission
The DRIVE range can be selected when towing. How-
ever, if frequent shifting occurs while in this range, select
a lower gear using the AutoStickshift control (if
equipped).
NOTE: Selecting a lower gear while operating the
vehicle under heavy operating conditions will improve
performance and extend transmission life by reducing
excessive shifting and heat buildup. This action will also
provide better engine braking.
If you REGULARLY tow a trailer for more than 45 min-
utes of continuous operation, then change the automatic
transmission fluid and filter according to the interval specified for “police, taxi, fleet, or frequent trailer tow-
ing.” Refer to the “Maintenance Schedule” for the proper
maintenance intervals.
Electronic Speed Control – If Equipped

Do not use in hilly terrain or with heavy loads.
When using the speed control, if you experience speed
drops greater than 10 mph (16 km/h), disengage until
you can get back to cruising speed.
Use speed control in flat terrain and with light loads to
maximize fuel efficiency.
AutoStick
– If Equipped

By using the AutoStick mode and selecting a specific
gear, frequent shifting can be avoided. Select the
highest gear that allows for adequate performance and
avoids frequent downshifts.
460 STARTING AND OPERATING

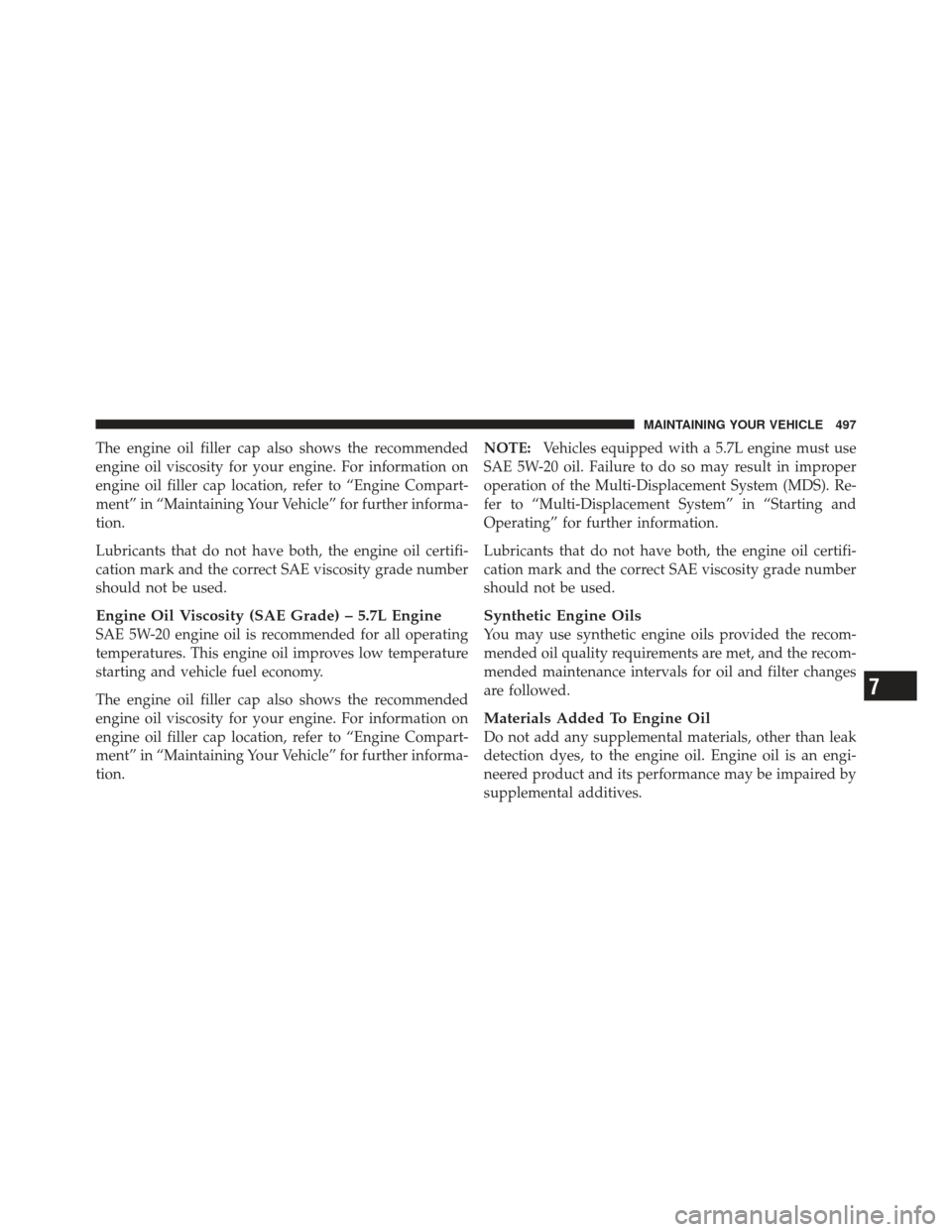

The engine oil filler cap also shows the recommended
engine oil viscosity for your engine. For information on
engine oil filler cap location, refer to “Engine Compart-
ment” in “Maintaining Your Vehicle” for further informa-
tion.
Lubricants that do not have both, the engine oil certifi-
cation mark and the correct SAE viscosity grade number
should not be used.
Engine Oil Viscosity (SAE Grade) – 5.7L Engine
SAE 5W-20 engine oil is recommended for all operating
temperatures. This engine oil improves low temperature
starting and vehicle fuel economy.
The engine oil filler cap also shows the recommended
engine oil viscosity for your engine. For information on
engine oil filler cap location, refer to “Engine Compart-
ment” in “Maintaining Your Vehicle” for further informa-
tion.NOTE:
Vehicles equipped with a 5.7L engine must use
SAE 5W-20 oil. Failure to do so may result in improper
operation of the Multi-Displacement System (MDS). Re-
fer to “Multi-Displacement System” in “Starting and
Operating” for further information.
Lubricants that do not have both, the engine oil certifi-
cation mark and the correct SAE viscosity grade number
should not be used.
Synthetic Engine Oils
You may use synthetic engine oils provided the recom-
mended oil quality requirements are met, and the recom-
mended maintenance intervals for oil and filter changes
are followed.
Materials Added To Engine Oil
Do not add any supplemental materials, other than leak
detection dyes, to the engine oil. Engine oil is an engi-
neered product and its performance may be impaired by
supplemental additives.
7
MAINTAINING YOUR VEHICLE 497

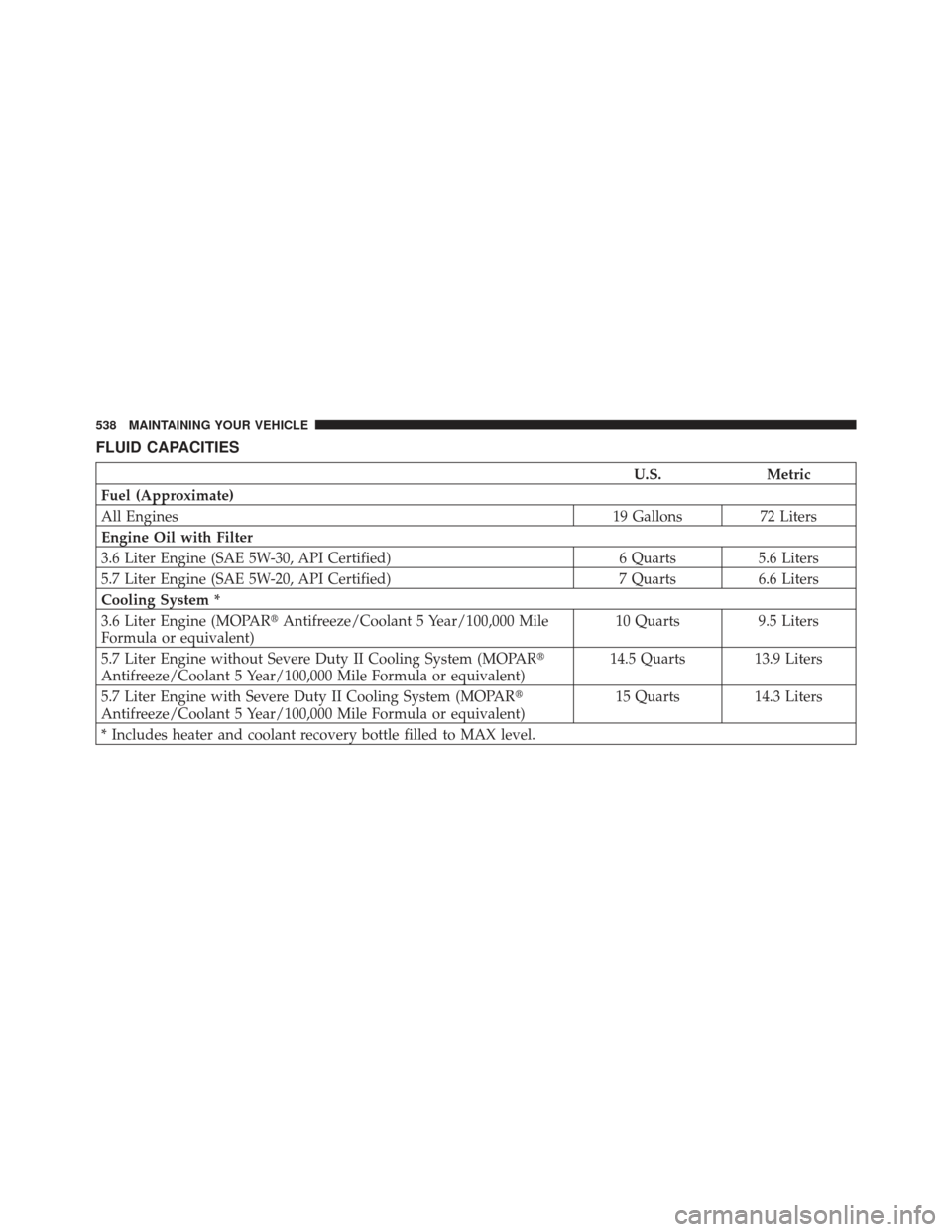

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate)
All Engines 19 Gallons72 Liters
Engine Oil with Filter
3.6 Liter Engine (SAE 5W-30, API Certified) 6 Quarts5.6 Liters
5.7 Liter Engine (SAE 5W-20, API Certified) 7 Quarts6.6 Liters
Cooling System *
3.6 Liter Engine (MOPAR Antifreeze/Coolant 5 Year/100,000 Mile
Formula or equivalent) 10 Quarts
9.5 Liters
5.7 Liter Engine without Severe Duty II Cooling System (MOPAR
Antifreeze/Coolant 5 Year/100,000 Mile Formula or equivalent) 14.5 Quarts 13.9 Liters
5.7 Liter Engine with Severe Duty II Cooling System (MOPAR
Antifreeze/Coolant 5 Year/100,000 Mile Formula or equivalent) 15 Quarts
14.3 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
538 MAINTAINING YOUR VEHICLE

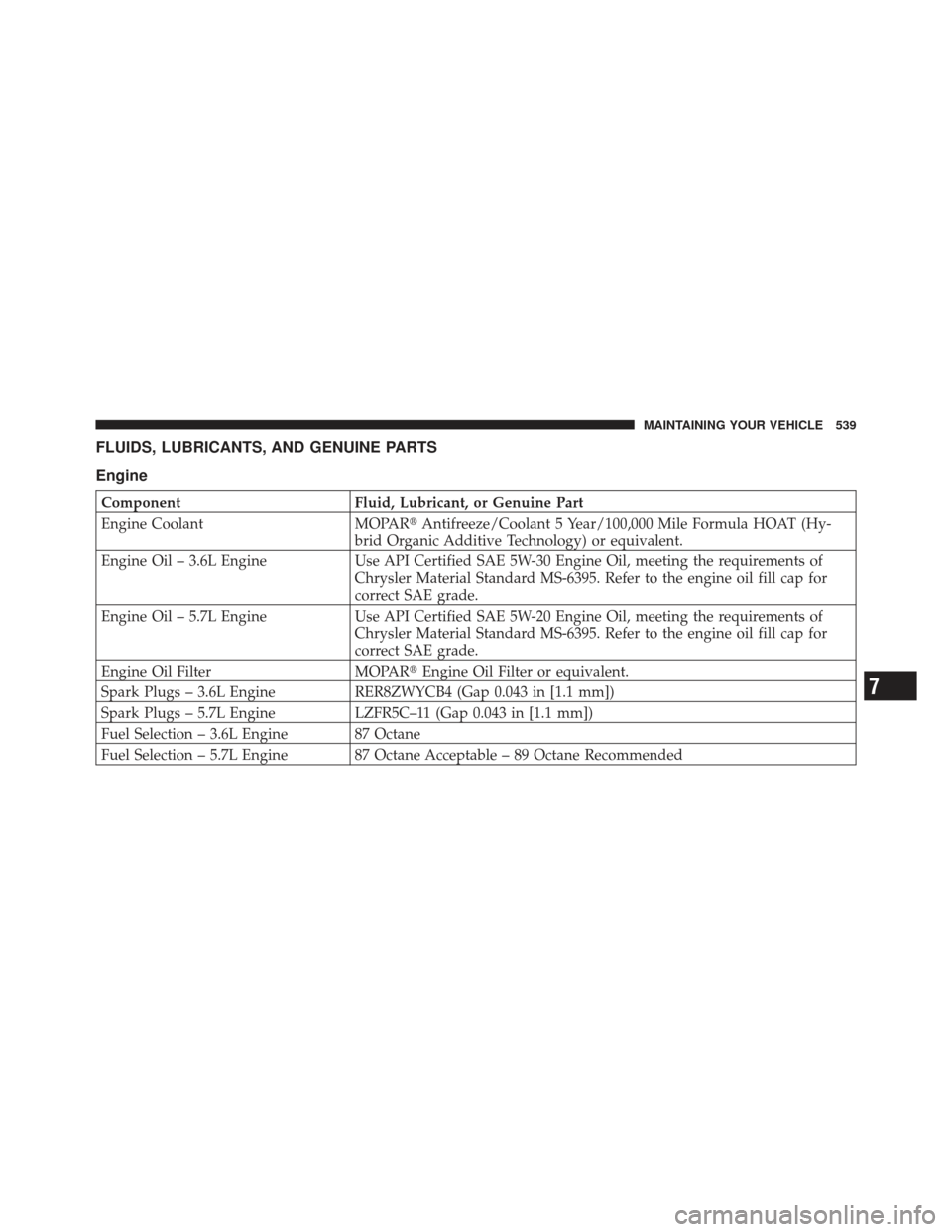

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant MOPARAntifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hy-
brid Organic Additive Technology) or equivalent.
Engine Oil – 3.6L Engine Use API Certified SAE 5W-30 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to the engine oil fill cap for
correct SAE grade.
Engine Oil – 5.7L Engine Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to the engine oil fill cap for
correct SAE grade.
Engine Oil Filter MOPAREngine Oil Filter or equivalent.
Spark Plugs – 3.6L Engine RER8ZWYCB4 (Gap 0.043 in [1.1 mm])
Spark Plugs – 5.7L Engine LZFR5C–11 (Gap 0.043 in [1.1 mm])
Fuel Selection – 3.6L Engine 87 Octane
Fuel Selection – 5.7L Engine 87 Octane Acceptable – 89 Octane Recommended
7
MAINTAINING YOUR VEHICLE 539

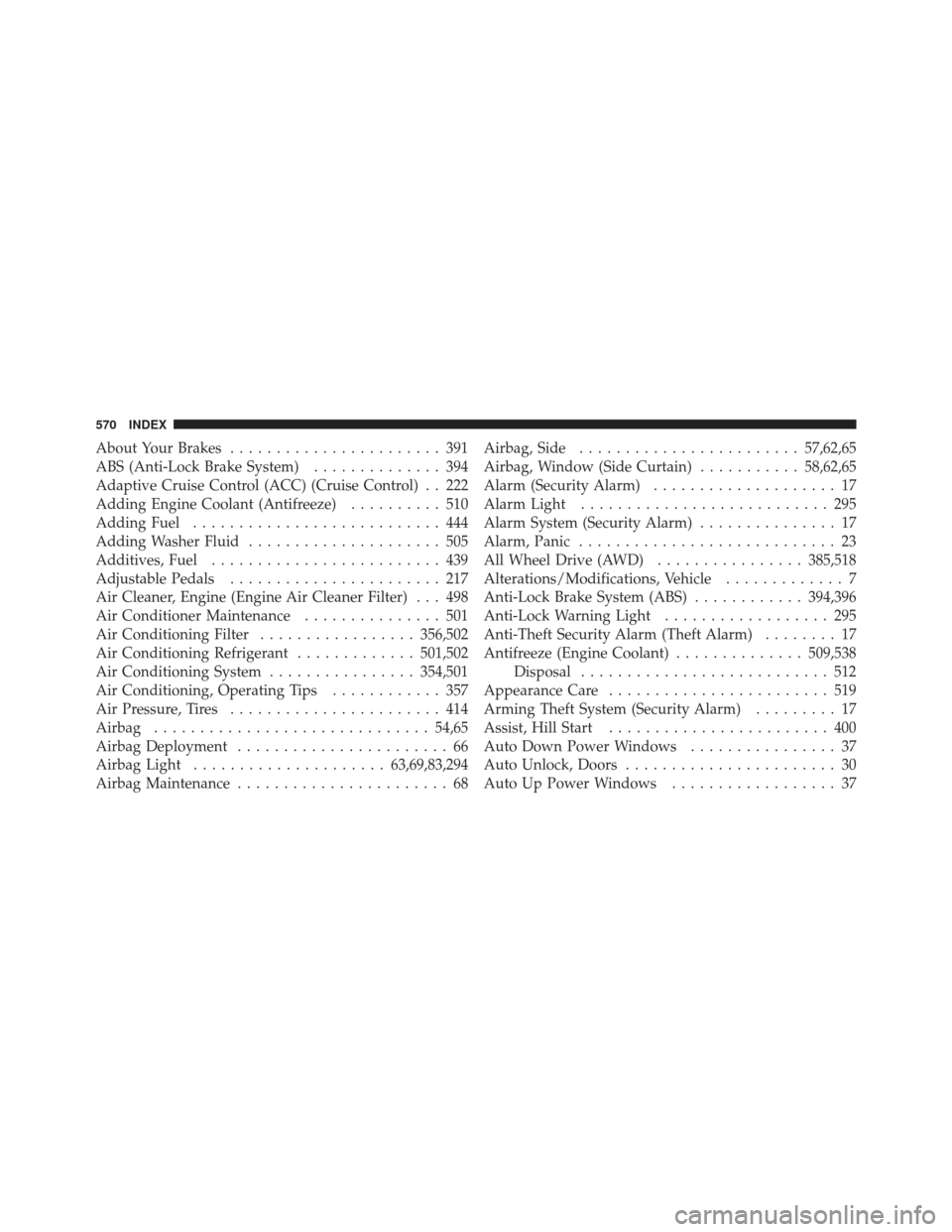

About Your Brakes....................... 391
ABS (Anti-Lock Brake System) .............. 394
Adaptive Cruise Control (ACC) (Cruise Control) . . 222
Adding Engine Coolant (Antifreeze) .......... 510
Adding Fuel ........................... 444
Adding Washer Fluid ..................... 505
Additives, Fuel ......................... 439
Adjustable Pedals ....................... 217
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 498
Air Conditioner Maintenance ............... 501
Air Conditioning Filter .................356,502
Air Conditioning Refrigerant .............501,502
Air Conditioning System ................354,501
Air Conditioning, Operating Tips ............ 357
Air Pressure, Tires ....................... 414
Airbag .............................. 54,65
Airbag Deployment ....................... 66
Airbag Light ..................... 63,69,83,294
Airbag Maintenance ....................... 68 Airbag, Side
........................ 57,62,65
Airbag, Window (Side Curtain) ...........58,62,65
Alarm (Security Alarm) .................... 17
Alarm Light ........................... 295
Alarm System (Security Alarm) ............... 17
Alarm, Panic ............................ 23
All Wheel Drive (AWD) ................385,518
Alterations/Modifications, Vehicle ............. 7
Anti-Lock Brake System (ABS) ............394,396
Anti-Lock Warning Light .................. 295
Anti-Theft Security Alarm (Theft Alarm) ........ 17
Antifreeze (Engine Coolant) ..............509,538
Disposal ........................... 512
Appearance Care ........................ 519
Arming Theft System (Security Alarm) ......... 17
Assist, Hill Start ........................ 400
Auto Down Power Windows ................ 37
Auto Unlock, Doors ....................... 30
Auto Up Power Windows .................. 37
570 INDEX

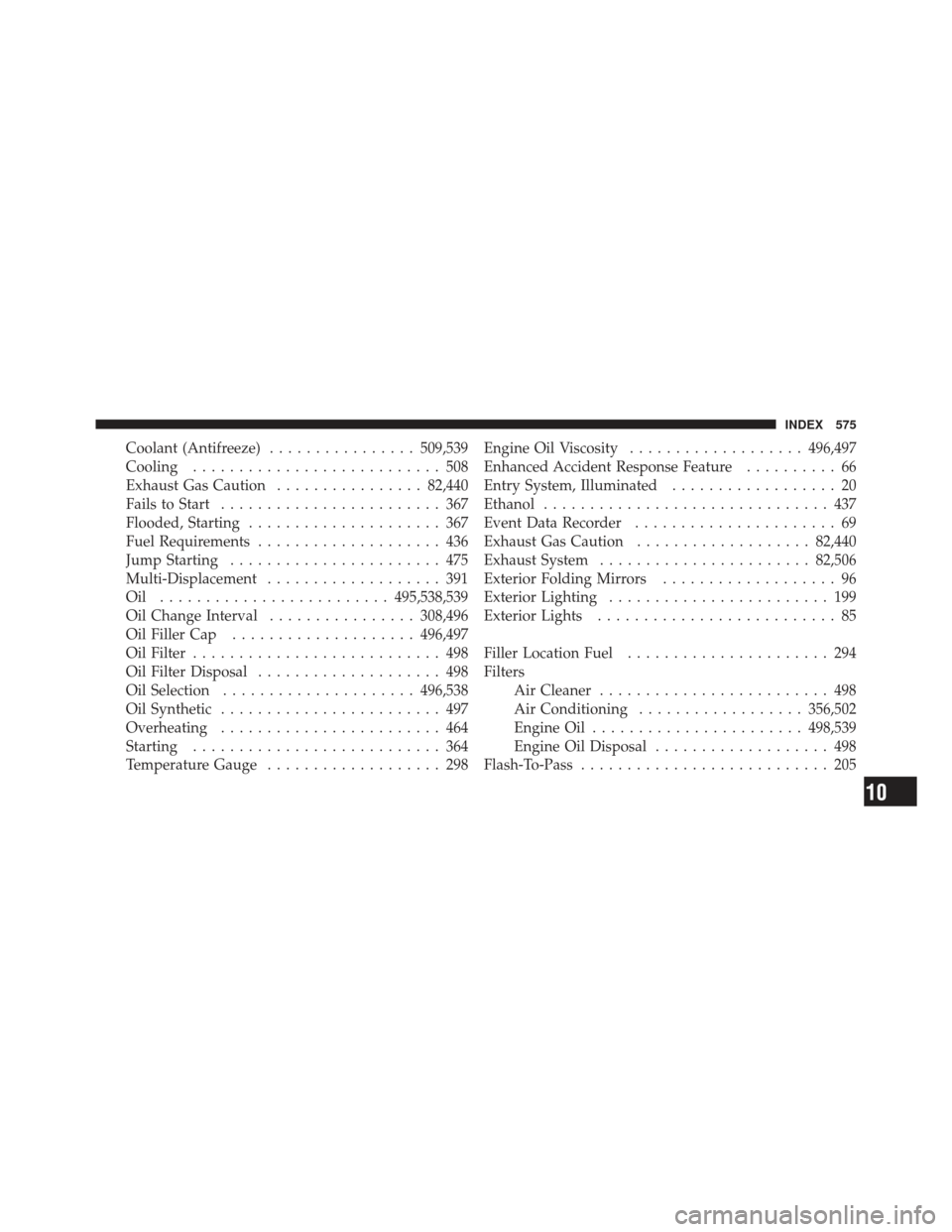

Coolant (Antifreeze)................ 509,539
Cooling ........................... 508
Exhaust Gas Caution ................82,440
Fails to Start ........................ 367
Flooded, Starting ..................... 367
Fuel Requirements .................... 436
Jump Starting ....................... 475
Multi-Displacement ................... 391
Oil ......................... 495,538,539
Oil Change Interval ................ 308,496
Oil Filler Cap .................... 496,497
Oil Filter ........................... 498
Oil Filter Disposal .................... 498
Oil Selection ..................... 496,538
Oil Synthetic ........................ 497
Overheating ........................ 464
Starting ........................... 364
Temperature Gauge ................... 298 Engine Oil Viscosity
................... 496,497
Enhanced Accident Response Feature .......... 66
Entry System, Illuminated .................. 20
Ethanol ............................... 437
Event Data Recorder ...................... 69
Exhaust Gas Caution ................... 82,440
Exhaust System ....................... 82,506
Exterior Folding Mirrors ................... 96
Exterior Lighting ........................ 199
Exterior Lights .......................... 85
Filler Location Fuel ...................... 294
Filters Air Cleaner ......................... 498
Air Conditioning .................. 356,502
Engine Oil ....................... 498,539
Engine Oil Disposal ................... 498
Flash-To-Pass ........................... 205
10
INDEX 575

Monitor, Tire Pressure System............... 426
Mopar Parts ......................... 493,564
MTBE/ETBE ........................... 437
Multi-Displacement Engine System ........... 391
Multi-Function Control Lever ............... 204
Navigation System (Uconnect™ gps) .......... 254
New Vehicle Break-In Period ................ 81
Occupant Restraints ................... 41,62,66
Occupant Restraints (Sedan) ...........57,58,62,65
Octane Rating, Gasoline (Fuel) .............. 539
Odometer ............................. 290
Oil Change Indicator .................. 291,308
Oil Change Indicator, Reset ..............291,308
Oil Filter, Change ........................ 498
Oil Filter, Selection ....................... 498
Oil, Engine ......................... 495,539
Capacity ........................... 538 Change Interval
................... 308,496
Checking .......................... 495
Dipstick ........................... 495
Disposal ........................... 498
Filter .......................... 498,539
Filter Disposal ....................... 498
Identification Logo ................... 496
Materials Added to ................... 497
Recommendation .................. 496,538
Synthetic .......................... 497
Viscosity ..................... 496,497,538
Onboard Diagnostic System ................ 491
Opener, Garage Door (HomeLink®) ........... 258
Operating Precautions .................... 491
Operator Manual (Owner’s Manual) ............ 4
Outside Rearview Mirrors .................. 95
Overdrive ............................. 381
Overdrive OFF Switch .................... 381
Overhead Console ....................... 256
582 INDEX
