2012 DACIA SANDERO height adjustment

front seat adjustment ............................(up to the end of the DU)
front seats adjustment ...................................... (up to the end of the DU)
1.9
ENG_UD17772_6
Sièges avant (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_1

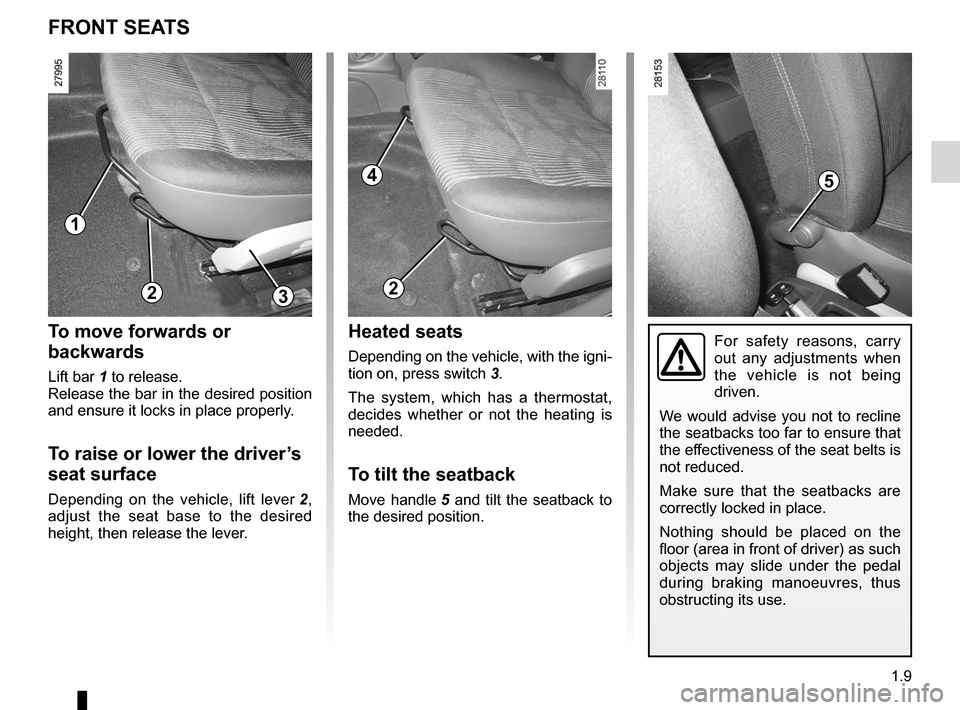

Front seats
FRONT SEATS
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
We would advise you not to recline
the seatbacks too far to ensure that
the effectiveness of the seat belts is
not reduced.
Make sure that the seatbacks are
correctly locked in place.
Nothing should be placed on the
floor (area in front of driver) as such
objects may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
1
23
4
2
5
To move forwards or
backwards
Lift bar 1 to release.
Release the bar in the desired position
and ensure it locks in place properly.
To raise or lower the driver’s
seat surface
Depending on the vehicle, lift lever 2 ,
adjust the seat base to the desired
height, then release the lever.
Heated seats
Depending on the vehicle, with the igni -
tion on, press switch 3.
The system, which has a thermostat,
decides whether or not the heating is
needed.
To tilt the seatback
Move handle 5 and tilt the seatback to
the desired position.

clock ..................................................... (up to the end of the DU)
clock ..................................................... (up to the end of the DU)
control instruments ................................................ (current page)
steering wheel adjustment ...................................... (up to the end of the DU)
1.10
ENG_UD20447_10
Volant de direction/Heure (B90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - Dacia)
ENG_NU_817-9_B90_Dacia_1
Steering wheel, Clock
STEERING WHEEL, CLOCK
Adjusting the steering wheel
Depending on the vehicle version, the
height of the steering wheel can be ad-
justed. Lift lever 1 and place the steer-
ing wheel in the desired position; lower
the lever to lock the steering wheel.
Make sure that the steering wheel is
correctly locked.
For safety reasons, only
adjust the steering wheel
when the vehicle is station-
ary.
If the electrical supply is cut (battery
disconnected, broken supply wire,
etc.), the clock will lose its time set-
ting.
The clock must be reset.
Resetting the clock
With the ignition on, select display 2
showing the total mileage and clock.
There are two ways to set the time:
– Pressing and holding button 3 allows
you to scroll through the hours and
minutes quickly;
– short presses on button 3 allow you
to set the time minute by minute.
2
1
For your safety, we recom -
mend that you do not adjust
the clock while driving.
2
3

adjusting your driving position .............. (up to the end of the DU)
1.11
ENG_UD22593_8
Ceintures de sécurité (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_1

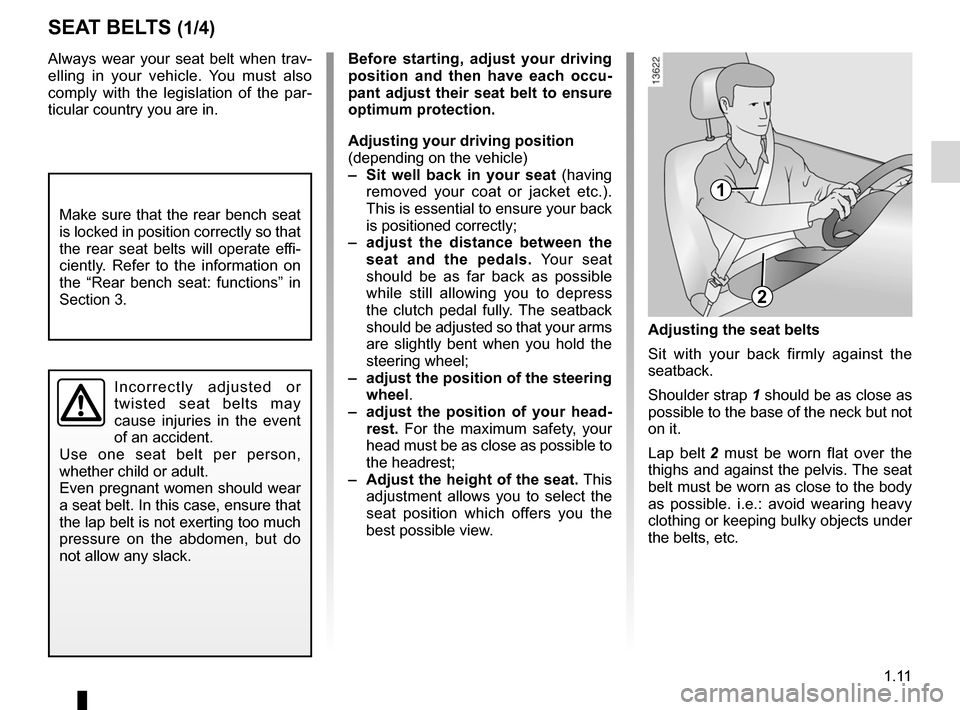

Seat belts
Always wear your seat belt when trav-
elling in your vehicle. You must also
comply with the legislation of the par -
ticular country you are in.
Make sure that the rear bench seat
is locked in position correctly so that
the rear seat belts will operate effi -
ciently. Refer to the information on
the “Rear bench seat: functions” in
Section 3.
I n c o r r e c t l y a d j u s t e d o r
twisted seat belts may
cause injuries in the event
of an accident.
Use one seat belt per person,
whether child or adult.
Even pregnant women should wear
a seat belt. In this case, ensure that
the lap belt is not exerting too much
pressure on the abdomen, but do
not allow any slack.
Before starting, adjust your driving
position and then have each occu -
pant adjust their seat belt to ensure
optimum protection.
Adjusting your driving position
(depending on the vehicle)
– Sit well back in your seat (having
removed your coat or jacket etc.).
This is essential to ensure your back
is positioned correctly;
– adjust the distance between the
seat and the pedals. Your seat
should be as far back as possible
while still allowing you to depress
the clutch pedal fully. The seatback
should be adjusted so that your arms
are slightly bent when you hold the
steering wheel;
– adjust the position of the steering
wheel.
– adjust the position of your head -
rest. For the maximum safety, your
head must be as close as possible to
the headrest;
– Adjust the height of the seat. This
adjustment allows you to select the
seat position which offers you the
best possible view. Adjusting the seat belts
Sit with your back firmly against the
seatback.
Shoulder strap 1 should be as close as
possible to the base of the neck but not
on it.
Lap belt
2 must be worn flat over the
thighs and against the pelvis. The seat
belt must be worn as close to the body
as possible. i.e.: avoid wearing heavy
clothing or keeping bulky objects under
the belts, etc.
1
2
SEAT BELTS (1/4)

rear screendemisting ......................................................... (current page)
JauneNoirNoir texte
1.37
ENG_UD25096_5
Poste de conduite direction à gauche (B90 - L90 Ph2 - F90 Ph2 - R90 \
Ph2 - Dacia)
ENG_NU_817-9_B90_Dacia_1
DRIVER’S POSITION, LEFT-HAND DRIVE (2/2)
The presence of the equipment DEPENDS ON THE VEHICLE VERSION AND COUNTRY.
1 Side air vent.
2 Demister outlet.
3 Stalk for:
– direction indicator lights,
– exterior lights,
– front fog lights,
– rear fog lights,
– horn.
4 Instrument panel.
5 Location for driver’s air bag.
6 Steering column stalk for wind -
screen and rear screen wash/wipe.
On-board computer information re-
adout control.
7 Centre air vents.
8 Location for passenger air bag or
storage compartment.
9 Demister outlet. 10 Side air vent.
11 Passenger air bag activation/deac-
tivation switch.
12 Glove box.
13 Location for radio or storage com-
partment.
14 Electric window control.
15 Central door locking switch.
16 Hazard warning lights switch.
17 Heating and ventilation controls.
18 Cigar lighter.
19 Handbrake.
20 Rear window electric locking con -
trol.
21 Electric door mirror control.
22 Location for ashtray or cup holder.
23 Gear lever.
24 Heated rear screen control.
25 Electric window control.
26 Ignition switch.
27 Headlight beam height adjustment
control.
28 Bonnet release.
29 Fuse flap.

JauneNoirNoir texte
1.39
ENG_UD18230_3
Poste de conduite direction à droite (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_1
1 Side air vent.
2 Demister outlet.
3 Storage compartment or location
for passenger air bag.
4 Centre air vents.
5 Stalk for:
– direction indicator lights,
– exterior lights,
– front fog lights,
– rear fog lights.
6 Instrument panel.
7 Location for driver’s air bag (de -
pending on vehicle).
8 Windscreen wiper/washer stalk.
On-board computer information re-
adout control.
9 Demister outlet.
22 Rear window electric locking con -
trol
23 Electric door mirror control.
24 Location for ashtray or cup holder.
25 Gear lever.
26 Heated rear screen control.
27 Electric window control.
28 Glove box.
29 Passenger air bag activation/deac -
tivation switch.
DRIVER’S POSITION, RIGHT -HAND DRIVE (2/2)
The presence of the equipment DEPENDS ON THE VEHICLE VERSION AND COUNTRY.
10 Side air vent.
11 Fuse box.
12 Bonnet release.
13 Headlight beam height adjustment
control.
14 Ignition switch.
15 Location for radio or storage com-
partment.
16 Electric window control.
17 Central locking switch.
18 Hazard warning lights switch.
19 Heating and ventilation controls.
20 Cigar lighter.
21 Handbrake.

lights:adjusting ......................................... (up to the end of the DU)
lights ..................................................... (up to the end of the DU)
lights adjustment ...................................... (up to the end of the DU)
headlight beam adjustment .................. (up to the end of the DU)
1.51
ENG_UD18234_5
Réglage de la hauteur des faisceaux (B90 - L90 Ph2 - F90 Ph2 - R90 P\
h2 - Dacia)
ENG_NU_817-9_B90_Dacia_1
Adjusting the headlight beam height
ADJUSTMENT OF HEADLIGHT BEAM HEIGHT
Control A is used to adjust the height
of the headlight beams according to the
load.
Turn control A anticlockwise to lower
the beams and clockwise to raise them.
Vehicle load conditions Setting position
of control A
Basic setting: luggage compartment empty and only the
driver on board or with one front passenger. 0
Luggage compartment empty, 1, 2, 3 passengers 1
Luggage compartment full, 3 passengers 2
Luggage compartment full, driver only 3
A
