2012 DACIA SANDERO engine

6.1
ENG_UD25176_11
Sommaire 6 (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_6
Section 6: Technical specifications
Vehicle identification plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.2
Engine specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.4
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.5
Weights/Towing weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.6
Replacement parts and repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.7
Service sheets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.8
Anticorrosion check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.14

JauneNoirNoir texte
6.3
ENG_UD22608_6
Plaques identification (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_6

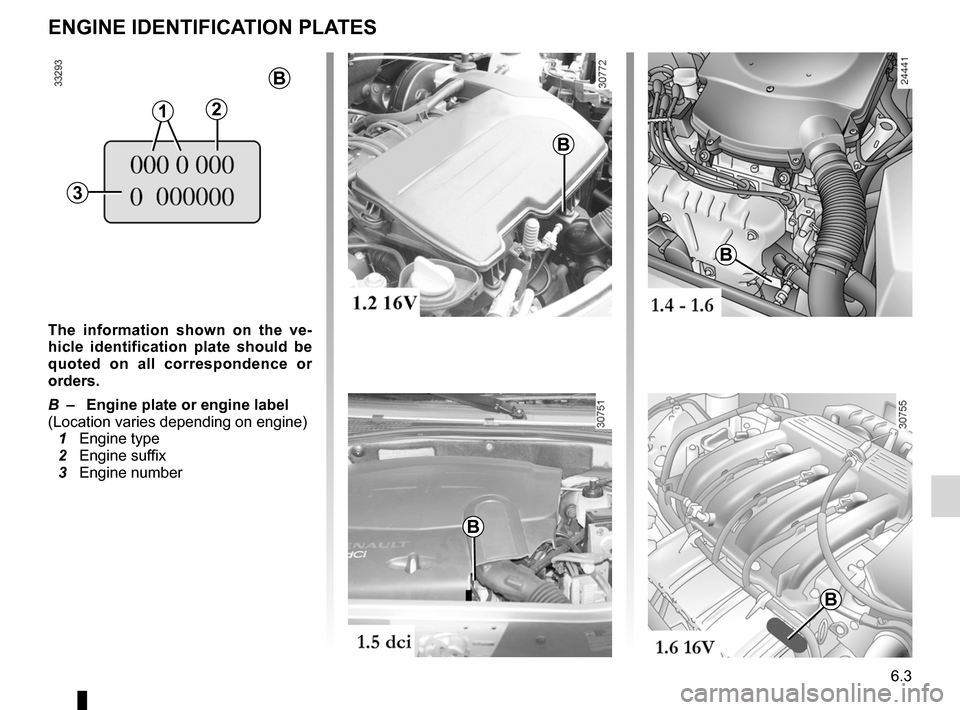

ENGINE IDENTIFICATION PLATES
The information shown on the ve -
hicle identification plate should be
quoted on all correspondence or
orders.
B – Engine plate or engine label
(Location varies depending on engine)
1 Engine type
2 Engine suffix
3 Engine number
B
B
B
B
B
3
21

engine specifications ............................ (up to the end of the DU)
technical specifications ......................... (up to the end of the DU)
fuel grade ............................................... (up to the end of the DU)
engine technical specifications ................... (up to the end of the DU)
6.4
ENG_UD18029_4
Caractéristiques moteur (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_6
Engine specifications
ENGINE SPECIFICATIONS
Versions 1.2 16V1.41.61.6 16V 1.5 dCi
Engine type
(see engine plate) D4F
K7JK7M K4MK9K Turbo
Cubic capacity (cc) 1,1491,390 1,5981,461
Type of fuel
Octane rating It is
essential that you use unleaded petrol of the octane rating stated on
the label inside the fuel filler flap.
If not available, for a limited time only, use unleaded fuel:
– with an octane rating of 91 for a label with the ratings 95 or 98;
– with an octane rating of 87 for a label showing 91, 95 or 98. Diesel.
The label
located in the fuel filler flap
indicates the
authorised fuels.
Spark plugs Only use the spark plugs specified for your vehicle’s engine.
The type should be marked on a label affixed inside the engine compart-
ment. If it is not, contact an approved dealer.
Fitting spark plugs which are not to specification may damage the engine.

technical specifications ......................... (up to the end of the DU)
weight ................................................... (up to the end of the DU)
towing ................................................... (up to the end of the DU)
towing a caravan ................................................... (current page)
towing weights ....................................................... (current page)
weights .................................................................. (current page)
6.6
ENG_UD22397_6
Masses (en kg) (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_6
Weights/Towing weights
WEIGHTS (in kg)
The weights indicated for a basic vehicle without options: they vary depending on the your vehicle’s equipment.
Consult your approved Dealer.
Maximum permissible all-up weight (MMAC)
Maximum permissible all-up weight (MMTA)
Total train weight (MTR) Weights are indicated on the vehicle identification plate (refer to
the information on “Vehicle identification plates” in Section 6)
Braked Trailer Weight* obtained by calculating: MTR - MMAC
Unbraked Trailer Weight* 525
Permissible nose weight* 60
Maximum permissible load on roof 80 kg (including carrying device)
* Towing weight (towing a caravan, boat, etc.)
Towing is prohibited when the calculation MTR (Total train weight) - MMAC (Maximum permissible all-up weight) is zero\
.
– It is important to comply with the towing weights, governed by local legislation in each country and, in particular, laid down in
the Road Traffic Regulations. Contact an approved Dealer about any towing equipment.
– When towing, under no circumstances may the total train weight (vehicle + trailer) be exceeded . However the following is
permitted:
– the Maximum permissible weight at the rear may be exceeded by no more than 15%,
– the maximum permissible all-up weight may be exceeded by no more than 10% or 100 kg (whichever occu\
rs first).
In either case, the maximum speed of the towing assembly must not exceed 60 mph (100 km/h) and the tyre pressure must
be increased by 0.2 bar (3 PSI).
– The engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced by
10% at an altitude of 1,000 metres and by an additional 10% for each 1,0\
00 metres thereafter.
Weight transfer (except utility version)
If the Maximum Authorised Mass of the vehicle has not been reached, up to 300 kg can be transferred to the braked trailer,
within the limits of the Gross Train Weight.

7.1
FRA_UD25177_11
Index (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_7
AlphAbeticAl index (1/4)
A
ABS ........................................................................\
2.12 – 2.13
accessories........................................................................\
5.33
accessories - installation ................................................... 5.33
accessories socket ............................................................ 3.14
adjusting your driving position ...................... 1.11 → 1.14, 3.17
advice on antipollution ........................................... 5.22 → 5.24
air bag .................................................................... 1.15 → 1.20
activating the front passenger air bags ........................ 1.34
deactivating the front passenger air bags .................... 1.32
air conditioning .................................................... 3.4 – 3.5, 3.9
air vents ...................................................................... 3.2 – 3.3
anti-corrosion check .............................................. 6.14 → 6.18
anti-lock braking system: ABS ................................2.12 – 2.13
antipollution advice .................................................................. 2.6 → 2.8
ashtrays ........................................................................\
..... 3.14
automatic gearbox (use) ........................................ 2.14 → 2.16
automatic gearbox selector lever ...........................2.14 → 2.16
b
battery ........................................................................\
........ 4.12
troubleshooting ................................................. 5.25 – 5.26
battery (remote control) ..................................................... 5.27
bodywork (maintenance) ....................................... 4.13 → 4.15
bonnet ........................................................................\
. 4.2 – 4.3
brake fluid ........................................................................\
.... 4.7
bulbs changing .......................................................... 5.14 → 5.21
c
capacity of mechanical components ...........................4.4, 4.12
catalytic converter ................................................................ 2.4
central door locking ............................................................. 1.5
changing a bulb ..................................................... 5.14 → 5.21
changing a wheel ...................................................... 5.9 – 5.10changing gear
........................................................ 2.14 → 2.16
child booster seat .................................................. 1.21 → 1.23
child restraint/seat ................................................. 1.21 → 1.31
child safety ............................................... 1.2, 1.6, 1.21 → 1.31
child seats .............................................................. 1.21 → 1.31
children .............................................................. 1.5 – 1.6, 1.14
cigar lighter ........................................................................\
3.14
clock ........................................................................\
.......... 1.10
closing the doors ................................................................. 1.6
control instruments ....................................... 1.10, 1.40 → 1.50
controls .................................................................. 1.36 → 1.39
courtesy light ..................................................................... 3.10
d
dashboard .............................................................. 1.36 → 1.39
de-icing .................................................................. 1.53 → 1.55
rear screen ................................................................... 1.55
demisting rear screen ..................................................................... 3.7
dimensions ........................................................................\
.. 6.5
dipstick........................................................................\
......... 4.4
doors ........................................................................\
... 1.5 – 1.6
driver’s position ..................................................... 1.36 → 1.39
driving .................................................. 2.2 → 2.9, 2.11 → 2.16
e
electric door locking ............................................................. 1.5
electric windows ..................................................... 3.11 – 3.12
emergency brake assist ..................................................... 2.13
emergency spare wheel ................................. 5.3, 5.11 → 5.13
engine technical specifications .................................................. 6.4
engine coolant ..................................................................... 4.8
engine immobiliser............................................................... 1.7
engine immobiliser (switch) ................................................. 2.2
engine oil ........................................................................\
..... 4.4

7.2
FRA_UD25177_11
Index (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_7
Jaune NoirNoir texte
AlphAbeticAl index (2/4)
engine oil grade .......................................................... 4.5 – 4.6
engine specifications ........................................................... 6.4
environment ........................................................................\
. 2.9
F
faults operating faults ................................................ 5.34 → 5.38
filter ........................................................................\
............ 4.10
air filter ......................................................................... 4.10
diesel filter ........................................................... 1.58, 4.10
oil filter ........................................................................... 4.6
particle filter ................................................................... 2.5
passenger compartment filter ...................................... 4.10
fitting a radio ...................................................................... 5.32
fittings ..................................................................... 3.15 – 3.16
fog lights ........................................................................\
.... 1.50
front passenger air bag deactivation ................................. 1.32
front seat adjustment ........................................................... 1.9
front seats adjustment ..................................................................... 1.9
fuel advice on fuel economy ....................................... 2.6 → 2.8
grade ..................................................................... 1.56, 6.4
fuel economy ............................................................. 2.6 → 2.8
fuel filler cap ...................................................................... 1.56
fuel grade ........................................................................\
... 1.56
fuel level ........................................................................\
.... 1.44
fuel priming bulb ................................................................ 1.58
fuel tank ................................................................. 1.56 → 1.58
fuel tank capacity ............................................................... 1.56
fuses ...................................................................... 5.22 → 5.24
G
gear lever ........................................................................\
... 2.10
glove box ........................................................................\
... 3.15
grab handle ........................................................................\
3.13h
handbrake
........................................................................\
.. 2.11
hazard warning lights signal .............................................. 1.52
headlight beam adjustment ............................................... 1.51
headlight flashers .............................................................. 1.52
headrest ...................................................................... 1.8, 3.17
heating and air conditioning system ................... 3.2 → 3.5, 3.9
heating system .......................................................... 3.2 → 3.9
horn ........................................................................\
........... 1.52
i
ignition switch ...................................................................... 2.2
indicator lights .................................................................... 5.18
indicators .................................................................. 1.52, 5.14
indicators: direction indicators ....................................................... 1.52
instrument panel .................................................... 1.40 → 1.44
interior trim maintenance ..................................................... 4.16 – 4.17
J
jack .................................................................... 5.2, 5.9 – 5.10
K
keys ........................................................................\
.... 1.2 – 1.3
replacing the battery .................................................... 5.27
l
levels .................................................................. 4.4, 4.7 → 4.9
levels: engine oil ....................................................................... 4.5
lifting the vehicle changing a wheel ............................... 5.2 – 5.3, 5.7 → 5.10
lighting: exterior ......................................... 1.49 – 1.50, 5.14 → 5.18
interior ..................................................... 3.10, 5.19 → 5.21

JauneNoirNoir texte
7.3
FRA_UD25177_11
Index (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_7
AlphAbeticAl index (3/4)
lights ...................................................................... 1.49 → 1.51
additional ..................................................................... 5.15
adjustment ................................................................... 1.51
lights: adjusting ...................................................................... 1.51
brake lights ....................................................... 5.16 – 5.17
dipped beam headlights ...................................... 1.49, 5.14
direction indicators .............................................. 1.52, 5.14
fog lights ............................................................. 1.50, 5.15
hazard warning ............................................................ 1.52
main beam headlights ......................................... 1.49, 5.14
reversing lights .................................................. 5.16 – 5.17
side lights ............................................................ 1.49, 5.14
locking the doors .......................................................... 1.4, 1.6
M
maintenance: bodywork ......................................................... 4.13 → 4.15
interior trim ........................................................ 4.16 – 4.17
mechanical ....................... 4.4, 4.7 → 4.9, 4.12, 6.8 → 6.13
mileage before service ....................................... 6.8 → 6.13
methods of restraint in addition to the front seat belts ..............
1.15 → 1.18, 1.20
mirrors ........................................................................\
....... 3.13
O
oil change ........................................................................\
.... 4.6
opening the doors ................................................................ 1.6
operating faults ...................................................... 5.34 → 5.38
overspeed buzzer .............................................................. 1.43
p
paintwork maintenance ................................................................ 4.13
reference ........................................................................ 6.2
power-assisted steering .............................................. 2.11, 4.9power-assisted steering pump
.............................................4.9
practical advice ............................... 1.58, 5.2 – 5.3, 5.7 → 5.38
puncture ............................................................. 5.3, 5.9 – 5.10
R
radio fitting a radio ................................................................ 5.32
radio frequency remote control/key use ................................................................................. 1.2
rear bench seat .................................................................. 3.18
rear parcel shelf ................................................................. 3.21
rear screen demisting ............................................ 1.37, 1.42, 1.54, 3.7
rear view mirrors ................................................................ 1.35
remote control door locking unit ................................1.2 → 1.4
replacement parts ................................................................ 6.7
reverse gear selecting ....................................................................... 2.10
roof bars ........................................................................\
.... 3.20
roof rack roof bars ....................................................................... 3.20
running in ........................................................................\
..... 2.2
S
seat belts ............................................................... 1.14 → 1.20
service sheets .......................................................... 6.8 → 6.13
signals and lights .................................................... 1.49 – 1.50
speakers location ........................................................................ 5.32
special features of diesel versions .......................................2.5
special features of petrol vehicles ....................................... 2.4
starting ........................................................................\
2.2 – 2.3
starting the engine ............................................................... 2.3
steering wheel adjustment ................................................................... 1.10
storage compartment .............................................. 3.15 – 3.16
