Spread loads throughout the vehicle;
place the heaviest items in the bottom of
the boot, as close as possible to the rear
seats.
Limit the loads carried in the vehicle and
reduce wind resistance (roof bars, roof
rack, bicycle carrier, trailer...). Use a roof
box in preference.
Remove roof bars and roof racks after use.


Limit the causes of excess consumption


At the end of winter, remove snow tyres
and refit your summer tyres.

Observe the recommendations on
maintenance


Check the tyre pressures regularly, when
cold, referring to the label in the door
aperture, driver’s side.
Carry out this check in particular:


- before a long journey,

- at each change of season,

- after a long period out of use.
Don’t forget the spare wheel and the tyres
on any trailer or caravan.

Have your vehicle serviced regularly (engine
oil, oil filter, air filter...) and observe the
schedule of operations recommended by the
manufacturer.


When refuelling, do not continue after
the 3 rd cut-off of the nozzle to avoid any
overflow.

At the wheel of your new vehicle,
it is only after the first 1 800 miles
(3 000 kilometres) that you will see the fuel
consumption settle down to a consistent
average.

34


Instruments and controls


Warning lamp
is
indicates
Solution - action


Direction
indicators flashing with
buzzer. a change of direction using the
lighting stalk, to the left of the
steering wheel. To the Right: press the stalk upwards.
To the Left: press the stalk downwards.

Front foglamps on. that the button on the centre
console has been pressed. Manual selection.
The foglamps only operate if the sidelamps or dipped
beam headlamps are on.

Rear foglamps on. that the button on the centre
console has been pressed. Manual selection. The foglamps only operate if the
sidelamps or dipped beam headlamps are on. When
visibility is normal, please switch the foglamps off.

Cruise control on. that the cruise control has been
selected. Manual selection.
Refer to the "Steering mounted controls" section of
chapter 3.

Faulty bulb on accompanied
by a message
on the screen. that one or more bulbs have
blown. Have the bulb changed.
Refer to the "Changing a bulb" section of chapter 8 or
contact a CITROËN dealer.

Rear parking
sensors on. failure of the system. The audible assistance is no longer active.
Have the system checked by a CITROËN dealer without
delay.

38


Gearbox and steering wheel


MANUAL

To change gear easily, always depress the
clutch pedal fully.
To prevent the mat from becoming caught
under the pedal:


- ensure that the mat is positioned
correctly,

- never fit one mat on top of another.

Avoid leaving your hand on the gear knob as
the force exerted, even if slight, may wear
the internal components of the gearbox
over time.
GEARBOX AND STEERING WHEELSTEERING WHEEL REACH ADJUSTMENT

With the vehicle stationary, first adjust your
seat to the most suitable position.
Unlock the steering wheel adjustment by
pulling the lever towards you.
Adjust the reach of the steering wheel, then
lock by lowering the lever fully.
As a safety precaution, these operations
must not be carried out while driving.
Reverse gear

Raise the collar under the gear knob to
engage reverse gear. Never engage reverse gear before the
vehicle is completely stationary.
The lever should be moved slowly to reduce
the noise on engaging reverse gear.
Your reversing manoeuvre is indicated by an
audible exterior warning.
If your vehicle is fitted with parking
sensors, the system comes into
operation when reverse gear is engaged and
an audible signal is heard.
Refer to the "Rear parking sensors"
section of chapter 4.

42


Steering mounted controls


LIGHTING CONTROL STALK

Selection is by rotation of the white mark on
the ring.

All lighting off
Direction indicators
(green flashing)
Left: downwards.
Right: upwards.
STEERING MOUNTED CONTROLS

Sidelam
ps on

Di
pped/main beam
headlamps on Dipped
/main beam headlampschange
Pull the control stalk fully towards you.
Headlamp flash

Pull the control stalk towards you,
regardless of the position of the ring.


Front foglamps

Rear fo
glamps

If your vehicle is fitted with foglamps, these
operate with the sidelamps, the dipped or
main beam headlamps.
Press one of these controls to switch on the
lamps.
The foglamps should only be used in
fog or when snow is falling.
In clear weather or in rain, both day and
night, rear foglamps dazzle and their use is
prohibited.
Do not forget to switch them off when they
are no longer necessary.
"Motorway" function

Pull the lever towards the steering wheel with
a press, without passing the point of resistance
of the lighting stalk; the corresponding direction
indicators will fl ash fi ve times.

45
3
EASE OF USE AND COMFOR
T


Steering mounted controls
WIPER STALK
Slow continuous wiping: 2 notches downwards. Do not cover the rain sensor, located at
the top centre of the windscreen.
When washing the vehicle, switch off the
ignition or deactivate the automatic rain
sensitive wipers.
Screenwash
and headlamp wash

Pull the stalk towards you, the wash-wipe
is accompanied by a timed operation the
wipers.
The headlamp wash is linked with the
screenwash, it is triggered if the dipped
beam headlamps are on.
Windscreen wipers
Wiping is only active when the ignition key is
in the RUNNING
position.
The stalk has five different positions:
Wipers off.
Intermittent wiping:
1 notch downwards.
In this position, four speeds can be
selected by turning the ring:


- very slow intermittent,

- slow intermittent,

- intermittent,

- fast intermittent.


Automatic rain sensitive windscreen
wipers
If your vehicle is fitted with this system, the
wiping speed is adapted automatically to the
intensity of the rainfall.
Automatic wiping: 1 notch downwards.
This is confirmed by one wipe. Must be
reactivated each time the ignition is
switched on.
In this position, the sensitivity of the rain
sensor can be increased by turning the ring.
Good practice
Check that the windscreen wiper blades can
operate freely when using the wipers in icy
weather.
Use the step in the front bumper, to remove
any accumulation of snow at the base of the
windscreen and on the blades.

To change the blades, refer to the
"Changing a wiper blade" section of
chapter 8.
To top up the levels, refer to the
"Levels" section of chapter 7. Fast continuous wiping: 3 notches
downwards.
Single wipe, pull the control towards the
steering wheel.

82

Deactivation
Make a long press on both controls
simultaneously to deactivate the system.
The LEDs remain on.
Return to the nominal floor height
Press the same number of times in reverse
as the level of the position displayed.

Reactivation
A second long press on both controls
simultaneously reactivates the system.
The LEDs go off.

Automatic correction of loading
floor height
Above 12 mph (20 km/h), the system
automatically returns the rear height to its
nominal value.
Warning lamp

Refer to the "Instruments and controls"
section of chapter 2.
Good practice

Driving with the suspension set too high or
too low risks damaging components under
the body.
The height may be adjusted automatically to
take account of changes of temperature or
loading.
You must avoid using this control in the
following circumstances:


- when working underneath the vehicle,

- when changing a wheel,

- when the vehicle is being transported by
lorry, train, ferry, boat, ...
Above 3 mph (5 km/h), the system
reactivates automatically.

144

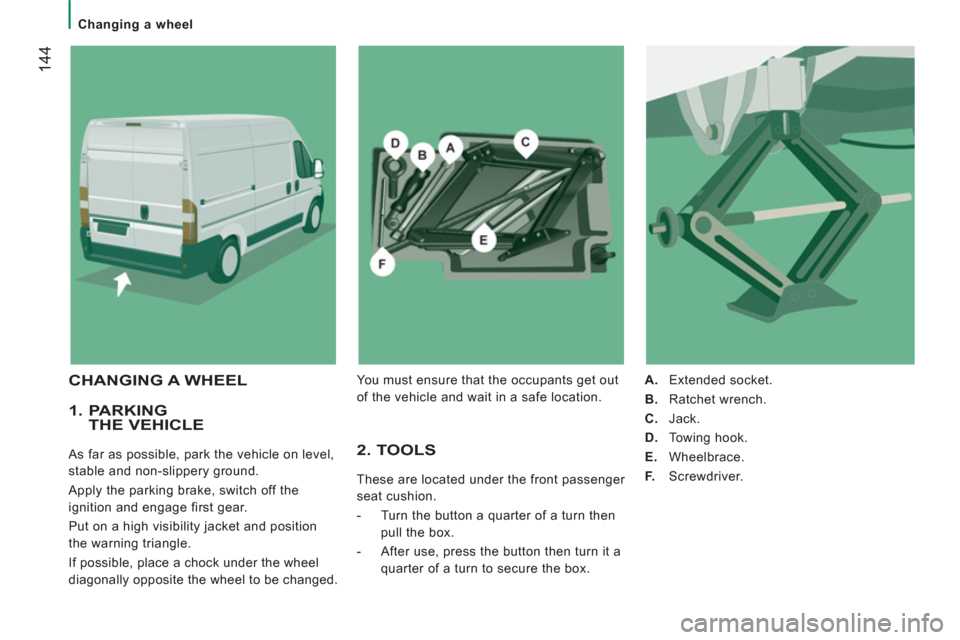

Changing a wheel



1. PARKINGTHE VEHICLE

As far as possible, park the vehicle on level,
stable and non-slippery ground.
Apply the parking brake, switch off the
ignition and engage first gear.
Put on a high visibility jacket and position
the warning triangle.
If possible, place a chock under the wheel
diagonally opposite the wheel to be changed. 2. TOOLS
These are located under the front passenger
seat cushion.


- Turn the button a quarter of a turn then
pull the box.

- After use, press the button then turn it a
quarter of a turn to secure the box.

A.
Extended socket.

B.
Ratchet wrench.

C.
Jack.

D.
Towing hook.

E.
Wheelbrace.

F.
Screwdriver.


CHANGING A WHEEL
You must ensure that the occupants get out
of the vehicle and wait in a safe location.

QUICK HEL
P
8
Changing a wheel

4. OPERATING PROCEDURE



- Remove the trim using the screwdriver F

as a lever.

- Release the bolts using the wheelbrace E
.
- Position the jack C
at one of the four
locations provided on the underbody
near the wheels.
3. SPARE WHEEL


The spare wheel retaining bolt is located on
the rear right side.




- Turn the bolt using the socket A
and the
ratchet wrench B
to release the wheel.

- Turn to the locking point, indicated by
an increase in the force required for the
manoeuvre.
- Take out the spare wheel using the
wrench.

- Unscrew the handle G
and remove the
support H
.

- Release the spare wheel and place it
near the wheel to be changed.

If you have a retractable foor board, the jack
must be positioned at 45°.


- Extend the jack using the ratchet
wrench B
until the wheel is a few
centimetres off the ground.

- Unscrew the bolts fully and change the
wheel.
