2012 Citroen DS5 HYBRID4 stop start

41Hybrid system

Examples of displays


On starting and when stationary

There is no flow of energy (the Stop & Star t system stops and
restar ts the Diesel engine automatically).

Energy recovery

During this phase (deceleration, braking, foot off the
accelerator, … all modes), the battery is recharged by the electric motor/generator, then being driven by the rear wheels.
You can maximise this energy recovery by taking your foot off
the accelerator pedal, deceleration will then be less marked
th
an with a conventional vehicle.

100% electric

In all electric running (AUTO or ZEV modes), only the electric motor, powered by the battery, drives the rear wheels.
The display of "Zero Emission" indicates that the Diesel engine
is off and the vehicle is producing no CO2.

43Hybrid system

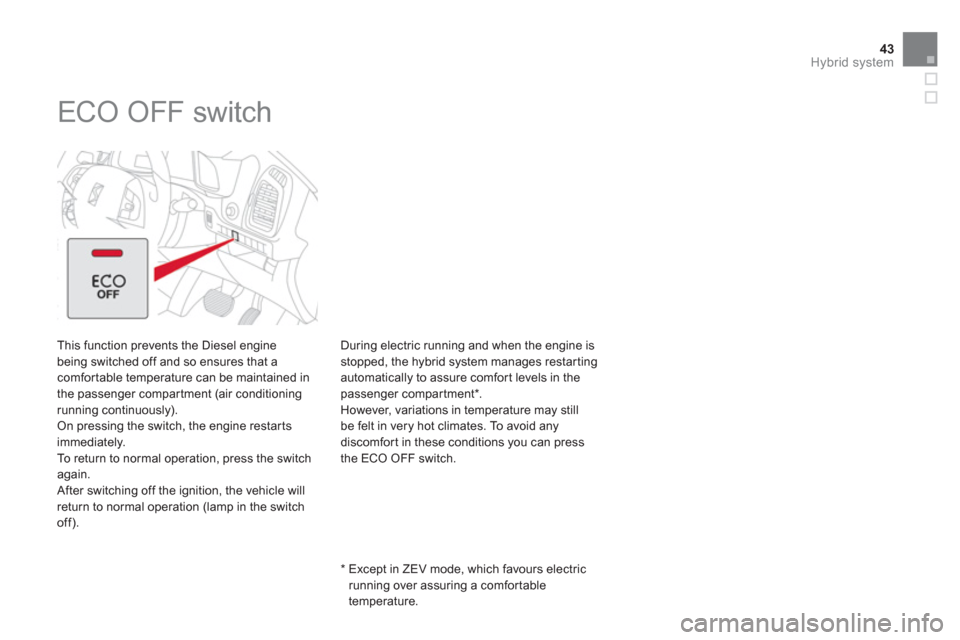

ECO OFF switch


This function prevents the Diesel engine
being switched off and so ensures that a comfor table temperature can be maintained in
the passenger compar tment (air conditioning
running continuously).
On pressing the switch, the engine restar ts
immediately.
To return to normal operation, press the switch
a
gain.
After switching off the ignition, the vehicle will
return to normal operation (lamp in the switch
off).
*
Except in ZEV mode, which favours electricrunning over assuring a comfortable
temperature.
During electric running and when the engine is
stopped, the hybrid system manages restarting automatically to assure comfor t levels in thepassenger compartment * .
However, variations in temperature may still
be felt in very hot climates. To avoid any
discomfor t in these conditions you can press
the ECO OFF switch.

47Hybrid system








200 V high voltage battery


The 200 V high voltage battery cannot be
recharged from a mains supply.
The battery is Ni-MH (Nickel Metal Hydride)
and is located below the boot floor, close to the electric motor.
Charging
The battery is charged when the vehicle
decelerates, the electric motor then becomes
a generator and conver ts kinetic energy into
electrical energy (except if the speed of the
vehicle is above 70 mph (120 km/h)).
The battery is not recharged from a mains
supply.
The battery may also be charged automatically
when required by the Stop & Start system of
the Diesel engine.
This recover
y allows the use of "free" energy.
The battery charging time is very short and iscontinuous.
A discharged battery (following ZEV running or
high load, for example) will quickly return to astate of charge sufficient for full operation of the
different hybrid modes.
Thecharging takes place automatically
when driving. The energy recovery can be faster during deceleration.
The average state of charge is 4 to 5 bars, so
preserving a margin for energy recovery when
deceleration of going downhill (free energy).
To preser ve the ser vice life of thebattery, the level of charge never falls below 20 %, even if a level of 0 bars is displayed after ZEV running. Where the battery is close to maximum, vehicle deceleration with your foot off the accelerator pedal will be at a lower level.

57
Monitoring



Rear foglamps

fixed. The rear foglamps are switched on. Turn the ring on the stalk rear wards to switch off the
rear foglamps.
Warning / indicator lampStateCauseAction / Observations



Diesel engine pre-heating fixed. The STA R T/STOP
switch has been pressed (ignition on). Wait until the warning lamp goes off before star ting.
The period of illumination of the warning lamp is
determined by the ambient conditions (up to about
thirty seconds in extreme conditions).
If the engine does not star t, switch the ignition off and
then on, wait until the warning lamp goes off again,
then start the engine.

Electric parking brake
fixed. The electric parking brake is applied. Release the electric parking brake to switch off the
warning lamp: with your foot on the brake pedal, pull
the electric brake control lever.
Obser ve the safety recommendations.
For more information on the electric parking brake,
refer to the "Driving" section.

Deactivation of the automatic functions of the electric parkingbrake


fixed. The "automatic application" (on switching off the engine) and
"automatic release" functions aredeactivated or faulty.
Activate the function (according to country) via the
vehicle configuration menu or contact a CITROËN
dealer or a qualified workshop if automatic application /
re
lease is not possible.
The parking brake can be released manually using the emergency release procedure.
For more in
formation on the electric parking brake,
refer to the "Driving" section.

With the hybrid system active or when the vehicle is being driven, illumination of one of the following warning lamps indicates a fault which requires action on the par t of the driver.
Any fault resulting in the illumination of a warning lamp must be investigated further by reading the associated message in the instrument panel screen.
If you encounter any problems, contact a CITROËN dealer or a qualified workshop.
Warning / indicator lampStateCauseAction / Observations



STOPfixed, associated with another warning lamp, accompanied by an audible signal and a message in the screen.It is associated with a punctured wheel,
the brakin
g system, the power steering,
the engine oil pressure, the enginecoolant temperature, the hybrid system
or a major electrical fault.Stop as soon as it is safe to do so as the en
gine may cut out.
Park, switch off the ignition and call a CITROËN
dealer or a qualified workshop.



Serviceon temporarily. A minor fault has occurred for which
there is no specific warning lamp. Identify the fault by reading the message shown in the screen, such as, for example:
- the closing of the doors, boot or bonnet,
- the engine oil level,
- the screenwash level,
- the remote control battery,
- the tyre pressures,
- saturation of the par ticle emission filter (Diesel). - ...For any other faults, contact a CITROËN dealer or a
qualified workshop.
fixed. A major fault has occurred for which
there is no specific warning lamp. Identify the fault by reading the message shown on the screen and contact a CITROËN dealer or a yyg g
qualified workshop.
PEF: particle emissions filter,Diesel
fixed, associated
temporarily with a message on the risk of
blockage of the PEF.Thi
s indicates the start of saturation
of the par ticle emissions filter. As soon as traffic conditions allow, regenerate the
filter by driving at a speed of at least 35 mph (60 km/h)
until the ser vice warning lamp goes off.
fixed.This indicates the low level in theDiesel additive reservoir. Have the level topped up by a CITROËN dealer or a
qualified workshop as soon as possible.

77Access
Unlocking the vehicle



















"Keyless Entry and Starting" system


System that allows the opening, closingand star ting of the vehicle while keeping theelectronic key on your person.
Complete unlocking
)
With the electronic key on your personand in the defined zone A
, pass your hand behind the door handle to unlock thevehicle, then pull on the handle to open
the door.
Yo u r p a s s e ngers can also open their doors,
as soon as the electronic key is in the defined zone around the vehicle.



Selective unlocking
This setting is done via the configuration menu.
By default, complete unlocking is activated.
)
To unlock only the drivers door, with the electronic key on your person, pass your hand behind the driver's door handle thenpull on the door handle to open.)
To unlock the complete vehicle, pass your hand behind one of the passenger door handles on the same side of the vehicle asthe electronic key is located, then pull on
the door handle to open.



Unlocking is confirmed by rapidflashing of the direction indicators for approximately two seconds.
The door mirrors unfold at the sametime.
If the alarm is on, the audible warningwhen opening a door with the key(integral with the remote control), willstop on star ting the engine.

Accumulations (water, dust, grime, salt...) on
the inner sur face if the door handle may affect detection.
If cleaning the inner sur face of the door handle
using a cloth does not resolve the problem, contact a CITROËN dealer or a qualified
workshop.
A sudden splash of water (stream of water, highpressure jet washer, …) may be identified by
the system as the desire to open the vehicle.

It can also be used as a remote control;see the "Key/remote control" section.

79Access
Deadlocking
Deadlocking renders the exterior and
interior door controls inoperative. It also deactivates the manual centralcontrol button. Therefore, never leave anyone inside the vehicle when it is deadlocked.
Using the remote control
) Press the closed padlock to lock
the vehicle completely.
Maintain pressure with
your
finger for more than twoseconds to close the windows.) Press the closed padlock again within
five seconds to deadlock the vehicle.

With the electronic ke
y in the reader or the
Keyless Entry and Starting key inside the
vehicle, pressin
g the "STA R T/STOP" button,
with no action on the pedals, allows the ignition
to be switched on and so activate the ancillary
equipment.
Ignition on without starting
the engine
(accessory position)
)
Press the "STA R T/STOP" button,
the instrument panel comes on
but the engine does not star t.) Press the button again to switch
off the ignition and so allow the
vehicle to be locked.

If you use the accessory position for too long, the system automatically goes intoeconomy mode to avoid the risk of a flat
battery.


With the Keyless Entry and
startin
g system
By the doors: )
With the electronic key in the defined
zone A , press a finger on the door handle (at the markings) to lock the vehicle.
)
Within five seconds, press the door handle
again to deadlock the vehicle.
Ensure that no one is preventing the correct closing of the windows. Be aware of children when operating
the windows.

Lost electronic key
Visit a CITROËN dealer with the vehicle's registration document and your personal identification documents and if possible the key code label.
The CITROËN dealer will be able to retrieve the key code and the transponder code required to order a new key.
Electronic key
The electronic key is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the vehicle, without you being aware of it.Do not repeatedly press the buttons of your electronic key out of range and out of sight of your vehicle. You run the risk of stopping it from working and the remote control would have to be reinitialised.The electronic key cannot operate as a remote control when it is in the reader or even when the ignition is switched on.
Locking the vehicle
Driving with the doors locked may make access to the passenger compar tment by the emergency services more difficult in an emergency.
As a safety precaution (with children on board), take the Keyless Entry and Starting electronic key when you leave the vehicle, even for a shorttime.
Electrical interference
The Keyless Entry and Starting electronic key may not operate if close to certain electronic devices: telephone, laptop computer, strongmagnetic fields, ...
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions. Don't forget to turn the steering to engage the steering lock.
When purchasing a second-hand vehicle
Have all of the keys in your possession paired by a CITROËN dealer, to ensure that only your keys allow your vehicle to be unlocked and star ted.
