Page 108 of 396
Do not throw the remote controlbatteries away, they contain metals which are harmful to the environment.
Take them to an approved collectionpoint.
Lost keys
Visit a CITROËN dealer with the vehicle's registration document, your personal identification documents and if possible the key code label.
The CITROËN dealer will be able to find the key code and the transponder code required toorder a new key.
Remote control
The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk of stopping it from working and the remote control would haveto be reinitialised.
The remote control does not operate when the key is in the ignition switch, even when the ignition is switched off, except for reinitialisation.
Locking the vehicle
Driving with the doors locked may make access to the passenger compar tment by theemergency services more difficult in an emergency. As a safety precaution (with children on board), remove the key from the ignition switchwhen you leave the vehicle, even for a shor t time.
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this couldcause malfunctions.
When purchasing a second-hand vehicle
Have the pairing of all of the keys in your possession checked by a CITROËN dealer, to ensure that only your keys can be used to open and star t the vehicle.
Page 109 of 396
107
Access
Locking
)Press this button to lock the vehicle.
The red indicator lamp in the button comes on.
Central locking control
This control allows the simultaneous locking or unlocking of the doors and boot from inside the
v
ehicle.
If one of the doors is open, central locking from the inside does not take place.
Unlocking
)
Press the button again to unlock the
vehicle.
The red indicator lamp in the button goes off.
If the vehicle is locked from the outside,this button is inactive. )In this case, use the remote control or the key to unlock the vehicle or pull an interior door handle to open a door.
Page 113 of 396
111Access

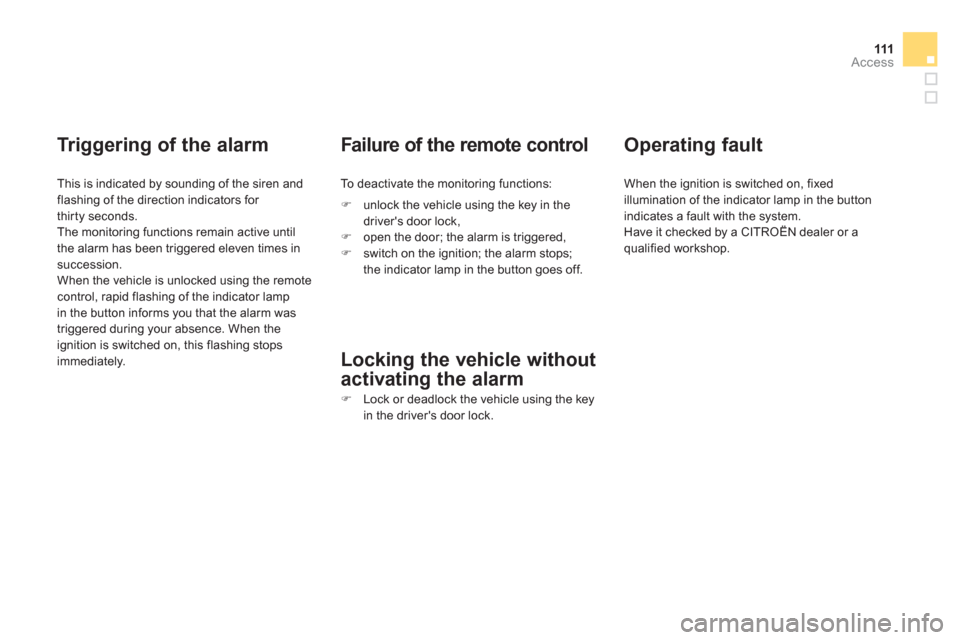

Tr iggering of the alarm
This is indicated by sounding of the siren and
flashing of the direction indicators for
thirty seconds.
The monitoring functions remain active until
the alarm has been triggered eleven times insuccession.
When the vehicle is unlocked using the remote control, rapid flashing of the indicator lamp
in the button informs you that the alarm was
triggered during your absence. When the
ignition is switched on, this flashing stops
immediately.
Failure of the remote control
To deactivate the monitoring functions:
Locking the vehicle without
activating the alarm
)
Lock or deadlock the vehicle using the key
in the driver's door lock.
)
unlock the vehicle using the key in the
driver's door lock,
) open the door; the alarm is triggered, )
switch on the ignition; the alarm stops;the indicator lamp in the button goes off.
Operating fault
When the ignition is switched on, fixed
illumination of the indicator lamp in the button
indicates a fault with the s
ystem.
Have it checked by a CITROËN dealer or a qualified workshop.
Page 114 of 396
Doors
Opening
From out side
)After unlocking the vehicle completely using the remote control or the key, pull the door handle.
From inside
)
Pull the interior control lever of a front door;
this unlocks the vehicle completely.
Closing
When a door is not closed correctly:
-
when the engine is running,this warning lamp comes
on, accompanied by an aler t
message for a few seconds,
-when the vehicle is moving(speedhigher than 6 mph (10 km/h)), this warning lamp comes on, accompanied by an alert message for a few seconds.
When the selective unlocking isactivated, the first press of the remotecontrol unlocking button permitsunlocking of the driver's door only.
With the selective unlocking activated:- opening the the driver's door unlocks the driver's door only (if thevehicle has not already beencompletely unlocked).- opening one of the passenger doors unlocks the rest of thevehicle.
Page 115 of 396
113Access
System allowing the doors to be locked and
unlocked manually in the event of a malfunction
of the central locking system or battery failure.
Emergency control
Locking the driver's door
)Inser t the key in the door lock, then turn it
to the rear.
You can also apply the procedure describedfor the passenger doors.
Unlocking the driver's door
)Inser t the key in the door lock, then turn it
to the front.
Locking the front and rear passenger doors
) Open the doors. )
On the rear doors, check that the child lock
is not on (see Child Safety). ) Remove the black cap, located on the edge
of the door, using the key. ) Insert the key in the socket without forcing
it, then without turning it, move the latch sideways towards the inside of the door. ) Remove the key and refit the cap. )
Close the doors and check that the vehicle
has locked correctly from the outside.
Unlocking the front and rear passenger doors
)
Pull the interior door opening control.
Page 116 of 396
Boot
System allowing the mechanical unlocking of
the boot in the event of a battery or central
locking system malfunction.
Tailgate release
Unlocking
)Fold back the rear seats to gain access to
the lock from inside the boot. )Insert a small screwdriver into hole Aof thelock to unlock the tailgate. )Move the latch to the left.
)After unlocking the boot or the vehicleusing the remote control or the key, press
the opening control, then raise the tailgate.
Opening
Closing
)
Lower the tailgate using the interior grab
handle. ) If necessary, press down on the tailgate to fully close it.
-
when the engine is running,
this warning lamp comes on,
accompanied by the display of an
aler t message for a few seconds,
-
when the vehicle is moving
(speed above 6 mph (10 km/h)), this warning lamp comeson, accompanied by an audible signal andthe display of an aler t message for a fewseconds.
Locking after closing
If the fault persists after closing again, the boot
w
ill remain locked. If the tail
gate is not closed correctly:
Page 118 of 396
Safety anti-pinch
When the window rises and meets an obstacle,
it stops and par tially lowers again.
Reinitialisation
If a window does not rise automatically,
its operation must be reinitialised:
) pull the control until the window stops, )
release the control and pull it again until
the window closes fully, ) continue to hold the control for
approximately one second after the
window has closed,
) press the control to lower the window
automatically to the low position, ) when the window has reached the low
position, press the control again for
approximately one second. The safety anti-pinch function is not operational during these operations.
If the window cannot be closed(for example, in the presence of ice),once the window has lowered: )press and hold the control until the window opens fully, )then pull the control immediately and hold it until the window closes, )continue to hold the control for approximately one second after thewindow has closed.The safety anti-pinch function is not operational during these operations.
Always remove the key from the ignition when leaving the vehicle, even for a short time.
If an obstacle is encountered duringoperation of the electric windows,you must reverse the movement of the window. To do this, press the controlconcerned.
When the driver operates thepassenger's electric window control, they must ensure that nothing ispreventing the windows closing correctly.
The driver must ensure that the passengers use the electric windowscorrectly.
Be aware of children when operating the windows.
Page 119 of 396
11 7Access
Fuel tank Capacity of the tank: approximately 60 litres.
Low fuel level
When the low fuel level in the
tank is reached, this warning lamp
comes on in the instrument panel, accompanied by an audible warning
and the display o
f an aler t message. When itfirst comes on, around 6 litresof fuel remain
in the tank.
Until sufficient fuel has been added, every time
the ignition is switched on, this warning lamp
appears, accompanied by an audible signal and
an aler t message. When driving, this audiblesignal and the display of this aler t message are
repeated with increasing frequency, as the level
drops towards 0 .
You must refuel as soon as possible to avoid
runnin
g out.
If you run out of fuel (Diesel), refer also to
"Checks".
Refuelling
)Press control A
until the automatic openingof the fuel flap is heard.
This control remains active for a few minutes after switching off the ignition.
If necessary, switch the ignition on again
to reactivate it. )Take care to select the pump that delivers
the correct fuel for your vehicle.
With Stop & Star t, never refuel with the system in STOP mode; you must switchoff the ignition with the key. Additions of fuel must be of at least
5 litres to
be registered by the fuel gauge.
Opening the filler cap may result in an inrush of air. This vacuum is entirely normal and results from the sealing of the fuel system.
