2012 Citroen C5 engine

IV
72
ACCESS














Lost keys

Visit a CITROËN dealer with the ve-
hicle's registration document, your
personal identifi cation documents
and if possible the key code label.
The CITROËN dealer will be able to
look up the key code and the tran-
sponder code required to order a
new key.


Remote control

The high frequency remote control
is a sensitive system; do not operate
it while it is in your pocket as there
is a possibility that it may unlock the
vehicle, without you being aware
of it.
Do not repeatedly press the buttons
of your remote control out of range
and out of sight of your vehicle. You
run the risk of stopping it from work-
ing and the remote control would
have to be reinitialised.
The remote control does not operate
when the key is in the ignition switch,
even when the ignition is switched
off, except for reinitialisation.


Locking the vehicle

Driving with the doors locked may
make access to the passenger com-
partment by the emergency services
more diffi cult in an emergency.
However, the vehicle unlocks auto-
matically in the event of a serious
impact causing airbag deployment.
As a safety precaution (with children
on board), remove the key from the
ignition switch when you leave the
vehicle, even for a short time.


Anti-theft protection

Do not make any modifi cations to
the electronic engine immobiliser
system; this could cause malfunc-
tions.


When purchasing a second-
hand vehicle
Have the pairing of all of the keys
in your possession checked by a
CITROËN dealer, to ensure that
only your keys can be used to open
and start the vehicle.







Do not throw the remote con-
trol batteries away, they contain
metals which are harmful to the
environment.
Take them to an approved collection
point.

IV
77
ACCESS
DOORS

Opening


From outside
When the selective unlocking is ac-
tivated, the fi rst press of the remote
control unlocking button permits
unlocking of the driver's door only.

)
Pull the interior control lever of
a front door; this unlocks the ve-
hicle completely.


With the selective unlocking acti-
vated:


- the driver's door control unlocks
the driver's door only,

- the other door controls unlock
the other doors and the boot.
The interior door controls do not
operate when the vehicle is dead-
locked.












Manual centralised control

System which provides full manual
locking or unlocking of the doors
and boot from the inside.

Locking


)
Press button A
to lock the vehicle.
The red indicator lamp on the button
comes on. It fl ashes when the doors
are locked while stationary with the
engine off.
If one of the doors is open, the cen-
tral locking from the inside does not
take place.

)
After unlocking the vehicle com-
pletely using the remote control
or the key, pull the door handle.



From inside

IV
!
84
ACCESS
FUEL TANK

Capacity of the tank: approxi-
mately
71 litres

*
.



Low fuel level

When the minimum level
in the tank is reached, this
warning lamp comes on
in the instrument panel,
accompanied by an audible warning
and a message on the multifunction
screen. When it fi rst comes on, there
remains around 5 litres of fuel in the
tank.
You must refuel to avoid running out
of fuel.


)
Press at the top left corner, then
pull open from the left.


)
turn the key a quarter turn to lock
and unlock the fi ller cap,

)
when refuelling, place the cap on
hook A
,

)
fi ll the tank, but do not persist
after the third cut-off
; this could
cause your vehicle to malfunc-
tion.


While you are refuelling, the engine must be stopped and the ignition
switched off.


For a petrol engine with a cata-
lytic converter, unleaded fuel is
compulsory.



Opening the fuel flap

Additions of fuel must be of at least
5 litres to be taken into account by
the fuel gauge.
The fi ller neck is narrower to ensure
that only unleaded petrol nozzles
can be put in.
Opening the fi ller cap may create
a noise of an inrush of air. This
vacuum, which is entirely normal,
is caused by the sealing of the fuel
system.


Refuelling








With Stop & Start, never re-
fuel with the system in STOP
mode; you must switch off
the ignition with the key.

*
55 litres for Slovakia.

IV
85
ACCESS










Quality of the fuel used for
petrol engines

The petrol engines are perfectly
compatible with E10 type petrol
biofuels (containing 10% ethanol),
conforming to European standards
EN 228 and EN 15376.
E85 type fuels (containing up to 85%
ethanol) are reserved exclusively for
vehicles marketed for the use of this
type of fuel (BioFlex vehicles). The
quality of the ethanol must comply
with European standard EN 15293.
For Brazil only, special vehicles are
marketed to run on fuels containing
up to 100% ethanol (E100 type).













Quality of the fuel used for
Diesel engines

The Diesel engines are perfectly
compatible with biofuels which con-
form to current and future European
standards (Diesel fuel which com-
plies with standard EN 590 mixed
with a biofuel which complies with
standard EN 14214) available at the
pumps (containing up to 7 % Fatty
Acid Methyl Ester).
The B30 biofuel can be used in cer-
tain Diesel engines; however, this
use is subject to strict application
of the special servicing conditions.
Contact a CITROËN dealer or a
qualifi ed workshop.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or di-
luted, domestic fuel...) is strictly pro-
hibited (risk of damage to the engine
and fuel system).

MISFUEL PREVENTION (DIESEL)
*

Mechanical device which prevents
fi lling the tank of a Diesel vehicle
with petrol. It avoids the risk of en-
gine damage that can result from fi ll-
ing with the wrong fuel.
Located in the fi ller neck, the misfuel
prevention device appears when the
fi ller cap is removed.


Operation

When a petrol fi ller nozzle is intro-
duced into the fuel fi ller neck of your
Diesel vehicle, it comes into contact
with the fl ap. The system remains
closed and prevents fi lling.

Do not persist but introduce a
Diesel type fi ller nozzle.


It remains possible to use a fuel
can to fi ll the tank.
In order to ensure a good fl ow of
fuel, do not place the nozzle of the
fuel can in direct contact with the
fl ap of the misfuel prevention de-
vice and pour slowly.
* According to country of sale.

Travelling abroad
As Diesel fuel pump nozzles may
be different in other countries, the
presence of the misfuel prevention
device may make refuelling impos-
sible.
Before travelling abroad, we rec-
ommend that you check with the
CITROËN dealer network, whether
your vehicle is suitable for the fuel
pumps in the country in which you
want to travel.

V
88
VISIBILITY

*
According to country.







Daytime-running lamps

System which switches on special
lamps at the front, to make the vehi-
cle more visible by day.
They light up automatically and perma-
nently, when the engine is running, if:


- The function is activated * in the
"Main Menu" of the instrument
panel screen.

- The lighting control is at position 0

or AUTO
.

- All the headlamps are off.
You can deactivate * this function
using the "Main Menu" of the instru-
ment panel screen.






Manual guide-me-home
lighting
Temporarily keeping the dipped
beam headlamps on after the vehi-
cle's ignition has been switched off
makes the driver's exit easier when
the light is poor.

Switching on


)
With the ignition off, "fl ash" the
headlamps using the lighting stalk.

)

A further "headlamp fl ash" switches
the function off.



Switching off
The manual guide-me-home lighting
switches off automatically after a set
time.














Automatic illumination
of headlamps
The sidelamps and dipped beam headlamps
are switched on automatically, without any ac-
tion on the part of the driver, when a low level
of external light is detected or in certain cases
of activation of the windscreen wipers.
As soon as the brightness returns to a suffi -
cient level or after the windscreen wipers are
switched off, the lamps are switched off auto-
matically.

Activation


)

Turn ring A
to the "AUTO"
position.
The automatic illumination of head-
lamps is accompanied by a message
in the instrument panel screen.



Deactivation


)
Turn ring A
to a position other
than "AUTO"
. Deactivation is
accompanied by a message in
the instrument panel screen.

V
95
VISIBILITY
In lighting on mode, different lighting
times are available:


- with the ignition off, approxi-
mately ten minutes,

- in energy economy mode, ap-
proximately thirty seconds,

-
with the engine running, unlimited.



Map reading lamps



)
With the ignition on, press the
corresponding switch.



Panoramic sunroof rear
reading lamps (Tourer)
With the key in position or with the
ignition on:


)
Press the corresponding switch.
The reading lamp concerned comes
on for ten minutes.
The rear reading lamps come on:


- when the key is removed from
the ignition,

- when the vehicle is unlocked.
They switch off gradually:


- when the vehicle is locked,

- when the ignition is switched on.

VI
101
FITTINGS

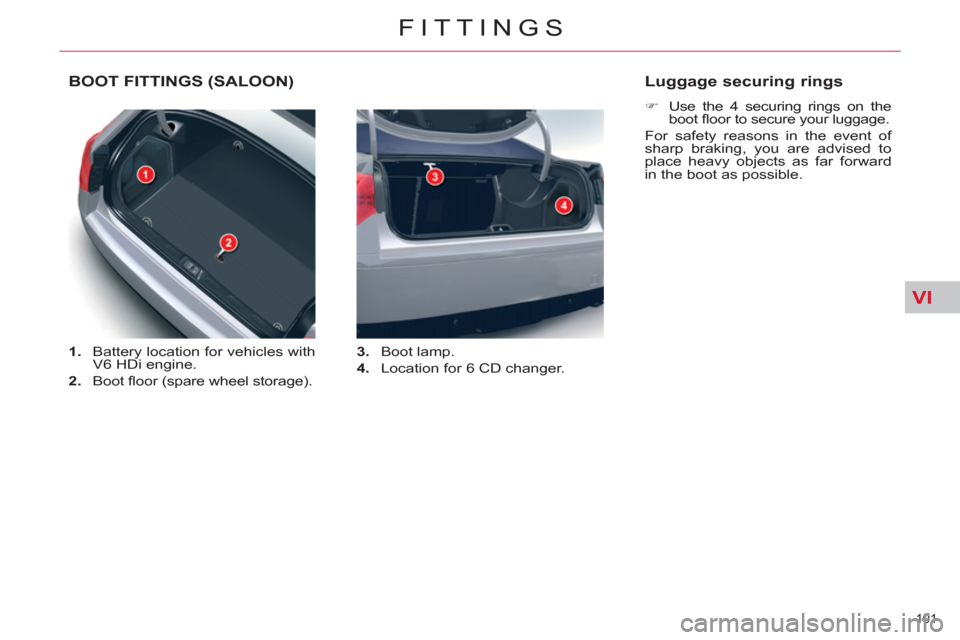

BOOT FITTINGS (SALOON)



1.
Battery location for vehicles with
V6 HDi engine.

2.
Boot fl oor (spare wheel storage).
3.
Boot lamp.

4.
Location for 6 CD changer.







Luggage securing rings



)
Use the 4 securing rings on the
boot fl oor to secure your luggage.
For safety reasons in the event of
sharp braking, you are advised to
place heavy objects as far forward
in the boot as possible.

VI
102
FITTINGS
BOOT FITTINGS (TOURER)


1.
Hook

For shopping bags.

2.
Torch

To recharge, return it to its stor-
age position.

3.
Storage net
or Battery com-
partment (for vehicles with
3 litre V6 HDi engine).

This provides access to the bat-
tery.

1.
Luggage-cover blind

(see details on following page)

2.
Luggage securing rings

Use the 4 stowing rings provided
on the boot fl oor to secure your
loads.
For safety reasons in the event
of sharp braking, you are ad-
vised to place heavy objects as
far forwards as possible.

3.
Hooks

These allow a cargo net to be
fi tted (see details on following
page).

1.
Boot lamp


2.
12 V accessories socket (100 W
maximum)
Cigarette lighter type 12 volt
socket. It is located on the rear
right-hand trim.

3.
Loading height control

You can change the height of the
vehicle to make loading or un-
loading easier.

4.
Hook

For shopping bags.

5.
Storage net
or closed housing


Location for the 6 CD changer.
