2012 Citroen C4 PICASSO RHD glove box

CONTENTS
2
Monochrome screen A 45Monochrome screen C 47Colour screen (MyWay) 50NaviDrive colour screen 52Trip computer 53
■■■■■
II - MULTIFUNCTIONSCREENS45 Î55
Ventilation 56Manual air conditioning 58Digital air conditioning 60Scented air freshener 65Front seats 67Rear seats 70Seat modularity 75Mirrors 76Steering wheel adjustment 77
■■■■■■■■■
III - COMFORT 56Î77
Remote control key 78Starting the engine 81Alarm 84
Electric windows 86Doors 88Boot 90Opening rear screen 90Panoramic sunroof 91Fuel tank 92
■■■■■■■■■
IV - ACCESS 78Î93
Lighting controls 94LED lamps 96Daytime running lamps 96Automatic illumination
of headlamps 97Headlamp adjustment 98Directional lighting 99Wiper controls 100Automatic rain sensitive wipers 101Courtesy lamps 103Interior mood lighting 104
■■■■
■■■■■■
V - VISIBILITY 94 Î 104
Interior fi ttings 105Illuminated glove box 106Mats 108Boot fi ttings 111Luggage retaining net 115Torch 116
■■■■■■
VI-FITTINGS 105 Î 116
Instrument panels 31Indicator and warning lamps 33Indicators 42
■■■
FAMILIARISATION 4 Î30
I - MONITORING 31 Î44
Child seats 117ISOFIX child seats 122Child lock 125
■■■
VII - CHILDSAFETY 117 Î125
Eco-driving 29■

13
FAMILIARISATION
INSTRUMENTS AND CONTROLS




1.
Controls:


- Electric windows

- Child lock

2.
Side window demist/defrost vent
Side air vent

3.
Driver’s air conditioning controls

4.
Driver’s front airbag

5.
Right hand upper storage

6.
Central air vents

7.
Left hand upper storage

8.
Front passenger’s airbag

9.
Speaker (Tweeter) (right and left)
10.
Quarter light demist/defrost vent

11 .
Windscreen demist/defrost vent

12.
Sunshine sensor

13.
Passenger’s air conditioning
controls

14.
Lower glove box:


- Air freshener clips

- Various storage

15.
Key switch:


- Front passenger’s airbag
activation/deactivation

16.
Central locking button
17.
Audio and telematics system

18.
Scented air freshener

19.
Cooled storage

20.
USB port (or blanking plug)

21.
12 V accessory socket or cigarette
lighter

22.
Portable ashtray

23.
Interior mood lighting control

24.
Steering wheel adjustment lever

I
35
MONITORING


Warning lamp


is on


Cause


Action/Observations




Stop & Start


fi xed. When the vehicle stops (red
lights, traffi c jams, ...) the
Stop & Start system has put
the engine into STOP mode. The warning lamp goes off and the engine
restarts automatically in START mode, as
soon as you want to move off.

fl ashes for a few
seconds, then
goes off. STOP mode is temporarily
unavailable.
or
START mode is invoked
automatically. Refer to "Driving - § Stop & Start" for
special cases with STOP mode and
START mode.




Passenger's
airbag
system
fi xed. The control switch, located in
the glove box, is in the " ON
"
position.
The passenger's front airbag
is activated.
In this case, do not install a
rear-facing child seat. Turn the control switch to the " OFF
"
position to deactivate the front passenger's
airbag.
In this case you can install a rear-facing
child seat.

I
36
MONITORING










Deactivation indicator lamps
If one of the following indicator lamps comes on, this confi rms that the corresponding system has been switched off intentionally.
This is may be accompanied by an audible signal and a message on the multifunction screen.



Warning lamp


is on


Cause


Action/Observations





Passenger's
airbag
system


fi xed. The control, located in the
glove box, is set to the OFF

position.
The passenger's front airbag
is deactivated.
In this case you can install a
"rear facing" child seat. Set the control to the ON
position to
activate the passenger's front airbag.
In this case, do not fi t a child seat in the
rear-facing position.





ESP/ASR


fi xed. The button, located in the
middle of the dashboard, is
pressed. Its indicator lamp is
on.
The ESP/ASR is deactivated.
ESP: electronic stability
programme.
ASR: anti-skid regulation. Press the button to activate the ESP/ASR.
Its indicator lamp switches off.
The ESP/ASR system is activated
automatically when the vehicle is started.
If deactivated, the system is reactivated
automatically from approximately 30 mph
(50 km/h).

III
66
COMFORT
The recharge for the air freshener
consists of a cartridge B
and its
sealed container C
.


)
Remove the protective fi lm D
.

)
Place the head of the cartridge B

on the button A
of the air fresh-
ener.

)
Rotate it a quarter turn to lock
it on the button and remove the
container.

)
Insert the air freshener into its
housing.
You can change cartridges at any
time, keeping the used cartridges in
their original containers. The air freshener button A
is inde-
pendent of the cartridge. Cartridges
are supplied without the air freshener
button A
.
The button of the air freshener A

can only be fi tted to the centre of
the dashboard with a cartridge at-
tached.
Therefore always keep the air fresh-
ener button A
and one cartridge.
Replacement cartridges are avail-
able, depending on country, either on
the Internet site or from a CITROËN
dealer or a qualifi ed workshop.
Locations are provided in the glove
box for storing cartridges and con-
tainers.


Replacing a cartridge
Air freshener button

For safety, use only cartridges that
are provided for this purpose.
Retain the containers for storing
used cartridges.
Do not recharge or dismantle the
cartridges.
Keep them out of reach of children
and animals.
Avoid all contact with the skin and
with the eyes.
In the event of ingestion, consult a
doctor and show them the product
packaging or label.
Do not install or remove a cartridge
while you are driving.

VI
106
FITTINGS
UPPER STORAGE
COMPARTMENTS

There are large storage compart-
ments at the top of the dashboard,
one on the driver's side and one on
the passenger's side.


)
To open, press the button at the
bottom corner.

)
To close, lower the lid fully until it
clicks.
ILLUMINATED GLOVE BOX

Its lid has areas for storing a pen, a
pair of spectacles, tokens, cards, a
can, fragrance cartridges...


)
To open the glove box, raise the
handle and lower the lid.
The lamp comes on automatically
when the lid is opened.
COOLED GLOVE BOX


It is cooled by a ventilation nozzle
that can be closed manually.
It is directly linked to the vehicle’s air
conditioning system, being supplied
with cooled air whatever the require-
ments of the passenger compart-
ment.
The cooling of your glove box only
operates when the engine is running
and the air conditioning is on.


For safety reasons, the glove
box should remain closed
when the vehicle is moving. For safety reasons, the up-
per storage compartments
should be kept closed when
the vehicle is moving.

VIII
135
SAFETY

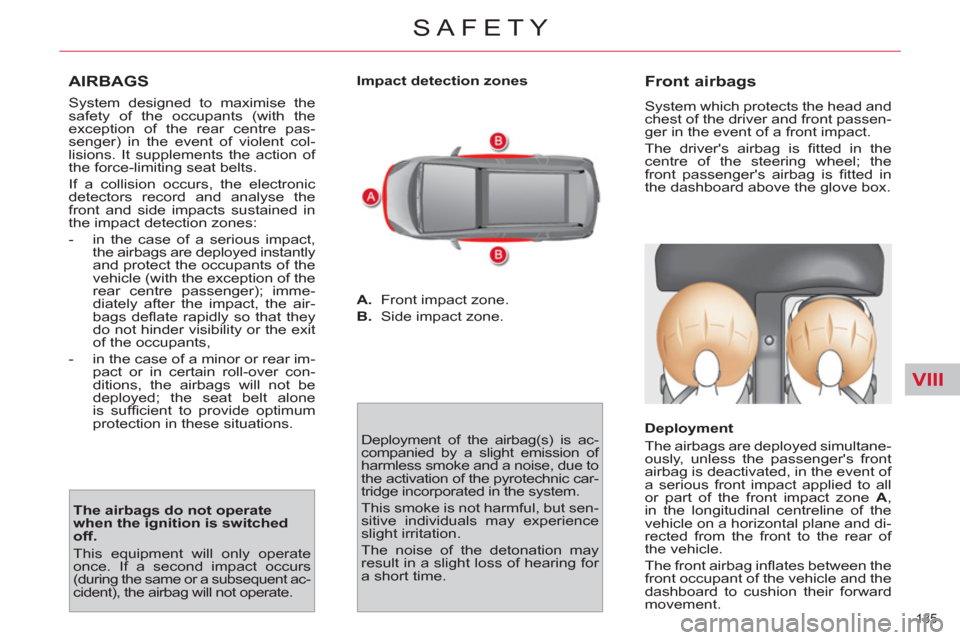

AIRBAGS



System designed to maximise the
safety of the occupants (with the
exception of the rear centre pas-
senger) in the event of violent col-
lisions. It supplements the action of
the force-limiting seat belts.
If a collision occurs, the electronic
detectors record and analyse the
front and side impacts sustained in
the impact detection zones:


- in the case of a serious impact,
the airbags are deployed instantly
and protect the occupants of the
vehicle (with the exception of the
rear centre passenger); imme-
diately after the impact, the air-
bags defl ate rapidly so that they
do not hinder visibility or the exit
of the occupants,

- in the case of a minor or rear im-
pact or in certain roll-over con-
ditions, the airbags will not be
deployed; the seat belt alone
is suffi cient to provide optimum
protection in these situations.

The airbags do not operate
when the ignition is switched
off.
This equipment will only operate
once. If a second impact occurs
(during the same or a subsequent ac-
cident), the airbag will not operate.
Impact detection zones


A.
Front impact zone.

B.
Side impact zone.
Deployment of the airbag(s) is ac-
companied by a slight emission of
harmless smoke and a noise, due to
the activation of the pyrotechnic car-
tridge incorporated in the system.
This smoke is not harmful, but sen-
sitive individuals may experience
slight irritation.
The noise of the detonation may
result in a slight loss of hearing for
a short time.








Front airbags

System which protects the head and
chest of the driver and front passen-
ger in the event of a front impact.
The driver's airbag is fi tted in the
centre of the steering wheel; the
front passenger's airbag is fi tted in
the dashboard above the glove box.

Deployment
The airbags are deployed simultane-
ously, unless the passenger's front
airbag is deactivated, in the event of
a serious front impact applied to all
or part of the front impact zone A
,
in the longitudinal centreline of the
vehicle on a horizontal plane and di-
rected from the front to the rear of
the vehicle.
The front airbag infl ates between the
front occupant of the vehicle and the
dashboard to cushion their forward
movement.

XI
186
PRACTICAL INFORMATION
CHANGING A WHEEL

Access to the tools

Depending on equipment, the tools
are to be found either in the com-
partment under the second-row pas-
senger footwells (the compartment
is opened by turning the screw a
quarter turn) or in the well under the
third-row left-hand seat.


1.
Tool for removing the central trim
on alloy wheels *
or

2.
Tool for removing the chrome
covers on the wheel bolts on al-
loy wheels *

3.
Centring guide *

4.
Wheelbrace

5.
Vehicle jack with integral handle

6.
Security bolt socket (located in
the glovebox) ** Switch on your hazard
warning lamps, ensure that
any passengers leave the
vehicle and fi nd a safe place to wait
away from traffi c (e.g. behind crash
barriers or on a grass verge).
Never get underneath the vehicle
if it is supported only by the jack;
use a stand.
The jack and the tools are specifi c
to your vehicle. Do not use for any
other purpose.
Do not to exceed a speed of 50 mph
(80 km/h) on your spare wheel.
Have the original wheel repaired
and refi tted as soon as possible.
7.
Short extension for C4 Picasso

8.

Long extension for Grand C4 Picasso
(located in the well under the right
hand third row seat)


9.

Two chocks, provided for changing
a wheel or for other uses on the
vehicle (such as releasing the electric
parking brake)

10.
Parking brake release tool (electric
parking brake)

11 .

Removable towing eye

*
With alloy wheels only.

** With security bolts only.
