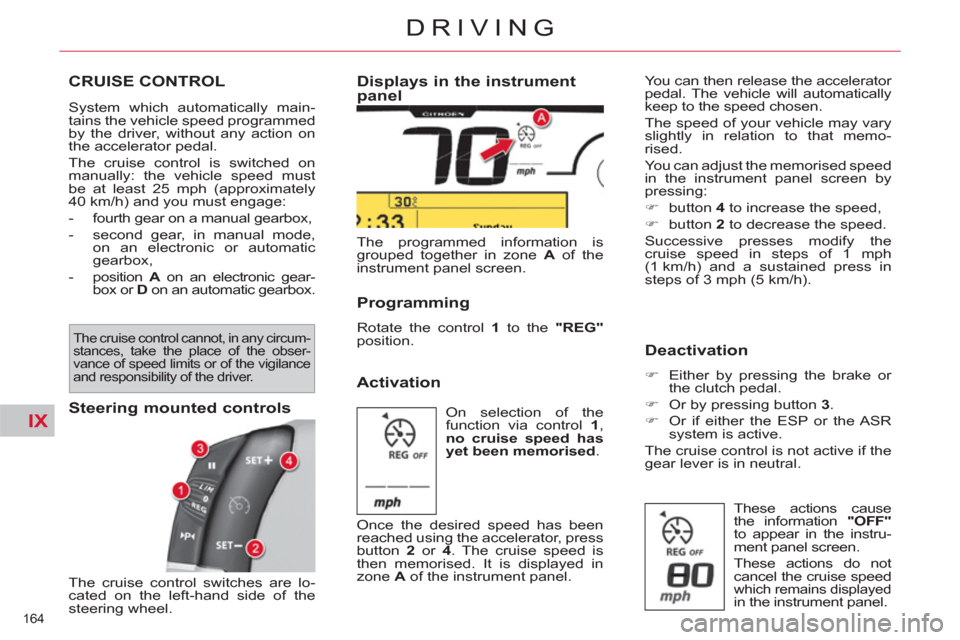

CRUISE CONTROL
System which automatically main-
tains the vehicle speed programmed
by the driver, without any action on
the accelerator pedal.
The cruise control is switched on
manually: the vehicle speed must
be at least 25 mph (approximately
40 km/h) and you must engage:


- fourth gear on a manual gearbox,

- second gear, in manual mode,
on an electronic or automatic
gearbox,

- position A
on an electronic gear-
box or D
on an automatic gearbox.


Steering mounted controls

The cruise control switches are lo-
cated on the left-hand side of the
steering wheel. The programmed information is
grouped together in zone A
of the
instrument panel screen.


Displays in the instrument
panel

Activation
You can then release the accelerator
pedal. The vehicle will automatically
keep to the speed chosen.
The speed of your vehicle may vary
slightly in relation to that memo-
rised.
You can adjust the memorised speed
in the instrument panel screen by
pressing:


)
button 4
to increase the speed,

)
button 2
to decrease the speed.
Successive presses modify the
cruise speed in steps of 1 mph
(1 km/h) and a sustained press in
steps of 3 mph (5 km/h).


Deactivation



)
Either by pressing the brake or
the clutch pedal.

)
Or by pressing button 3
.

)
Or if either the ESP or the ASR
system is active.
The cruise control is not active if the
gear lever is in neutral. On selection of the
function via control 1,
no cruise speed has
yet been memorised.


Programming

Rotate the control 1
to the "REG"

position.
Once the desired speed has been
reached using the accelerator, press
button 2
or 4
. The cruise speed is
then memorised. It is displayed in
zone A
of the instrument panel. These actions cause
the information "OFF"

to appear in the instru-
ment panel screen.
These actions do not
cancel the cruise speed
which remains displayed in the instrument panel.

The cruise control cannot, in any circum-
stances, take the place of the obser-
vance of speed limits or of the vigilance
and responsibility of the driver.

IX
171
DRIVING
PNEUMATIC SUSPENSION

Grand
C4 Picasso

C4 Picasso

The pneumatic rear suspension en-
hances driving comfort by maintain-
ing a constant body height whatever
the vehicle load.

Operation



- If there is an increase in vehicle
load, a sinking of the rear of
the vehicle is detected and the
pneumatic springs infl ate in or-
der to compensate for the extra
weight.

- If there is a decrease in load, a
rising of the rear of the vehicle is
detected and so the pneumatic
springs defl ate to return the ve-
hicle to its nominal height.

- If the vehicle has been unused
for a long period, the pneumatic
springs may infl ate if necessary
when you unlock or open a door,
so as to return the vehicle to its
nominal height.
If you do not reactivate the system
manually, automatic height correc-
tion will be activated as soon as the
vehicle starts to move. During height
correction, the service warning lamp
comes on and a message on the
screen reminds you not to exceed
6 mph (10 km/h).
The automatic correction does not
function if the doors or the boot are
open.
The automatic correction operates
even if your vehicle is in power
economy mode.
Activation/Deactivation
The automatic height correction can
be deactivated:


)
press button B
located on the
left hand boot interior trim for ap-
proximately two seconds,

)
release the button when you
hear a beep. Deactivation is con-
fi rmed by the lighting of the indi-
cator lamp in button B
.

In the event of a system fault,
alert messages, always in asso-
ciation with the service warning
lamp, will appear in the instru-
ment panel . Contact a CITROËN
dealer or a qualifi ed workshop.

You must deactivate the system in
the following circumstances:


- when working under the vehicle,

- when changing a wheel,

- when transporting the vehicle on
a lorry or ferry.
To reactivate automatic height cor-
rection:


)
press button B
again for approxi-
mately two seconds,

)
release the button when you hear
a beep. Activation is confi rmed
by the extinction of the indicator
lamp in button B
.

IX
172
DRIVING

Loading/unloading
assistance

Grand
C4 Picasso

C4 Picasso

The pneumatic suspension has an
additional function: the possibility to
raise or lower the height of the rear
of the vehicle when stationary, in or-
der to facilitate loading/unloading of
the boot.
Increasing the height of the boot
fl oor


)
Press continuously the top con-
trol A
, which is located in the
boot, on the left-hand side.
This action will be accompanied by
an audible signal. You can stop the
movement at any time by releasing
the control.
3 beeps will confi rm that the move-
ment has gone as far as it can.

Returning to the normal height



)
Press briefl y the bottom of con-
trol A
twice.


Decreasing the height of the boot
fl oor


)
Press continuously the bottom of
control A
.
This action will be accompanied by
an audible signal. You can stop the
movement at any time by releasing
the control.
3 beeps will confi rm that the move-
ment has gone as far as it can.
Returning to the normal height



)
Press briefl y the top of control A

twice.
Driving with the boot in a
low position may damage
underbody components.

Particular points



- If you start the vehicle without
having returned it to the normal
height, automatic correction will
activate as soon as the vehicle
starts to move. During the cor-
rection, the service warning
lamp comes on and a message
on the screen reminds you not to
exceed 6 mph (10 km/h).

- Loading assistance does not
function in the following circum-
stances:


- If button B
is illuminated,

- in power economy mode,

- when you fi
rst use the function,
press control A
for two seconds
to initialise the system. The sys-
tem will respond normally to sub-
sequent operation of the control.

XI
206
PRACTICAL INFORMATION
ENERGY ECONOMY MODE
System which manages the duration
of use of certain functions to conserve
a suffi cient level of charge in the
battery.
After the engine has stopped, you can
still use functions such as the audio
and telematics system, windscreen
wipers, dipped beam headlamps,
courtesy lamps, etc. for a maximum
combined duration of thirty minutes.


Switching to economy mode

Once this period has elapsed, a
message appears on the multi-func-
tion screen indicating that the vehi-
cle has switched to economy mode
and the active functions are put on
standby.
If a telephone call is being made at
this time:


- it will be maintained for 10 minu tes
with your Audio system or MyWay
hands-free system

- it will be maintained for 10 minu tes
with the NaviDrive, then it will trans-
fer to your telephone depending on
its model.



Exiting economy mode

These functions are reactivated au-
tomatically next time the vehicle is
started.
To resume the use of these functions
immediately, start the engine and let
it run for at least 5 minutes.
A fl at battery prevents the
engine from starting (refer
to the corresponding para-
graph).
This period may be reduced con-
siderably if the battery is not fully
charged.

XII
214
TECHNICAL DATA


WEIGHTS AND TOWED LOADS (in kg)



Petrol engines


VTi 120



THP 155



VTi 143



Gearboxes


Automatic





Electronic gearbox system




Automatic



Model codes:
UA... UE... UD...


5FS-0



5FV-8/P



RFJ-F




- Unladen weight
1 430 - 1 415 - 1 415
1 517 - 1 430 - 1 430
1 600 - 1 556 - 1 552


- Kerb weight
1 505 - 1 490 - 1 490
1 592 - 1 505 - 1 505
1 675 - 1 631 - 1 627


- Payload
770 - 700 - 525
703 - 630 - 610
660 - 514 - 538


- Gross vehicle weight
(GVW)
2 200 - 2 115 - 2 015
2 220 - 2 060 - 2 040
2 260 - 2 070 - 2 090


- Gross train weight
(GTW)
on a 12 % gradient
3 300 - 3 315 - 3 315
3 420 - 3 410 - 3 390
3 660 - 3 570 - 3 590


-
Braked trailer
(within GTW limit)

on a 10 % or 12 % gradient
1 100 - 1 200 - 1 300
1 200 - 1 350 - 1 350
1 400 - 1 500 - 1 500


- Braked trailer * (with load
transfer within GTW
limit)
1 300 - 1 500 - 1 500
1 500
1 500


- Unbraked trailer
750 -745 - 745
750
750


- Recommended nose weight
60
60
60
The GTW and towed load values indicated apply up to a maximum altitude of 1,000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1,000 metres of altitude.
The speed of a towing vehicle must not exceed 100 km/h (approx. 60 mph) (comply with the legislation in force in your
country).
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the weight towed.


*
The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.

XII
217
TECHNICAL DATA


WEIGHTS AND TOWED LOADS (in kg)



Diesel engines


HDi 110



Gearboxes


Manual



Electronic gearbox system



Model codes:
UA... UE... UD...


9HZ-C



9HZ-H/P




- Unladen weight
1 530 - 1 484 - 1 489
1 539 - 1 494 - 1 499


- Kerb weight
1 605 - 1 559 - 1 564
1 614 - 1 569 - 1 574


- Payload
720 - 546 - 561
711 - 536 - 561


- Gross vehicle weight
(GVW)
2 250 - 2 030 - 2 050
2 250 - 2 030 - 2 060


- Gross train weight
(GTW)
on a 12 % gradient
3 130
3 130


- Braked trailer
(within GTW limit)
on a 10 % or 12 % gradient
880 - 1 100 - 1 080
880 - 1 100 - 1 070


- Braked trailer * (with load
transfer within GTW
limit)
1 180 - 1 300 - 1 300
1 180 - 1 300 - 1 300


- Unbraked trailer

750
750


- Recommended nose weight
50 - 60 - 60
50 - 60 - 60
The GTW and towed load values indicated apply up to a maximum altitude of 1,000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1,000 metres of altitude.
The speed of a towing vehicle must not exceed 100 km/h (approx. 60 mph) (comply with the legislation in force in your
country).
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the weight towed.
*

The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.

XII
218
TECHNICAL DATA
The GTW and towed load values indicated apply up to a maximum altitude of 1,000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1,000 metres of altitude.
The speed of a towing vehicle must not exceed 100 km/h (approx. 60 mph) (comply with the legislation in force in your
country).
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the weight towed.

WEIGHTS AND TOWED LOADS (in kg)



Diesel



engines


HDi 110



Gearboxes


Manual





Electronic gearbox system




Electronic gearbox system




Model codes:
UA... UE... UD...


9HR-8



9HR-8/P



9HR-8/PS




- Unladen weight
1 490 - 1 430 - 1 430
1 510 - 1 470 - 1 420
1 520 - 1 480 - 1 430


- Kerb weight
1 565 - 1 505 - 1 505
1 585 - 1 545 - 1 495
1 595 - 1 555 - 1 505


- Payload
760 - 670 - 620
740 - 630 - 640
730 - 620 - 630


- Gross vehicle weight
(GVW)
2 250 - 2 100 - 2 050
2 250 - 2 100 - 2 060
2 250 - 2 100 - 2 060


- Gross train weight
(GTW)
on a 12 % gradient
3 130
3 130
3 130


- Braked trailer
(within GTW limit)
on a 10 % or 12 % gradient
880 - 1 030 - 1 080
880 - 1 030 - 1 070
750 - 900 - 940


- Braked trailer * (with load
transfer within GTW
limit)
1 180 - 1 330 - 1 380
1 180 - 1 330 - 1 370
1 050 - 1 200 - 1 240


- Unbraked trailer

750
750 - 750 - 745
750


- Recommended nose weight
60
60
60
*

The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.

XII
219
TECHNICAL DATA
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 62 mph (approx 100 km/h) (comply with the legislation in force in your
country).
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the weight towed.

WEIGHTS AND TOWED LOADS (in kg)



Diesel engines


HDi 138



Gearboxes


Electronic gearbox system



Automatic



Model codes:
UA... UE... UD...


RHJ-H/P



RHR-J




- Unladen weight
1 620 - 1 582 - 1 581
1 650 - 1 611 - 1 640


- Kerb weight
1 695 - 1 657 - 1 656
1 725 - 1 686 - 1 715


- Payload
700 - 558 - 559
700 - 559 - 510


- Gross vehicle weight
(GVW)
2 320 - 2 140 - 2 140
2 350 - 2 170 - 2 150


- Gross train weight
(GTW)
on a 12 % gradient
3 620 - 3 590 - 3 540
3 550 - 3 520 - 3 550


- Braked trailer
(within GTW limit)
on a 10 % or 12 % gradient
1 300 - 1 450 - 1 400
1 200 - 1 350 - 1 400


- Braked trailer * (with load
transfer with GTW
limit)


1 500
1 500


- Unbraked trailer
750
750


- Recommended nose weight
70 - 60 - 60
60
*


The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
