2012 Citroen C4 PICASSO RHD ECO mode

V
104
VISIBILITY
LIGHTING PACK

Interior mood lighting

This function activates the light
sources which are located in the
dashboard, near the interior door le-
vers and in the roof.
Operation
This back-lit control, located near
the steering wheel below the dash-
board, is used to switch on and off
and adjust the brightness of this
lighting.
To increase
brightness:


)
Press the right of the control to
obtain the desired level.
To reduce
brightness:


)
Press the left of the control to
obtain the desired level.
The setting is stored when the ignition
is switched off.


Interior welcome lighting

When unlocking the vehicle with the
remote control or the key, the foot-
well lamps, interior lamps and interior
mood lighting sources come on for
30 seconds.
This function cannot be deactivated.


Front door pockets with
automatic lighting

The lighting for the door pockets
comes on automatically when you
place a hand inside one of the com-
partments.
It goes off after a few seconds when
you take your hand away.

Reading lamps on front seat
backrests

There are reading lamps in the back-
rests of the front seats, behind the
rear tables. They can operate only
when the table is lowered.


)
Press the "On/Off" button to switch
the reading lamp on or off. This lighting, available once the
sidelamps are on, in night mode,
provides subdued lighting in the
passenger compartment.

VI
110
FITTINGS
SIDE BLINDS(C4 PICASSO)
Fitted on the 2nd row rear windows,
these protect young children from
the sun's rays.



)
Pull on the tab A
and anchor the
blind on the hook B
.

SIDE BLINDS(GRAND C4 PICASSO)

Fitted on the 2nd and 3rd row rear
windows, these protect young children
from the sun's rays.

Second row



)
Pull on the tab A
and anchor the
blind on the hooks B
.



Third-row

The blinds are fi tted in the third-row
trim panels.


)
Pull on the tab and anchor the
blind on the hooks.

(GRAND C4 PICASSO)




)
Pull on the tab and anchor the
blind on the hooks.


Do not attach or suspend heavy
objects in the environs of the sun
visors (blind housings and hooks...).

THIRD ROW STORAGE


Third-row passengers may have
storage pockets in the side panel
and each of them will have a cup-
holder (7 seater model).

VI
116
FITTINGS

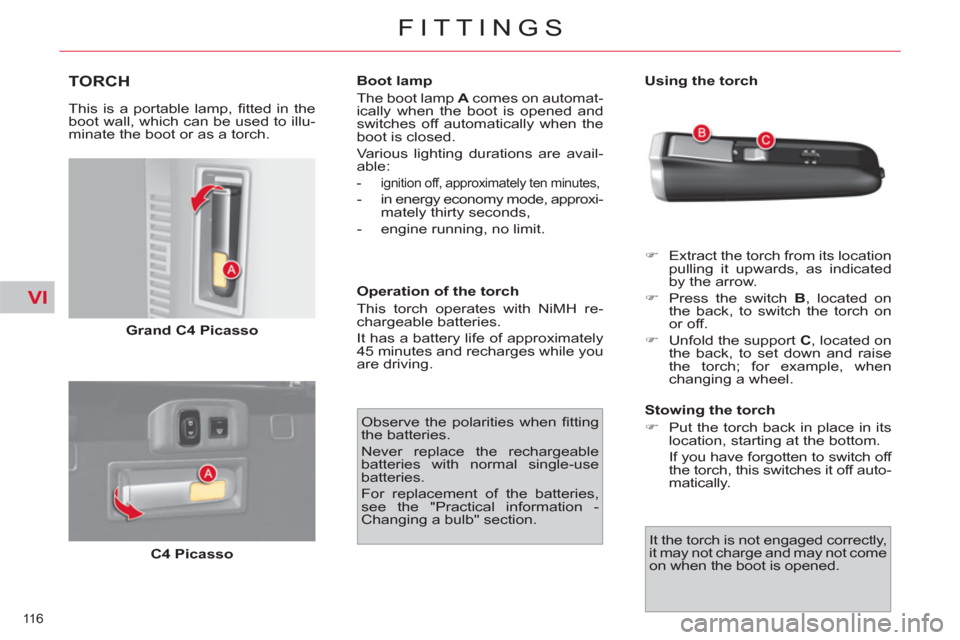

TORCH

This is a portable lamp, fi tted in the
boot wall, which can be used to illu-
minate the boot or as a torch.

Grand C4 Picasso


C4 Picasso

Boot lamp
The boot lamp A
comes on automat-
ically when the boot is opened and
switches off automatically when the
boot is closed.
Various lighting durations are avail-
able:


- ignition off, approximately ten minutes,


- in energy economy mode, approxi-
mately thirty seconds,

- engine running, no limit.


Operation of the torch
This torch operates with NiMH re-
chargeable batteries.
It has a battery life of approximately
45 minutes and recharges while you
are driving.

)
Extract the torch from its location
pulling it upwards, as indicated
by the arrow.

)
Press the switch B
, located on
the back, to switch the torch on
or off.

)
Unfold the support C
, located on
the back, to set down and raise
the torch; for example, when
changing a wheel.


Stowing the torch


)
Put the torch back in place in its
location, starting at the bottom.
If you have forgotten to switch off
the torch, this switches it off auto-
matically. Observe the polarities when fi tting
the batteries.
Never replace the rechargeable
batteries with normal single-use
batteries.
For replacement of the batteries,
see the "Practical information -
Changing a bulb" section.
It the torch is not engaged correctly,
it may not charge and may not come
on when the boot is opened.

Using the torch

IX
148
DRIVING
GEAR EFFICIENCY
INDICATOR *

System which reduces fuel con-
sumption by advising the driver to
change up on vehicles fi tted with a
manual gearbox.

Operation

The system intervenes only when
driving economically.
Depending on the driving situation
and your vehicle's equipment, the
system may advise you to skip one
or more gears. You can follow this
instruction without engaging the in-
termediate gears.
The gear recommended should not
be considered compulsory. In fact,
the confi guration of the road, the
amount of traffi c and safety remain
determining factors when choosing
the best gear. Therefore, the driver
remains responsible for deciding
whether or not to follow the advice
given by the system.
This function cannot be deactivated.

* According to engine.
Example:


- You are in third gear.

- You press the accelerator pedal
moderately.

- The system may suggest that
you engage a higher gear, if ap-
propriate.
The information appears in the form
of an arrow in the instrument panel
screen.
Depending on your vehicle's equip-
ment, this arrow may be accompanied
by the recommended gear.

In the case of driving which
makes particular demands
on the performance of the
engine (fi rm pressure on
the accelerator pedal, for example,
when overtaking...), the system will
not recommend a gear change.
The system never suggests:


- engaging fi rst gear,

- engaging reverse gear,

- engaging a lower gear.

IX
149
DRIVING

Displays in the instrument panel



- The gear lever position is dis-
played in the instrument panel,
on the left on the A and C multi-
function screens and on the right
on NaviDrive and MyWay multi-
function screens.

- A back-lit position grille associ-
ated with the gear lever shows
the position selected.



When the ignition is on, il-
lumination of the service
warning lamp, accompa-
nied by an audible signal and
the message "Gearbox faulty"
indicates a malfunction.


Contact a CITROËN dealer or a
qualifi ed workshop.

For safety:


)
position N
can only be disen-
gaged if you are pressing the
brake pedal.

)
if the gearbox is in position N

but the gear lever position is dif-
ferent, reposition the gear lever
on N
in order to be able to start.



Moving off



)
To start the engine, the gear lever
must be in position N
.


)
Press fi rmly on the brake pedal.

)
Operate the starter.

)
When the engine is running,
place the gear lever on R
, A
or
M
as desired.

)
In the instrument panel, check
the position engaged.

)
Release the brake pedal and ac-
celerate.
If the gear lever is not in position N
,
and/or if the brake pedal is not
pressed, the corresponding warning
lamp(s) are displayed and a mes-
sage informs you that at least one of
these two conditions is not met.
In this case, the engine will not start,
recommence the above procedure.
6-SPEED ELECTRONIC GEARBOX SYSTEM
The 6-speed electronic gearbox of-
fers a choice between the comfort of
fully automatic operation or the driving
pleasure of manual gear changing.
You have a choice of two driving
modes:


- automatic
mode for automatic
control of the gears by the gear-
box,
- manual
mode for sequential
changing of the gears by the
driver.


)
Automated mode: gear lever 2
in
position A
.

)
Manual mode: gear lever 2
in po-
sition M
.
In automated mode, temporary man-
ual operation is possible any time by
using one of the paddles 1
.


Mode selection

IX
153
DRIVING
The Stop & Start system puts the en-
gine temporarily into standby - STOP
mode - during stops in the traffi c
(red lights, traffi c jams, or other...).
The engine restarts automatically -
START mode - as soon as you want
to move off. The restart takes place
instantly, quickly and silently.
Perfect for urban use, the Stop &
Start system reduces fuel consump-
tion and exhaust emissions as well
as the noise level when stationary.

Operation


Going into engine STOP mode
The "ECO"
warning lamp
comes on in the instrument
panel and the engine goes
into standby:


- with the electronic gearbox
system
, at speeds below 4 mph
(6 km/h), press the brake pedal or
put the gear lever in position N
. If your vehicle is fi tted with the sys-
tem, a time counter calculates the
sum of the periods in STOP mode
during a journey. It rests itself to zero
every time the ignition is switched on
with the key.
Special cases: STOP mode not
available

Never refuel with the en-
gine in STOP mode; you
must switch off the ignition
with the key.
For your comfort, during parking
maoeuvres, STOP mode is not
available for a few seconds after
coming out of reverse gear.
STOP mode does not affect the
functionality of the vehicle, such as
for example, braking, power steer-
ing... STOP mode is not invoked
when:


- the driver’s door is open,

- the driver’s seat belt is not fas-
tened,

- the vehicle has not exceeded
6 mph (10 km/h) since the last
engine start using the key,

- the electric parking brake is ap-
plied or being applied,

- the engine is needed to maintain
a comfortable temperature in the
passenger compartment,

- demisting is active,

- some special conditions (battery
charge, engine temperature,
braking assistance, ambient
temperature...) where the engine
is needed to assure control of a
system.
In this case, the "ECO"
warning
lamp fl ashes for a few seconds then
goes off.

This operation is perfectly normal.

IX
154
DRIVING

Going into engine START mode
Special cases: START invoked
automatically
At any time, press the "ECO
OFF"
switch to deactivate the system.
This is confi rmed by the switch warn-
ing lamp coming on accompanied by
a message in the screen.
Deactivation

Reactivation

Press the "ECO OFF"
switch again.
The system is active again; this is
confi rmed by the switch warning
lamp going off and a message in the
screen. The "ECO"
warning lamp
goes off and the engine
starts with the electronic
gearbox
system
:


- gear lever in position A
or M
, re-
lease the brake pedal,

- or gear lever in position N
and the
brake pedal released, move the
gear lever to position A
or M
,

- or engage reverse gear.
START mode is invoked au-
tomatically when:


- the driver’s door is open,

- the driver’s seat belt is not fas-
tened,

- the speed of the vehicle exceeds
7 mph (11 km/h) with the elec-
tronic gearbox system,

- the electric parking brake is be-
ing applied,

- some special conditions (battery
charge, engine temperature,
braking assistance, ambient tem-
perature...) where the engine is
needed for control of a system.
In this case the "ECO"
warning lamp
fl ashes for a few seconds, then goes
off.

This operation is perfectly normal.


If the system has been deactivated
in STOP mode, the engine restarts
immediately.


The system is reactivated auto-
matically at every new start using
the key.

IX
155
DRIVING
In the event of a fault with the sys-
tem, the "ECO OFF"
switch warning
lamp fl ashes then comes on con-
tinuously.
Have it checked by a CITROËN
dealer or a qualifi ed workshop.
In the event of a fault in STOP mode,
the vehicle may stall. It is then nec-
essary to switch off the ignition and
start the engine again using the key.


Maintenance

Operating fault


Before doing anything un-
der the bonnet, deactivate
the Stop & Start system to
avoid any risk of injury resulting
from automatic operation of START
mode.
This system requires a 12 V battery
with a special specifi cation and tech-
nology (reference numbers available
from CITROËN dealers).
Fitting a battery not listed by
CITROËN introduces the risk of
malfunction of the system.
To charge the battery, use a 12 V
charger and observe the polarity.

The Stop & Start system
makes use of advanced
technology. For any work
on the system go to a qualifi ed
workshop with the skills and equip-
ment required, which a CITROËN
dealer is able to provide.
