2012 Citroen C3 RHD Owner's Manual

YOUR HANDBOOK
ON THE INTERNET!


CITROËN lets you view your vehicle's documen-
tation on line, to see earlier versions and the latest
information, simply and free of charge.
Connect to http://service.citroen.com
:
1|
Select your language and register,
click on the link in the "Private customer access" zone to consult
the vehicle documentation; a window opens providing access to all of
the handbooks,
select your vehicle, choose the body type then the date of issue of
the handbook,
fi nally, click on the heading of your choice.
2|
3|
4|

1
Your vehicle is fi tted with only some of
the equipment described in this document,
depending on the trim level, version and the
specifi cations for the country in which it is
sold.
The fi tting of electrical equipment or
accessories which are not recommended
by CITROËN may result in a failure of your
vehicle’s electronic system. Please note this
specifi c warning and contact a CITROËN
dealer to be shown the recommended
equipment and accessories.
CITROËN has a presence on every continent,
a complete product range,
bringing together technology and a permanent spirit of innovation,
for a modern and creative approach to mobility.
We thank you and congratulate you on your choice.


Happy motoring!

Key

safety warning

We draw your attention to the following...


additional information


contributes to the protection of the environment


At the wheel of your new vehicle,
getting to know each system,
each control, each setting,
makes your trips, your journeys
more comfortable and more enjoyable.

refer to the page indicated

2
CONTENTS

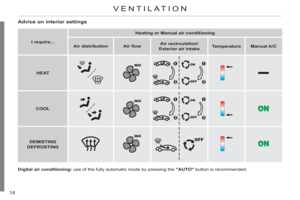

Ventilation 50Heating 52Manual air conditioning 52Digital air conditioning 55Rear screen demist - defrost 57Scented air freshener 58Front seats 59Rear seats 61Mirrors 62Steering wheel adjustment 63
3 - COMFORT 50 Î 63

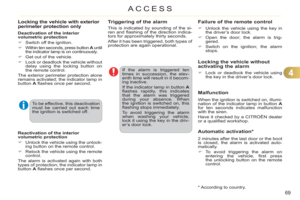

Remote control key 64Alarm 68Window controls 70Doors 72Boot 75Fuel tank 76Misfuel prevention (Diesel) 78
4 - ACCESS 64 Î 78
Lighting controls 79Headlamp adjustment 82Wiper controls 83Courtesy lamps 86Interior mood lighting 87Boot lamp 87
5 - VISIBILITY 79Î 87
Child seats 94
ISOFIX child seats 99Electric child lock 102
7 - CHILD
SAFETY 94 Î 102
FAMILIARISATION 4Î20
Monochrome screen A 43Monochrome screen C 4516/9 colour screen (MyWay) 48
2 - MULTIFUNCTION
SCREENS 43 Î49
Interior fi ttings 88Boot fi ttings 92
6 - FITTINGS88Î 93
Instrument panels 23Indicator and warning lamps 25Indicators 35Adjustment buttons 38Trip computer 40
1 - MONITORING 23Î42
ECO-DRIVING 21Î22

3
CONTENTS
Direction indicators 103Hazard warning lamps 103Horn 103Emergency or assistance call 104Braking assistance systems 104Trajectory control systems 105Front seat belts 106Airbags 108
8 - SAFETY 103Î111
Parking brake 1126-speed manual gearbox 112Gear effi ciency indicator 113Electronic gearbox 114Automatic gearbox 118Stop & Start 121Hill start assist 124Speed limiter 125Cruise control 127Rear parking sensors 129
9 - DRIVING 112Î 130
Bonnet 132Running out of fuel (Diesel) 132Petrol engines 133Diesel engines 134Checking levels 135Checks 136
10 - CHECKS131 Î137

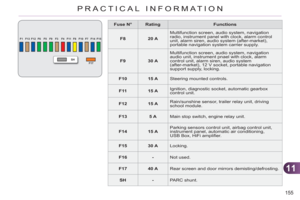

Temporary puncture repair kit 138Changing a wheel 143Changing a bulb 147Changing a fuse 153Battery 160Energy economy mode 162Changing a wiper blade 162Towing the vehicle 163Towing a trailer 165Audio pre-equipment 166Accessories 167
11 - PRACTICAL
INFORMATION 138 Î168

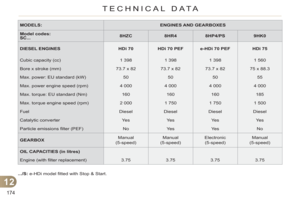

Petrol engines 169Petrol weights 170LPG engines 172LPG weights 173Diesel engines 174Diesel weights 176Dimensions 178Identifi cation markings 179
12 - TECHNICALD ATA 169 AÎ 180
VISUAL
SEARCH237 Î 240
ALPHABETICALINDEX 241 Î 244
AUDIOandTELEMATICS 181 Î 236

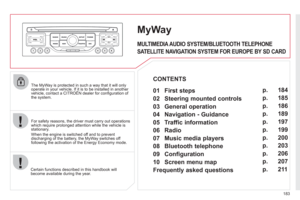

Emergency or assistance 181MyWay 183Audio system 215

4

Rear parking sensors
This system provides a warning when
reversing by detecting obstacles located
behind the vehicle.



129


Stop & Start
This system puts the engine temporarily
into standby during stops in the traffi c (red
lights, traffi c jams, etc...). The engine re-
starts as soon as you want to move off.
The Stop & Start system reduces fuel
consumption, exhaust emissions and the
noise level when stationary.



121


Temporary puncture repair kit
This kit is a complete system consisting
of a compressor and a sealant cartridge,
for the temporary repair of a tyre.



138



Zenith windscreen
This large windscreen provides incompa-
rable visibility and light in the passenger
compartment.



6


EXTERIOR

5
FAMILIARI
S
AT I
ON

Remote control keyFuel tank



1.
Opening the fuel fi ller fl ap.

2.
Opening and hooking the fuel fi ller
cap.
A.
Unfolding/Folding the key.

B.
Unlocking the vehicle.



64




76




A.
Interior release lever.

B.
Exterior safety catch.

C.
Bonnet stay.



132




Bonnet


Other functions...


C.
Normal locking of the vehicle.
or
Deadlocking of the vehicle.
Vehicle location. Tank capacity:


- approximately 50 litres (petrol),

- approximately 46 litres (Diesel).

- (according to version: approximately
30 litres (petrol or Diesel)).

ACCESS

6
System comprising a panoramic tinted
glass area to increase lighting and vi-
sion in the cabin.
Fitted with a manual blind to improve
thermal comfort and sun visors to avoid
dazzle.

)
To open the blind, take it by its cen-
tral grip A
, then pull it backward
guiding it to the desired position.

)
To close the blind, take it by its central
grip A
, then pull it forwards guiding it
to the desired position.

)
Lower the sun visors to avoid dazzle.


Do not attach or hang heavy
objects to the blind or its guide
rails.
Blind Sun visors

Before moving the blind, the sun visors
must be in the folded position.

ZENITH WINDSCREEN
