TECHNICAL DATA


WEIGHTS AND TOWED LOADS (in kg)



Petrol engines


1.1 i



1.4 i



Gearboxes


Manual



Manual



Model codes:
SC...


HFV0



KFT0




- Unladen weight
1 010
1 030


- Kerb weight
1 085
1 105


- Gross vehicle weight (GVW)
1 527
1 529


- Gross train weight (GTW)
on a 12 % gradient
1 977
2 329


- Braked trailer (within GTW limit)
on a 12 % gradient
450
800


- Braked trailer * (with load transfer within the GTW
limit)
775
1 105


- Unbraked trailer
450
550


- Recommended nose weight
31
44


*
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount. Warning: towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

12
169
TECHNICAL DATA
*

The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount. Warning: towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

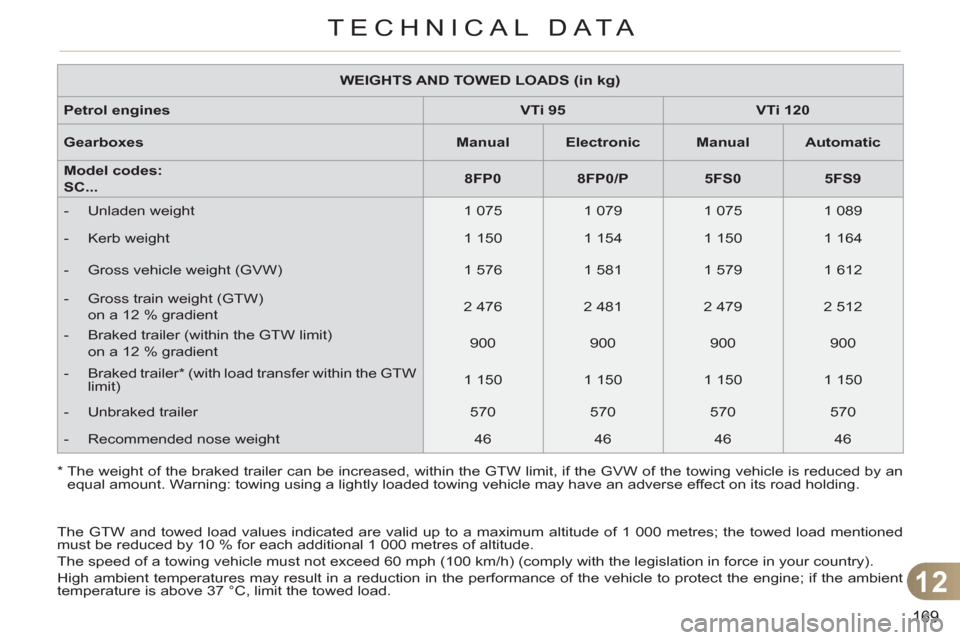

WEIGHTS AND TOWED LOADS (in kg)



Petrol engines


VTi 95



VTi 120



Gearboxes


Manual



Electronic



Manual



Automatic



Model codes:
SC...


8FP0



8FP0/

P



5FS0



5FS9




- Unladen weight
1 075
1 079
1 075
1 089


- Kerb weight
1 150
1 154
1 150
1 164


- Gross vehicle weight (GVW)
1 576
1 581
1 579
1 612


- Gross train weight (GTW)
on a 12 % gradient
2 476
2 481
2 479
2 512


- Braked trailer (within the GTW limit)
on a 12 % gradient
900
900
900
900


- Braked trailer * (with load transfer within the GTW
limit)
1 150
1 150
1 150
1 150


- Unbraked trailer
570
570
570
570


- Recommended nose weight
46
46
46
46

12
171
TECHNICAL DATA


WEIGHTS AND TOWED LOADS (in kg)



LPG engines


1.1 i



1.4 i



Gearboxes


Manual



Manual



Model codes:
SC...


HFV0/1GPL



KFT0/GPL


KFT0/1GPL




- Unladen weight
1 070
1 070


- Kerb weight
1 145
1 145


- Gross vehicle weight (GVW)
1 527
1 529


- Gross train weight (GTW)
on a 12 % slope
1 977
2 329


- Braked trailer (within GTW limit)
on a 12 % slope
450
1 000


- Braked trailer * (with load transfer within the
GTW limit)
775
1 000


- Unbraked trailer
450
500


- Recommended nose weight

31
44

*
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

12
174
TECHNICAL DATA
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

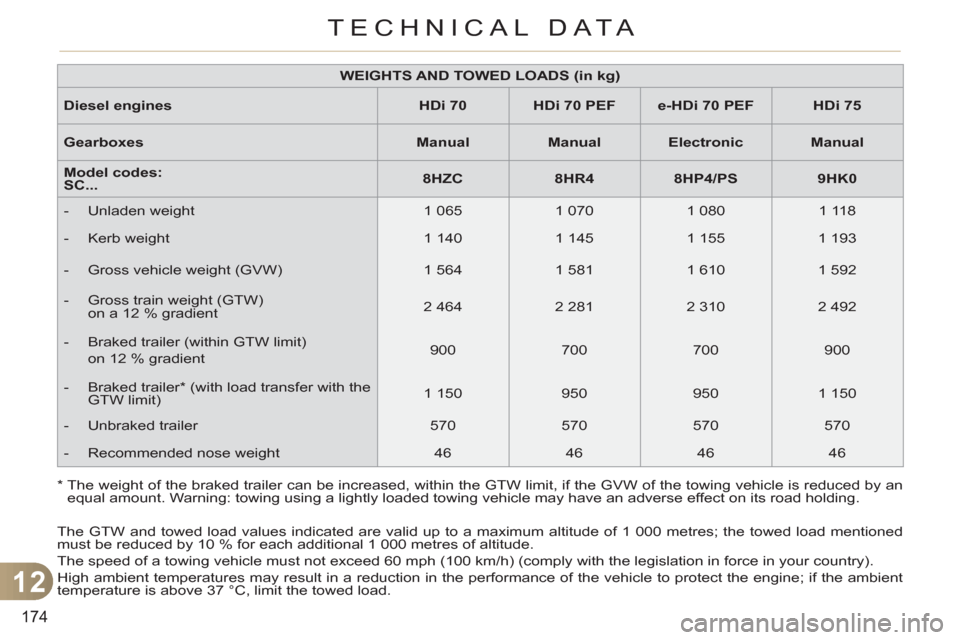

WEIGHTS AND TOWED LOADS (in kg)



Diesel engines


HDi 70



HDi 70 PEF



e-HDi 70 PEF



HDi 75



Gearboxes


Manual



Manual



Electronic



Manual



Model codes:
SC...


8HZC



8HR4



8HP4/PS



9HK0




- Unladen weight
1 065
1 070
1 080
1 118


- Kerb weight
1 140
1 145
1 155
1 193


- Gross vehicle weight (GVW)
1 564
1 581
1 610
1 592


- Gross train weight (GTW)
on a 12 % gradient
2 464
2 281
2 310
2 492


- Braked trailer (within GTW limit)

on 12 % gradient
900
700
700
900


- Braked trailer * (with load transfer with the
GTW limit)
1 150
950
950
1 150


- Unbraked trailer
570
570
570
570


- Recommended nose weight
46
46
46
46

*
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount. Warning: towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

12
175
TECHNICAL DATA
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load. *

The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount. Warning: towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

WEIGHTS AND TOWED LOADS (in kg)



Diesel engines


HDi 90 PEF



e-HDi 90 PEF



e-HDi 90 PEF



e-HDi 110 PEF



Gearboxes


Manual



Manual



Electronic



Manual



Model codes:
SC...


9HJ0



9HPK/S



9HP8/PS



9HR8/S




- Unladen weight
1 142
1 085
1 090
1 090


- Kerb weight
1 217
1 160
1 165
1 165


- Gross vehicle weight (GVW)
1 605
1 625
1 634
1 648


- Gross train weight (GTW)
on a 12 % slope
2 505
2 525
2 534
2 548


- Braked trailer (within the GTW limit)
on a 12 % slope
900
900
900
900


- Braked trailer * (with transfer of load within
the GTW limit)
1 150
1 150
1 150
1 150


- Unbraked trailer
570
570
570
570


- Recommended nose weight
46
46
46
46

181
The MyWay is protected in such a way that it will onlyoperate in your vehicle. If it is to be installed in another vehicle, contact a CITROËN dealer for confi guration of py
the system.
Certain functions described in this handbook will
become available during the year.
MyWay

For safety reasons, the driver must carry out operations which require prolonged attention while the vehicle is stationary.
When the en
gine is switched off and to prevent
discharging of the battery, the MyWay switches off
following the activation of the Energy Economy mode.


MULTIMEDIA AUDIO SYSTEM/BLUETOOTH TELEPHONE
SATELLITE NAVIGATION SYSTEM FOR EUROPE BY SD CARD


01 First steps
CONTENTS

02 Steering mounted controls

03 General operation

04 Navigation - Guidance

05 Traffic information

06 Radio

07 Music media players

08 Bluetooth telephone

09 Configuration

10 Screen menu map p.
p.
p.
p.
p.
p.
p.
p.
p.
p.

Frequently asked questions p. 182
183
184
187
195
197
198
201
204
205
209

184
03 GENERAL OPERATION


For a detailed global view of the menus available, refer to the"Screen menu map" section.
Press the M
ODE button several times in succession for access to the following menus:


For cleaning the screen, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended, with no additional product. RADIO/MU
SIC MEDIA PLAYERS
TELEPHONE
(If a conversation is in progress)
FULL SCREEN MA
P
NAVIGATION
(If guidance is in progress)
SETUP:
system language *
, date and time *
, display,
vehicle settings * , unit and system settings,
"Demo mode".
TRAFFIC:
TMC information and messages.

*
Available accordin
g to model. TRIP COMPUTE
R

197
06
3 2 1 1







SELECTING A STATION


When the current radio station isdisplayed on the screen, press thedial.

The radio source short-cuts menu appears and provides access to
the following short-cuts:

Select the function re
quired and press the dial to confi rm to gain
access to the corresponding settings.
TA


RDS, if displayed, allows you to continue listening to the same station by automatic retuning to alternative frequencies. However,
in certain conditions, coverage of an RDS station may not be
assured throughout the entire country as radio stations do notcover 100 % of the territory. This explains the loss of reception of
the station during a journey.
The external environment (hill, building, tunnel, underground car park...)may interfere with the reception, including in RDS following mode. This(g g(g
phenomenon is a normal result of the way in which radio waves are
transmitted and does not in any way indicate a failure of the audio equipment.






RDS - REGIONAL MODE
Press the RADIO button to display
the list of stations received locally sorted in alphabetical order.
Select the station required by turningthe dial and press to confi rm.
Re
gional prog.
Radiotext
RDSWhile listening to the radio, press one of the
buttons to select the previous or next station on
the list.
Press one o
f the buttons on the numeric keypad for more than
2 seconds to store the current station.
Press the button on the numeric keypad to recall the stored radio
station.

AM


A long press of one of the buttons starts theautomatic search for a station with a lower or
higher frequency.
RADIO
