2012 CITROEN C-ELYSÉE Owners Manual

63
3
Comfort
1. Temperature level adjustment
) Turn the control knob from
blue (cold) to red (hot) to
adjust the temperature to your
re
quirements.This s
ystem only operates with the engine running.


2. Air fl ow adjustment
)Turn the control knob from position 1
to position 4to obtaina comfortable air flow.



If you put the air flow control in position 0(system off), the temperature is no longer controlled. However,a slight flow of air can still be felt, resulting from the movement of the vehicle.

Manual air conditioning
(without display screen) Heating / Ventilation

This system only operates when the engine is running.

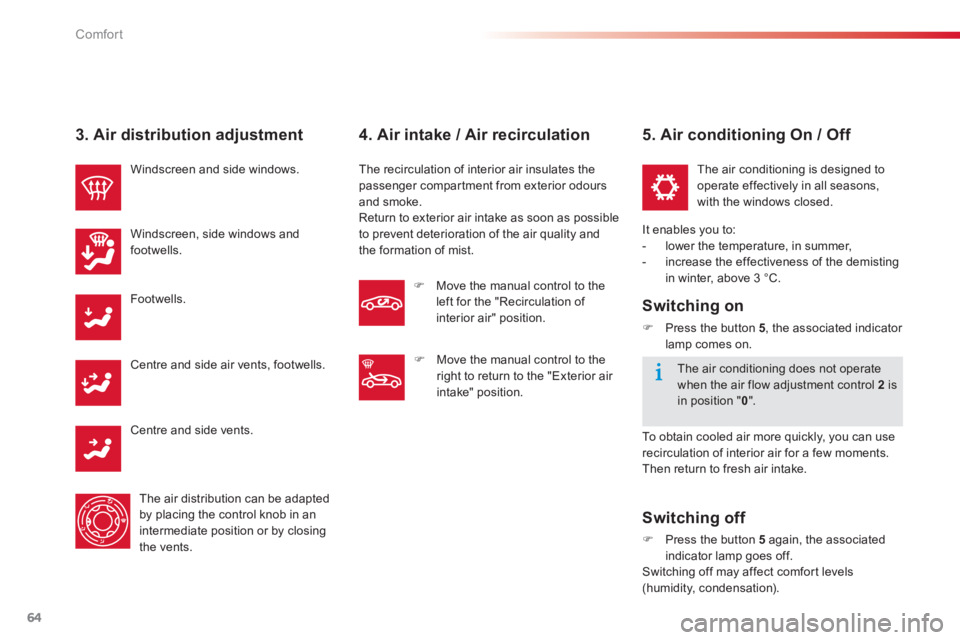

64
Comfort
3. Air distribution adjustment
Windscreen and side windows.

Windscreen, side windows and footwells.

Footwells.
Centre and side air vents, footwells.

The air distribution can be adapted by placing the control knob in an
intermediate position or by closing
th
e vents.
)Move the manual control to theright to return to the "Exterior air
intake" position.
) Move the manual control to the left for the "Recirculation of
interior air" position.


5. Air conditioning On / Off
It enables you to:


- lower the temperature, in summer,

- increase the effectiveness of the demisting
in winter, above 3 °C.



Switching on
)Press the button 5
, the associated indicator
lamp comes on.


Switching off
)Press the button 5
again, the associated
indicator lamp goes off.
Switching off may affect comfor t levels (humidity, condensation).

The air conditioning is designed to
operate effectively in all seasons, with the windows closed.
The air conditioning does not operate when the air flow adjustment control 2isin position " 0".
To obtain cooled air more quickly, you can use
recirculation of interior air for a few moments.
Then return to fresh air intake.
Centre and side vents.

4. Air intake / Air recirculation

The recirculation of interior air insulates the
passenger compar tment from exterior odoursand smoke.
Return to exterior air intake as soon as possible
to prevent deterioration of the air quality and
the formation of mist.

65
3
Comfort
Electronic air conditioning (with screen)
These systems only operate with the engine running.


1. Air intake / Air recirculation

The recirculation of interior air isolates the passenger compartment from exterior odours and smoke.


2. Temperature level adjustment
)Press the "
" (red for hot)and"" (blue for cold) buttons, to
adjust the temperature to your
requirements. The temperature bars come on
or go off progressively in the air conditioning screen.
Return to exterior air intake as soon as possible
to prevent deterioration of the the air qualit
y and the formation of mist. )Press the button to recirculate the interior air. The indicator lamp comes on to confirm
this.
) Press the button again to permit
the intake of exterior air. Theindicator lamp goes off to confirm
thi
s.

3. Front demist - defrost
See the corresponding section.

66
Comfort
4. Air conditioning On/Off
) Press the "A/C"button, thesymbol in the air conditioning screen comes on.

Switching off
This button allows the rapidcooling of the air in the passenger compartment.


5. Air conditioning: A/C MAX button

Switchin
g on
)
Press the "A/C MAX"button, the symbol in
the air conditioning screen comes on.

)Press the "A/C"
button again, the symbol in the air conditioning screen goes off.
Switching off may lead to unpleasant conditions (humidity, misting).
Switching on

Switchin
g off
)
Press the "A/C MAX"button again, the symbol in the air conditioning screen goes off.


6. Air distribution adjustment
)
Press this button successively todirect the air flow towards:


- windscreen and side windows (demisting or defrosting),

- windscreen, side windows and
air vents,

- windscreen, side windows, air
vents and footwells,

- windscreen, side windows and
footwells,

- footwells,

- air vents and footwells,

- air vents.

67
3
Comfort

7. Air fl ow adjustment
)
Press the " Large fan" button toincrease air flow.
)
Press the "Small fan" button toreduce air flow.
Deactivating the system
)
Press the "Small fan"air flow button until
all the bars in the air conditioning screen
go off.
Thi
s action deactivates all functions of the air conditioning system. The temperature level is no longer controlled.
A slight flow of air can still be felt however, resulting from the for ward movement of the
vehicle.
Pressing the "Large fan"
air flow button againreactivates the system. The air
flow bars come on progressively.


Avoid driving for long with the system
deactivated (risk of misting anddeterioration of air quality).
The air flow bars
go off progressively.

68
Comfort








Front demist - defrost


These markings on the control panel indicate the control positions for rapid demisting or
defrosting of the windscreen and side windows.
With the heating /
ventilation s
ystem
With the manual air
conditioning system
(without screen)

With electronic air
conditioning (with screen)
)Put the temperature and air flow controls to
the dedicated marked position.
)Put the air intake control to the "Exterior air intake" position (manual control moved to the right). )Put the air distribution control to the"Windscreen" position.
) Press this button.
The lamp in the button comes on.
) Press this button again to switch
it off.
The lamp in the button goes off.

)
Put the temperature and air flow controls to
the dedicated marked position.
) Put the air intake control to the "Exterior air
intake" position

(manual control to the right). ) Put the air distribution control to the "Windscreen" position. )
Switch on the air conditioning by pressingthe appropriate button; the lighting of the associated control comes on.

69
3
Comfort

















Rear screen demist - defrost
The control button is located on the heating / ventilation or air conditioning system controlpanel.


Switching on

The rear screen demisting/defrosting can onlyoperate when the engine is running.)Press this button to demist/defrost the rear screen and (depending on version) the door mirrors. The indicator lamp associated with
the button comes on.

Switching off
The demisting/defrosting switches off automatically to prevent an excessive consumption of current.)
It is possible to stop the demisting/defrosting operation before it is switched
off automatically by pressing the button
again. The indicator lamp associated with
the button goes off. )
Switch off the demisting/defrosting of the rear screen and door mirrors, if fitted,
as soon as appropriate, as lower currentconsumption results in reduced fuelconsumption.



Heated lower windscreen *

In cold conditions, the heated rear window switch also allows the lower windscreen to beheated, so as to free the wiper blades whenfrozen to the glass by frost or snow.


The function is active when the ambient temperature is below 0°C.


*
Depending on country of sale.

70
Fittings




















Interior fi ttings
Sun visor2.Glove box(see details on a following page)3.Door pockets4.Open storage compar tment
5.
Ashtray//Cup holder6.USB por t / Jack socketCigarettelighter / 12 V accessory socket(see details on a following page)7.Central armrestwith storageor
Ashtray holder / Cup holder / Bottle
holder
