2012 CITROEN C-CROSSER tow

3
CONTENTS
Parking brake 112Manual gearbox 112CVT gearbox 113DCS gearbox 115Four wheel drive system 119Cruise control 121Audible rear parking sensors 123Reversing camera 124
„„„„„„„„
VII - DRIVING 112Î124
Bonnet 126Running out of fuel 126Petrol engine 127Diesel engine 128Checking levels 129Checks 130
„„„„„„
VIII - CHECKS 125Î131
Changing a wheel 132Changing a bulb 137Changing a fuse 146Battery 151Changing a wiper blade 153Towing 154Towing a trailer 156Fitting roof bars 157Accessories 158
„„„„„„„„„
IX - PRACTICAL INFORMATION 132Î158
Engines 159Weights 160Dimensions 161Identifi cation markings 162
„„„„
X - TECHNICALDATA 159Î163
Audio CD system 164
CD changer 175Error messages 177Audio-Telematic System 178Navigation 180DVD mode 208Hands-free telephone 216
„„„„„„„
XI - AUDIO and TELEMATICS 164 Î 223
VISUAL SEARCH 224 Î 229
ALPHABETICALINDEX 230Î240

7
FAMILIARI
S
AT I
ON

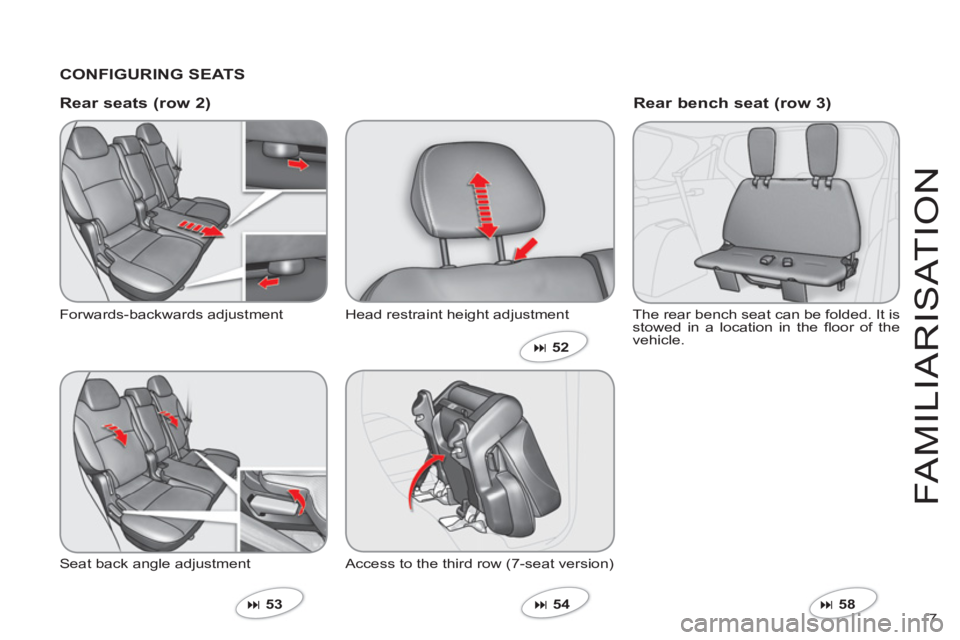

CONFIGURING SEATS


Rear seats
(row 2)
Forwards-backwards adjustment
Seat back an
gle adjustment
53
Head restraint height adjustment

Access to the third row (7-seat version)
54



Rear bench seat (row 3)
The rear bench seat can be folded. It is stowed in a location in the fl oor of the
vehicle.
58


52

19
ECO-DRIVING
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2emis-sions.
Optimise the use of your gearbox
With a manual gearbox, move off gen-tly, change up without waiting and drive by changing up quite soon. If your vehicle has the system, the gear shift indicator invites you to change up; it is displayed in the instrument panel, follow its instructions.
With an automatic or electronic gearbox, stay in Drive "D"
or Auto "A", according to the type of gearbox, without pressing the accelerator pedal heavily or sud-denly.
Drive smoothly
Maintain a safe distance between ve-hicles, use engine braking rather than the brake pedal, and press the accel-erator progressively. These practices contribute towards a reduction in fuel consumption and CO2 emissions and also helps reduce the background traf-22
fi c noise.
If your vehicle has cruise control, make use of the system at speeds above 25 mph (40 km/h) when the traffi c is fl owing well.



Control the use of your electrical equipment


Before moving off, if the passenger compartment is too warm, ventilate itby opening the windows and air ventsbefore using the air conditioning.
Above 30 mph (50 km/h), close thewindows and leave the air ventsopen.

Remember to make use of equipmentthat can help keep the temperaturein the passenger compartment down(sun roof and window blinds...).

Switch off the air conditioning, unlessit has automatic digital regulation, assoon as the desired temperature is at-tained.
Switch off the demisting and defrost-ing controls, if not automatic.
Switch off the heated seat as soon aspossible.


Switch off the headlamps and frontfoglamps when the level of light doesnot require their use.

Avoid running the engine before mov-ing off, particularly in winter; your ve-hicle will warm up much faster whiledriving.

As a passenger, if you avoid connect-ing your multimedia devices (fi lm, mu-sic, video game...), you will contributetowards limiting the consumption of electrical energy, and so of fuel.
Disconnect your portable devices be-fore leaving the vehicle.

I
22
INSTRUMENT PANEL WARNING LAMPS


Warning lamp



is on



Cause



Actions/

Observations



Left-hand
direction
indicator
Flashing
with
audible
warning This fl ashes when you
press the lighting stalk
down. If this indicator lamp fl ashes abnormally quickly, this
could indicate that the bulb of one of the direction
indicators has blown. Change the bulb or contact a
CITROËN dealer or a qualifi ed workshop.

Right-hand
direction
indicator
Flashing
with
audible
warning This fl ashes when you
push the lighting stalk up. If this indicator lamp fl ashes abnormally quickly, this
could indicate that the bulb of one of the direction
indicators has blown. Change the bulb or contact a
CITROËN dealer or a qualifi ed workshop.

Main beam
headlamps
Fixed This comes on when
you pull the lighting stalk
towards you. Pull the stalk to return to dipped beam
headlamps.

Sidelamps
Fixed This comes on when the
lighting stalk is in the
"Sidelamps" or "Dipped
beam headlamps"
position. Turn the stalk to the desired position.

Front foglamps
Fixed This comes on when you
use the front foglamps. Turn the ring on the stalk forwards to switch on
the foglamps.

Rear foglamps
Fixed This comes on when you
use the rear foglamps. Turn the ring on the stalk forwards to switch on
the foglamps.

Cruise control
Fixed This comes on when the
mode is active. Press the "ON/OFF" button to activate/
deactivate the mode.

II
COMFORT
44 For even air distribution, take care not
to obstruct the exterior air intake grille
located at the bottom of the windscreen,
the vents, the air outlets under the front
seats and the air extractor located be-
hind the fl aps in the boot. The water formed by the air conditioning
condensation is discharged via an open-
ing provided for this purpose. Therefore,
a puddle of water may form underneath
the vehicle when stationary.
If the system does not produce cold air,
do not use it and have it checked by a
CITROËN dealer or a qualifi ed work-
shop.
AUTOMATIC REGULATION OF
THE DIGITAL AIR CONDITIONING
Do not cover the temperature and hu-
midity sensor 2
and the sunshine sen-
sor 7
.
They are required for regulation of the
air conditioning.
Advice on operation

In hot weather, in order to obtain in-
tense ventilation, it is advisable to
use vents 1
and 4
only.
If, when the vehicle has been parked
in the sun for a long time, the interior
temperature remains very high, fi rst
ventilate the passenger compart-
ment for a few minutes. Switch off the air conditioning
when the climatic conditions
permit. Use of the automatic regulation of the
air conditioning is recommended. It per-
mits automatic and optimised control of
all of the following functions: air fl ow,
passenger compartment temperature
and air distribution, by means of various
sensors (ambient temperature, interior
temperature, sunshine), so preventing
the need for you to change your set-
tings other than the value displayed. In certain cases of particularly arduous
use (towing the maximum load on a
steep gradient in hot weather), switch-
ing off the air conditioning saves engine
power and therefore improves the tow-
ing capacity.
Close the windows to benefi t from the
full effectiveness of the air conditioning.
Ensure that the passenger compart-
ment fi lter is in good condition. Have
the fi lter elements replaced periodically.
If you drive in a dusty environment, re-
place it twice as often.
The air conditioning system does not
contain chlorine and is not harmful to
the ozone layer.
Operate the air conditioning system for
5 to 10 minutes, once or twice a month,
to keep it in good working order.

1.
Central vents.

2.
Temperature sensor.

3.
Air outlet to passenger footwells.

4.
Side vents.

5.
Front window demisting/defrosting
vents.

6.

Windscreen demisting/defrosting vents.


7.
Sunshine sensor.

II
COMFORT
47
Manual operation
It is possible to set one or more func-
tions manually while leaving the other
functions in automatic mode.


Switching to manual mode may result
in discomfort (temperature, humidity,
odour, condensation) and does not of-
fer optimum comfort.

Temperature adjustment (3)
Air fl ow adjustment (2)


)
Turn the dial to the
right to increase the
air fl ow or to the left
to decrease it.


)
Turn the temperature
control dial to the right
to increase the tem-
perature and to the
left to decrease it.


)
Place the dial in the
position required to
direct the air towards:
To avoid condensation and deterio-
ration of the quality of the air in the
passenger compartment, ensure that
a suffi cient fl ow of air is maintained. the central and side vents,
the central and side vents and
the footwells,
the footwells,
the windscreen, the side win-
dows and the footwells,
the windscreen and the side
windows.
The air distribution can be adapted by
placing the adjustment dial in the inter-
mediate positions.
Air distribution adjustment (1)

II!
COMFORT
53
REAR SEATS (ROW 2)

Seat back angle adjustment
Pull the control and adjust.
When the seat back is at the correct
angle, release the control.
Sit in the centre of the rear bench seat
to check that the two seats are at the
same level and that the angle of their
seat backs is the same.
Forwards-backwards adjustment
Pull the control towards the outside and
adjust.
When your seat is at the correct dis-
tance, release the control.
To ensure that the seat is secured cor-
rectly, move it forwards and backwards
slightly without using the control. When operating the seats, en-
sure that no person or object
is in the vicinity of the moving
parts to avoid any risk of injury or
damage.
To prevent the seat back from moving
forwards sharply and knocking you,
press on it with your back or push it with
your hand while operating the lever.

The rear seats can be folded in two parts
(1/3 - 2/3).

II
!
COMFORT
55
Folding the second row *



1.
Raise the rear seat lever A
, or
Pull the button in the boot B
for at least one second, or
Pull the rear seat releasing strap C
towards you.

2.
The seat backs fold forwards then the cushion rises and folds forwards.

3.
After carrying out these operations, press on the seat lightly to check that it is secured correctly. Before folding the seats, lower the head restraints fully.
Before folding the seat backs forwards, insert the seat belt buckles in the slots provided for this purpose in the rear seat
cushion.

Before

folding

the



seats

,

ensure that no object

or person is hindering

the execution of the operations.

Do not place luggage on the folded seats.

*
According to version.
