2012 CITROEN C-CROSSER DAG height adjustment

7
FAMILIARI
S
AT I
ON
SEAT CONFIGURATIONS


Rear seats (row 2)
Forwards-backwards adjustment
Seat back an
gle adjustment
53
Head restraint height adjustment

Access to the third row (7-seat version)
54



Rear bench seat (row 3)
The rear bench seat can be folded. It is stowed in a location in the fl oor of the
vehicle.
58


52

9
FAMILIARI
S
AT I
ON

INSTRUMENTS AND CONTROLS
1.
Audio system controls.
2.
Telephone controls.
3.
Steering wheel adjustment control.
4.
Lighting and direction indicator control stalk.
Headlamp wash control.
5
. Instrument panel.
6
. Driver's airbag.
H
orn.
7. Cruise control switches.
8.
Gear lever.
9.
Parking brake.
10.
Bonnet release lever.
11.Enclosed storage compartment.
F
usebox.
12. Headlamp height adjustment.
Deactivation o
f the ASC system.
Deactivation o
f the audible parkingsensors.
13. Cup holder.
14.
Side adjustable air vent.
15.
Information button.
16.
Window demisting/defrosting vent.
17.
Windscreen demisting/defrostingvent.

11
FAMILIARI
S
AT I
ON
SITTING COMFORTABLY
51




Front seats

Forwards-backwardsDriver's seat cushion height and angle Seat back angle
Manual adjustments

Electric adjustments (driver's seat only)
F
orwards-backwardsSeat cushion height and angle Seat back angle
50

12
FAMILIARI
S
AT I
ON
SITTING COMFORTABLY
1.
Releasing the lever.
2.
Locking the lever.
3.
Adjustment of the height of thesteering wheel.


Manual steering wheel height adjustmentDoor mirror adjustment
A. Selection of the mirror.
B.Adjustment of the position of the mirror.
C.
Folding/Unfolding.
63

Rear view mirror adjustment
D.
Control for selection of the "day/night" position of the mirror.
61

62



Front seat belt
1.Fastening.
2.Height adjustment.
105

II
!
COMFORT

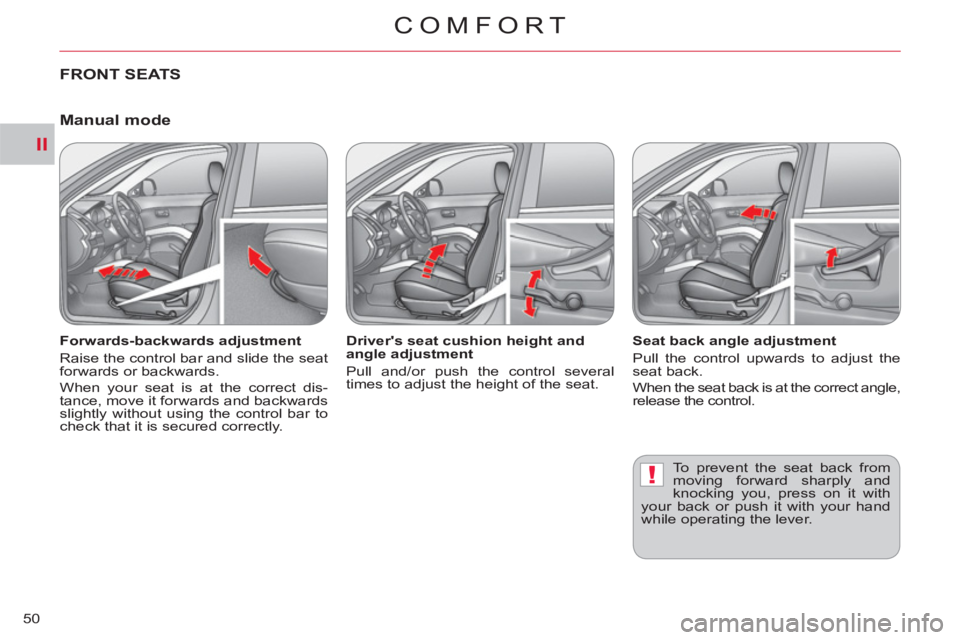

50
FRONT SEATS

Forwards-backwards adjustment
Raise the control bar and slide the seat
forwards or backwards.
When your seat is at the correct dis-
tance, move it forwards and backwards
slightly without using the control bar to
check that it is secured correctly.
Driver's seat cushion height and
angle adjustment
Pull and/or push the control several
times to adjust the height of the seat.
Seat back angle adjustment
Pull the control upwards to adjust the
seat back.
When the seat back is at the correct angle,
release the control.

Manual mode

To prevent the seat back from
moving forward sharply and
knocking you, press on it with
your back or push it with your hand
while operating the lever.

II
COMFORT
51

Electric mode (driver's seat only)


Forwards-backwards adjustment
Push the control forwards or rearwards
to move the seat to the position re-
quired.
Driver's seat cushion height and
angle adjustment
Pull or push the front of the control to raise
or lower the front of the seat cushion.
Pull or push the rear of the control to raise
or lower the rear of the seat cushion.
Pull or push the entire control to raise or
lower the entire seat cushion.
Seat back angle adjustment
Tilt the control forwards or rearwards to
straighten or tilt the seat back.
FRONT SEATS
To avoid discharging the battery, use
the electric mode with the engine
running.

II
!
COMFORT
52
Front armrest
You can move the console housing cover
in order to use it as an armrest.
With the engine running
, tilt the button
to the position required.
The temperature of the seat is regulated
automatically.
There are two setting positions:


- "HI": High heating

- "LO": Low heating
When the button is in the intermediate
position, the heating is switched off.
The indicator lamps A
come on when
the system is activated.









Heated seats adjustment


)
To raise it, pull upwards.

)
To lower it, push it downwards,
pressing the height adjustment but-
ton at the same time.

)
To remove it, raise it to the high
position, then remove it pressing
the height adjustment button at the
same time.

)
To r efi t it, engage the rods of the
head restraint in the apertures,
pressing the height adjustment but-
ton at the same time.






Head restraint height adjustment

Never drive with the removed head
restraints in the vehicle as they
could be thrown around the vehi-
cle on sharp braking. They must always
be in place and adjusted correctly.
After installing the head restraint,
check that the height adjustment but-
ton has engaged correctly.
The adjustment is correct when the
top of the head restraint is aligned
with the top of the head of the seated
person.

II
!
!
63
STEERING WHEEL MANUAL
HEIGHT ADJU
STMENT



)
Pull the locking lever downwards
(position B
) while supporting the
steering wheel.

)
Adjust the steering wheel to the re-
quired height.
)
Lock the steering wheel adjustment by
pushing the lever upwards (position A
).

The sun visors fold forwards, and to the
side when they are unhooked.
They are fi tted with a courtesy mirror
and a ticket holder.
As a safety precaution, these op-
erations must only be carried out
while the vehicle is stationary.
AREAS FOR TOLL CARDS/CAR
PARK TICKETS


The athermic windscreen has a non-
refl ective zone located above the base
of the rear view mirror.
It is intended for affi xing toll cards and/
or car park tickets.
MAT


When removing the mat on the driver's
side, move back the seat as far as pos-
sible and remove the fi xings.
When refi tting, position the mat cor-
rectly on the pins and clip the fi xings.
Check that the mat is secured fi rmly.
To prevent any risk of jamming
under the pedals:


- only use mats suited to the
fi xings already present in
the vehicle; it is imperative
that these fi xings are used.

- never fi t one mat on top of
another.
