2012 CITROEN C-CROSSER DAG child seat

2
Ventilation 44Automatic air conditioning 46Front seats 50Rear seats 53Rear bench seat 58Mirrors 61Steering wheel adjustment 63Front fi ttings 64Rear fi ttings 69Boot fi ttings 70
„„„„„„„„„„
II - COMFORT 44 Î72
Remote control key 73Electric windows 77Doors 79Tailgate 80Lower tailgate 81Sunroof 82Fuel tank 84
„„„„„„„
III - ACCESS 73 Î 85
Lighting stalk 86Daytime running lamps 88Automatic illumination of
headlamps 88Headlamp adjustment 89Wiper controls 90Automatic rain sensitive
wipers 91Courtesy lamps 92
„„„
„„„
„
IV - VISIBILITY 86 Î 93
Child seats 94ISOFIX mountings 98Child lock 101
„„„
V - CHILDSAFETY 94 Î 101
Direction indicators 102Hazard warning lamps 102Horn 102Braking assistance systems 103Trajectory control systems 104Front seat belts 105Airbags 108
„„„„„„„
VI - SAFETY 102Î111
Instrument panel 21Warning lamps 22Instrument panel displays 25Information on the instrument
panel screen 31Distance recorders 32Service indicator 33Trip computer 34Setting menu 35Monochrome screen 39Colour screen 41Lighting rheostat 43
„„„„
„„„„„„„
FAMILIARISATION 4Î 20
I - MONITORING 21 Î 43
CONTENTS

17
FAMILIARI
S
AT I
ON

PASSENGER SAFETY

Front passen
ger's airbagChild lock
1.
Insert the key.
2
. Select the "OFF"position.
3.
Remove the key. This prevents openin
g of the door con-cerned from the inside.
L
ower or raise the control A to lock or unlock.

109101



ISOFIX mountings

Two rings A
, located between the seatAback and seat cushion of the vehicle's seatare used to secure an ISOFIX child seat.
A rin
g B
is used to secure the upper strap referred to as the TOP TETHER .
98

V!
CHILD SAFETY
94
"Rearwards-facing"
"Forwards-facing"

*
The rules for carrying children are
specifi c to each country. Refer to the
current legislation in your country.
GENERAL POINTS RELATING
TO CHILD SEATS


Intermediate longitudinal position

CITROËN recommends
that children
should travel in the rear seats
of your ve-
hicle:


-

"rearwards-facing"
up to the age of 2,


- "forwards-facing"
over the age of 2.

When a "rearwards-facing" child
seat is installed on the front
passenger seat
, it is essential
that the passenger airbag is deacti-
vated. Otherwise, the child would
risk being seriously injured or
killed if the airbag were to infl ate
.

CHILD SEAT IN THE FRONT

When a "forwards-facing" child seat is
installed on the front passenger seat
,
adjust the vehicle's seat to the interme-
diate longitudinal position with the seat
back upright and leave the passenger
airbag activated. Although one of CITROËN's main cri-
teria when designing your vehicle, the
safety of your children also depends on
you.
For maximum safety, please observe
the following recommendations:


- in accordance with European reg-
ulations, all children under the
age of 12 or less than one and a
half metres tall must travel in ap-
proved child seats suited to their
weight
, on seats fi tted with a seat
belt or ISOFIX mountings * ,

- statistically, the safest seats in
your vehicle for carrying children
are the rear seats,


- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the front
and in the rear.

V
CHILD SAFETY
95
CHILD SEATS RECOMMENDED BY CITROËN
CITROËN offers a complete range of recommended child seats which are se-
cured using a three point seat belt
:


Group 0+: from birth to 13 kg









L1

"RÖMER Baby-Safe Plus"
Installed in the rearwards-facing position.


Groups 2 and 3: from 15 to 36 kg








L3

"RECARO Start''






L4

"KLIPPAN Optima"
From the age of 6 years (approximately
22 kg), the booster is used on its own.







L5

"RÖMER KIDFIX"
Can be fi tted to the vehicle's ISOFIX mountings.
The child is restrained by the seat belt.

V
!
CHILD SAFETY
96


Passenger airbag OFF

Refer to the advice given on the label
present on both sides of the passen-
ger's sun visor.

To assure the safety of your child, you must deactivate the passenger's
front airbag when you install a child seat in the rearwards facing position
on the front passenger's seat.
Otherwise, there is a risk that the child could be seriously injured or killed if the
airbag were deployed.

V
CHILD SAFETY
97
LOCATIONS FOR CHILD SEATS SECURED USING THE SEAT BELT
In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt
and universally approved (a) in relation to the weight of the child and the seat in the vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg. Infant car seats and "car cots" cannot be installed on the front passenger seat.
(c) Consult the legislation in force in your country before installing your child on this seat.

U:
seat suitable for the installation of a child seat secured using the seat belt and universally approved, "rear facing" and/or
"forward facing".

X:
seat not suitable for the installation of a child seat of the weight group indicated.

L-:
only the child seats indicated can be installed on the seat concerned (according to country).

Seat



Weight of the child and indicative age




Less than 13 kg
(groups 0 (b) and 0+)
Up to ≈ 1 year

From 9 to 18 kg

(group 1)
From 1 to ≈ 3 years

From 15 to 25 kg

(group 2)
From 3 to ≈ 6 years

From
22 to 36 kg

(group 3)
From 6 to ≈ 10 years
Front passenger
seat (c) with
passenger airbag
activated



X



X



L3, L4

**
, L5

***


L3, L4

**
, L5

***

Front passenger
seat (c) with
passenger airbag
deactivated



L1



X



L3, L4

**
, L5

***


L3, L4

**
, L5

***

Outer rear seats
(row 2)



L1



X



U

*


U

*

Centre rear seat
(row 2)



L1



X



L4

*
,
L5

*


L4

*
, L5

*


*
Remove the rear head restraint before fi tting a child seat at this position.

**
Place the head restraint in the fully up position before fi tting a child seat at this position.

***
Remove the front head restraint before fi tting a child seat at this position.

V
!
CHILD SAFETY
98
The incorrect installation of a
child seat in a vehicle compro-
mises the child's protection in
the event of an accident.
For information regarding the ISOFIX
child seats which can be installed in
your vehicle, refer to the table show-
ing the locations for ISOFIX child
seats.

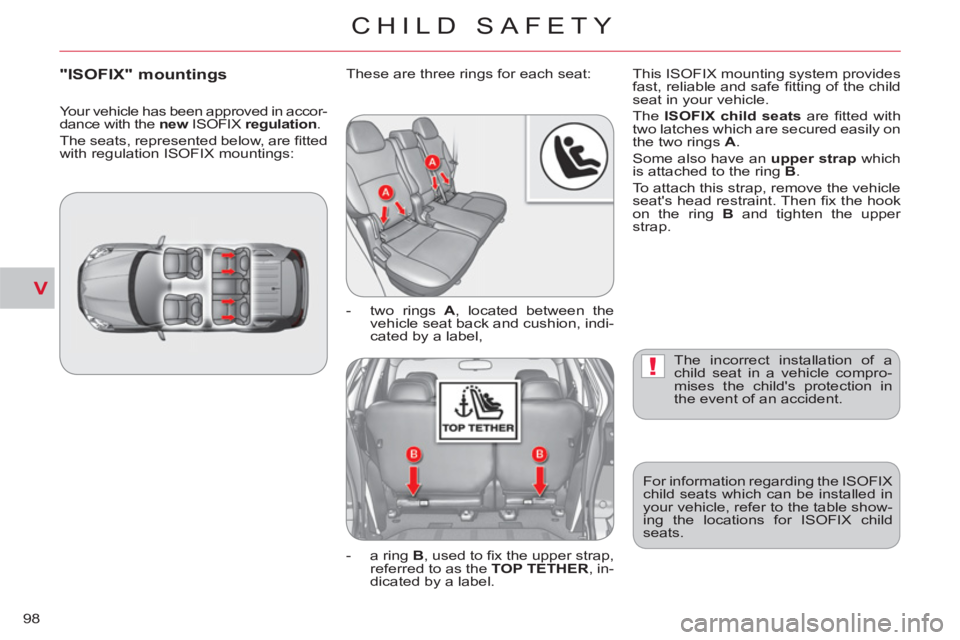

"ISOFIX" mountings
These are three rings for each seat:


- two rings A
, located between the
vehicle seat back and cushion, indi-
cated by a label,

- a ring B
, used to fi x the upper strap,
referred to as the TOP TETHER
, in-
dicated by a label. This ISOFIX mounting system provides
fast, reliable and safe fi tting of the child
seat in your vehicle.
The ISOFIX child seats
are fi tted with
two latches which are secured easily on
the two rings A
.
Some also have an upper strap
which
is attached to the ring B
.
To attach this strap, remove the vehicle
seat's head restraint. Then fi x the hook
on the ring B
and tighten the upper
strap. Your vehicle has been approved in accor-
dance with the new
ISOFIX regulation
.
The seats, represented below, are fi tted
with regulation ISOFIX mountings:

V
CHILD SAFETY
99 This child seat can also be used on seats which are not fi tted with ISOFIX mountings.
In this case, it must be attached to the vehicle seat using the three point seat belt.

Follow the instructions for fi tting the child seat given in the seat manufacturer's installation guide.




ISOFIX
RÖMER Duo Plus

(size category B1
)


Group 1: from 9 to 18 kg








Installed in the forward facing position.
Fitted with an upper strap to be secured on the ISOFIX upper ring, referred to as the
TOP TETHER.
Three seat body angles: sitting, reclining, lying.
Before fi tting this child seat to the outer rear seats of your vehicle, you should:


- incline the front seat backrest as far back as possible or,

- place the rear head restraint in the fully up position.














ISOFIX CHILD SEAT RECOMMENDED BY CITROËN AND APPROVED FOR YOUR VEHICLE
