I
MONITORING
37
Choice of the display language
You can choose between different
languages for the display.
On the menu screen:
)
press the INFO
button to select
"LANGUAGE"
.
)
press and hold the INFO
button
for a few seconds to display the
"LANGUAGE"
screen.
)
press the INFO
button to scroll
the languages (Japonais, English,
Deutsch, Français, Espanol, Italiano,
"---" and PREVIOUS) in succession.
)
press and hold the INFO
button for
a few seconds to confi rm your se-
lection.
If you select the "---" setting, no
message will be displayed in
message display situations. If the battery is disconnected, the
settings memory is cleared and
the default language (ENGLISH) is
restored automatically.
Activation/deactivation of the"INFO" button sound
You can activate or deactivate the INFO
button sound.
On the menu screen:
)
press the INFO
button to se-
lect the INFO
button sound
activation/deactivation sym-
bol (located on menu 2/3)
.
)
press and hold the INFO
button for
a few seconds to scroll the choices
(ON, OFF) in succession.
The mode selected is confi rmed.
If the battery is disconnected, the
settings memory is cleared and
the default choice (ON) is restored
automatically.
Changing the display interval
of the "BREAK REMINDER"
message
You can change the display interval of
the "BREAK REMINDER"
message.
On the menu screen:
)
press the INFO
button to select
"ALERT" (located on menu 2/3)
.
)
press and hold the INFO
button
for a few seconds to display the
"ALERT"
screen.
)
press the INFO
button to select
the display interval of the "BREAK
REMINDER"
message.
)
press and hold the INFO
button for
a few seconds to confi rm.
If the battery is disconnected, the
settings memory is cleared and
the default value (OFF) is restored
automatically.
Page 63 of 244
II
!
COMFORT
61
DOOR MIRRORS
Adjustment
The mirrors can be adjusted when the
ignition switch is in the "ON" or "ACC"
position.
)
Move control A
to the right or to the left
to select the corresponding mirror.
)
Direct control B
in all four directions
to adjust the mirror.
When adjustment is complete, return
control A
to the central position.
Electric folding/unfolding
- from inside, with the ignition switch
in the "ON" or "ACC" position
)
by pressing the control C
.
- from inside, with the ignition switch
in the "LOCK" position:
)
by pressing the control C, within
30 seconds.
- from outside using the remote control:
)
by pressing the "closed pad-
lock button briefl y 3 times to fold
them,
)
by pressing the "open padlock"
button briefl y 3 times to unfold
them.
The folding and unfolding of the door
mirrors can be confi gured via the co-
lour screen "Equipment" menu or de-
activated by a CITROËN dealer or a
qualifi ed workshop. The mirrors can also be folded
manually.
If you have folded the mirrors using
the control C
, you must use this con-
trol to unfold them, otherwise the mir-
rors will not be lock in place correctly.
If you switch the engine off then re-
start it with the mirrors folded, they
will unfold automatically when the
vehicle reaches 20 mph (30 km/h).
If the mirrors have been folded man-
ually or electrically after starting the
engine, they are not unfolded auto-
matically.
In this case:
)
Press the control C
to unfold
them.
Page 79 of 244
III
ACCESS
77 The electric window switches can
be confi gured via the colour screen
"Equipment" menu.
The electric window switches re-
main operational for approximate-
ly 30 seconds after the ignition is
switched off and the switch on the
driver's door remains operational for
a further 30 seconds when the door
is opened.
The windows can no longer be
opened or closed after the driver's
door is closed.
The rear windows do not lower fully.
ELECTRIC WINDOWS
1.
Driver's electric window switch.
2.
Passenger's electric window switch.
3.
Rear right electric window switch.
4.
Rear left electric window switch.
5.
Deactivating
the passenger and
rear electric window switches.
In the event of unwanted opening of
the window on closing (for example
in the presence of frost), reinitialise
the electric windows (refer to the cor-
responding paragraph).
Safety anti-pinch
In automatic mode, when the window
rises and meets an obstacle, it stops
and lowers again.
Operation
With the ignition on, you have two options:
- manual mode
)
Press the switch gently to open or
pull it gently to close. The window
stops as soon as the switch is re-
leased.
- automatic mode
)
Press the switch fully to open or
pull it fully to close. The window
opens or closes completely when
the switch is released.
)
Pressing the switch again stops
the movement of the window.
System which opens or closes a window
manually or automatically. It is fi tted with
a system which provides protection if an
obstacle is detected on one-touch mod-
els and a deactivation system to prevent
misuse of the rear controls.

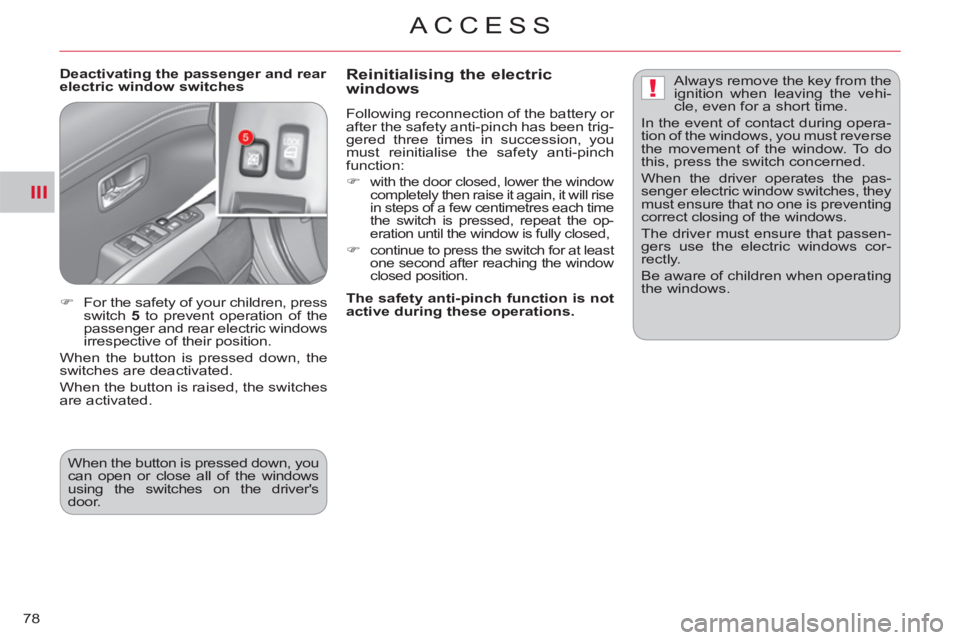

Page 80 of 244
III
!
ACCESS
78
Deactivating the passenger and rear
electric window switches
Reinitialising the electric
windows
Following reconnection of the battery or
after the safety anti-pinch has been trig-
gered three times in succession, you
must reinitialise the safety anti-pinch
function:
)
with the door closed, lower the window
completely then raise it again, it will rise
in steps of a few centimetres each time
the switch is pressed, repeat the op-
eration until the window is fully closed,
)
continue to press the switch for at least
one second after reaching the window
closed position.
Always remove the key from the
ignition when leaving the vehi-
cle, even for a short time.
In the event of contact during opera-
tion of the windows, you must reverse
the movement of the window. To do
this, press the switch concerned.
When the driver operates the pas-
senger electric window switches, they
must ensure that no one is preventing
correct closing of the windows.
The driver must ensure that passen-
gers use the electric windows cor-
rectly.
Be aware of children when operating
the windows.
)
For the safety of your children, press
switch 5 to prevent operation of the
passenger and rear electric windows
irrespective of their position.
When the button is pressed down, the
switches are deactivated.
When the button is raised, the switches
are activated.
When the button is pressed down, you
can open or close all of the windows
using the switches on the driver's
door.
The safety
anti
-
pinch
function is not
active during these operations.
Page 88 of 244
IV
VISIBILITY
86
LIGHTING STALK
Additional lighting
Other lamps are installed to fulfi l the re-
quirements of particular driving conditions:
-
rear foglamps to be seen from a distance,
- front foglamps for even better visibility,
- daytime running lamps to be seen
during the day.
Certain functions of the lighting stalk
(automatic illumination of headlam-
ps, sensitivity) can be confi gured
via the colour screen "Equipment"
menu.
Manual controls
The lighting is controlled directly by the
driver by means of the ring A
and the
stalk B
. Lamps off.
Automatic illumination of head-
lamps.
Sidelamps.
B.
Stalk for switching headlamps: pull
the stalk towards you to switch the
lighting between dipped and main
beam headlamps.
In the lamps off and sidelamps modes,
the driver can switch on the main beam
headlamps temporarily ("headlamp
fl ash") by maintaining a pull on the
stalk.
Displays
Illumination of the corresponding indica-
tor lamp in the instrument panel confi rms
that the lighting selected is on.
A.
Main lighting mode selection ring:
turn it to position the symbol re-
quired facing the mark.
Dipped headlamps or main
beam headlamps.
Main lighting
The various front and rear lamps of the
vehicle are designed to adapt the driv-
er's visibility progressively in relation to
the climatic conditions:
- sidelamps, to be seen,
- dipped beam headlamps to see
without dazzling other drivers,
- main beam headlamps to see clearly
when the road is clear.
Page 94 of 244
IV
VISIBILITY
92
COURTESY LAMPS
Front courtesy lamp
Map reading lamps
There are two map reading lamps, one
on each side of the courtesy lamp.
Press the corresponding lamp lens A
.
Position 1
The courtesy lamp comes on when a
door or the tailgate is opened.
When the door or the tailgate is closed
again, the lighting gradually dims for a
few seconds before switching off.
However, the courtesy lamp is switched
off automatically in the following cases:
- When the doors and the tailgate
are closed and the ignition switch is
placed in the "ON"
position.
- When the doors and the tailgate are
closed and you lock the vehicle from
inside or using the remote control.
Position 2
The courtesy lamp is off, regardless of
whether the doors or tailgate are open
or closed.
The durations of lighting of the front
courtesy lamps can be confi gured
via the colour screen "Equipment"
menu.
Page 112 of 244
VI
!
SAFETY
11 0
Lateral airbags
System which protects the driver and
passenger in the event of a serious side
impact in order to limit the risk of injury
to the chest.
Each lateral airbag is fi tted in the front
seat back frame, on the door side.
Activation
The lateral airbag is triggered unilater-
ally in the event of a serious side impact
applied to all or part of the side impact
zone B
, perpendicular to the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the outside to-
wards the inside of the vehicle.
The lateral airbag infl ates between the
front occupant of the vehicle and the
corresponding door trim panel.
System which protects the driver and
passengers (with the exception of the
rear centre passenger and the passen-
gers in row 3) in the event of a serious
side impact in order to limit the risk of
injury to the head.
Each curtain airbag is fi tted in the pillars
and the upper section of the passenger
compartment.
Deployment
The curtain airbag is deployed at the
same time as the corresponding lateral
airbag in the event of a serious side im-
pact applied to all or part of the side impact
zone B
, perpendicular to the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the outside to-
wards the inside of the vehicle.
The curtain airbag infl ates between the
front or rear occupant of the vehicle and
the windows.
In the event of a minor impact or
bump on the side of the vehicle
or if the vehicle rolls over, the
airbag may not be deployed.
In the event of a rear or front colli-
sion, the airbag is not deployed.
Impact detection zones
A.
Front impact zone.
B.
Side impact zone.
Operating fault
If this warning lamp comes on in the instru-
ment panel and this display appears in the
instrument panel screen, contact a CITROËN
dealer or a qualifi ed workshop to have the
system checked. The airbags may no longer
be deployed in the event of a serious impact.
Page 117 of 244
VII
DRIVING
115
DCS GEARBOX
The six-speed electronically controlled
gearbox offers a choice between the
comfort of automatic regulation or the
pleasure of manual gear changing.
This gearbox has three driving modes:
- a manual
mode for changing of the
gears by the driver using the steering
mounted controls or the gear lever,
- a " Normal
" automatic mode for eco-
nomical control of the gears (every-
day use),
- a " Sport
" automatic mode which
permits a more dynamic style of
driving, with improved acceleration
and optimised engine braking.
When you move the lever in the gate
to select a position, the corresponding
indicator or message is displayed in the
instrument panel.
P.
Park.
R.
Reverse.
N.
Neutral.
D.
Drive (Automatic mode).
NORMAL.
Normal mode.
SPORT.
Sport mode.
1,2,3,4,5,6.
Gear engaged during manual
operation.
Displays in the instrument panel
P
: park.
Gear lever positions
With your foot on the brake, this
position permits starting of the
vehicle.
To exit position P
, raise the ring on the
gear lever.
R
: reverse gear.
With the vehicle stationary, keep your
foot on the brake pedal and push the
gear lever forwards.
N
: neutral.
With your foot on the brake, this position
also permits starting of the vehicle.
D
: automatic mode.
Move the lever rearwards.
+/-
: manual mode with gear changing
using the lever.
