2012 CITROEN C-CROSSER DAG bulb

IX
PRACTICAL INFORMATION
141
)

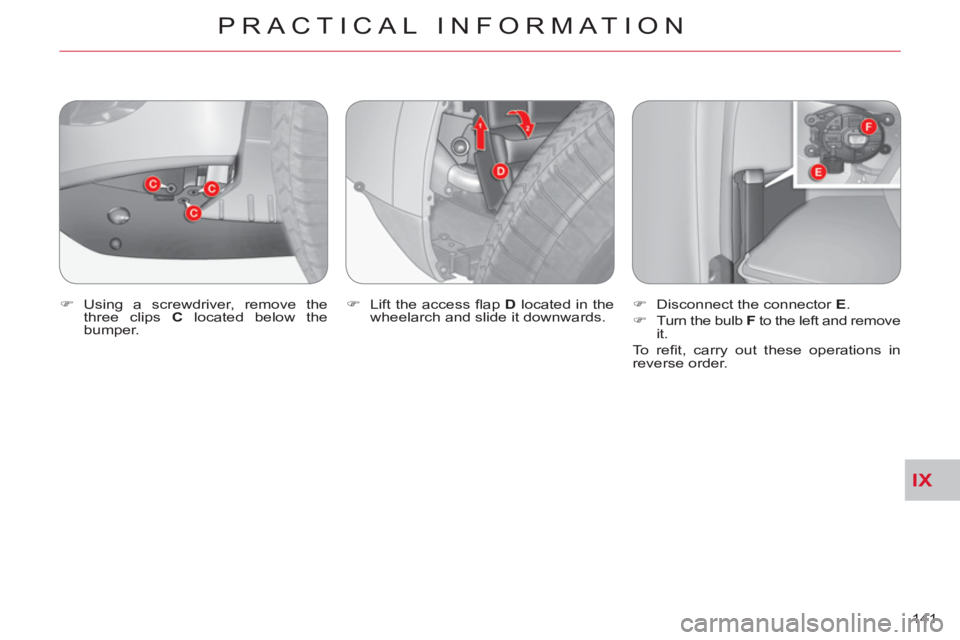

Using a screwdriver, remove the
three clips C
located below the
bumper.
)
Lift the access fl ap D
located in the
wheelarch and slide it downwards.
)
Disconnect the connector E
.

)
Turn the bulb F
to the left and remove
it.
To r efi t, carry out these operations in
reverse order.

IX
PRACTICAL INFORMATION
142
Rear lamps


1.
Third brake lamp (LEDs).


2.
Brake lamps/Sidelamps
(21/5 - W21W - 5 W).


3.
Direction indicators
(WY21W - 21 W).


4.
Reversing lamps (W21W - 21 W).


5.
Number plate lamps
(W5W - 5W).


6.
Foglamps
(W21W - 21 W).


Changing brake lamp/sidelamp and
direction indicator bulbs
These two bulbs are changed from out-
side with the tailgate open:


)
Open the tailgate (refer to the "Ac-
cess" section),

)
Remove the two lamp fi xing bolts A
,

)
Extract the lamp unit from outside,
)

Turn the pin C
to the left and remove it.


)
Pull the bulb D
out and change it.
To r efi t, carry out these operations in
reverse order.

)

Turn the pin B
to the left and remove it.


)
Pull the bulb out and change it. When refi tting the lamp unit, align the
two pins E
with the openings on the ve-
hicle. Amber coloured bulbs, such as the
direction indicators, must be replaced
with bulbs of identical specifi cation
and colour.

Changing the third brake lamp
(LEDs)
All work on the LED lamps must be
carried out by a CITROËN dealer or a
qualifi ed workshop.

IX
PRACTICAL INFORMATION
143

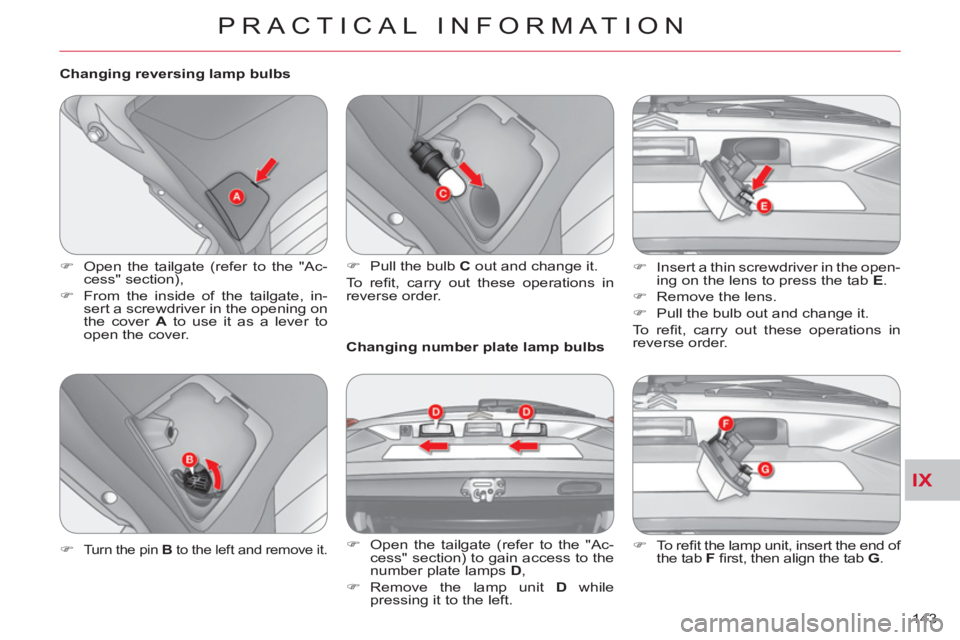

Changing reversing lamp bulbs


)
Open the tailgate (refer to the "Ac-
cess" section),

)
From the inside of the tailgate, in-
sert a screwdriver in the opening on
the cover A
to use it as a lever to
open the cover.

Changing number plate lamp bulbs


)
Open the tailgate (refer to the "Ac-
cess" section) to gain access to the
number plate lamps D
,

)
Remove the lamp unit D
while
pressing it to the left.
)

Turn the pin B
to the left and remove it.


)
Pull the bulb C
out and change it.
To r efi t, carry out these operations in
reverse order.
)
Insert a thin screwdriver in the open-
ing on the lens to press the tab E
.

)
Remove the lens.

)
Pull the bulb out and change it.
To r efi t, carry out these operations in
reverse order.


)
To r efi t the lamp unit, insert the end of
the tab F
fi rst, then align the tab G
.

IX
PRACTICAL INFORMATION
144
Changing foglamp bulbs


)
Open the tailgate and the lower tail-
gate (refer to the "Access" section)
and fold down the cover A
.

)
Remove the 4 clips B
using a screw-
driver to detach the lamp cover.

)
Remove the bolts C
and remove the
lamp unit.
)
Turn the pin and bulb assembly D
to
the left.

)
Remove the bulb.
To r efi t, carry out these operations in
reverse order.


)
When refi tting the lamp unit, align
the clips E
with the openings on the
bodywork.

IX
PRACTICAL INFORMATION
145
INTERIOR LAMP BULBS

Front and rear courtes
y lamps



)
Insert a screwdriver to remove the courtesy lamp cover.

)
Remove the bulb while pressing the tab A
.
To refi t the cover, align the hooks on the holes located in the body of the vehicle.
Glove box lamp



)
Turn the pin B
anticlockwise and re-
move it.

)
Remove the bulb.

Low level lamp



)
Insert a screwdriver to remove the
lamp cover.

)
Remove the bulb.

IX
!
PRACTICAL INFORMATION
158
A wide range of accessories and genu-
ine parts is available from the CITROËN
dealer network.
These accessories and parts have
been tested and approved for reliability
and safety.
They are all adapted to your vehicle and
benefi t from CITROËN's recommenda-
tion and warranty.
"Comfort":

rear parking sensors, side sun blinds,
insulated module...


"Transports solutions":

boot liner, dog guard, roof bars, bicycle
carrier for roof bars, ski carrier, roof
box...
Trailer towbar which must be fi tted by
a CITROËN dealer or a qualifi ed work-
shop.


"Security and safety":

anti-intrusion alarm, glass etching,
wheel security bolts, fi rst aid kit, warn-
ing triangle, high visibility vest, stolen
vehicle tracking system, child seats and
booster cushions, under-infl ation detec-
tion, anti-slip covers...


"Protection":

mat * , side protective mouldings...

"Multimedia":

MP3/USB audio systems, audio-tele-
phone, amplifi ers, satellite navigation
systems, hands-free kit, speakers, DVD
player, connection kit for MP3 player or
portable CD player...
Depending on the legislation in force
in the country, it may be compulsory
to have a high visibility safety vest,
warning triangle and spare bulbs and
fuses available in the vehicle.
The fi tting of electrical equip-
ment or accessories which are
not recommended by CITROËN
may result in a failure of your vehi-
cle's electronic system and exces-
sive electrical consumption.
Please note this precaution. You are
advised to contact a CITROËN rep-
resentative to be shown the range
of recommended equipment and ac-
cessories.


Installation of radio
communication transmitters
Before installing any after-market ra-
dio communication transmitter, you
can contact a CITROËN dealer for
the specifi cation of transmitters which
can be fi tted (frequency, maximum
power, aerial position, specifi c instal-
lation requirements), in line with the
Vehicle Electromagnetic Compatibility
Directive (2004/104/EC).


*
To prevent any risk of jamming of
the pedals:


- ensure that the mat is positioned
and secured correctly,

- never fi t one mat on top of another.



"Style":

PVC door sill protectors, style rear
mudfl aps, Hortaz 18 inch alloy wheels,
chromed door handle shells, diffuser on
rear bumper, brushed aluminium look
boot sill protector...





ACCESSORIES

224
VISUAL SEARCH

FRONT EXTERIOR


Remote control key,
starting, battery ............................ 73-76
Central locking ...................................79

Sunroof ........................................ 82-83

Windscreen wipers ...................... 90-91
Rain sensor .......................................90

Opening the bonnet .........................126
Engine ..................................... 127-128

Towing .............................................154
Door mirrors .......................................61

Opening/closing the doors ........... 79-80

Filling with fuel ...................................84
Fuel gauge.........................................84

Lighting, direction indicators,
foglamps, headlamps .................. 86-89
Changing bulbs........................ 137-141


Brakes ..................................... 112, 131
ABS .................................................103
Tyres, pressures ..............................162
Brake pads ......................................131
Alloy wheels.....................................132

225
VISUAL SEARCH

REAR EXTERIOR


3rd brake lamp.................................142

Tailgate ........................................ 80-81
Rear wiper .........................................91

Spare wheel, jack, changing,
fi tting ........................................ 132-136
Lower tailgate ....................................81
Towbar .............................................156

Rear parking sensors .............. 123-124
Towing .............................................154

Rear lamps, direction indicators,
foglamps ...................................... 86-89
Changing bulbs........................ 142-144
Door mirrors .......................................61

Side repeaters .................................140

Opening/closing the doors ........... 79-80

Brakes ..................................... 112, 131
ABS .................................................103
Tyres, pressures ..............................162
Brake pads ......................................131
Alloy wheels.....................................132

Accessories .....................................158
Roof bars .........................................157
