2012 CITROEN C-CROSSER DAG check engine

3
Parking brake 112Manual gearbox 112CVT gearbox 113DCS gearbox 115Four wheel drive system 119Cruise control 121Audible rear parkingsensors 123Reversing camera 124
„„„„„„„
„
VII - DRIVING 112Î124
Bonnet 126Running out of fuel 126Petrol engine 127Diesel engine 128Checking levels 129Checks 130
„„„„„„
VIII - CHECKS 125Î131
Changing a wheel 132Changing a bulb 137Changing a fuse 146Battery 151Changing a wiper blade 153Towing 154Towing a trailer 156Fitting roof bars 157Accessories 158
„„„„„„„„„
IX - PRACTICALINFORMATION 132Î158
Engines 159Weights 160Dimensions 161Identifi cation markings 162
„„„„
X - TECHNICALDATA 159Î163
Audio CD system 164
CD changer 175Error messages 177Audio-Telematic System 178Navigation 180DVD mode 208Hands-free telephone 216
„„„„„„„
XI - AUDIO andTELEMATICS 164 Î 223
VISUALSEARCH 224 Î 229
ALPHABETICALINDEX 230Î233
CONTENTS

20

Limit the causes of excess consumption

Spread loads throughout the vehicle;place the heaviest items in the bottomof the boot, as close as possible to therear seats.
Limit the loads carried in the vehicleand reduce wind resistance (roof bars,roof rack, bicycle carrier, trailer...). Usea roof box in preference.

Remove roof bars and roof racks after use.

At the end of winter, remove snowtyres and refi t your summer tyres.


Observe the recommendations on maintenance

Check the tyre pressures regularly,when cold, referring to the label in thedoor aperture, driver's side.

Carry out this check in particular:



- before a long journey,


- at each change of season,


- after a long period out of use.

Don't forget the spare wheel and thetyres on any trailer or caravan.


Have your vehicle serviced regularly(engine oil, oil fi lter, air fi lter...) and ob-serve the schedule of operations rec-ommended by the manufacturer.
When refuelling, do not continue after the 3
rd cut-off of the nozzle to avoidany overfl ow.


At the wheel of your new vehicle, it is onlyafter the fi rst 1 800 miles (3 000 kilometres)that you will see the fuel consumption set-tle down to a consistent average.

I
MONITORING
23

Warning lamp



is on



Cause



Actions/Observations



Diesel
preheating
Fixed This comes on when the
ignition switch is in the
ON position. Wait until this goes off before starting.
The duration for which this is on is determined
by the exterior climatic conditions.

Parking brake/
Brake fl uid
level
Fixed This comes on for a few
seconds when the ignition
is turned to "ON" then
goes off. It is accompanied by a message on
the instrument panel screen.
The parking brake is
applied or has not been
released fully. It is accompanied by a message on the
instrument panel screen. Release the parking
brake to switch off the warning lamp.
The brake fl uid level is
too low. It is accompanied by a message on the
instrument panel screen. Top up with brake fl uid
and contact a CITROËN dealer or a qualifi ed
workshop.

Emission
control system
Fixed or
fl ashing This comes on or fl ashes
in the event of a fault with
the system. Contact a CITROËN dealer or a qualifi ed
workshop.
It should go off a few seconds after starting
the engine.

Battery charge
Fixed This comes on if a
charging circuit fault
occurs. It should go off when the engine is started.
It is accompanied by a message on
the instrument panel screen. Check the battery
terminals (refer to the "Battery" section).

I
MONITORING
24

Warning lamp



is on



Cause



Actions/Observations







Driver's
seat belt not
fastened
Fixed The driver has not
fastened or has
unfastened their seat belt. This is accompanied by a message on
the instrument panel screen.
Fasten the driver's seat belt.





ABS
Fixed This comes on if an anti-
lock braking system fault
occurs. It is accompanied by a message in the
instrument panel screen. The vehicle retains
conventional braking without assistance but
you are advised to stop. Have it checked by
a CITROËN dealer or a qualifi ed workshop.





Airbags and
pretensioners
Fixed This comes on for a few
seconds when the ignition
is turned to "ON" then
goes off. It should go off when the engine is started. If it
does not go off, contact a CITROËN dealer or
a qualifi ed workshop.
This comes on if an
airbag or pretensioner
fault occurs. It is accompanied by a message on
the instrument panel screen. Have the system
checked by a CITROËN dealer or a qualifi ed
workshop without delay.




Dynamic
stability control
system (ASC)
Fixed This comes on if
a dynamic stability control
system fault occurs. It is accompanied by a message on
the instrument panel screen. Have the system
checked by a CITROËN dealer or a qualifi ed
workshop without delay.

I
MONITORING
25 Each time the engine is started: a series of warning lamps and/or messages come on, applying a checking self test. They go
off after a few seconds. Engine running: the warning lamp or the message becomes a warning if it remains on continuously
or fl ashes. This initial warning may be accompanied by an audible signal and a message on the screen. Do not ignore these
warnings.
The messages displayed may differ between the type 1 instrument panel and the type 2 instrument panel.
When the cause of the appearance of the warning lamp or warning message has been rectifi ed, the warning disappears
from the screen automatically. If the cause of the warning is not rectifi ed, you can return to the previous screen at any time
by pressing the INFO
button on the dashboard.
The symbol "!"
is displayed.
To return to the previous screen (with the "!"
symbol), you must press the INFO
button several times.
Warning messages (ignition at "OFF")

You can close the warning messages which show these symbols in order to move on to the next screen.
To do this, press the INFO
button according to the symbol displayed.
Press briefl y
. Press and hold
.
Symbols which appear in the top right corner of the screen.



Message



is on



Cause



Solution - action



Observations




Key in
ignition


Fixed The driver's door is open
and you have forgotten
to remove the key from
the ignition. Turn the ignition switch
to the LOCK position
and remove the key. Only if the engine has
been started.
An intermittent audible
signal is heard.


Lighting


left on


Fixed You have forgotten to
switch off the vehicle
lighting. Switch off the vehicle
lighting by placing the
stalk at OFF. An intermittent audible
signal is heard.

I
MONITORING
27

Message



is on



Cause



Solution - action



Observations



Airbags
Fixed Fault in the airbags or
pretensioners. Contact a CITROËN
dealer or a qualifi ed
workshop.

Service
Fixed Problem in one of the systems
which does not have a specifi c
message. Stop the vehicle and
contact a CITROËN
dealer or a qualifi ed
workshop. To identify the
problem, contact a
CITROËN dealer or
a qualifi ed workshop.

Engine oil
pressure
Fixed Engine oil pressure too low or
fault in the engine lubrication
system. Stop the vehicle and
contact a CITROËN
dealer or a qualifi ed
workshop.

Engine oil
level
Fixed Engine oil level too low. Stop the vehicle and
check the level using
the dipstick. If there is a lack of
oil, top up the level.

Low fuel
warning
Fixed The fuel level is low. Refuel as soon as
possible.

Fuel system
Fixed Fuel system fault. Contact a CITROËN
dealer or a qualifi ed
workshop.

Opening
not closed
correctly
Fixed One of the doors or the tailgate
is not closed correctly. Close the door or the
tailgate. The opening
concerned is
indicated on the
screen.

II
COMFORT
44 For even air distribution, take care not
to obstruct the exterior air intake grille
located at the bottom of the windscreen,
the vents, the air outlets under the front
seats and the air extractor located be-
hind the fl aps in the boot. The water formed by the air conditioning
condensation is discharged via an open-
ing provided for this purpose. Therefore,
a puddle of water may form underneath
the vehicle when stationary.
If the system does not produce cold air,
do not use it and have it checked by a
CITROËN dealer or a qualifi ed work-
shop.
AUTOMATIC REGULATION OF
THE DIGITAL AIR CONDITIONING
Do not cover the temperature and hu-
midity sensor 2
and the sunshine sen-
sor 7
.
They are required for regulation of the
air conditioning.
Advice on operation

In hot weather, in order to obtain in-
tense ventilation, it is advisable to
use vents 1
and 4
only.
If, when the vehicle has been parked
in the sun for a long time, the interior
temperature remains very high, fi rst
ventilate the passenger compart-
ment for a few minutes. Switch off the air conditioning
when the climatic conditions
permit. Use of the automatic regulation of the
air conditioning is recommended. It per-
mits automatic and optimised control of
all of the following functions: air fl ow,
passenger compartment temperature
and air distribution, by means of various
sensors (ambient temperature, interior
temperature, sunshine), so preventing
the need for you to change your set-
tings other than the value displayed. In certain cases of particularly arduous
use (towing the maximum load on a
steep gradient in hot weather), switch-
ing off the air conditioning saves engine
power and therefore improves the tow-
ing capacity.
Close the windows to benefi t from the
full effectiveness of the air conditioning.
Ensure that the passenger compart-
ment fi lter is in good condition. Have
the fi lter elements replaced periodically.
If you drive in a dusty environment, re-
place it twice as often.
The air conditioning system does not
contain chlorine and is not harmful to
the ozone layer.
Operate the air conditioning system for
5 to 10 minutes, once or twice a month,
to keep it in good working order.

1.
Central vents.

2.
Temperature sensor.

3.
Air outlet to passenger footwells.

4.
Side vents.

5.
Front window demisting/defrosting
vents.

6.

Windscreen demisting/defrosting vents.


7.
Sunshine sensor.

II
!
COMFORT

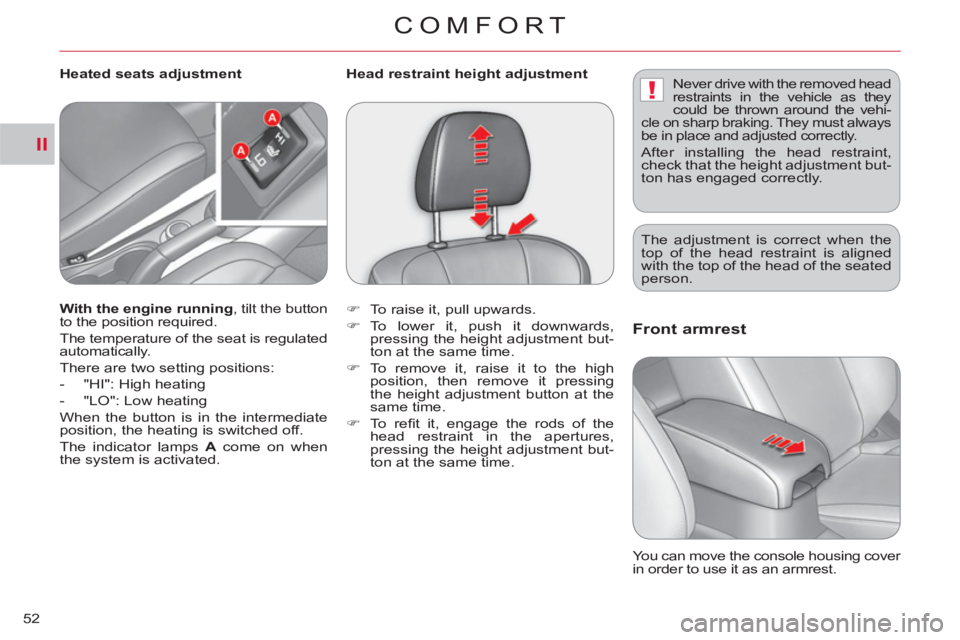

52
Front armrest
You can move the console housing cover
in order to use it as an armrest.
With the engine running
, tilt the button
to the position required.
The temperature of the seat is regulated
automatically.
There are two setting positions:


- "HI": High heating

- "LO": Low heating
When the button is in the intermediate
position, the heating is switched off.
The indicator lamps A
come on when
the system is activated.









Heated seats adjustment


)
To raise it, pull upwards.

)
To lower it, push it downwards,
pressing the height adjustment but-
ton at the same time.

)
To remove it, raise it to the high
position, then remove it pressing
the height adjustment button at the
same time.

)
To r efi t it, engage the rods of the
head restraint in the apertures,
pressing the height adjustment but-
ton at the same time.






Head restraint height adjustment

Never drive with the removed head
restraints in the vehicle as they
could be thrown around the vehi-
cle on sharp braking. They must always
be in place and adjusted correctly.
After installing the head restraint,
check that the height adjustment but-
ton has engaged correctly.
The adjustment is correct when the
top of the head restraint is aligned
with the top of the head of the seated
person.
