Page 104 of 238
102
Mirrors and windows
SURVEILLANCE MIRROR
This mirror, placed on top of the
central mirror, enables the driver or
front passenger to observe all the rear
seats.
Fitted on its own ball joint, it's manual
adjustment is simple and provides a
view of the rear interior of the vehicle.
It can also be adjusted for improved
visibility during manoeuvres or when
overtaking.
Areas for toll cards/car park
tickets
The athermic windscreen has two non-
refl ective zones located either side of
the base of the interior mirror.
They are intended for affi xing toll cards
and/or car park tickets.
REAR WINDOWS
To partially open the rear windows, tilt
the lever and push it fully to lock the
windows in the open position.
Manual rear view mirror
The rear view mirror has two positions:
- day (normal),
- night (anti-dazzle).
To change from one to the other, push
or pull the lever on the lower edge of
the mirror.
Page 233 of 238
171
Instruments and controls
VISUAL SEARCH
10
Dashboard, passenger
compartment fuses 155, 156
Opening the bonnet 132
Rear view mirror 102
Toll cards, car park tickets 102
Child surveillance mirror 102
In-car technology Section 9
- Audio system
- MyWay
Controls
- central locking 28
- electric child lock 125
- electric windows 103
- hazard warning lamps 104
Emergency or roadside
assistance call Section 9
Electronic gearbox 42
Heating, ventilation
- heating 61
- air conditioning A/C 62
Digital air conditioning 63-64
Demisting/defrosting 65-66
Courtesy lamps 94, 151
Front fi ttings 84-86
- glove box,
- overhead storage,
- console,
- sun visor,
- bottle holder,
- bag holder,
- drawers,
- storage compartment.
Screens, display 29, Section 9
Setting the time in
the screen Section 9
"Grip control" 109-110

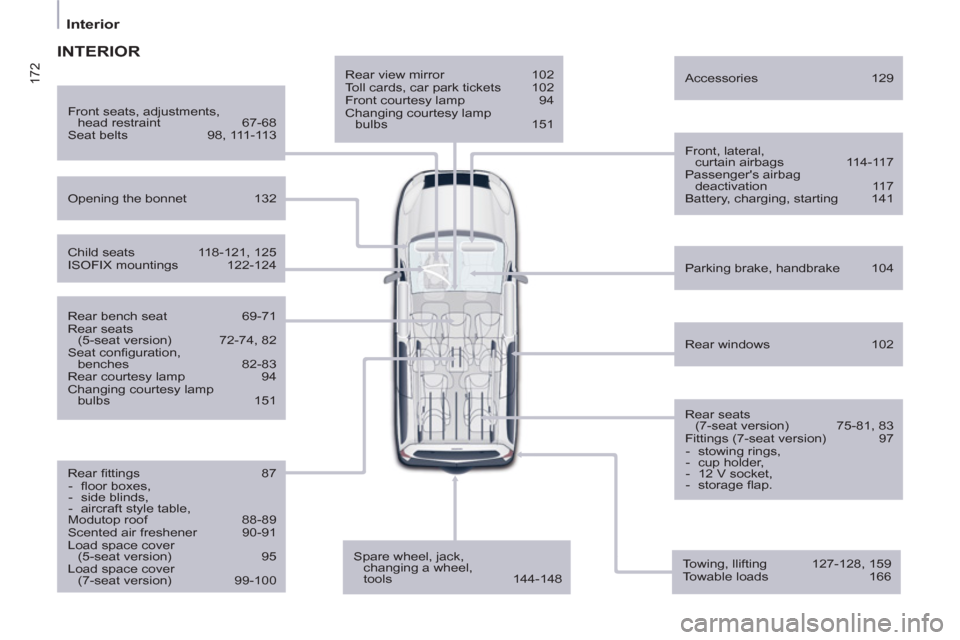

Page 234 of 238
172
Interior
Rear view mirror 102
Toll cards, car park tickets 102
Front courtesy lamp 94
Changing courtesy lamp
bulbs 151
Front, lateral,
curtain airbags 114-117
Passenger's airbag
deactivation 117
Battery, charging, starting 141
Opening the bonnet 132
Rear windows 102
Front seats, adjustments,
head restraint 67-68
Seat belts 98, 111-113
Accessories 129
INTERIOR
Rear bench seat 69-71
Rear seats
(5-seat version) 72-74, 82
Seat confi guration,
benches 82-83
Rear courtesy lamp 94
Changing courtesy lamp
bulbs 151
Rear fi ttings 87
- fl oor boxes,
- side blinds,
- aircraft style table,
Modutop roof 88-89
Scented air freshener 90-91
Load space cover
(5-seat version) 95
Load space cover
(7-seat version) 99-100
Child seats 118-121, 125
ISOFIX mountings 122-124
Parking brake, handbrake 104
Rear seats
(7-seat version) 75-81, 83
Fittings (7-seat version) 97
- stowing rings,
- cup holder,
- 12 V socket,
- storage fl ap.
Towing, llifting 127-128, 159
Towable loads 166
Spare wheel, jack,
changing a wheel,
tools 144-148
