Instruments and controls


INSTRUMENT PANEL



Displays

INSTRUMENTS AND CONTROLS


Screens
The information is presented on board
the vehicle in different display formats
according to the vehicle's equipment.


Dials


1.
Distance recorder in kilometres/
miles.

2.
Screen.

3.
Fuel level, coolant temperature.

4.
Rev counter.

5.
Trip distance recorder/service
indicator zero reset.

6.
Instrument panel lighting dimmer.




- Speed limiter/cruise control.

- Kilometres/Miles travelled.

- Service indicator, engine oil level
indicator, total kilometres/miles.

- Presence of water in the diesel
fi lter.

- Diesel pre-heating.

36
Instruments and controls

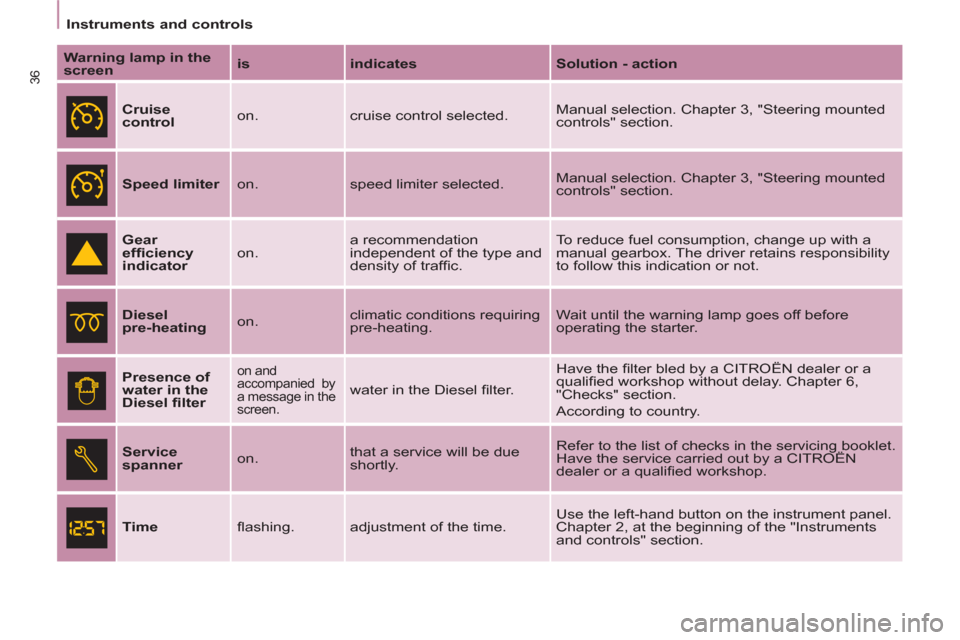

Warning lamp in the
screen

is

indicates

Solution - action




Cruise
control
on. cruise control selected. Manual selection. Chapter 3, "Steering mounted
controls" section.



Speed limiter
on. speed limiter selected. Manual selection. Chapter 3, "Steering mounted
controls" section.


Gear
effi ciency
indicator
on. a recommendation
independent of the type and
density of traffi c. To reduce fuel consumption, change up with a
manual gearbox. The driver retains responsibility
to follow this indication or not.


Diesel
pre-heating
on. climatic conditions requiring
pre-heating. Wait until the warning lamp goes off before
operating the starter.


Presence of
water in the
Diesel fi lter

on and
accompanied by
a message in the
screen.
water in the Diesel fi lter. Have the fi lter bled by a CITROËN dealer or a
qualifi ed workshop without delay. Chapter 6,
"Checks" section.
According to country.



Service
spanner
on. that a service will be due
shortly. Refer to the list of checks in the servicing booklet.
Have the service carried out by a CITROËN
dealer or a qualifi ed workshop.




Time
fl ashing. adjustment of the time. Use the left-hand button on the instrument panel.
Chapter 2, at the beginning of the "Instruments
and controls" section.

39
READY TO GO
22


Instruments and controls


SERVICE INDICATOR

This programmes service intervals
according to the use of the vehicle.
More than 1 000 miles/km before the
next service is due

Example:
4 800 miles/km remain
before the next service is due. When
the ignition is switched on and for a
few seconds, the screen shows:
A few seconds after the ignition is
switched on, the oil level is displayed,
then the total distance recorder
resumes normal operation showing the
total and trip distances.

Less than 1 000 miles/km before the
next service is due
Each time the ignition is switched on
and for a few seconds, the spanner
fl ashes and the number of miles/
kilometres remaining is displayed: A few seconds after the ignition is
switched on, the oil level is displayed,
then the total distance recorder
resumes normal operation and the
spanner remains on. This indicates that
a service should be carried out shortly.

Service overdue
First of the two terms reached: the
spanner also comes on if the two-year
interval has elapsed.

Operation
A few moments after the ignition
has been switched on, the spanner
indicating a service operation comes
on; the display for the total distance
recorder gives (in round fi gures) the
distance remaining before the next
service.
The points at which a service is due
are calculated from the last indicator
zero reset.
The point at which a service is due is
determined by two parameters:


- the distance travelled,

- the time which has elapsed since
the last service.
The distance remaining before the
next service may be weighted by
the time factor, depending on the
type of driving. With the engine running the
spanner remains on until the
service has been carried out. Each time the ignition is
switched on and for a few
seconds, the spanner
fl ashes and the excess
distance is displayed.

40
Instruments and controls

Trip recorder zero reset button

After this operation, if you wish to
disconnect the battery, lock the
vehicle and wait for at least fi ve
minutes, otherwise the zero re-set will
not be registered.


Zero re-set

Your CITROËN dealer or a qualifi ed
workshop carries out this operation
after each service.
However, if you carry out the service
yourself, the re-set procedure is as
follows:


- switch off the ignition,

- press and hold the trip recorder
reset button,

- switch on the ignition.
The display begins a countdown.
When the display shows "=0"
, release
the button; the spanner disappears.

Engine oil level indicator

When the ignition is switched on, the
engine oil level is indicated for a few
seconds, after the service information.
Oil level correct

Low oil level
Flashing of "OIL"
,
linked with the
service warning lamp,
accompanied by an
audible signal and a message in the
screen, indicates a low oil level which
could damage the engine.
If the low oil level is confi rmed by a
check using the dipstick, it is essential
that the level is topped up.

Oil level gauge fault
Flashing of "OIL--"

indicates a
malfunction of the
engine oil level
indicator. Contact a CITROËN dealer
or a qualifi ed workshop.
The level read will only be correct
if the vehicle is on level ground
and the engine has been off for
more than 30 minutes.
Dipstick

A
= maximum, never exceed
this level as a surplus of oil
may damage the engine.
Contact a CITROËN dealer
or a qualifi ed workshop
without delay.

B
= minimum, top up the level
via the oil fi ller cap, using the
grade of oil suited to your
engine.



Lighting dimmer

With the ignition on, press
the button until the zeros
appear.
With the lighting on,
press the button to vary
the brightness of the
instruments and controls.
When the lighting
reaches the minimum (or
maximum) setting, release
the button then press it again to
increase (or reduce) the brightness.
As soon as the lighting is of the
required brightness, release the button.

52


Steering mounted controls



If the sunshine sensor does
not function correctly
, the
lighting comes on accompanied
by the service warning lamp, an
audible signal and a message
in the screen.
Contact a CITROËN dealer or a
qualifi ed workshop.



Guide-me-home lighting

Keeping the dipped beam headlamps
on temporarily with the ignition off,
makes the driver's exit easier when the
light is poor.
HEADLAMP BEAM
Depending on the load in your vehicle,
the beam setting must be adjusted.

0 -
No load.

1 -
Partial load.

2 -
Average load.

3 -
Maximum authorised load.
Manual operation


- With the ignition off, "fl ash" the
headlamps within one minute after
switching off the ignition.
The guide-me-home lighting switches
off automatically after a set time.

Automatic operation
Refer to the "Screen menu map"
section of chapter 9.

Initial setting is position 0.
Activate the function via the
vehicle confi guration menu.

Programming
The system is activated or deactivated
in the vehicle confi guration menu.
The system is activated by default.

Switching off
The system does not operate:


- below a certain angle of rotation of
the steering wheel,

- above 25 mph (40 km/h),

- when reverse gear is engaged,

Switching on
This function starts:


- when the corresponding direction
indicator is switched on,
or

- from a certain angle of rotation of
the steering wheel.

With dipped or main beam headlamps,
this function makes use of the beam
from a front foglamp to illuminate the
inside of a bend, when the vehicle
speed is below 25 mph (approximately
40 km/h) (urban driving, winding road,
intersections, parking manouevres...).
Cornering lighting
