Blower Control
Rotate this control to regulate the
amount of air forced through the ven-
tilation system in any mode. The
blower speed increases as you move
the control to the right from the “O”
(OFF) position. There are four blower
speeds.
NOTE: For vehicles equipped with Remote Start, the
climate controls will not function during Remote Start
operation if the blower control is left in the “O” (Off)
position.
Temperature Control
Rotate this control to regulate the tem-
perature of the air inside the passenger
compartment. Rotating the dial left
into the blue area of the scale indicates
cooler temperatures, while rotating
right into the red area indicates
warmer temperatures.
NOTE: If your air conditioning performance seems
lower than expected, check the front of the A/C con-
denser located in front of the radiator for an accumula-
tion of dirt or insects. Clean with a gentle water spray
from behind the radiator and through the condenser.
Fabric front fascia protectors may reduce airflow to the
condenser, reducing air conditioning performance.
286 UNDERSTANDING YOUR INSTRUMENT PANEL

CAUTION!
Do not use a portable battery booster pack or any
other booster source with a system voltage greater
than 12 Volts or damage to the battery, starter motor,
alternator or electrical system may occur.
WARNING!
Do not attempt jump-starting if the battery is frozen.
It could rupture or explode and cause personal injury.
Preparations For Jump-Start
The battery in your vehicle is located between the left
front headlight assembly and the left front wheel splash
shield. To allow jump-starting there are remote battery
posts located on the left side of the engine compartment.
Remote Battery Posts
1 — Remote Positive(+) Post (covered with protective cap)
2 — Remote Negative (-) Post
6
WHAT TO DO IN EMERGENCIES 405

WARNING!
•Take care to avoid the radiator cooling fan when-
ever the hood is raised. It can start anytime the
ignition switch is on. You can be injured by
moving fan blades.
•Remove any metal jewelry such as watch bands or
bracelets that might make an inadvertent electrical
contact. You could be seriously injured.
•Batteries contain sulfuric acid that can burn your
skin or eyes and generate hydrogen gas which is
flammable and explosive. Keep open flames or
sparks away from the battery.
1. Set the parking brake, shift the automatic transmission
into PARK and turn the ignition to LOCK.
2. Turn off the heater, radio, and all unnecessary electri-
cal accessories. 3. Remove the protective cover over the remote positive
(+)
battery post. To remove the cover, press the locking
tab and pull upward on the cover.
4. If using another vehicle to jump-start the battery, park
the vehicle within the jumper cables reach, set the
parking brake and make sure the ignition is OFF.
Locking Tab
406 WHAT TO DO IN EMERGENCIES

WARNING!
Do not allow vehicles to touch each other as this
could establish a ground connection and personal
injury could result.
Jump-Starting Procedure
WARNING!
Failure to follow this procedure could result in per-
sonal injury or property damage due to battery ex-
plosion.
CAUTION!
Failure to follow these procedures could result in
damage to the charging system of the booster vehicle
or the discharged vehicle.1. Connect the positive
(+)end of the jumper cable to the
remote positive (+)post of the discharged vehicle.
2. Connect the opposite end of the positive (+)jumper
cable to the positive (+)post of the booster battery.
3. Connect the negative end (-)of the jumper cable to the
negative (-)post of the booster battery.
4. Connect the opposite end of the negative (-)jumper
cable to the remote negative (-)post of the vehicle with
the discharged battery.
WARNING!
Do not connect the cable to the negative post (-) of the
discharged battery. The resulting electrical spark
could cause the battery to explode and could result in
personal injury.
6
WHAT TO DO IN EMERGENCIES 407

5. Start the engine in the vehicle that has the booster
battery, let the engine idle a few minutes, and then start
the engine in the vehicle with the discharged battery.
Once the engine is started, remove the jumper cables in
the reverse sequence:
6. Disconnect the negative(-)jumper cable from the
remote negative (-)post of the vehicle with the dis-
charged battery.
7. Disconnect the negative end (-)of the jumper cable
from the negative (-)post of the booster battery.
8. Disconnect the opposite end of the positive (+)jumper
cable from the positive (+)post of the booster battery.
9. Disconnect the positive (+)end of the jumper cable
from the remote positive (+)post of the discharged
vehicle. 10. Reinstall the protective cover over the remote posi-
tive
(+)battery post of the discharged vehicle.
If frequent jump-starting is required to start your vehicle
you should have the battery and charging system in-
spected at your authorized dealer.
CAUTION!
Accessories that can be plugged into the vehicle
power outlets draw power from the vehicle’s battery,
even when not in use (i.e., cellular phones, etc.).
Eventually, if plugged in long enough, the vehicle’s
battery will discharge sufficiently to degrade battery
life and/or prevent the engine from starting.
FREEING A STUCK VEHICLE
If your vehicle becomes stuck in mud, sand, or snow, it
can often be moved by a rocking motion. Turn your
steering wheel right and left to clear the area around the
408 WHAT TO DO IN EMERGENCIES

Engine Air Cleaner Filter
WARNING!
The air induction system (air cleaner, hoses, etc.) can
provide a measure of protection in the case of engine
backfire. Do not remove the air induction system (air
cleaner, hoses, etc.) unless such removal is necessary
for repair or maintenance. Make sure that no one is
near the engine compartment before starting the
vehicle with the air induction system (air cleaner,
hoses, etc.) removed. Failure to do so can result in
serious personal injury.
Refer to the “Maintenance Schedule” for the proper
maintenance intervals.
Engine Air Cleaner Filter Selection
The quality of replacement engine air cleaner filters
varies considerably. Only high quality filters should be used to assure most efficient service. MOPAR
engine air
cleaner filters are high quality and are recommended.
Maintenance-Free Battery
Your vehicle is equipped with a maintenance-free battery.
You will never have to add water, nor is periodic main-
tenance required.
NOTE: The battery is stored in a compartment behind
the left front fender and is accessible without removing
the tire and wheel. Remote battery terminals are located
in the engine compartment for jump-starting. Refer to
_Jump-Starting Procedures” in “What To Do In Emergen-
cies” for further information.
To access the battery, turn the steering wheel fully to the
right and remove the inner fender shield.
7
MAINTAINING YOUR VEHICLE 427

Door Locks, Automatic.................... 32
Door Opener, Garage ..................... 176
Driver’s Seat Back Tilt .................... 155
Driving On Slippery Surfaces .................. 319
Through Flowing, Rising, or Shallow Standing
Water ............................. 320
E-85 Fuel ............................. 368
Electric Rear Window Defrost ............... 194
Electric Remote Mirrors ................... 112
Electrical Power Outlets ................... 185
Electronic Speed Control (Cruise Control) ...... 173
Electronic Stability Control (ESC) ............. 331
Electronic Vehicle Information Center (EVIC) .... 218
Emergency Deck Lid Release ................ 38
Emergency Trunk Release ................... 38
Emergency, In Case of Jacking ............................ 394 Jump Starting
....................... 404
Overheating ........................ 392
Towing ............................ 411
Emission Control System Maintenance ......... 420
Engine ............................... 417
Air Cleaner ......................... 427
Block Heater ........................ 307
Break-In Recommendations .............. 80
Checking Oil Level ................... 423
Compartment ....................... 418
Compartment Identification ............. 418
Coolant (Antifreeze) ................ 436,466
Cooling ........................... 436
Exhaust Gas Caution ................82,368
Fuel Requirements ................. 364,465
Jump Starting ....................... 404
Oil ......................... 423,465,466
Oil Change Interval .............208,221,424
Oil Filler Cap .................... 417,425
498 INDEX

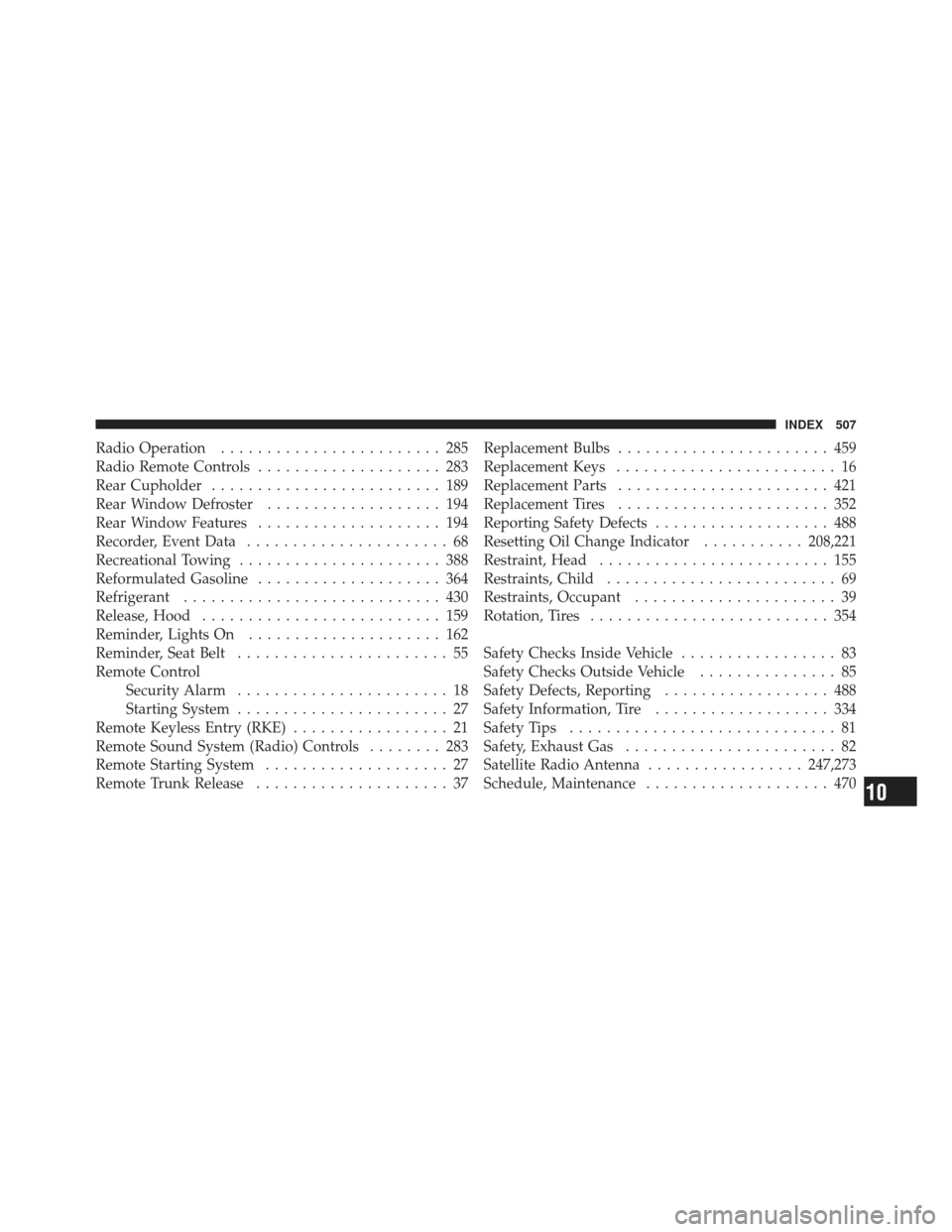

Radio Operation........................ 285
Radio Remote Controls .................... 283
Rear Cupholder ......................... 189
Rear Window Defroster ................... 194
Rear Window Features .................... 194
Recorder, Event Data ...................... 68
Recreational Towing ...................... 388
Reformulated Gasoline .................... 364
Refrigerant ............................ 430
Release, Hood .......................... 159
Reminder, Lights On ..................... 162
Reminder, Seat Belt ....................... 55
Remote Control Security Alarm ....................... 18
Starting System ....................... 27
Remote Keyless Entry (RKE) ................. 21
Remote Sound System (Radio) Controls ........ 283
Remote Starting System .................... 27
Remote Trunk Release ..................... 37 Replacement Bulbs
....................... 459
Replacement Keys ........................ 16
Replacement Parts ....................... 421
Replacement Tires ....................... 352
Reporting Safety Defects ................... 488
Resetting Oil Change Indicator ...........208,221
Restraint, Head ......................... 155
Restraints, Child ......................... 69
Restraints, Occupant ...................... 39
Rotation, Tires .......................... 354
Safety Checks Inside Vehicle ................. 83
Safety Checks Outside Vehicle ............... 85
Safety Defects, Reporting .................. 488
Safety Information, Tire ................... 334
Safety Tips ............................. 81
Safety, Exhaust Gas ....................... 82
Satellite Radio Antenna .................247,273
Schedule, Maintenance .................... 470
10
INDEX 507
