Black plate (1,1)Chevrolet Tahoe Police and Special Service Packages - 2012
2012 Chevrolet Tahoe Police and Special ServicePackagesM
Keys, Doors, and
Windows . . . . . . . . . . . . . . . . . . . . 2-1
Keys and Locks . . . . . . . . . . . . . . . 2-1
Seats and Restraints . . . . . . . . . 3-1
Airbag System . . . . . . . . . . . . . . . . . 3-1
Instruments and Controls . . . . 5-1
Warning Lights, Gauges, and
Indicators . . . . . . . . . . . . . . . . . . . . 5-2
Information Displays . . . . . . . . . . . 5-3
Lighting . . . . . . . . . . . . . . . . . . . . . . . 6-1
Exterior Lighting . . . . . . . . . . . . . . . 6-1
Driving and Operating . . . . . . . . 9-1
Driving Information . . . . . . . . . . . . . 9-1
Starting and Operating . . . . . . . . . 9-5
Towing . . . . . . . . . . . . . . . . . . . . . . . . . 9-5 Vehicle Care
. . . . . . . . . . . . . . . . . 10-1
Wheels and Tires . . . . . . . . . . . . . 10-1
Appearance Care . . . . . . . . . . . . . 10-2
Technical Data . . . . . . . . . . . . . . . 12-1
Vehicle Data . . . . . . . . . . . . . . . . . . 12-2
Special Equipment Options . . . . . . . . . . . . . . . . . . . . . 15-1
SEO Standard Options . . . . . . . 15-2
SEO Available Options . . . . . . 15-10
Index . . . . . . . . . . . . . . . . . . . . . i-1

Black plate (1,1)Chevrolet Tahoe Police and Special Service Packages - 2012
Keys, Doors, and Windows 2-1
Keys, Doors, and
Windows
Keys and Locks
Specific Cylinder Unit for SingleKey - Random Code
System . . . . . . . . . . . . . . . . . . . . . . 2-1
Keys and Locks
Specific Cylinder Unit for
Single Key - Random
Code System
If your vehicles are equipped with
one of these options, the entire fleet
of vehicle locks can be operated
with one key.
.SEO 6E2 - Specific Fleet
Key Code
.SEO 6E8 - Specific Fleet
Key Code
Your vehicle will be equipped with a
standard production random key
code if one of the optional fleet
codes was not ordered.
For specific key code information,
contact your dealer. Your vehicles will be equipped with
a key cylinder in the ignition lock
and the driver door only. Remote
keyless entry (RKE) is a standard
feature and operates all other doors
and the rear liftgate. Six additional
RKE transmitters may have been
ordered with your vehicle. See your
dealer for additional information
regarding availability of more RKE
units for your vehicle.
The RKE transmitter for your police
vehicle has the vehicle locator/panic
alarm button disabled. The horn will
not sound and the exterior lights will
not flash when the button is
pressed.

Black plate (1,1)Chevrolet Tahoe Police and Special Service Packages - 2012
Instruments and Controls 5-1
Instruments and
Controls
Warning Lights, Gauges, and
Indicators
Instrument Cluster . . . . . . . . . . . . 5-2
Speedometer . . . . . . . . . . . . . . . . . 5-3
Odometer . . . . . . . . . . . . . . . . . . . . . 5-3
Information Displays
Driver InformationCenter (DIC) . . . . . . . . . . . . . . . . . 5-3

Black plate (2,1)Chevrolet Tahoe Police and Special Service Packages - 2012
5-2 Instruments and Controls
Warning Lights, Gauges, and Indicators
Instrument Cluster
Tahoe Police Package 6‐Speed Automatic Transmission (English Shown, Metric Similar)

Black plate (22,1)Chevrolet Tahoe Police and Special Service Packages - 2012
15-22 Special Equipment Options

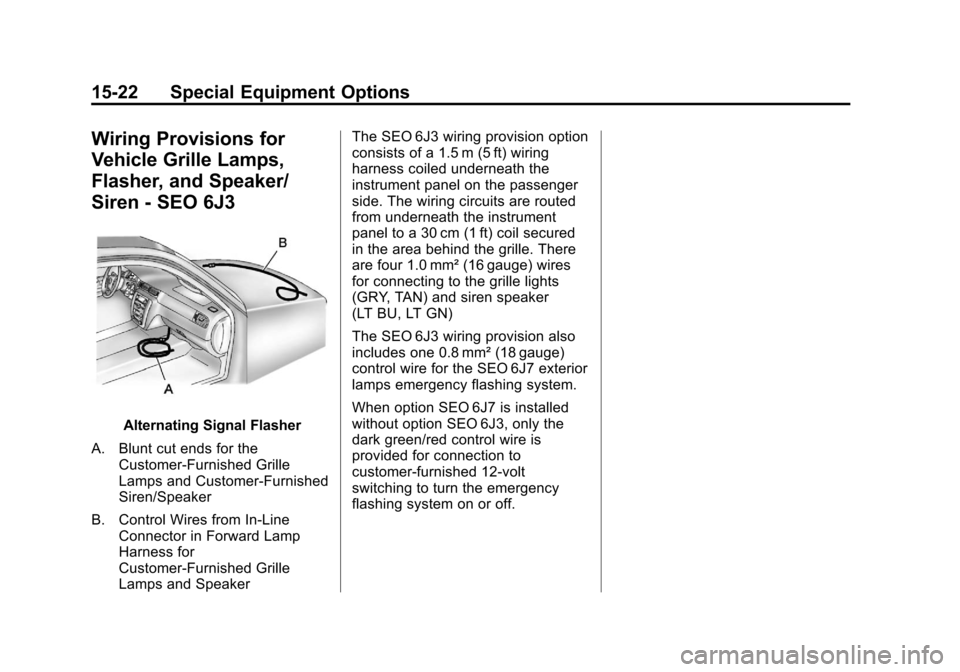

Wiring Provisions for
Vehicle Grille Lamps,
Flasher, and Speaker/
Siren - SEO 6J3
Alternating Signal Flasher
A. Blunt cut ends for the Customer-Furnished Grille
Lamps and Customer-Furnished
Siren/Speaker
B. Control Wires from In-Line Connector in Forward Lamp
Harness for
Customer-Furnished Grille
Lamps and Speaker The SEO 6J3 wiring provision option
consists of a 1.5 m (5 ft) wiring
harness coiled underneath the
instrument panel on the passenger
side. The wiring circuits are routed
from underneath the instrument
panel to a 30 cm (1 ft) coil secured
in the area behind the grille. There
are four 1.0 mm² (16 gauge) wires
for connecting to the grille lights
(GRY, TAN) and siren speaker
(LT BU, LT GN)
The SEO 6J3 wiring provision also
includes one 0.8 mm² (18 gauge)
control wire for the SEO 6J7 exterior
lamps emergency flashing system.
When option SEO 6J7 is installed
without option SEO 6J3, only the
dark green/red control wire is
provided for connection to
customer-furnished 12-volt
switching to turn the emergency
flashing system on or off.

Black plate (2,1)Chevrolet Tahoe Police and Special Service Packages - 2012
i-2 INDEX
G
GaugesOdometer . . . . . . . . . . . . . . . . . . . . . . 5-3
Speedometer . . . . . . . . . . . . . . . . . . 5-3
Groundig Studs, Rear Compartment . . . . . . . . . . . . . . . 15-10
Grounding Straps
Radio Suppression . . . . . . . . . 15-10
H
Horn/Siren, WiringProvisions - SEO 6J4 . . . . . . . 15-20
I
Idle SystemFast . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-5
Inactive Rear Door Handles - SEO 6B2 . . . . . . . . . 15-14
Inactive Rear Door Locks - SEO 6N6 . . . . . . . . . . . 15-14
Inactive Rear Door Windows - SEO 6N5 . . . . . . . . 15-14
Instrument Cluster . . . . . . . . . . . . . . 5-2
Introduction . . . . . . . . . . . . . . . . . . . . . . . . ii
K
Keys Single Key Random CodeSystem . . . . . . . . . . . . . . . . . . . . . . . 2-1
L
LampsExterior Controls . . . . . . . . . . . . . . . 6-1
Exterior EmergencyFlashing
System - SEO 6J7 . . . . . . . . .15-11
Vehicle Grille Wiring
Provisions - SEO 6J3 . . . . . 15-22
Lights Wiring Provisions forEmergency
Vehicle - SEO TRW . . . . . . . 15-15
M
Monitor System, Tire
Pressure . . . . . . . . . . . . . . . . . . . . . 10-1
