Black plate (3,1)Chevrolet Corvette Owner Manual - 2012
Introduction iii

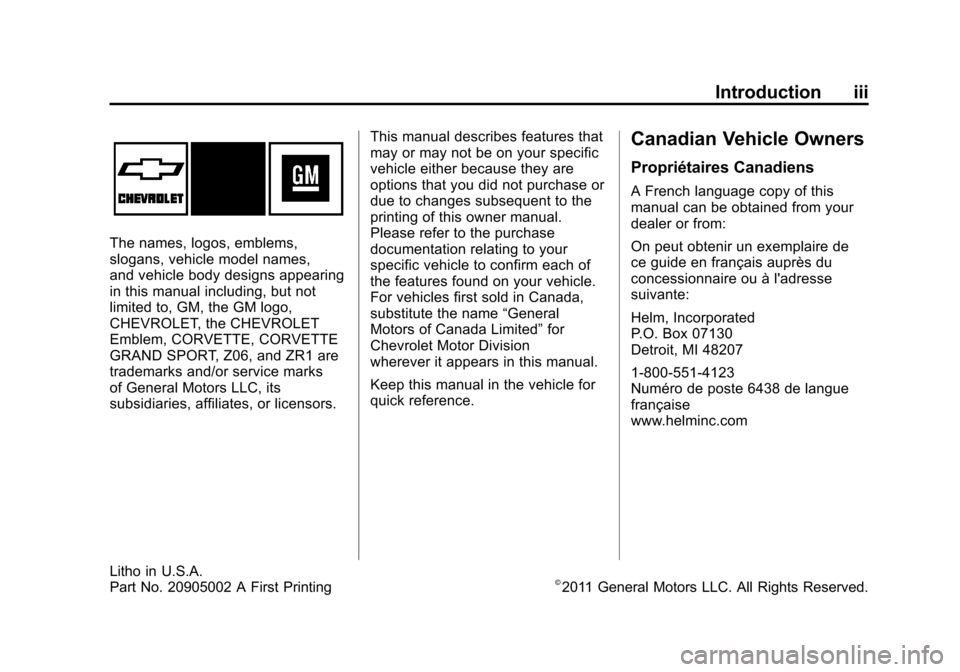

The names, logos, emblems,
slogans, vehicle model names,
and vehicle body designs appearing
in this manual including, but not
limited to, GM, the GM logo,
CHEVROLET, the CHEVROLET
Emblem, CORVETTE, CORVETTE
GRAND SPORT, Z06, and ZR1 are
trademarks and/or service marks
of General Motors LLC, its
subsidiaries, affiliates, or licensors.This manual describes features that
may or may not be on your specific
vehicle either because they are
options that you did not purchase or
due to changes subsequent to the
printing of this owner manual.
Please refer to the purchase
documentation relating to your
specific vehicle to confirm each of
the features found on your vehicle.
For vehicles first sold in Canada,
substitute the name
“General
Motors of Canada Limited” for
Chevrolet Motor Division
wherever it appears in this manual.
Keep this manual in the vehicle for
quick reference.
Canadian Vehicle Owners
Propriétaires Canadiens
A French language copy of this
manual can be obtained from your
dealer or from:
On peut obtenir un exemplaire de
ce guide en français auprès du
concessionnaire ou à l'adresse
suivante:
Helm, Incorporated
P.O. Box 07130
Detroit, MI 48207
1-800-551-4123
Numéro de poste 6438 de langue
française
www.helminc.com
Litho in U.S.A.
Part No. 20905002 A First Printing©2011 General Motors LLC. All Rights Reserved.
Black plate (36,1)Chevrolet Corvette Owner Manual - 2012
5-36 Instruments and Controls
If the sun comes out or it becomes
cloudy, the HUD brightness may
need to be adjusted again using
the dimmer control. Polarized
sunglasses could make the
HUD image harder to see.
The HUD information can be
displayed in one of six languages
including English, Spanish, French,
German, Italian, or Japanese. The
speedometer can be displayed in
either English or metric units.
To change the language and unit
selections, see“Entering the
Personal Options Menu” under
Vehicle Personalization on
page 5‑55.
Clean the inside of the windshield
as needed to remove any dirt or film
that reduces the sharpness or clarity
of the HUD image. To clean the HUD, spray household
glass cleaner on a soft, clean cloth.
Wipe the HUD lens gently, then dry
it. Do not spray cleaner directly on
the lens because the cleaner could
leak into the unit.
If the ignition is on and the HUD
image cannot be seen, check to
see if:
.Something is covering the
HUD unit.
.The HUD dimmer control is
adjusted properly.
.The HUD image is adjusted to
the proper height.
.Ambient light is low, in the
direction the vehicle is facing.
.A fuse is blown. See
Fuses and
Circuit Breakers on page 10‑51.
Keep in mind that the windshield is
part of the HUD system. See
Windshield Replacement on
page 10‑47.
Vehicle Messages
Messages displayed on the
DIC indicate the status of the
vehicle or some action may be
needed to correct a condition.
Multiple messages may appear
one after another.
The messages that do not
require immediate action can be
acknowledged and cleared by
pressing the RESET button.
The messages that require
immediate action cannot be
cleared until that action is
performed. All messages should
be taken seriously and clearing the
messages does not correct the
problem.
