2012 CHEVROLET CORVETTE Owners Manual

Black plate (9,1)Chevrolet Corvette Owner Manual - 2012
Keys, Doors, and Windows 2-9

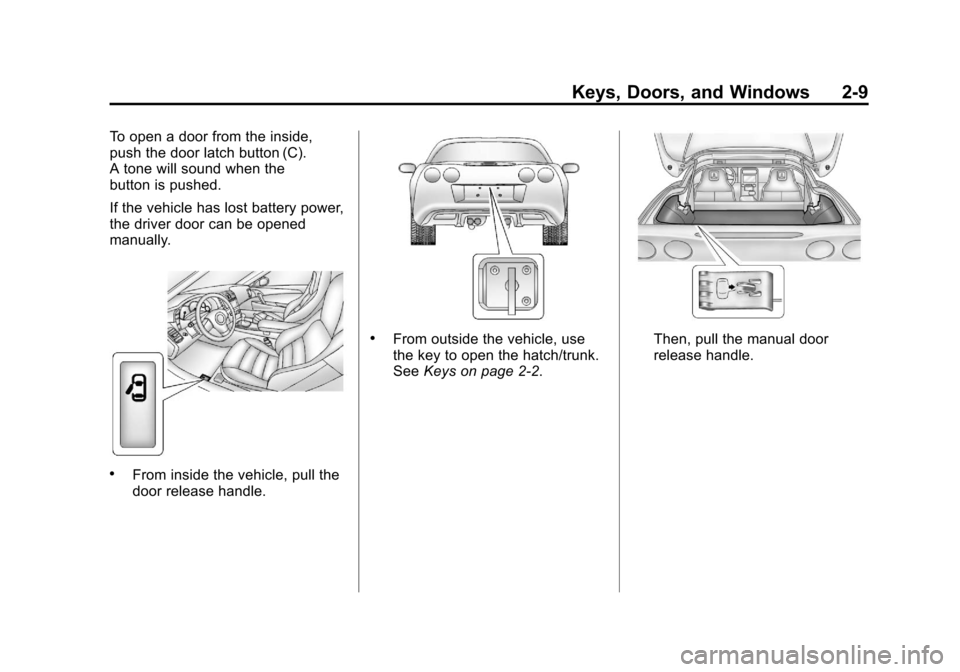

To open a door from the inside,
push the door latch button (C).
A tone will sound when the
button is pushed.
If the vehicle has lost battery power,
the driver door can be opened
manually.
.From inside the vehicle, pull the
door release handle.
.From outside the vehicle, use
the key to open the hatch/trunk.
SeeKeys on page 2‑2.Then, pull the manual door
release handle.

Black plate (10,1)Chevrolet Corvette Owner Manual - 2012
2-10 Keys, Doors, and Windows
Power Door Locks
There is an indicator light on the
rear of the door near the window.
K(Unlock):Press to unlock
the doors.
When pressed, a beep sounds.
If the door is closed, the indicator
light flashes twice. If the door is
open, the indicator light flashes.
Q(Lock): Press to lock the doors.
When pressed, a beep sounds.
If the door is closed when pressed,
the indicator light comes on for a few seconds, then turns off. If the
door is open when pressed, the
indicator light stays on.
Automatic Door Locks
The vehicle is programmed so that
when the doors are closed, the
ignition is on, and the shift lever is
moved out of P (Park) for automatic
transmissions, or when vehicle
speed becomes faster than 13 km/h
(8 mph) for manual transmissions,
both doors will lock.
Use the power door unlock switch to
unlock the door when the vehicle is
not in P (Park). When the door is
closed again, the doors will lock
either when your foot is removed
from the brake or the vehicle
speed becomes faster than
13 km/h (8 mph).
Automatic Door Unlock
The vehicle is programmed so that
when the shift lever is moved into
P (Park) for automatic transmission
vehicles or when the ignition is
turned off or is in Retained
Accessory Power (RAP) for manual
transmission vehicles, both doors
will unlock.
With the vehicle stopped and the
engine running, door unlocking can
be programmed through the Driver
Information Center (DIC). This
allows the driver to choose various
unlock settings. For programming
information, see
Vehicle
Personalization on page 5‑55.
Lockout Protection
Your vehicle can be programmed to
sound the horn three times and
unlock the driver door when both
doors are closed and there is a
keyless access transmitter inside
the vehicle. When the driver door is
opened, a reminder chime will
sound continuously. The vehicle will
remain locked only when at least
one transmitter has been removed
from the vehicle and both doors are
closed. See Vehicle Personalization
on page 5‑55.

Black plate (11,1)Chevrolet Corvette Owner Manual - 2012
Keys, Doors, and Windows 2-11
Doors
Hatch
{WARNING
Exhaust gases can enter the
vehicle if it is driven with the
liftgate, trunk/hatch open, or with
any objects that pass through the
seal between the body and the
trunk/hatch or liftgate. Engine
exhaust contains carbon
monoxide (CO) which cannot be
seen or smelled. It can cause
unconsciousness and even death.
If the vehicle must be driven with
the liftgate, or trunk/hatch open:
.Close all of the windows.
.Fully open the air outlets on
or under the instrument
panel.(Continued)
WARNING (Continued)
.Adjust the Climate Control
System to a setting that
brings in only outside air and
set the fan speed to the
highest setting. See “Climate
Control Systems” in the
Index.
.If the vehicle is equipped with
a power liftgate, disable the
power liftgate function.
For more information about
carbon monoxide, see Engine
Exhaust on page 9‑26.
Hatch/Trunk Release
The vehicle must be in P (Park)
with an automatic transmission and
Neutral with a manual transmission.
For manual transmission vehicles,
the parking brake must be set when
the engine is running for the hatch/
trunk release to operate. See
Parking Brake on page 9‑36. To release the hatch/trunk:
.PressV
.Press}on the keyless entry
transmitter. See Remote Keyless
Entry (RKE) System on
page 2‑3.

Black plate (12,1)Chevrolet Corvette Owner Manual - 2012
2-12 Keys, Doors, and Windows
.Push the hatch/trunk release
button with the RKE transmitter
within range. SeeRemote
Keyless Entry (RKE) System on
page 2‑3..Use the vehicle key. See Keys
on page 2‑2.
Hatch/Trunk Closing (Coupe)
Notice: Closing the hatch/trunk
forcefully or from the sides can
cause damage to the glass, the
defogger or the weather stripping.
Be sure objects will fit in the
hatch/trunk area before closing
the hatch/trunk. When closing the
hatch/trunk, gently pull down
from the center.
Notice: Do not store heavy or
sharp objects in the rear storage
compartments located in the
hatch/trunk area. The objects
could damage the underbody.
Pull down from the center of the
hatch/trunk, closing it with light force
until the power latch feature
activates. The hatch/trunk will close
the rest of the way and latch
automatically.

Black plate (13,1)Chevrolet Corvette Owner Manual - 2012
Keys, Doors, and Windows 2-13
Emergency Trunk Release
Handle (Coupe)
Notice:Do not use the
emergency trunk release handle
as a tie-down or anchor point
when securing items in the trunk
as it could damage the handle. The emergency trunk release
handle is only intended to aid a
person trapped in a latched trunk,
enabling them to open the trunk
from the inside.
There is a glow-in-the-dark
emergency trunk release handle
located on the rear wall of the trunk
below the latch. This handle will
glow following exposure to light.
Pull the release handle down to
open the trunk from the inside.
Vehicle Security
This vehicle has theft-deterrent
features; however, they do not make
it impossible to steal.
Anti-theft Alarm System
This vehicle has a theft-deterrent
alarm system.
The security light flashes if a door is
open and locked with the power
door lock switch.
If this light stays on while the engine
is running, the vehicle needs
service.

Black plate (14,1)Chevrolet Corvette Owner Manual - 2012
2-14 Keys, Doors, and Windows
Arming the System
To arm the system, pressQon the
RKE transmitter, or open the door
and lock the door with the power
door lock switch. The security light
should flash. Remove the RKE
transmitter from inside the vehicle
and close the door. The security
light stops flashing and stays on.
After 30 seconds, the light should
turn off.
The vehicle can be programmed to
automatically lock the doors and
arm the theft-deterrent system when
you exit the vehicle. See Vehicle
Personalization on page 5‑55.
If a door or the hatch/trunk is
opened without using the RKE
transmitter, the alarm goes off. The
horn sounds for two minutes, then
goes off to save battery power. The
vehicle will not start without a RKE
transmitter present. The theft-deterrent system does not
arm if the driver door is locked with
the power door lock switch after the
doors are closed.
If the RKE transmitter is removed
from the vehicle while a passenger
is in it, have them lock the doors
after they are closed. The alarm will
not arm, so the passenger will not
set it off.
Testing the Alarm
To test the system use the following
procedure.
1. Make sure the trunk lid/hatch is
latched.
2. Lower the window on the driver door.
3. Manually arm the system.
4. Close the doors and wait 30 seconds. 5. Reach through the open window
and manually pull the release
lever on the floor.
6. Press the unlock button on the transmitter to turn off the alarm.
If the alarm does not sound, check
to see if the horn works. The horn
fuse may be blown. See Fuses and
Circuit Breakers on page 10‑51.
If the horn works, but the alarm
does not go off, see your dealer.Disarming the System
Press the unlock button on the
RKE transmitter or squeeze the
door handle sensor while the
transmitter is near the vehicle to
unlock a door. Unlocking a door any
other way sets off the alarm. If the
alarm sounds, press the unlock
button on the RKE transmitter to
disarm it.
Do not leave the key or device
that disarms or deactivates the
theft-deterrent system in the vehicle.

Black plate (15,1)Chevrolet Corvette Owner Manual - 2012
Keys, Doors, and Windows 2-15
Immobilizer
SeeRadio Frequency Statement on
page 13‑21 for information
regarding Part 15 of the Federal
Communications Commission (FCC)
rules and Industry Canada
Standards RSS-GEN/210/220/310.
Immobilizer Operation
The vehicle has a passive
theft-deterrent system.
The system is automatically armed
when the ignition is turned off.
The immobilization system is
disarmed when the ignition is turned
to OFF/ACCESSORY or START and
a valid transmitter is found in the
vehicle.
You do not have to manually arm
or disarm the system.
The security light comes on if
there is a problem with arming or
disarming the theft-deterrent
system. The system has one or more RKE
transmitters that are matched to an
immobilizer control unit in the
vehicle. Only a correctly matched
RKE transmitter starts the vehicle.
The vehicle may not start if the
RKE transmitter is damaged.
If the engine does not start and the
security light comes on, there may
be a problem with the immobilizer
system. Press the START button
again.
If the vehicle does not start and the
RKE transmitter appears to be
undamaged, try another RKE
transmitter. Or, place the transmitter
in the transmitter pocket. See
“NO
FOBS DETECTED” underKey and
Lock Messages on page 5‑43 for
additional information. Check the
fuse. See Fuses and Circuit
Breakers on page 10‑51. If the
engine still does not start with the
other transmitter, the vehicle needs
service. If the engine does start, the
first transmitter may be faulty. See your dealer or have a new RKE
transmitter programmed to the
vehicle.
The immobilizer system can learn
new or replacement RKE
transmitters. Up to four RKE
transmitters can be programmed for
the vehicle. To program additional
transmitters, see
“Matching
transmitter(s) to Your Vehicle” under
Remote Keyless Entry (RKE)
System Operation on page 2‑3.
Do not leave the key or device
that disarms or deactivates the
theft-deterrent system in the vehicle.

Black plate (16,1)Chevrolet Corvette Owner Manual - 2012
2-16 Keys, Doors, and Windows
Exterior Mirrors
Convex Mirrors
{WARNING
A convex mirror can make things,
like other vehicles, look farther
away than they really are. If you
cut too sharply into the right lane,
you could hit a vehicle on the
right. Check the inside mirror or
glance over your shoulder before
changing lanes.
The passenger side mirror is convex
shaped. A convex mirror's surface is
curved so more can be seen from
the driver seat.
Power Mirrors
To adjust the mirrors:
1. Press
}or|to select a mirror.
2. Press the control pad to adjust the mirror.
3. Return the switch to the center to deselect the mirror.
If the vehicle has the memory
feature, a preferred mirror position
can be stored. See Power Seat
Adjustment on page 3‑3.
Folding Mirrors
To fold, pull the mirror toward the
vehicle. Push the mirror outward to
return it to the original position.
Heated Mirrors
For vehicles with heated mirrors:
1(Rear Window Defogger):
Press to heat the mirrors.
See “Rear Window Defogger” under
Dual Automatic Climate Control
System on page 8‑1 for more
information.
Automatic Dimming
Mirror
If the vehicle has this feature, the
driver side outside mirror adjusts for
the glare of headlamps behind you.
This feature is controlled by the on
and off setting on the inside
rearview mirror.
