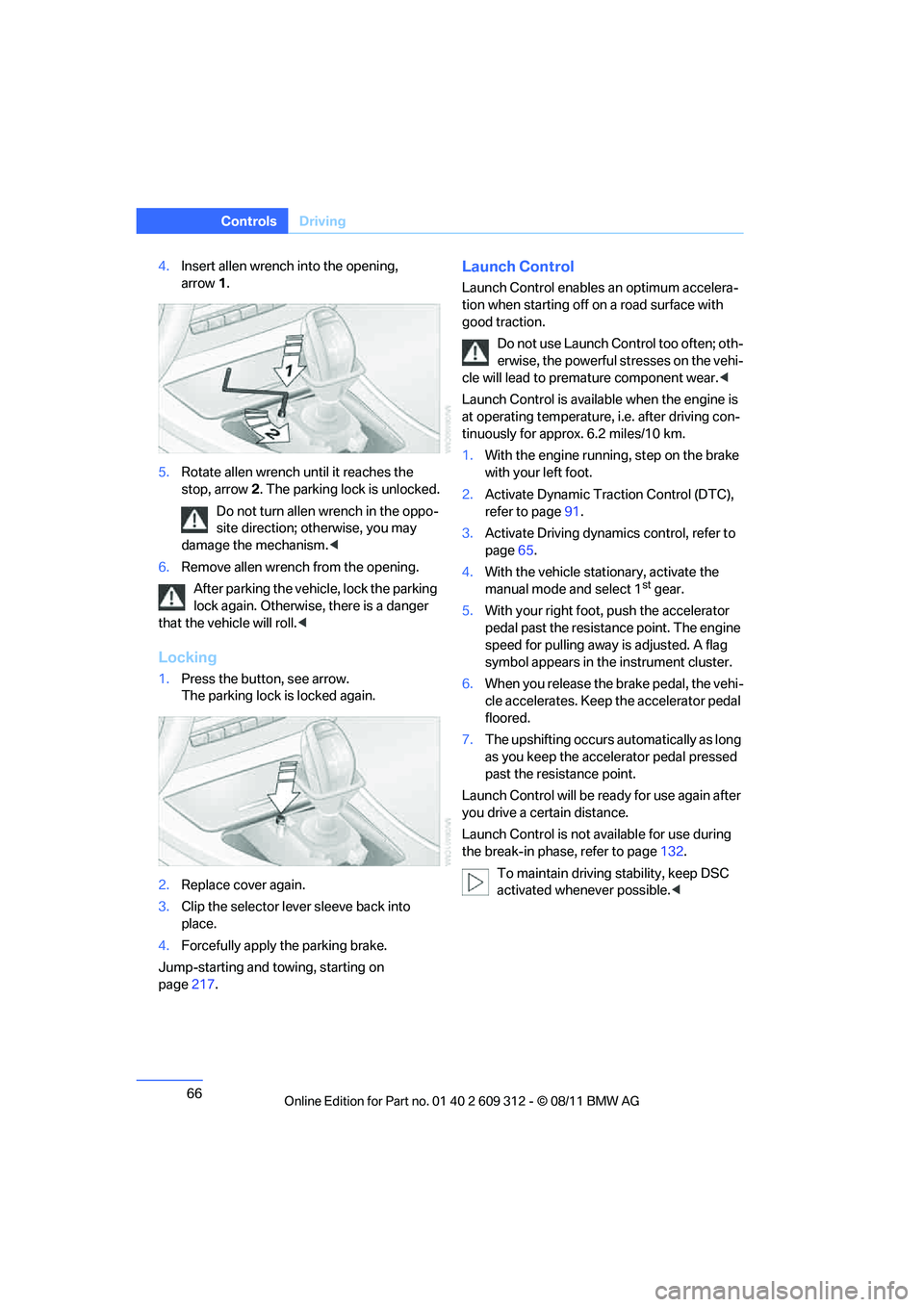

66
ControlsDriving
4.Insert allen wrench into the opening,
arrow 1.
5. Rotate allen wrench until it reaches the
stop, arrow 2. The parking lock is unlocked.
Do not turn allen wrench in the oppo-
site direction; otherwise, you may
damage the mechanism. <
6. Remove allen wrench from the opening.
After parking the vehicle, lock the parking
lock again. Otherwise, there is a danger
that the vehicle will roll. <
Locking
1.Press the button, see arrow.
The parking lock is locked again.
2. Replace cover again.
3. Clip the selector lever sleeve back into
place.
4. Forcefully apply the parking brake.
Jump-starting and towing, starting on
page 217.
Launch Control
Launch Control enables an optimum accelera-
tion when starting off on a road surface with
good traction.
Do not use Launch Control too often; oth-
erwise, the powerful stresses on the vehi-
cle will lead to premature component wear. <
Launch Control is availa ble when the engine is
at operating temperature, i.e. after driving con-
tinuously for approx. 6.2 miles/10 km.
1. With the engine running, step on the brake
with your left foot.
2. Activate Dynamic Trac tion Control (DTC),
refer to page 91.
3. Activate Driving dynami cs control, refer to
page 65.
4. With the vehicle stationary, activate the
manual mode and select 1
stgear.
5. With your right foot, push the accelerator
pedal past the resistance point. The engine
speed for pulling away is adjusted. A flag
symbol appears in the instrument cluster.
6. When you release the brake pedal, the vehi-
cle accelerates. Keep the accelerator pedal
floored.
7. The upshifting occurs automatically as long
as you keep the accelerator pedal pressed
past the resistance point.
Launch Control will be ready for use again after
you drive a certain distance.
Launch Control is not available for use during
the break-in phase, refer to page 132.
To maintain driving stability, keep DSC
activated whenever possible. <
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

197
Engine compartment
Mobility
Engine compartment
Vehicle equipment
In this chapter, all production, country, and
optional equipment that is offered in the model
range is described. For this reason, descrip-
tions will be given of some equipment that may
not be available in a vehi
cle, for example due to
the special options or national-market version
selected. This also app lies to safety related
functions and systems.
Important parts of th e engine compartment
1Expansion tank for coolant, refer to
page 200
2 Washer fluid filler neck for headlamp clean-
ing system and window washer system,
refer to page 69 3
Jump-starting conne ction, refer to
page 216
4 Filler neck for engine oil, refer to Adding
engine oil
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

212
MobilityReplacing components
When mounting new tires or changing over
from summer to winter tires and vice versa,
mount run-flat tires for your own safety. In the
event of a flat, no spare wheel is available. Your
BMW center will be glad to advise you. Refer
also to New wheels and tires, page 195.
The tools for changing wheels are avail-
able as optional accessories from your
BMW center. <
Jack mounting points
The jacking points are at the positions shown in
the illustration.
Vehicle battery
Battery care
The battery is 100 % maintenance-free, the
electrolyte will last for the life of the battery
when the vehicle is operated in a temperate cli-
mate. Your BMW center will be glad to advise in
all matters concerning the battery.
Battery replacing
Only use vehicle batteries that have been
approved for your vehicle by the manu-
facturer; otherwise, the vehicle could be dam-
aged and systems or functions may not be fully
available. <
After a battery replacem ent, have the battery
registered on the vehicle by your service center
to ensure that all comfort functions are fully
available.
Charging the battery
Note
Do not connect battery chargers to the
sockets built into the vehicle at the plant;
doing so may dama ge the vehicle.<
Jump-starting terminals
Only charge the battery in the vehicle via the
terminals in the engine compartment with the
engine off. Connections, refer to Jump-starting
on page216.
Power failure
After a temporary power lo ss, the functioning of
some equipment may be limited and require
reinitialization. Individual settings may likewise
have been lost and will have to be programmed:
> Time and date
These values must be updated, refer to
page 86.
> Radio
In some cases, statio ns may have to be
stored again, refer to page 144.
> Glass roof
It may happen that the roof can only be
tilted. The system must be initialized.
Please contact your BMW center.
> Seat and mirror memory
The positions must be stored again, refer to
page 48.
> Inside rearview mirror with digital compass
The system must be calibrated, refer to
page 119.
> Active steering
The system automatically initializes itself
briefly during a trip. The system is deacti-
vated during this time, refer to page 97.
> xDrive
The system automatically initializes itself
during a trip. Indicator lamps light up during
this time. If the lamps do not go out during
the current trip, have the system checked.
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

216
MobilityGiving and receiving assistance
Convertible
The warning triangle is lo cated in a holder in the
trunk lid. Press the tabs to take it out.
Jump-starting
If the car's own battery is flat, your BMW's
engine can be starte d by connecting two
jumper cables to another vehicle's battery. You
can also use the same method to help start
another vehicle. Only use jumper cables with
fully-insulated clamp handles.
Do not touch any electrically live parts
when the engine is runn ing, or a fatal acci-
dent may occur. Carefully adhere to the follow-
ing sequence, both to pr event damage to one or
both vehicles, and to guard against possible
personal injuries. <
Preparation
1.Check whether the ba ttery of the other
vehicle has a voltage of 12 volts and
approximately the same capacitance in Ah.
This information can be found on the bat-
tery.
2. Switch off the engine of the assisting vehi-
cle.
3. Switch off any consumers in both vehicles.
There must not be any contact between
the bodies of the two vehicles; otherwise,
there is a danger of shorting. <
Connecting jumper cables
Connect the jumper cables in the correct
order, so that no sparks which could
cause injury occur. <
Your BMW has a jump-starting connection in
the engine compartment which acts as the bat-
tery's positive terminal, refer also to the Engine
compartment overview on page 197. The cap is
marked with +.
1. Pull the cap of the BMW jump-starting con-
nection up to remove.
2. Attach one terminal clamp of the plus/+
jumper cable to the positive terminal of the
battery or a starting-aid terminal of the vehi-
cle providing assistance.
3. Attach the second terminal clamp of the
plus/+ jumper cable to the positive terminal
of the battery or a star ting-aid terminal of
the vehicle to be started.
4. Attach one terminal clamp of the minus/–
jumper cable to the nega tive terminal of the
battery or to an engine or body ground of
the assisting vehicle.
Your BMW has a special nut as body ground
or negative pole.
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

217
Giving and receiving assistance
Mobility
5.
Attach the second te rminal clamp of the
minus/– jumper cable to the negative termi-
nal of the battery or to the engine or body
ground of the vehicle to be started.
Starting the engine
1. Start the engine of the donor vehicle and
allow it to run for a fe w minutes at slightly
increased idle speed.
2. Start the engine on the other vehicle in the
usual way.
If the first start attempt is not successful,
wait a few minutes be fore another attempt
in order to allow the discharged battery to
recharge.
3. Let the engines run for a few minutes.
4. Disconnect the jumper cables by reversing
the above connecting sequence.
If necessary, have th e battery checked and
recharged.
Never use spray fluids to start the
engine. <
Tow-starting, towing away
Observe the applicable laws and regula-
tions for tow-starting and towing vehi-
cles. <
Do not transport any passengers other
than the driver in a vehicle that is being
towed. <
Using a tow fitting
The screw-in tow fitting must always be carried
in the car. It can be sc rewed in at the front or
rear of the BMW.
Coupe: it is stored in the onboard vehicle tool kit
underneath the cover on the right-hand side of
the cargo area, refer to page 208.
Convertible: it is stored in the onboard vehicle
tool kit underneath the ca rgo area floor, refer to
page 208. Use only the tow fitting provided with the
vehicle and screw it all the way in. Use the
tow fitting for towing on paved roads only. Avoid
lateral loading of the tow fitting, e.g. do not lift
the vehicle by the tow fitting. Otherwise, the
tow fitting and the vehicle could be damaged. <
Access to screw thread
Release the cover panel in the bumper:
Press on the upper part of the cover panel.
Front
Rear
Being towed
Make sure that the ignition is switched on,
refer to page57; otherwise, the low-beam
headlamps, tail lamps, turn signal indicators and
windshield wipers may be unavailable.
Power steering assistance is not available when
the engine is not running. Thus, braking and
steering will require in creased effort. Active
steering is not active an d it will be necessary to
turn the steering wheel further. <
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

219
Giving and receiving assistance
Mobility
Do not tow the vehicle wi
th just the rear axle
raised as this may caus e the steering to turn.
With a tow truck: vehicle with xDrive
Do not tow a BMW with xDrive with just
the front or rear axle raised; otherwise, the
wheels could lock up and the transfer case
could be damaged. <
Have the BMW transported on a flatbed surface
only.
Tow-starting
Avoid tow-starting the vehicle whenever possi-
ble; instead, jump-start the engine, refer to
page 216Vehicles with a catalytic converter
should only be tow-star ted when the engine is
cold; vehicles with an automatic transmission or
Sport automatic transmission with double
clutch cannot be tow-started at all.
1. Switch on hazard warning flashers, comply
with local regulations.
2. Switch on the ignition, refer to page 57.
3. Shift into 3rd gear.
4. Have the vehicle tow-st arted with the clutch
depressed and slowly release the clutch.
After the engine starts, immediately
depress the clutch completely again.
5. Stop at a suitable location, remove the tow
bar or rope and switch off the hazard warn-
ing flashers.
6. Have the vehicle checked.
With xDrive: do not activate Hill Descent
Control HDC when the vehicle is being
tow-started, page 92.<
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

241
Everything from A to Z
Reference
Automatic transmission with
Steptronic 60
– interlock 60
– overriding selector lever lock 62
– shiftlock, refer to Changing selector lever position 60
– sport program 61
– towing 217
– tow-starting 217
AUTO program for automatic
climate control 113
AUTOSTORE 144
AUX-IN
– port 121
AUX-In connection 151
AUX-IN port 143
Average fuel consumption 80
– setting the units 83
Average speed 80,81
Avoiding unintentional alarms 33
Axle loads, refer to Weights 237
B
Backrest contour, refer to
Lumbar support 44
Backrests, refer to Seat adjustment 43
Backrest width adjustment 44
Back seats
– refer to Rear seats 46
Bag holder 124
Band-aids, refer to First aid pouch 215
Bar, refer to Towing methods 218
Base plate for telephone or
mobile phone
– refer to Snap-in adapter 165
– refer to Snap-in adapter in
the center armrest storage
compartment 120 Battery
212
– charging 212
– disposal 35,213
– jump-starting 216
– remote control 24
– replacing 212
– temporary power failure 212
Battery renewal
– remote control 35
– remote control for vehicle 35
Being towed 217
Belt hand-over 49
– pinch protection system 50
Belts, refer to Safety belts 49
Belt tensioner, refer to Safety
belts 49
Beverage holders, refer to Cupholders 121
Black ice, refer to Outside
temperature warning 78
Blinds, refer to Roller sunblinds 120
Blower, refer to Air volume 110,113
Bluetooth, activating/
deactivating 157
BMW
– car shampoo 207
BMW Assist 167
– activating 168
BMW Homepage 4
BMW Maintenance System 202
BMW Professional radio
– recalling stations 144
– sampling stations 144
– satellite radio 146
– selecting waveband 144
– station search 144
– storing stations 144
– switching on/off 142
– t

one control 143
– volume 142
BMW Teleservices 168
– activating 168
BMW webpage 4 Bottle holders, refer to
Cupholders 121
Brake Assist, refer to Dynamic Brake Control DBC 90
Brake fluid, refer to Service
requirements 84
Brake Force Display 98
Brake lamps
– Brake Force Display 98
Brake pads 132
– breaking in 132
Brake pedal, refer to Braking safely 134
Brake rotors 135
– brakes 132
– breaking in 132
Brakes
– ABS 90
– BMW Maintenance
System 202
– Brake Force Display 98
– breaking in 132
– parking brake 59
– service requirements 84
Brakes, refer to Braking
safely 134
Brake system 132
– BMW Maintenance
System 202
– breaking in 132
– disc brakes 135
Breakdown services, refer to Roadside Assistance 215
Breaking in the clutch 132
Breaking in the differential, refer to Engine and
differential 132
Break-in period 132
Bulb changing, refer to Lamps and bulbs 208
Button for starting the engine, refer to Start/Stop button 57
Buttons on the steering
wheel 11
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

246
ReferenceEverything from A to Z
Head Light, refer to Adaptive
Light Control 105
Head restraints 45
– rear, removing 46
– sitting safely 42
Heated
– mirrors 51
– rear window 111,114
– seats 48
– steering wheel 52
Heating 109
– mirrors 51
– rear window 111,114
– seats 48
– steering wheel 52
Heating and ventilation, refer
to Climate 109
Heavy loads, refer to Stowing cargo 136
Height, refer to Dimensions 235
Height adjustment
– seats 43
– steering wheel 52
High-beam Assistant 106
High beams 105
– headlamp flasher 105
– indicator lamp 220
High beams and low beams, automatic, refer to High-
beam Assistant 106
High-pressure washer 204,205
High water, refer to Driving
through water 134
Hill Descent Control HDC 92
Hills 135
Holders for cups 121
Homepage BMW 4
Hood 198
Hooks for shopping bags 125
Horn 10,11
Hotel function, refer to
Locking or unlocking
separately 31 Hot exhaust system
134
Hydraulic brake assist, refer to
Dynamic Brake Control 90
Hydroplaning 134
I
Ice warning, refer to Outside
temperature warning 78
Identification marks
– Run-flat tires 196
– tire coding 193
Ignition 58
– switched off 58
– switched on 58
Ignition key, refer to Remote
control with integrated
key 24
Ignition key position 1, refer to
Radio readiness 57
Ignition key position 2, refer to Ignition on 58
Ignition lock 57
Imprint 2
Indicator and warning
lamps 13
– Tire Pressure Monitor TPM 96
Indicator and warning lamps, overview 220
Individual air distribution 110
Inflation pressure, refer to Tire inflation pressure 177
Inflation pressure monitoring,
refer to Tire Pressure
Monitor TPM 95
Initializing
– after power failure 212
– compass, refer to Calibrating 119
– Flat Tire Monitor FTM 93
– glass roof 37
Installation location
– CD changer 148
– telephone 120 Instrument cluster
12
Instrument cluster, refer to
Cockpit 10
Instrument combination, refer to Instrument cluster 12
Instrument lighting 107
Integrated key 24
Integrated universal remote
control 116
Interior lamps 107
– remote control 27
Interior motion sensor 33
Interior rearview mirror 51
– automatic dimming
feature 51
– compass 118
Interlock, refer to Disengaging the remote control 60
Intermittent mode of the
wipers 68
J
Jacking points 212
Jumpering, refer to Jump-
starting 216
Jump-starting 216
K
Key, refer to Integrated key/
remote control 24
Keyless go, refer to Comfort Access 33
Keyless opening and closing, refer to Comfort Access 33
Key Memory, refer to Personal
Profile 24
Keypad dialing 162
Kickdown 61
– automatic transmission with Steptronic 61
Knock control 175
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG
