2012 BMW M3 CONVERTIBLE headlamp

197
Engine compartment
Mobility
Engine compartment
Vehicle equipment
In this chapter, all production, country, and
optional equipment that is offered in the model
range is described. For this reason, descrip-
tions will be given of some equipment that may
not be available in a vehi
cle, for example due to
the special options or national-market version
selected. This also app lies to safety related
functions and systems.
Important parts of th e engine compartment
1Expansion tank for coolant, refer to
page 200
2 Washer fluid filler neck for headlamp clean-
ing system and window washer system,
refer to page 69 3
Jump-starting conne ction, refer to
page 216
4 Filler neck for engine oil, refer to Adding
engine oil
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

205
Care
Mobility
Automatic transmission
Before driving into an
automatic car wash, per-
form the following steps to ensure that the vehi-
cle can roll:
1. Insert the remote cont rol into the ignition
lock, even with Comfort Access.
2. Move the selector lever to position N.
3. Release the parking brake.
4. Switch off the engine.
5. Leave the remote control in the ignition lock
so that the vehicle can roll.
Sport automatic transmission with
double clutch
Before driving into an automatic car wash, per-
form the following steps to ensure that the vehi-
cle can roll:
1. Insert the remote cont rol into the ignition
lock, even with Comfort Access.
2. Engage transmission position N.
3. Release the parking brake.
4. Switch off the engine.
5. Leave the remote control in the ignition lock
so that the vehicle can roll.
The transmission is switched into position P:
> Automatically after approx. 30 minutes
> If you remove the infrared remote control
from the ignition lock
Steam jets/high-pressure washers
When using steam jets or high-pressure
washers, make sure to maintain sufficient
distance from the vehicle and do not exceed a
temperature of 140 7/60 6.
Insufficient clearance or excessive pressure or
temperature can lead to component damage or
water penetration. Follow the operating instruc-
tions of the high-pressure washer. <
When using high-pressure washers, do
not spray the sensors, e.g. of the Park
Distance Control, for an extended period and maintain a distance of at least 1 ft/30 cm from
them.
<
Manual car wash
When washing the vehicle by hand, use large
quantities of water an d car shampoo if neces-
sary. Clean the vehicle with a sponge or wash-
ing brush, applying light pressure only.
Before cleaning the windshield, deacti-
vate the rain sensor or switch off the igni-
tion to prevent unintentional activation of the
wipers. <
Observe local regulations pertaining to
washing vehicles by hand. <
Headlamps
Do not rub them dry and do not use abrasive or
corrosive cleaning agents.
Loosen dirt, e.g. insects, with shampoo or
insect remover and wash away with copious
quantities of water.
Thaw ice with a windshield deicer and do not
use an ice scraper.
Windows
Clean the inside and outside surfaces of the
windows and the mirrors with window cleaner.
Do not clean the mirrors with cleaners
containing quartz. <
Convertible: retractable hardtop
Proceed as you would in a normal car wash.
When you open a wet hardtop, water
drops may run into the cargo area. If nec-
essary, remove items from the cargo area
beforehand to avoid water stains or soiling. <
Paintwork care
Regular care contributes to value retention and
protects the paintwork against the long-term
effects of damaging substances.
Region-specific environmental influences can
damage the vehicle paintwork. Therefore, it is
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

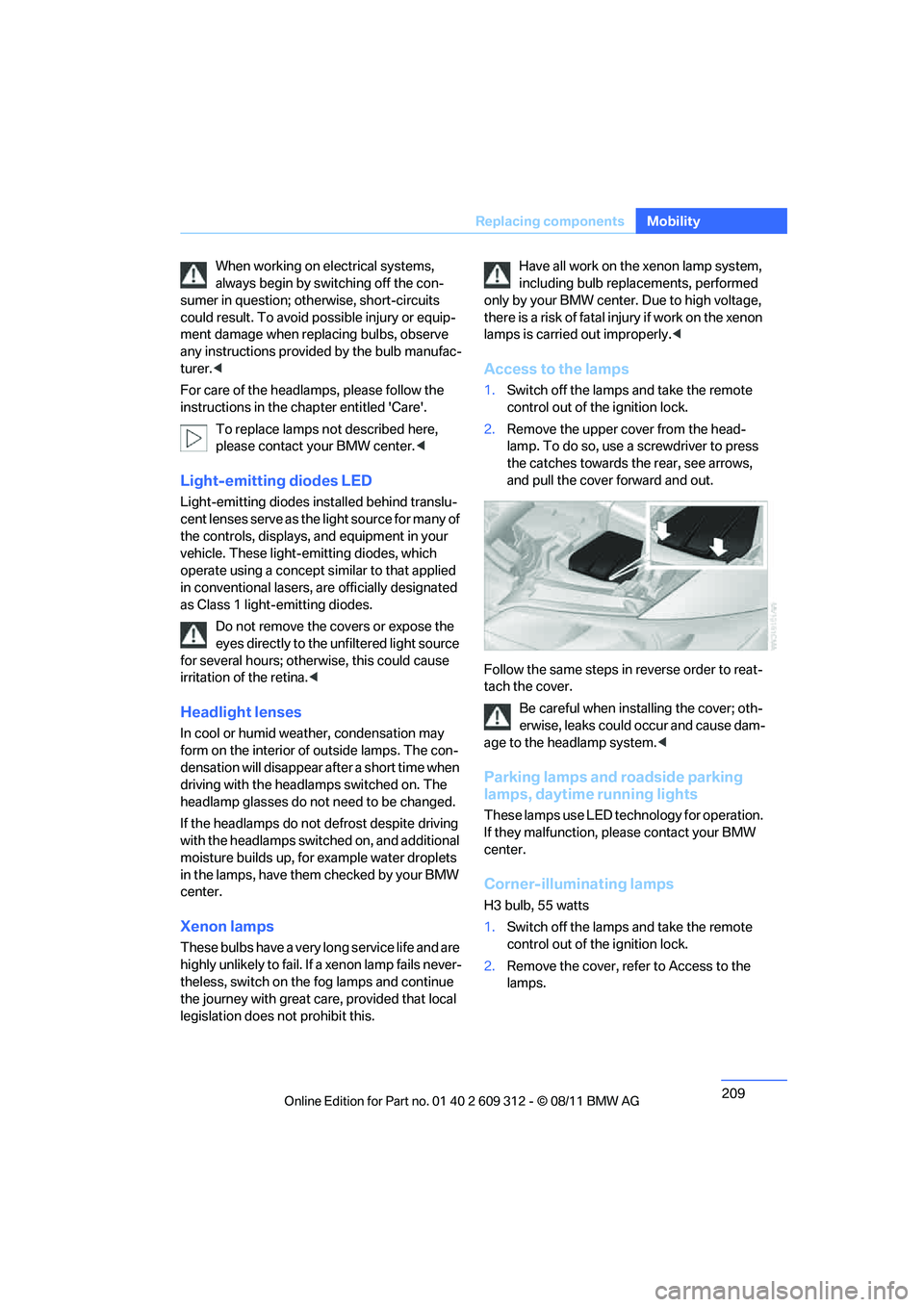

209
Replacing components
Mobility
When working on electrical systems,
always begin by switching off the con-
sumer in question; otherwise, short-circuits
could result. To avoid possible injury or equip-
ment damage when replacing bulbs, observe
any instructions provided by the bulb manufac-
turer. <
For care of the headla mps, please follow the
instructions in the ch apter entitled 'Care'.
To replace lamps not described here,
please contact your BMW center. <
Light-emitting diodes LED
Light-emitting diodes installed behind translu-
cent lenses serve as the light source for many of
the controls, displays, and equipment in your
vehicle. These light-emitting diodes, which
operate using a concept similar to that applied
in conventional lasers, are officially designated
as Class 1 light-emitting diodes.
Do not remove the co vers or expose the
eyes directly to the unfiltered light source
for several hours; otherw ise, this could cause
irritation of the retina. <
Headlight lenses
In cool or humid weather, condensation may
form on the interior of outside lamps. The con-
densation will disappear after a short time when
driving with the headlamps switched on. The
headlamp glasses do not need to be changed.
If the headlamps do not defrost despite driving
with the headlamps switch ed on, and additional
moisture builds up, for example water droplets
in the lamps, have them checked by your BMW
center.
Xenon lamps
These bulbs have a very lo ng service life and are
highly unlikely to fail. If a xenon lamp fails never-
theless, switch on the fog lamps and continue
the journey with great ca re, provided that local
legislation does not prohibit this. Have all work on the xenon lamp system,
including bulb replacements, performed
only by your BMW center . Due to high voltage,
there is a risk of fatal injury if work on the xenon
lamps is carried out improperly. <
Access to the lamps
1.Switch off the lamps and take the remote
control out of the ignition lock.
2. Remove the upper co ver from the head-
lamp. To do so, use a screwdriver to press
the catches towards the rear, see arrows,
and pull the cover forward and out.
Follow the same steps in reverse order to reat-
tach the cover. Be careful when inst alling the cover; oth-
erwise, leaks could occur and cause dam-
age to the headlamp system.<
Parking lamps and roadside parking
lamps, daytime running lights
These lamps use LED technology for operation.
If they malfunction, please contact your BMW
center.
Corner-illuminating lamps
H3 bulb, 55 watts
1. Switch off the lamps and take the remote
control out of the ignition lock.
2. Remove the cover, re fer to Access to the
lamps.
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

217
Giving and receiving assistance
Mobility
5.
Attach the second te rminal clamp of the
minus/– jumper cable to the negative termi-
nal of the battery or to the engine or body
ground of the vehicle to be started.
Starting the engine
1. Start the engine of the donor vehicle and
allow it to run for a fe w minutes at slightly
increased idle speed.
2. Start the engine on the other vehicle in the
usual way.
If the first start attempt is not successful,
wait a few minutes be fore another attempt
in order to allow the discharged battery to
recharge.
3. Let the engines run for a few minutes.
4. Disconnect the jumper cables by reversing
the above connecting sequence.
If necessary, have th e battery checked and
recharged.
Never use spray fluids to start the
engine. <
Tow-starting, towing away
Observe the applicable laws and regula-
tions for tow-starting and towing vehi-
cles. <
Do not transport any passengers other
than the driver in a vehicle that is being
towed. <
Using a tow fitting
The screw-in tow fitting must always be carried
in the car. It can be sc rewed in at the front or
rear of the BMW.
Coupe: it is stored in the onboard vehicle tool kit
underneath the cover on the right-hand side of
the cargo area, refer to page 208.
Convertible: it is stored in the onboard vehicle
tool kit underneath the ca rgo area floor, refer to
page 208. Use only the tow fitting provided with the
vehicle and screw it all the way in. Use the
tow fitting for towing on paved roads only. Avoid
lateral loading of the tow fitting, e.g. do not lift
the vehicle by the tow fitting. Otherwise, the
tow fitting and the vehicle could be damaged. <
Access to screw thread
Release the cover panel in the bumper:
Press on the upper part of the cover panel.
Front
Rear
Being towed
Make sure that the ignition is switched on,
refer to page57; otherwise, the low-beam
headlamps, tail lamps, turn signal indicators and
windshield wipers may be unavailable.
Power steering assistance is not available when
the engine is not running. Thus, braking and
steering will require in creased effort. Active
steering is not active an d it will be necessary to
turn the steering wheel further. <
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

220
MobilityIndicator and warning lamps
Indicator and warning lamps
Vehicle equipment
In this chapter, all pr oduction, country, and
optional equipment that is offered in the model
range is described. For this reason, descrip-
tions will be given of some equipment that may
not be available in a vehi cle, for example due to
the special options or national-market version
selected. This also app lies to safety related
functions and systems.
The concept
Indicator and warning lamps can light up in a
variety of combinations and colors. See the
table for information on causes and how to
react. Note whether a lamp lights up alone or in
combination with another. Some lamps can
light up in different co lors. Corresponding dis-
tinctions are made in the text.
12Cause What to do
Turn signals
High beams/headlamp flasher
switched on
Fog lamps switched on
Fasten safety belts Fasten your safety belt, also refer to
page 49.
Indication in US models
Parking brake applied while driving Release the parking brake.
Indication in Canadian models
Parking brake applied while driving Release the parking brake.
Outside temperature warning Drive cautiously, also refer to page78.
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

231
Indicator and warning lamps
Mobility
Park Distance Control faile
d Have the system checked.
> High-beam Assistant inactive Clean the sensor field on the front of the
interior rearview mirror, refer to
page 106.
> High-beam Assistant malfunction-
ing Have the system checked by the near-
est BMW center.
> Sensitivity of the High-beam Assis-
tant has been changed There is a risk that oncoming traffic may
be blinded. Have the system checked
by the nearest BMW center.
Bulb of exterior lighting system failed Have the exterior lighting checked as soon as possible.
Low-beam headlamp or fo g lamp failed Have the low beams checked as soon
as possible.
High-beam headlamp failed Hav e the high-beam headlamps
checked.
Adaptive Light Control failed
Coolant level too low Add coolant immediately, refer to page200.
Engine oil pressure too low Stop immediately and switch off the
engine. You cannot co ntinue your jour-
ney. Contact your BMW center.
Engine oil level too low Add engi ne oil immediately; refer to
page 198 for more information.
Lights up in red:
Service appointment overdue Arr ange a service appointment.
Check service requirements, refer to
page 84.
Lights up in yellow:
Service due Arrange a service appointment.
Check service requirements, refer to
page 84.
No service due Check servic e requirements, refer to
page 84.
Time and date no longer correct Set the time and date, refer to page86.
12Cause What to do
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

239
Te c h n i c a l d a t a
Reference
Capacities
Notes
Fuel tank US gal/liters approx. 16.1/61 Fuel grade: page 175
including reserve of US gal/liters approx. 2.1/8.0
Window washer system For more details: page 69
including headlamp washers US quarts/liters approx. 6.3/6.0
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

240
ReferenceEverything from A to Z
Everything from A to Z
Index
A
ABS Antilock Brake
System 90
ACC, refer to Active Cruise Control 71
Acceleration assistant, refer to Launch Control 66
Accessories, refer to Vehicle
equipment 5
Accident, refer to Sending an Emergency Request 214
Activated-charcoal filter for automatic climate
control 115
Active Cruise Control 71
– indicator lamp 74
– malfunction 75
– selecting distance 73
– sensor 75
Active steering 97
Adaptive brake lamp
– Brake Force Display 98
Adaptive Light Control 105
Additives
– coolant 200
– engine oil 200
Adjusting temperature inside the car, refer to Air
conditioner 110
Adjusting temperature inside the car, refer to Automatic
climate control 112
Adjusting the thigh support 44
Airbags 99
– indicator/warning lamp 101
– sitting safely 42
Air conditioner 109 Air conditioning mode
– air conditioner
110
– automatic climate
control 112
– ventilation 111,114
Air distribution
– automatic 113
– individual 110
– manual 110
Airing, refer to Ventilation 111,114
Air outlets, refer to Air
vents 110
Air pressure, refer to Tire inflation pressure 177
Air recirculation, refer to Recirculated air
mode 110,113
Air supply
– air conditioner 110
– automatic climate control 112
– ventilation 111,114
Air vents 110
Air volume 110,11
3
AKI, refer to Fuel grade 175
Alarm system 32
– avoiding unintentional alarms 33
– interior motion sensor 33
– switching off an alarm 32
– tilt alarm sensor 33
ALL program 114
All-season tires, refer to Winter tires 196
All-wheel drive, refer to xDrive 92 Ambient air, refer to
Recirculated air
mode 110,113
AM waveband 144
Antifreeze
– coolant 200
– washer fluid 69
Antilock Brake System ABS 90
Anti-theft alarm system, refer to Alarm system 32
Approved axle loads, refer to
Weights 237
Approved engine oils 200
Approved gross vehicle
weight, refer to Weights 237
Armrest, refer to Center armrest 120
Ashtray 122
Assist systems, refer to
Driving stability control 90
AUC Automatic recirculated air control 113
Audio device, external 121
Automatic
– air distribution 113
– air volume 113
– cruise control 69,71
– headlamp control 103
Automatic car washes 204
Automatic climate control 109
Automatic curb monitor 51
Automatic high beams and low beams, refer to High-
beam Assistant 106
Automatic recirculated air control AUC 113
Automatic station search 144
Automatic station storage 144
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG
