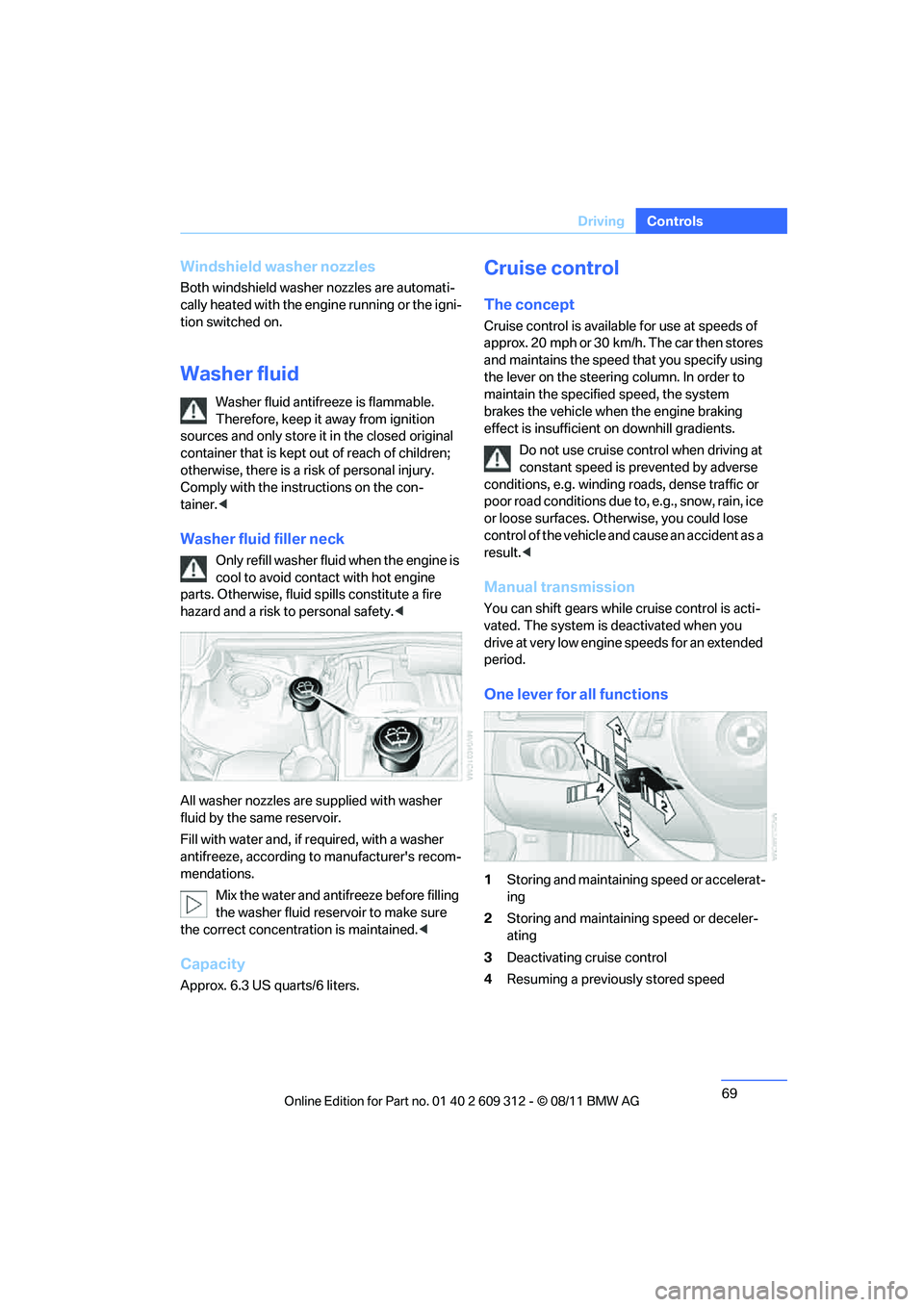

69
Driving
Controls
Windshield washer nozzles
Both windshield washer
nozzles are automati-
cally heated with the engine running or the igni-
tion switched on.
Washer fluid
Washer fluid antifreeze is flammable.
Therefore, keep it away from ignition
sources and only store it in the closed original
container that is kept out of reach of children;
otherwise, there is a risk of personal injury.
Comply with the instructions on the con-
tainer. <
Washer fluid filler neck
Only refill washer fluid when the engine is
cool to avoid contact with hot engine
parts. Otherwise, fluid spills constitute a fire
hazard and a risk to personal safety. <
All washer nozzles are supplied with washer
fluid by the same reservoir.
Fill with water and, if required, with a washer
antifreeze, according to manufacturer's recom-
mendations.
Mix the water and antifreeze before filling
the washer fluid reservoir to make sure
the correct concentration is maintained. <
Capacity
Approx. 6.3 US quarts/6 liters.
Cruise control
The concept
Cruise control is available for use at speeds of
approx. 20 mph or 30 km/h. The car then stores
and maintains the speed that you specify using
the lever on the steering column. In order to
maintain the specifie d speed, the system
brakes the vehicle when the engine braking
effect is insufficient on downhill gradients.
Do not use cruise control when driving at
constant speed is prevented by adverse
conditions, e.g. winding roads, dense traffic or
poor road conditions due to, e.g., snow, rain, ice
or loose surfaces. Otherwise, you could lose
control of the vehicle and cause an accident as a
result.<
Manual transmission
You can shift gears while cruise control is acti-
vated. The system is deactivated when you
drive at very low engine speeds for an extended
period.
One lever for all functions
1 Storing and maintainin g speed or accelerat-
ing
2 Storing and maintaining speed or deceler-
ating
3 Deactivating cr uise control
4 Resuming a previously stored speed
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

85
Controls overview
Controls
Possible displays
1
Button for selecting functions
2 Service requirements
3 Engine oil
4 Roadworthiness test 5
Front brake pads
6 Rear brake pads
7 Brake fluid
The sequence of displayed service items may
vary. The data for the ne xt service appointment
is shown first.
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

202
MobilityMaintenance
Maintenance
Vehicle equipment
In this chapter, all pr oduction, country, and
optional equipment that is offered in the model
range is described. For this reason, descrip-
tions will be given of some equipment that may
not be available in a vehi cle, for example due to
the special options or national-market version
selected. This also app lies to safety related
functions and systems.
BMW Maintenance System
The BMW maintenance system advises you of
necessary maintenance measures and helps
you maintain the traffic and operating safety of
the vehicle.
Condition Based Service CBS
Sensors and special algo rithms take the differ-
ent driving conditions of your BMW into
account. Condition Based Service uses this to
determine the current and future service
requirements. By letting you define a service
and maintenance regimen that reflects your
own individual requirem ents, the system builds
the basis for trouble-free driving.
In the instrument cluster, you can have the
remaining times or distances for selected main-
tenance tasks and any le gally prescribed dates
displayed, refer to page 84: >
Engine oil
> Brake pads: separately for front and rear
> Brake fluid
> Vehicle check
> Legally mandated in spections depending
on local regulations
Service data in the remote control
Your vehicle continuously stores service-
requirement information in the remote control
while you are driving. Your dealership Service
Advisor can read out this data from the remote
control unit, and propose an optimized mainte-
nance approach. Whenever you take your car in
for servicing you should therefore give your
dealership Service Advisor the remote control
unit that you last used.
Make sure that the date in the instrument
cluster is always se t correctly, refer to
page 86; otherwise, the effectiveness of Condi-
tion Based Service CBS is not assured. <
Service and Warranty Information
Booklet for US models and Warranty
and Service Guide Booklet for
Canadian models
Please consult your Service and Warranty Infor-
mation Booklet for US models and Warranty
and Service Guide Booklet for Canadian models
for additional information on service require-
ments.
BMW recommends that you have service
and repair operations performed at your
BMW center.
Take the time to ensure that these service pro-
cedures are confirmed by entries in your vehi-
cle's Service and Warranty Information Booklet
for US models and Warranty and Service Guide
Booklet for Canadian models. These entries
verify that your vehicle has received the speci-
fied regular maintenance. <
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

206
MobilityCare
important to adapt the frequency and scope of
car care accordingly.
Immediately remove aggressive materials such
as spilled fuel, oil, grease , brake fluid, tree sap or
bird droppings to prevent damage to the paint-
work.
Repairing paintwork damage
Immediately repair sc ratches or similar
damage, such as that caused by stones
hitting the vehicle, where necessary to prevent
rusting. <
BMW recommends having paintwork damage
repaired by a professional paint repair work-
shop according to BMW specifications using
original BMW paint materials.
Preservation
A preservation treatment is necessary when
water no longer beads off the clean paintwork
surface. Only use produc ts for paintwork pres-
ervation that contain carnauba or synthetic
waxes.
Rubber seals
Treat only with water or rubber care products.
Do not use silicon-con taining care prod-
ucts on rubber seals; otherwise, noise
and damage could occur. <
Chrome parts
Carefully clean vehicle parts such as the radia-
tor grill, door handles or window frames with
copious quantities of water and a shampoo
additive, especially when roads are treated with
deicing salt. For additional treatment, use a
chrome polish.
Light-alloy wheels
For technical reasons, dust is generated during
braking that is deposited on the light-alloy
wheels. Remove the dust regularly using acid-
free rim cleaner. Do not use aggressive
, acidic, strongly
alkaline, or abrasive cleaning agents and
do not use steam jets hotter than of 140 7/
60 6; otherwise, damage may occur. <
Outside sensors/cameras
Keep the sensors and cameras on the
outside of the vehicle, e.g. those for Park
Distance Control, clean and free of ice to ensure
that they remain fully functional. <
Interior care
Upholstery fabrics/cloth trims/
Alcantara fabrics
Vacuum regularly with a vacuum cleaner to
remove superficial dirt.
To remove severe spots such as stains from
beverages, use a soft sponge or lint-free
microfiber cloth and suitable interior cleaners.
Follow the instructions on the packaging.
Clean the upholstery down to the seams
using a sweeping motion. Avoid strong
rubbing. <
Opened Velcro fasteners on pants or
other articles of clothing can damage the
seat covers. Ensure that Velcro fasteners are
closed. <
Leather/leather trim
The leather used by BM W is a high quality
natural product. Slight irregularities in the
leather are a typical char acteristic of natural
leather.<
Dust and road grit in the pores and folds of the
leather have an abrasive effect, leading to
increased wear and caus ing the leather surface
to become brittle prematurely. Therefore, fre-
quently clean the leather of dust using a cloth or
vacuum cleaner.
Clean light-colored leathe r more frequently as
dust and dirt are more noticeable.
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

222
MobilityIndicator and warning lamps
Lights up in red:
Roof activation system failure Roof cannot be moved. If the retract-
able hardtop does not lock, contact
your nearest BMW center.
Roof activation system malfunctioni ng Roof movement incomplete. Please
check if the roof is blocked, then press
or pull the switch again.
Lights up in yellow:
Roof drive overheated Roof activation temporarily limited to closing only.
Cargo area partition not in lowermost
position Press down the cargo area partition
until it engages on both sides.
Vehicle not level, ro of activation not
possible Move the vehicle to a level surface.
Rollover protection system malfunc-
tioning Have the rollover protection system
checked by the nearest BMW center.
Trunk lid open
Fuel cap is open Make sure that the fuel cap is correctly positioned and close it until it audibly
clicks. Do not jam the strap between the
fuel cap and the vehicle.
Windshield washer fluid level too low Add washer fluid as soon as possible, refer to page69.
Lights up in red:
Service due Arrange a service appointment. Check service requirements, refer to
page84.
Lights up in yellow:
The engine will start the next time the
Start/Stop button is briefly pressed,
possibly without the brake or clutch
being depressed
Remote control malfunctioning or, in
cars with Comfort Access, not
detected The engine cannot be started. Have the
remote control checked, if necessary.
Battery in remote co ntrol discharged Use the remote control for a longer jour-
ney or, in cars with Comfort Access,
replace the battery.
12Cause What to do
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

224
MobilityIndicator and warning lamps
Indication in Canadian models:
Warning lamp flashes:
Engine malfunction under high load.
High engine load w ill result in damage
to the catalytic converter You can continue your journey, but
moderate your speed and exercise due
caution. Have the vehicle checked with-
out delay.
Warning lamp lights up:
Engine malfunction wi th adverse effect
on emissions Have the car checked as soon as possi-
ble.
Lights up in red:
Engine overheating Carefully br ing the car to a stop, switch
off the engine and allo w it to cool down.
Do not open the hood; otherwise, there
is a risk of injury from scalding. Contact
your BMW center.
Lights up in yellow:
Engine too hot Continue dr iving at more moderate
speed so that the engine can cool
down. Have the engine checked with-
out delay if the situation reoccurs.
Lights up in red:
Battery is no longer being charged.
Alternator malfunction Switch off all unnecessary electrical
consumers. Have the power supply
system checked without delay.
Lights up in yellow:
Battery charge level very low, battery
aged or not securely connected Have the battery ch
ecked as soon as
possible.
Indication in US models
Parking brake applied
Indication in Canadian models
Parking brake applied
Indication in US models
Lights up in red:
Brake fluid level too low Braking action is reduced, stop with
care. Contact your BMW center.
12Cause What to do
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

225
Indicator and warning lamps
Mobility
Indication in Canadian models
Lights up in red:
Brake fluid level too low Braking action is reduced, stop with
care. Contact your BMW center.
Indication in US models
Brake pads worn Have the condition of the brake pads checked without delay.
Indication in Canadian models
Brake pads worn Have the condition of the brake pads checked without delay.
Lights up in red: Have the system in question checked without delay.
> Starter failed or The engine cannot be restarted.
> Ignition malfunctioning. Engine
restart only possible when brake is
depressed or
> Lighting system failed. Low beams/
tail lamps and brake lamps still
operational. All other lamps failed Depress the brake to restart the engine.
Lights up in yellow:
> Control of the brake lamps failed or
> Fuel supply malfunctioningDrive
unit malfunction You can continue your journey, but
moderate your speed and exercise due
caution. Have the system in question
checked without delay.
Flashing:
Dynamic Stability Control DSC or
Dynamic Traction Control DTC is con-
trolling drive and braking forces, also
refer to page 91
Dynamic Traction Control DTC acti-
vated, also refer to page 91
Dynamic Stability Control DSC and
Dynamic Traction Control DTC deacti-
vated, also refer to page 91Driving stability limited during accelera-
tion and cornering.
Driving style must be readjusted.
Suspension control system failed, also
refer to page 90 Driving stability limited during accelera-
tion and cornering.
You can continue your journey, but
moderate your speed and exercise due
caution. Have the system checked as
soon as possible.
12Cause What to do
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

240
ReferenceEverything from A to Z
Everything from A to Z
Index
A
ABS Antilock Brake
System 90
ACC, refer to Active Cruise Control 71
Acceleration assistant, refer to Launch Control 66
Accessories, refer to Vehicle
equipment 5
Accident, refer to Sending an Emergency Request 214
Activated-charcoal filter for automatic climate
control 115
Active Cruise Control 71
– indicator lamp 74
– malfunction 75
– selecting distance 73
– sensor 75
Active steering 97
Adaptive brake lamp
– Brake Force Display 98
Adaptive Light Control 105
Additives
– coolant 200
– engine oil 200
Adjusting temperature inside the car, refer to Air
conditioner 110
Adjusting temperature inside the car, refer to Automatic
climate control 112
Adjusting the thigh support 44
Airbags 99
– indicator/warning lamp 101
– sitting safely 42
Air conditioner 109 Air conditioning mode
– air conditioner
110
– automatic climate
control 112
– ventilation 111,114
Air distribution
– automatic 113
– individual 110
– manual 110
Airing, refer to Ventilation 111,114
Air outlets, refer to Air
vents 110
Air pressure, refer to Tire inflation pressure 177
Air recirculation, refer to Recirculated air
mode 110,113
Air supply
– air conditioner 110
– automatic climate control 112
– ventilation 111,114
Air vents 110
Air volume 110,11
3
AKI, refer to Fuel grade 175
Alarm system 32
– avoiding unintentional alarms 33
– interior motion sensor 33
– switching off an alarm 32
– tilt alarm sensor 33
ALL program 114
All-season tires, refer to Winter tires 196
All-wheel drive, refer to xDrive 92 Ambient air, refer to
Recirculated air
mode 110,113
AM waveband 144
Antifreeze
– coolant 200
– washer fluid 69
Antilock Brake System ABS 90
Anti-theft alarm system, refer to Alarm system 32
Approved axle loads, refer to
Weights 237
Approved engine oils 200
Approved gross vehicle
weight, refer to Weights 237
Armrest, refer to Center armrest 120
Ashtray 122
Assist systems, refer to
Driving stability control 90
AUC Automatic recirculated air control 113
Audio device, external 121
Automatic
– air distribution 113
– air volume 113
– cruise control 69,71
– headlamp control 103
Automatic car washes 204
Automatic climate control 109
Automatic curb monitor 51
Automatic high beams and low beams, refer to High-
beam Assistant 106
Automatic recirculated air control AUC 113
Automatic station search 144
Automatic station storage 144
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG
