2012 BMW 650I XDRIVE COUPE Owners Manual

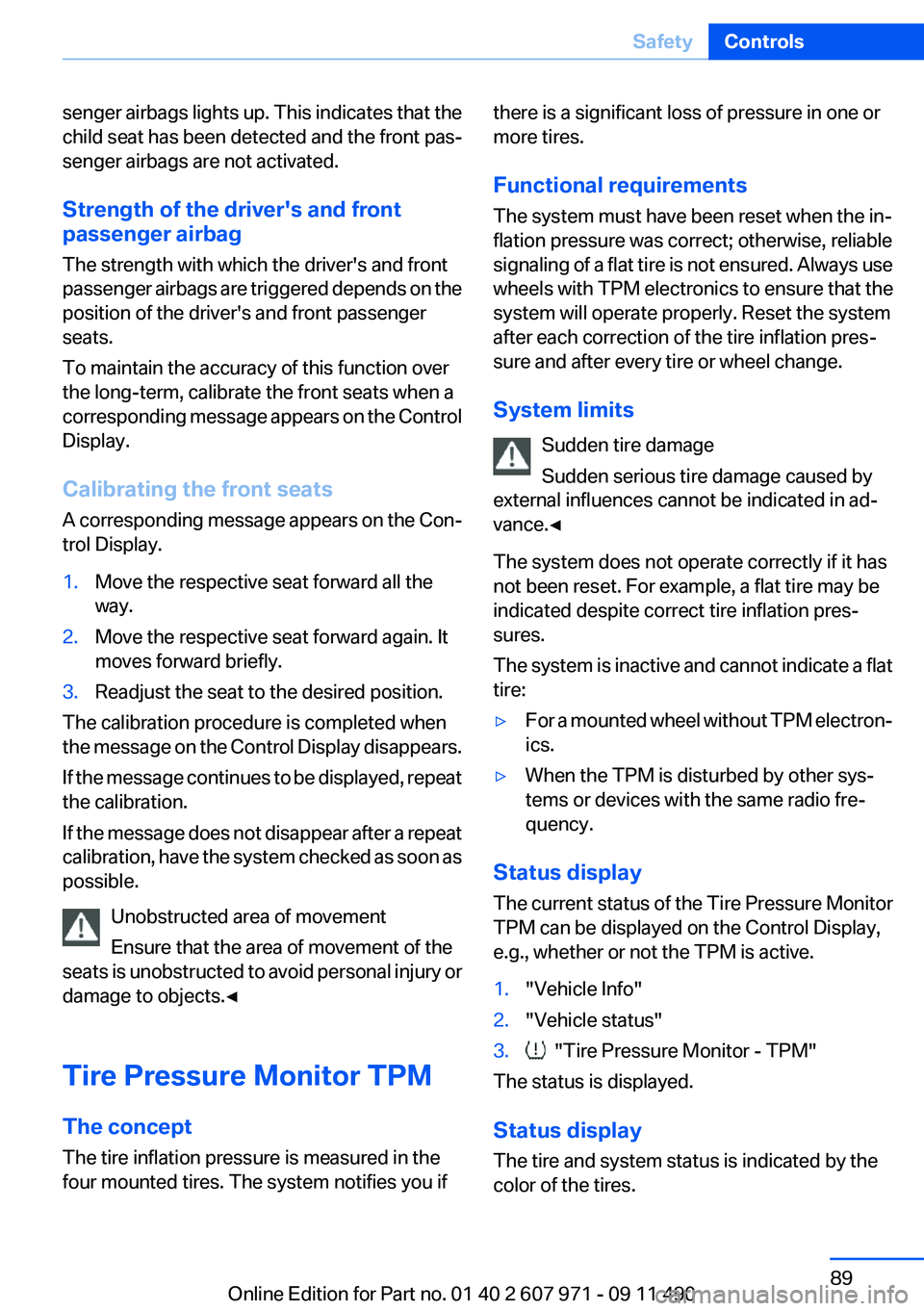

Page 89 of 303

BMW 650I XDRIVE COUPE 2012  Owners Manual senger airbags lights up. This indicates that the
child seat has been detected and the front pas‐
senger airbags are not activated.
Strength of the driver's and front
passenger airbag
The streng

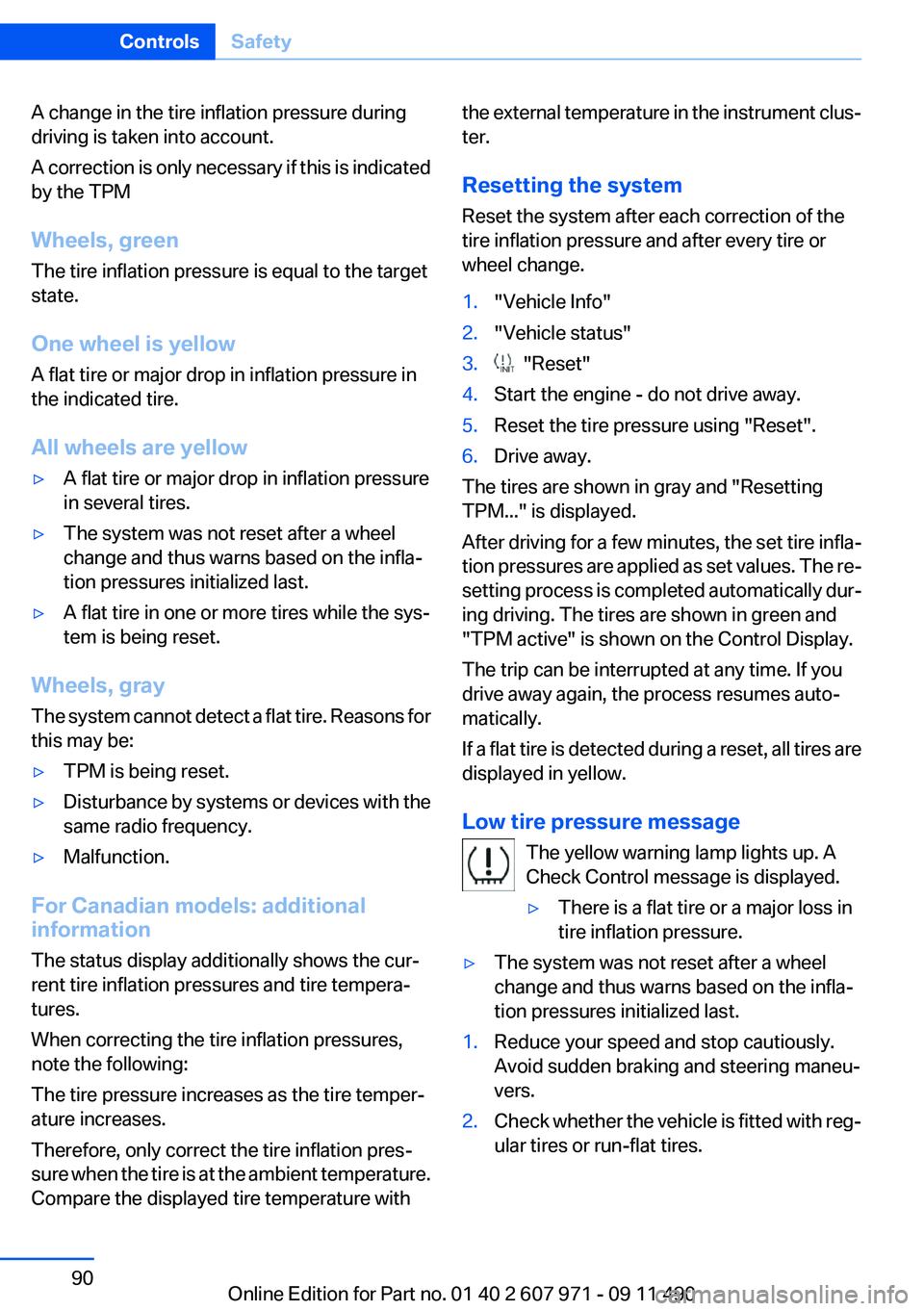

Page 90 of 303

BMW 650I XDRIVE COUPE 2012  Owners Manual A change in the tire inflation pressure during
driving is taken into account.
A correction is only necessary if this is indicated
by the TPM
Wheels, green
The tire inflation pressure is equal to the t

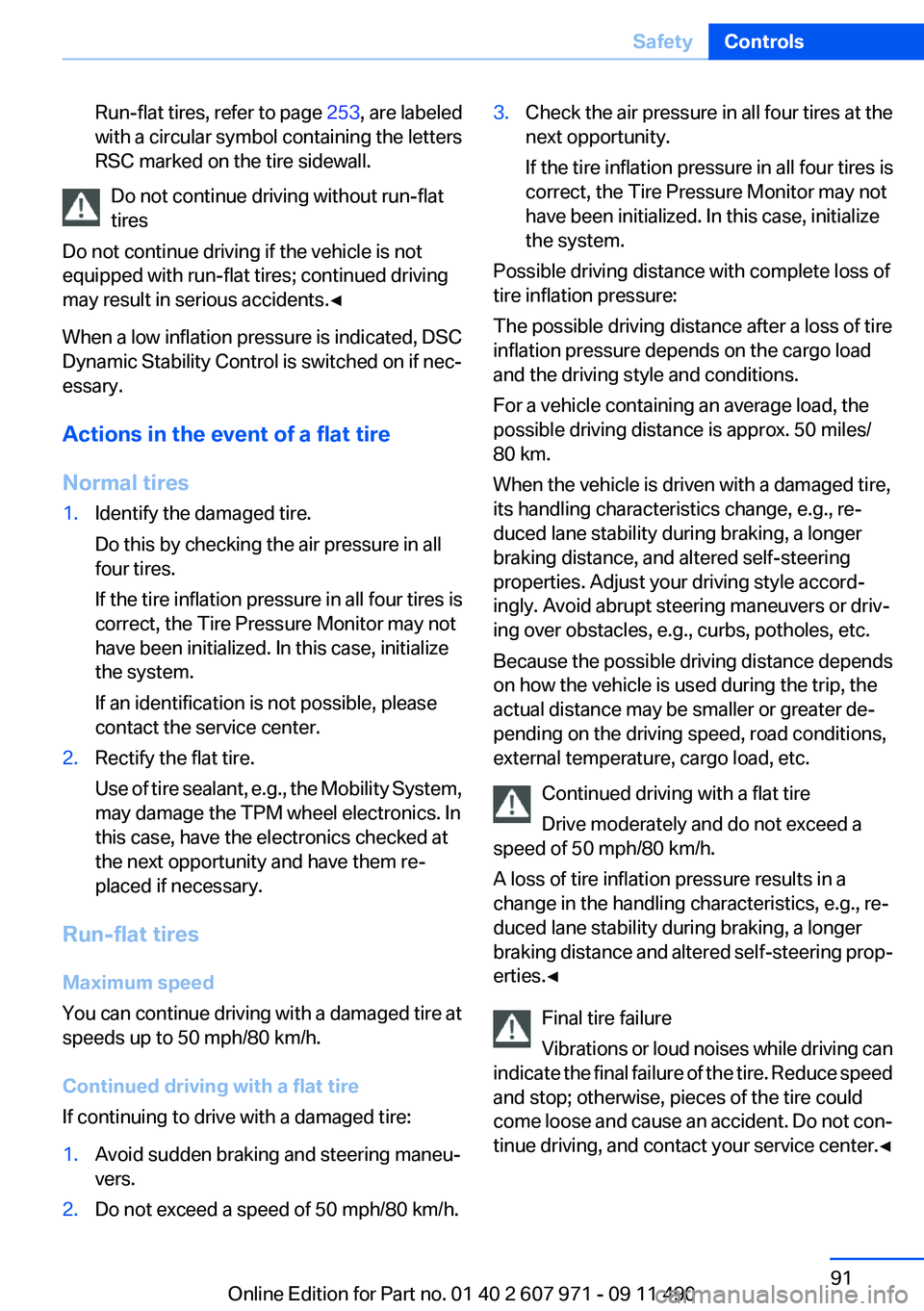

Page 91 of 303

BMW 650I XDRIVE COUPE 2012  Owners Manual Run-flat tires, refer to page 253, are labeled
with a circular symbol containing the letters
RSC marked on the tire sidewall.
Do not continue driving without run-flat
tires
Do not continue driving if

Page 92 of 303

BMW 650I XDRIVE COUPE 2012  Owners Manual Message when the system was not
reset
A Check Control message is displayed.
The system detected a wheel change but was
not reset.
Warnings regarding the current tire inflation
pressure are not reliabl

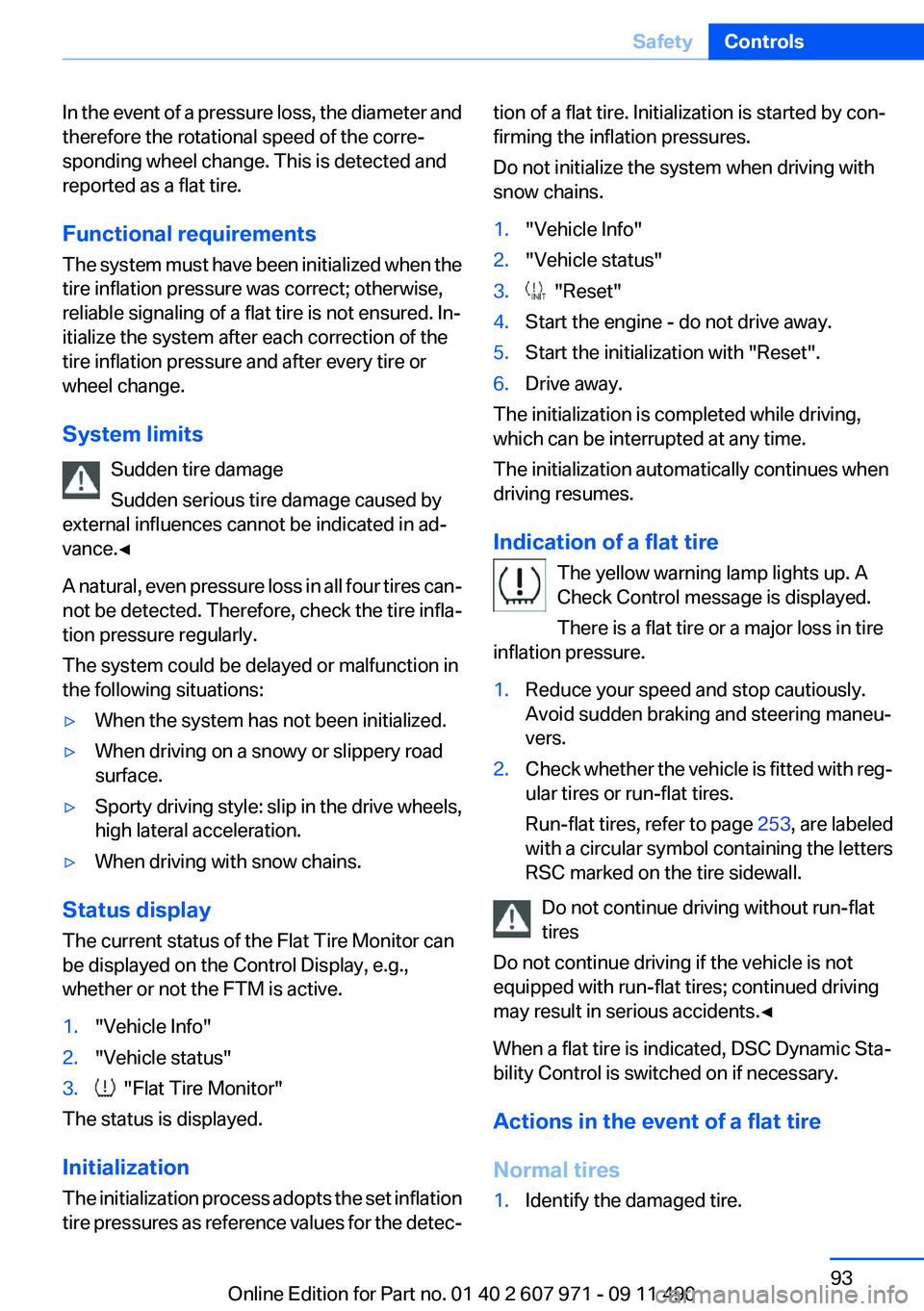

Page 93 of 303

BMW 650I XDRIVE COUPE 2012  Owners Manual In the event of a pressure loss, the diameter and
therefore the rotational speed of the corre‐
sponding wheel change. This is detected and
reported as a flat tire.
Functional requirements
The system

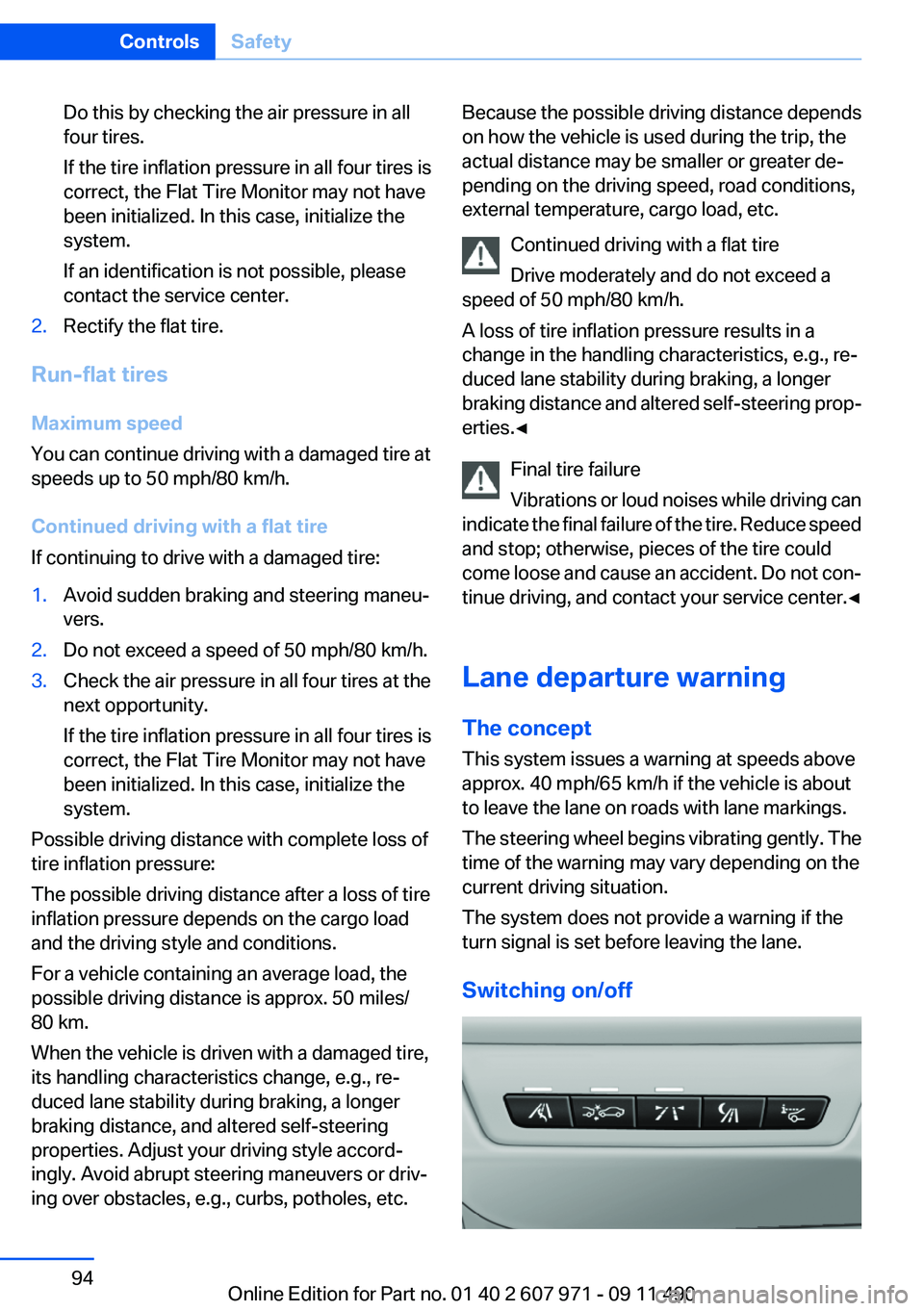

Page 94 of 303

BMW 650I XDRIVE COUPE 2012  Owners Manual Do this by checking the air pressure in all
four tires.
If the tire inflation pressure in all four tires is
correct, the Flat Tire Monitor may not have
been initialized. In this case, initialize the
s

Page 95 of 303

BMW 650I XDRIVE COUPE 2012  Owners Manual Press the button.▷On: the LED lights up.▷Off: the LED goes out.
The system can issue warnings at speeds above
approx. 40 mph/65 km/h.
The state is stored for the remote control cur‐
rently in us

Page 96 of 303

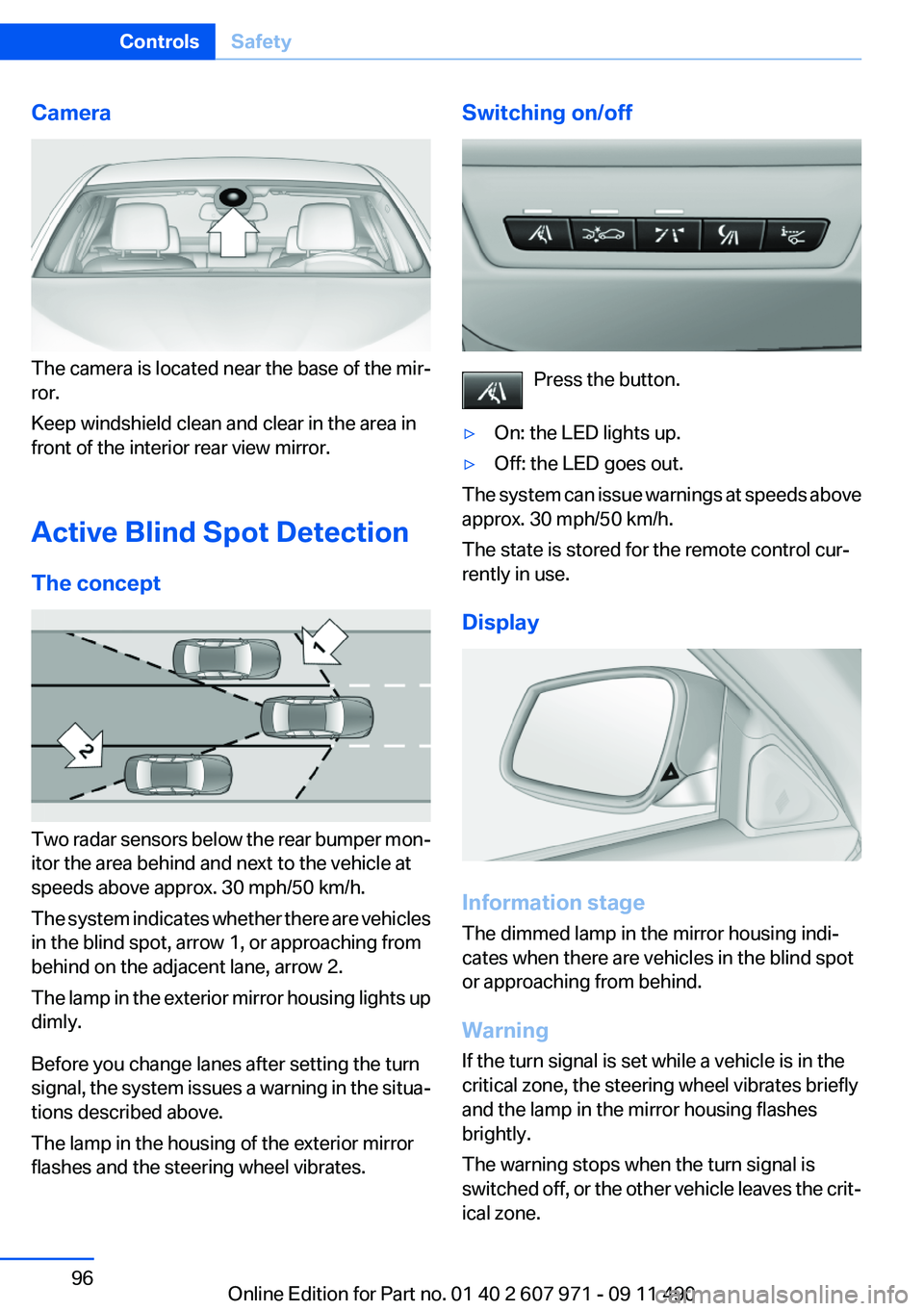

BMW 650I XDRIVE COUPE 2012  Owners Manual Camera
The camera is located near the base of the mir‐
ror.
Keep windshield clean and clear in the area in
front of the interior rear view mirror.
Active Blind Spot Detection
The concept
Two radar s
