2012 BMW 535I XDRIVE Owners Manual

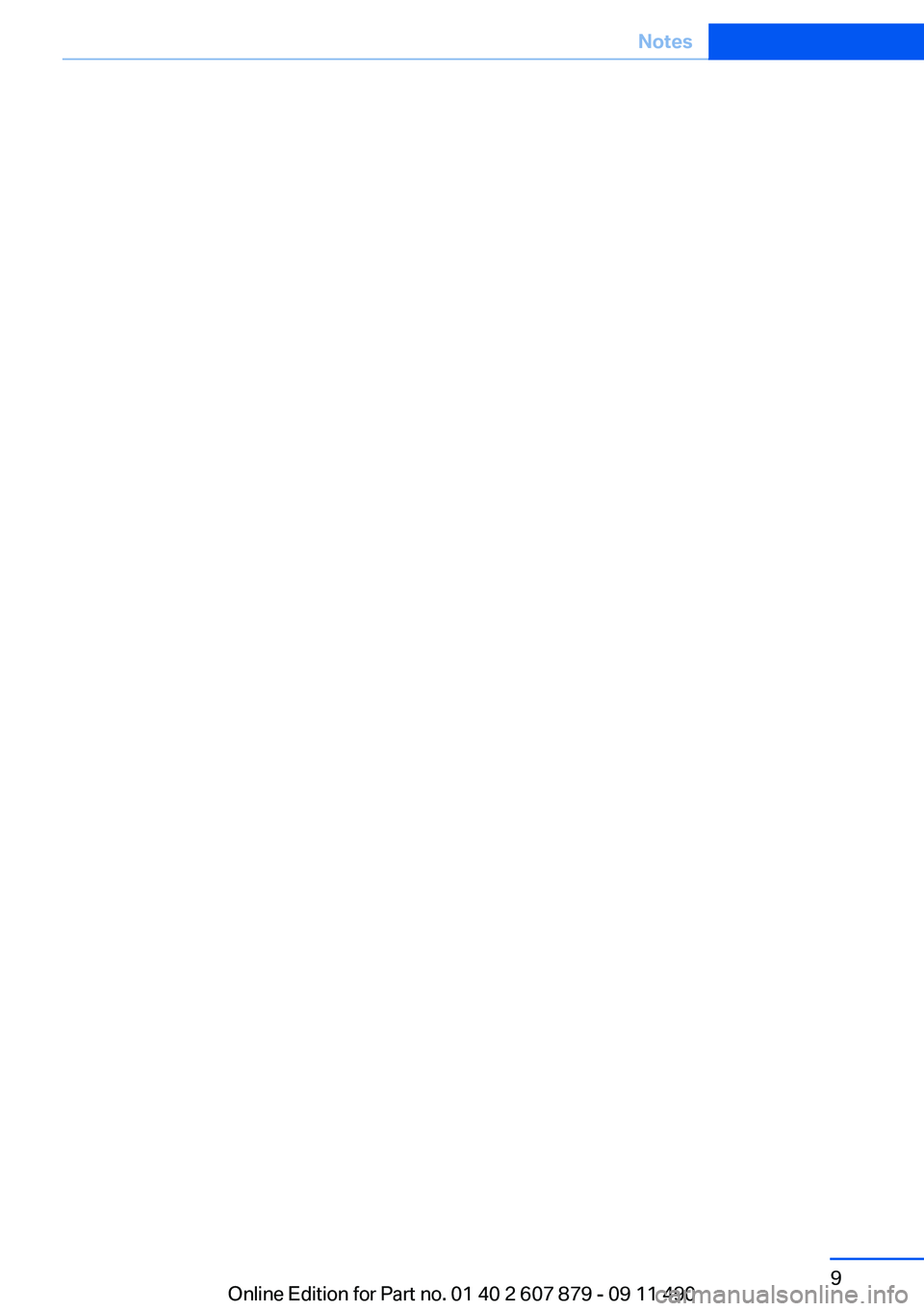

Seite 9Notes9
Online Edition for Part no. 01 40 2 607 879 - 09 11 490

Online Edition for Part no. 01 40 2 607 879 - 09 11 490

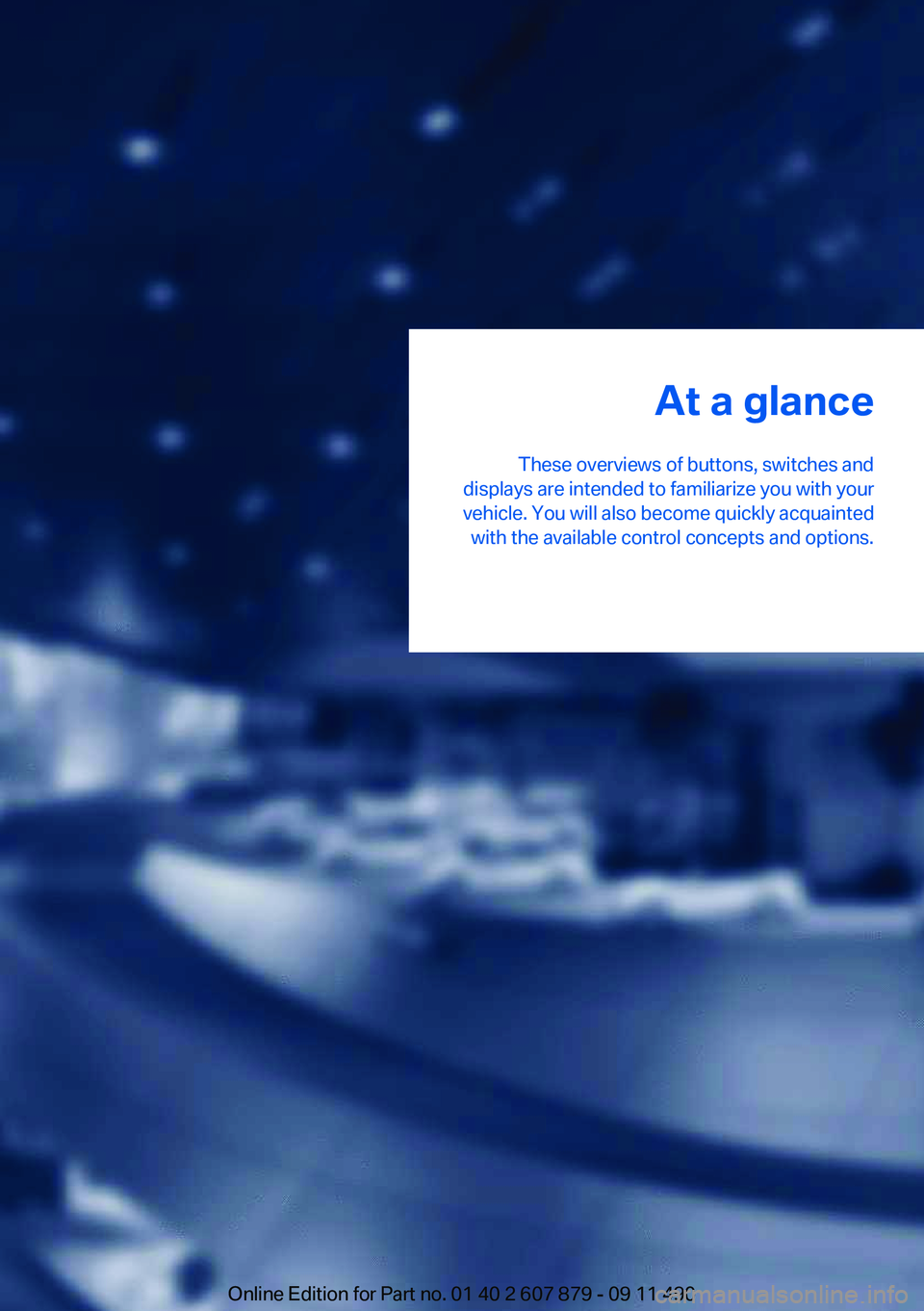

At a glance
These overviews of buttons, switches and
displays are intended to familiarize you with your
vehicle. You will also become quickly acquainted with the available control concepts and options.Online Edition for Part no. 01 40 2 607 879 - 09 11 490

CockpitVehicle equipment
All standard, country-specific and optional
equipment that is offered in the model series is
described in this chapter. Therefore, equipmentis also described that is not available in a vehicle,
e. g., because of the selected optional equip‐
ment or country variant. This also applies for
safety-related functions and systems.
All around the steering wheel
1Seating comfort functionsSeat, mirror, steering wheel mem‐
ory   54Active seat   492Roller sunblinds   443Rear window safety switch   444Power windows  435Exterior mirror operation   556Driver assistance systemsActive Blind Spot Detec‐
tion   104Collision warning   120Lane departure warning   102Night Vision with pedestrian de‐
tection   134Head-up Display   1377LampsSeite 12At a glanceCockpit12
Online Edition for Part no. 01 40 2 607 879 - 09 11 490

Front fog lamps  93Parking lamps  89Low beams  89Automatic headlamp con‐
trol   90
Daytime running lights   90
Adaptive light control   91
High-beam Assistant   91Instrument lighting  938Steering column stalk, leftTurn signal  69High beams, head‐
lamp flasher   69High-beam Assistant   91Roadside parking lamps   91Computer  849Steering wheel buttons, leftStore speed   121  114Resume speed   123  116Cruise control on/off, interrupt‐
ing   114Cruise control on/off, interrupt‐
ing   122Increase distance   116Reduce distance  11610Instrument cluster   7511Steering wheel buttons, rightEntertainment sourceVolumeVoice activation  22Telephone  23012Steering column stalk, rightWindshield wipers   69Rain sensor  70Clean the windshields and head‐
lamps   6913Start/stop the engine and switch
the ignition on/off   63Automatic Engine Start/Stop
Function   6414Horn15Steering wheel heating   5716Adjust the steering wheel   5717Open the trunk lid  3818Unlocking the hoodSeite 13CockpitAt a glance13
Online Edition for Part no. 01 40 2 607 879 - 09 11 490

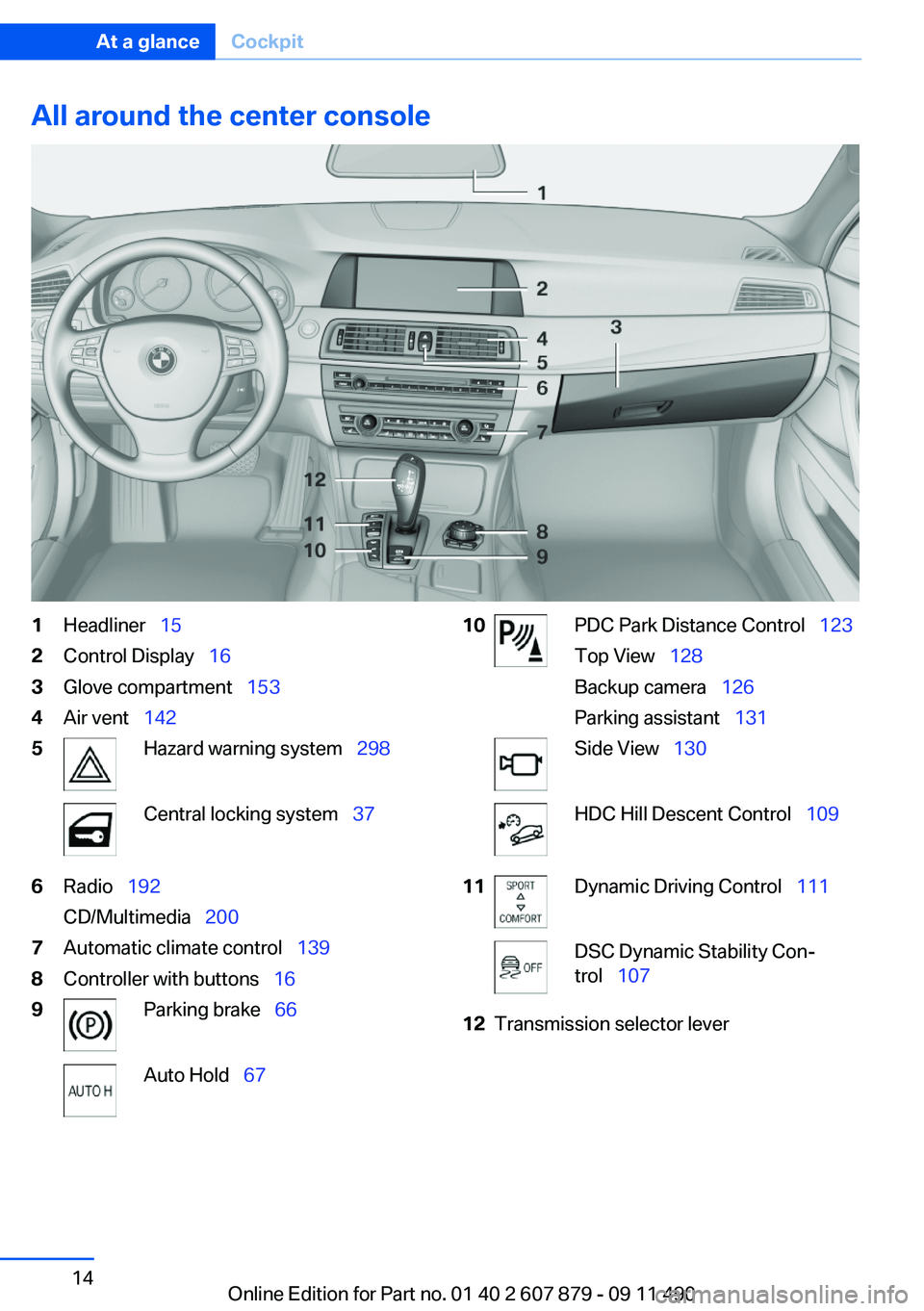

All around the center console1Headliner  152Control Display   163Glove compartment   1534Air vent  1425Hazard warning system   298Central locking system  376Radio  192
CD/Multimedia   2007Automatic climate control   1398Controller with buttons  169Parking brake  66Auto Hold  6710PDC Park Distance Control   123
Top View   128
Backup camera   126
Parking assistant   131Side View  130HDC Hill Descent Control   10911Dynamic Driving Control  111DSC Dynamic Stability Con‐
trol   10712Transmission selector leverSeite 14At a glanceCockpit14
Online Edition for Part no. 01 40 2 607 879 - 09 11 490

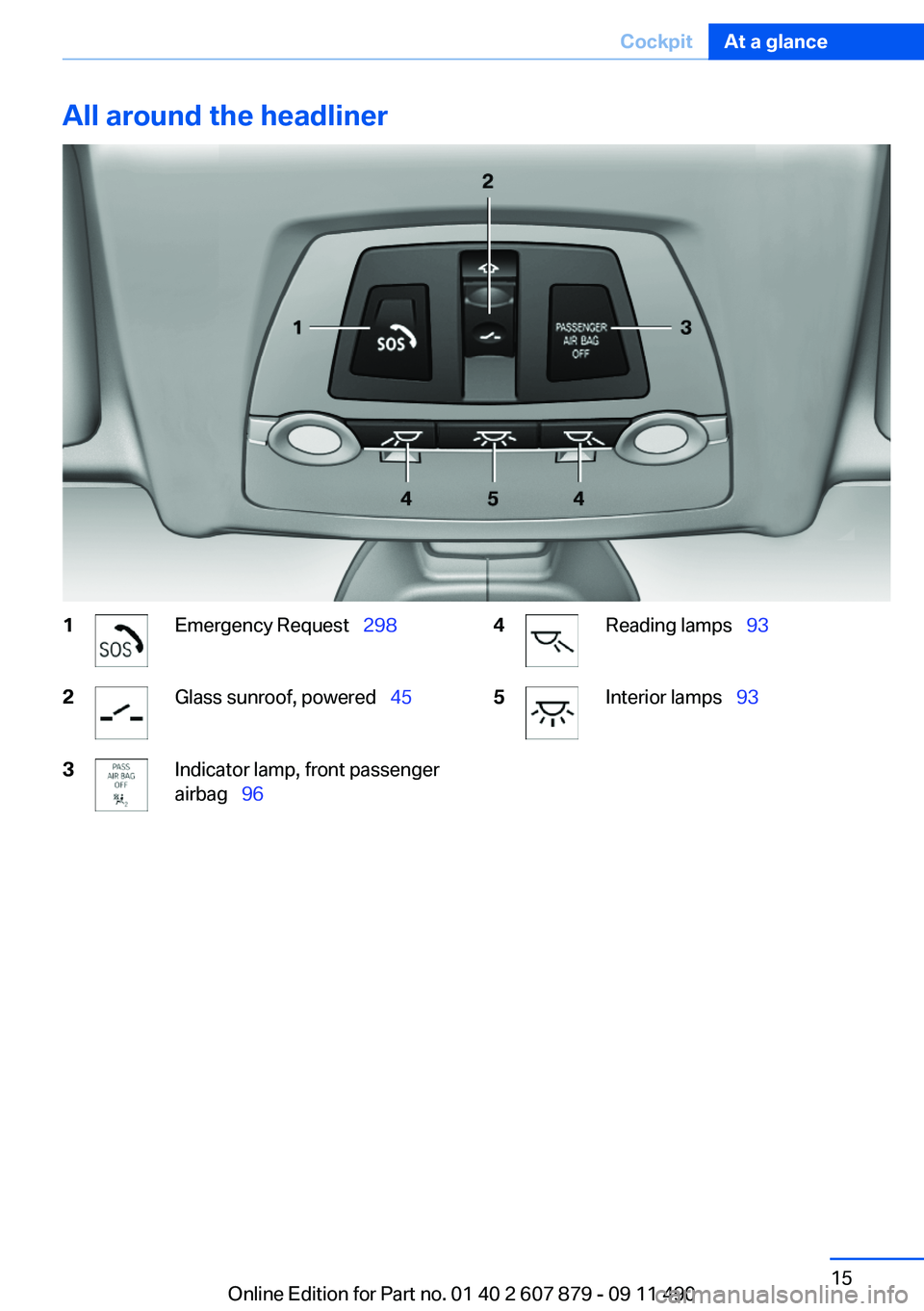

All around the headliner1Emergency Request  2982Glass sunroof, powered   453Indicator lamp, front passenger
airbag   964Reading lamps   935Interior lamps  93Seite 15CockpitAt a glance15
Online Edition for Part no. 01 40 2 607 879 - 09 11 490

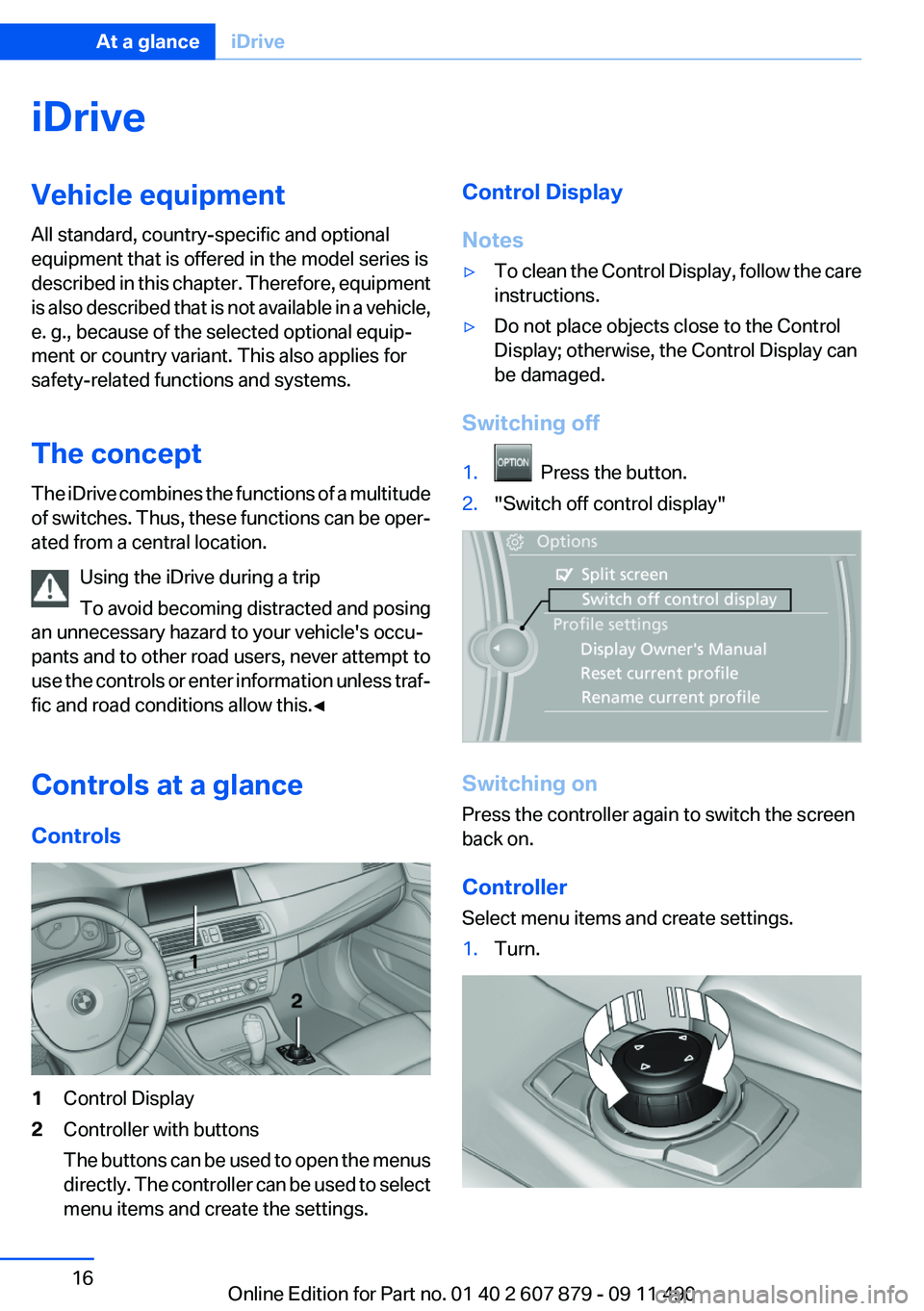

iDriveVehicle equipment
All standard, country-specific and optional
equipment that is offered in the model series is
described in this chapter. Therefore, equipment
is also described that is not available in a vehicle,
e. g., because of the selected optional equip‐
ment or country variant. This also applies for
safety-related functions and systems.
The concept
The iDrive combines the functions of a multitude
of switches. Thus, these functions can be oper‐
ated from a central location.
Using the iDrive during a trip
To avoid becoming distracted and posing
an unnecessary hazard to your vehicle's occu‐
pants and to other road users, never attempt to
use the controls or enter information unless traf‐
fic and road conditions allow this.◀
Controls at a glance
Controls1Control Display2Controller with buttons
The buttons can be used to open the menus
directly. The controller can be used to select
menu items and create the settings.Control Display
Notes▷To clean the Control Display, follow the care
instructions.▷Do not place objects close to the Control
Display; otherwise, the Control Display can
be damaged.
Switching off
1. Press the button.2."Switch off control display"
Switching on
Press the controller again to switch the screen
back on.
Controller
Select menu items and create settings.
1.Turn.Seite 16At a glanceiDrive16
Online Edition for Part no. 01 40 2 607 879 - 09 11 490
