Instrument s and warning /indicator lights 13
The ICHECK I button performs the following
functions:
Switching on the clock and odometer
W ith the ignition turned off, the odometer
reading and the digital clock with date display
can be switched on for about 30 seconds by
pressing the
I CH ECKi button¢ fig. 6.
Starting the Auto-Check sequence
The Auto-Check system ¢ page 30 constant­
ly monitors certain individual funct ions and
components of the vehicle when the ignit ion
is turned on and when the veh icle is moving.
W ith the ignition turned on, you can start the
"Au to-Check sequence" by pressing the
IC HECKI button. Yo u can perform an A uto­
Check sequence when the vehicle is stationary
and the ignition is turned on or when the vehi­
cle is moving not faster than 3 mph (5 km/h) .
The n umber of keys programmed to the vehi­
cle is also displayed. The d isp lay
3\3 indicates
that three keys have been programmed . This
allows you to make sure you have received all
of the keys when you purchase a used vehicle.
F or example, if you on ly receive two keys, you
should take those keys to your authorized Au­
di dealer to have the missing key deactivated
so it cannot be used. You should a lso report
the missing key to your insurance company.
Call ing up the driver information
A yellow or red symbol appears in the instru­
ment cluster display, usually with a driver
message. The driver message display disap­
pears after about S seconds. The driver mes­
sage can be displayed again by briefly press­ ing the
! CHECK I button.
Setting the speed warning
By pressing the ICHECK I button briefly, you
can set threshold 1 of the speed warning whi
le you are driving
¢page 29. By main ­
taining pressure on the
I CH ECKi button, you
delete the warning threshold.
Instrument cluster illumination
The basic brightness of the illumination for
the instruments, the center console and the
display can be adjusted.
Fig. 7 Instrument cluster illumination
~ Press the"+" button to increase the bright­
ness dur ing the hours of darkness .
~ Press the"-" butto n to decrease the bright-
ness dur ing the hours of darkness.
A light sensor in the instrument cluster con­
trols the illuminat ion for the instrument clus­
ter, the center console and the displays. In a
brigh t env iron ment, using the buttons to
change the brightness has no effect.
(D Tips
The illum ination for the inst rument cluster
light s up whenever you switch on the igni­
tion with the vehicle headlights off. As the
daylight fades, the instrument cluster illu­
mination likewise dims automatically and
will go out completely when the outside light is very low. This feature is meant to
remind you to switch on the headlights
when outside light conditions become
poor .

34 Driver information display
Do not drive vehicle: steering defective
• Contact you r nearest authorized Audi dea le r
or qualified workshop.
• Do
not tow yo ur vehicle .
& WARNING
-
Your vehicle must not be towed in the
event of a malfunction in the electronic
steering column lock because it cannot be
steered due to the locked steering. If it is
towed w ith the steering locked, there is
the risk of an accident .
~ Ignition lock malfunction
A malfunction in the ignition lock must be re­
paired immediately.
If the . symbo l in the display blinks, there is
a ma lfunction in the electronic ignition lock.
An addit ional driver message ca n also be d is­
played by pressing the
! CHECK I button:
Ignition lock defective. Contact workshop !
• Do not turn the eng ine off.
• Drive immediately to an authorized Audi
dealer to have the ma lf u nction corrected.
If there is a ma lfunction in the e lectronic igni ­
tion lock, the ignition cannot be turned off.
Drive immediately to an authorized Audi dea l­
er to have the cause of the ma lfunction cor­
rected.
On vehicles with Convenience key*, the engine
should not be switched off using the
! STOP !
button beca use the engine ca nnot be sta rted
again after the ignition is switched off.
' Yellow symbols
A yellow symbol means WARNING.
Fig . 26 Display: low fuel level warning (priority 2)
Yellow symbo ls indicate a priority 2 malfunc­
t ion - Warning!
When a yellow war ning symbol appears,
one
warning tone sounds . A driver message ap­
pears as well to explain the malfunction in
more de tail. The driver warning goes out after
about 5 seconds, but it can be brought up
again at any time by pressing the
! CHECK I but­
ton .
Check the displayed function as soon as possi­
ble. If
more than one priority 2 ma lf u nction is
detected, all symbols will appear one after
the other for about 2 seconds .
Yellow symbols mean:
"
Convenience key"
Key not in vehicle
c> page 108
•
USA models: Defective
brake light
c>pa ge 23
[fl
Canada models: Defective
brake light
c> page 23
~:)
Defective light bulb
c>page 23
raa
light/rain sensor defective
c> page35
~
Windshield washer fluid Lev-
el low
c>page3 5 1 ...

II
Low fuel level
¢page 35
fi.fl1::jfl1-j Kefill Ad Blue*
¢page255
-Ad Blue,/'
•
•
•
••NI@
AdBlue ma lfunction*
¢poge255
Battery voltage
¢poge36
Worn brake pads
¢poge36
Dy namic headlight range
control defective
¢poge36
Check eng ine oil level
¢poge36
Engine oil sensor malfunc­
tion
¢poge36
Engine speed limitat ion*
¢poge36
Diesel particulate filter *
clogged
¢poge37
A dapt ive lig ht* defec tive
¢poge37
-Ignition lock malfunction
¢poge37
W indshield wiper defective
¢poge37
Tire pressure monitoring
sys tem
Loss of air pressure
¢poge293
T ire pressure monitoring
system
System not availab le
¢poge293
Dri ver information di spla y 35
Battery in remote control
key
¢poge39
A utomat ic transm iss ion
malfunction
¢ page 141
...?c, Key not in vehicle
Applies to vehicles: with Convenience key
!!I Key not in vehicle
This reminder appears along with the !!I sym ­
bol if the master key is removed from the
ve­
hicle with the engine runn ing. It is intended
to rem ind you (e .g. whe n cha ng ing dr ive rs)
not to cont inue the journey without the mas­
te r k ey.
If the master key is no longer in the ve hicle ,
you cannot swi tch off t he ig nit io n after stop­
ping the engine an d you also cannot start the
engine aga in. What is mo re, you cannot lo ck
t he ve hicl e from the o utsi de.
@. D Light/rain sensor defective
fll Automatic headlights/ automatic wipers
defective
If t he symbol illumina tes, the l ight se nsor has
f ailed. For safe ty rea sons the low beams are
tu rned on permanently with t he switc h in
AU­
TO. However , yo u can cont inue to tu rn the
li g hts on and off using the light switch . In the
case of a defect in the rain sensor, t he wind ­
shield wiper lever functions are still availab le.
Have the light/rain senso r ch ecked as soon as
poss ible by an author ized Audi dealer .
6 Windshield washer fluid level too low
~ Please refill washer fluid
If the symbol illuminates, add w indshie ld
washe r fl ui d to the washer system and also to
t h e headlight washer system
¢ page 2 73 .
Bl Fuel supply too low
II Please refuel

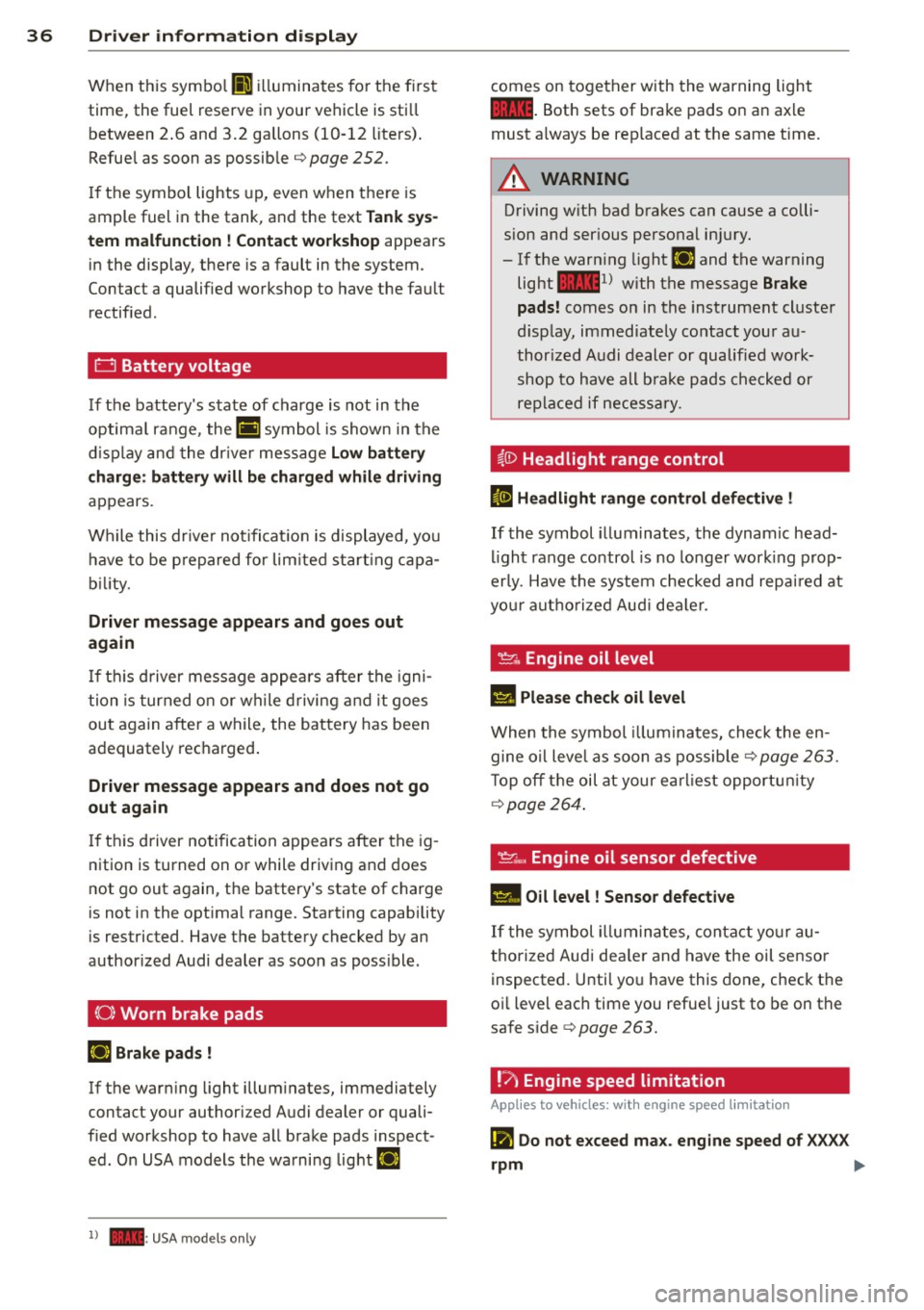

36 Driver in formation d isplay
When this symbo l (I illuminates for the f irst
time, the fuel reserve in your vehicle is sti ll
between 2 .6 and 3 .2 gallons (10- 12 liters) .
Refue l as soon as possib le
¢ page 252.
If the symbol lights up, even when there is
ample fuel in the tank, and the text
T a nk sys ­
tem malfunct ion! Cont act wor kshop
appears
in the display, there is a fault in the system.
Contact a qualified workshop to have the fau lt
rectified.
t::l Battery voltage
If the battery's state of charge is not in the
optimal range, the
f• ) symbol is shown in the
d isplay and the dr iver message
Low battery
c harge : battery will be charg ed while driving
appears.
Wh ile this dr iver not ificat io n is displayed, you
have to be p repared for lim ited start ing capa­
b ili ty.
Driv er m essage appears and goes out
again
I f t his driver message appears after the igni ­
tion is turned o n or wh ile driving and it goes
out again after a while, the battery has been
adequately recharged .
Driver message app ears and does not go
out again
If th is driver notification appears after the ig ­
nition is turned on or while driving and does
not go out again, the battery's state of charge
is not in the opt imal range. Starting capability
is restricted. Have the battery checked by an
author ized Audi dealer as soon as poss ible .
{0 : Worn brake pads
El Brake pads !
If the warn ing light illum inates, immediately
contact your authorized Audi dealer or quali­
fied workshop to have all brake pads inspect­
ed . On USA models the wa rning light
El
l ) - : USA mod els only
comes on together with the warning light
- · Both sets of bra ke pads on an ax le
must a lways be rep laced at the same time.
A WARNING
=
Driving w it h bad brakes can cause a colli-
sion and ser ious personal in jury.
- If the warn ing light
El and the warning
light
11111> with the message Brake
pads!
comes o n in the inst rument cluster
d isp lay, immediately contact your au­
thor ized Audi dealer or qualified wo rk­
shop to have all b rake pads checked or
re placed if ne cessa ry.
~(i) Headlight range control
II He adlight range control defective !
-
If the symbol illuminates, the dynamic head­
li ght rang e control is no longer work ing prop­
erly. Have the system checked and repa ired at
yo ur aut horized Aud i dea le r.
~ -Engine oil level
l!I Plea se check oil level
When the symbol illuminates, check the en­
gine o il leve l as soon as possible
¢ page 263.
T op off t he oil at your ear liest opportu nity
¢ page 264 .
't::r.~ Engine oil sensor defective
II Oil level ! Sensor defective
If the symbol illum ina tes, contact yo ur au ­
thorized Aud i dea le r and have the oil sensor
inspected. Unti l yo u have this done, check t he
oi l level each time you refue l just to be on the
safe s ide
¢ page 263.
!?) Engine speed limitation
Applies to vehicles: wit h engine speed limitatio n
II! Do not e xceed ma x. engine speed of X XXX
rpm .,,.

42 Openin g and clo sing
readiness light, located in the upper part of
the driver's door panel, will start to blink.
- T he vehicle interior lights turn off.
Unlocking and l ocking with Conven ience
k ey*
On vehicles which a re equipped w ith the C o n­
ve nience k ey*
authorization system, the
doors are unlocked without a key by means of
a proximity sensor in the door handle. The
doors are simi larly locked without a key using
the locking button. Each door has a proximity
sensor and a locking button .
Automatic l ock ing
The automatic locking feature locks all the ve­
hicle doors and the rear lid when you drive
faster than 9 mph (15 km/h). This function can be turned on and off in the MMI
C entr al
lo cking
Menu c:> page 44.
You can un lock the vehicle from the inside by :
- removing the key from the ign it ion sw itch
(the vehicle will automat ica lly unlock itself)
or
- pressing the unlock part of the power lock
switch @or
- pull ing the door handle (twice to open the
rear doors).
Unintent ionall y locking yourself out
In the following cases there safeguards to
prevent you locking your remote master key in
the vehicle :
- The veh icle does not lock with the power
locking sw itch
c:> page 44 if the driver's
door is open.
- On vehicles with Convenience key* , if the
most recently used master key is in the lug­
gage compartment, the rear lid is automati­
cal ly unloc ked aga in after it is closed.
Do not lock your vehicle with the
r e mot e m as ­
t e r k ey or Convenienc e key*
until all doors
and the rea r lid are closed. In t his way you
avoid locking yourse lf out accidenta lly.
A WARNING
- When you lock your vehicle from outside,
nobody- espec ially children -should re ­
main inside the vehicle . Remember,
when you lock the vehicle from the out­
side the windows cannot be opened from
the inside.
- When you leave the veh icle, always re­
move the ignition key and take it with
you . This will prevent passengers (chil­
dren, for example) from accidentally be ­
ing locked in the vehicle should they acci­
dentally press the power locking switch
in the front doors.
- Do not leave children inside the vehicle
unsupervised. In an emergency it would
be imposs ible to open the doors from
the outside without the key.
(D Tips
- In the event of a crash with airbag de­
ployment all locked doors will be auto­
matically unlocked to give access to the
vehicle occupants from the outside.
- If the power locking system sho uld mal­
function, you can lock each door individ­
ually using the vehicle key
c:> page 45 .
-If the power locking system shou ld fa il,
you can still open the fuel tank flap in an
emergency
c:> page 2 55 .
-You are well advised not to keep va lua­
bles inside an unattended vehicle, v is ible
or not. Even a properly locked vehicle
cannot p rov ide the secur ity of a safe .

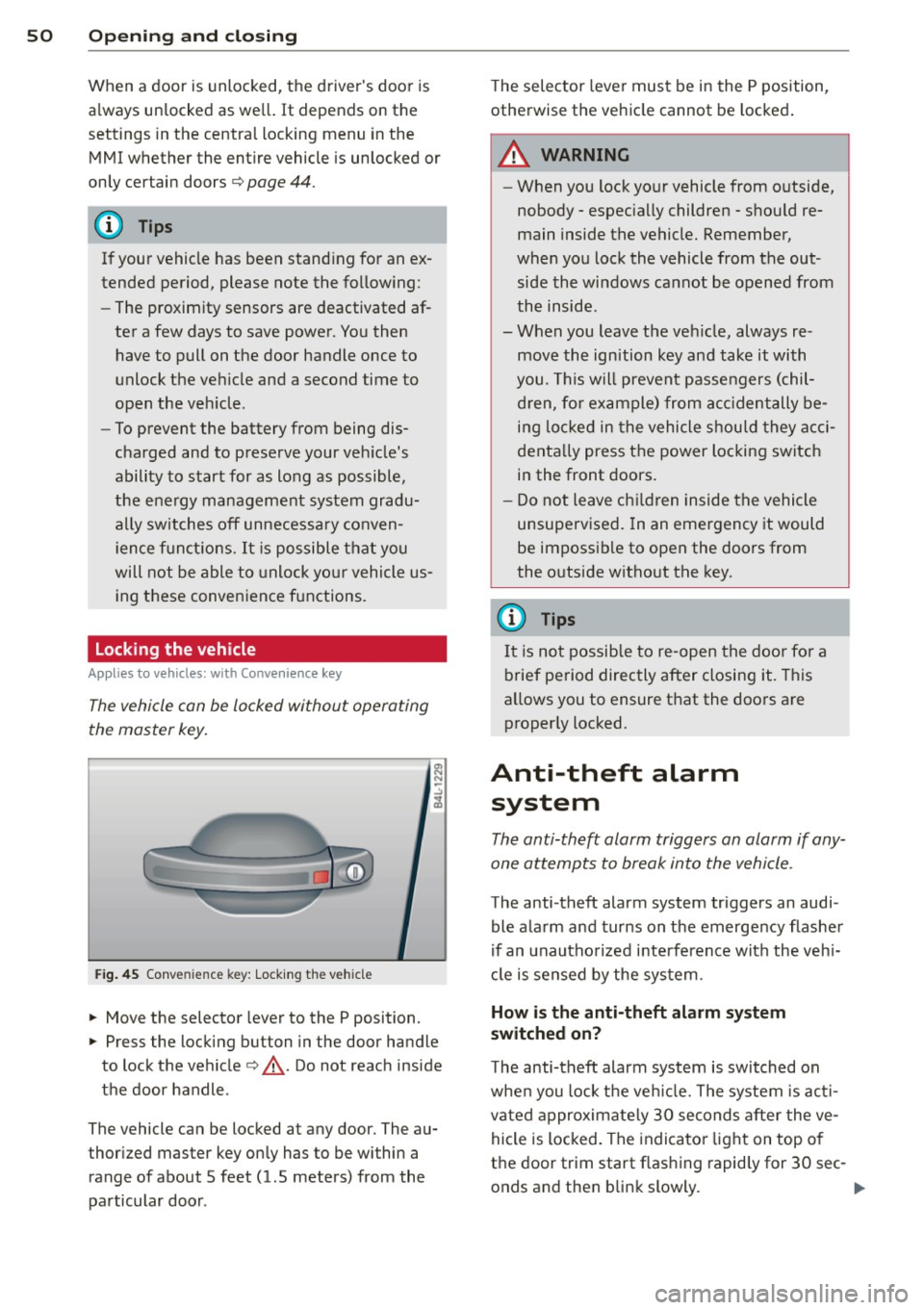

50 Openin g and clo sing
When a door is unlocked, the driver 's door is
a lways unlocked as we ll.
It depends on the
settings in the central locking menu in the
MMI whether the entire vehicle is unlocked or
only certain doors ¢
page 44.
{O) Tips
If your vehicle has been stand ing for an ex­
tended period, please note the following:
- The proximity sensors are deactivated af-
ter a few days to save power. You then
have to pull on the door handle once to
unlock the vehicle and a second time to
open the veh icle.
- To prevent the battery from being dis­
charged and to preserve your veh icle's
ability to start for as long as possible,
the energy management system gradu­
a lly switches off unnecessary co nven­
i ence f unct io ns.
It is possible that you
will not be able to unlock your vehicle us­
ing these convenience f unctions.
Locking the vehicle
Applies to vehicles: with Conve nience key
The vehicle can be locked without operating
the master key.
Fig . 45 Conve nience key: Lock ing th e ve hicle
.. Move the selector lever to the P position.
.. Press the locking button in the door handle
to lock the vehicle¢,&.. Do not reach inside
the door handle .
The vehicle can be locked at any door. The au­
thor ized master key on ly has to be within a
range of about 5 feet (1.5 meters) from the
pa rticular door . T
he selec tor lever must be in the P position,
otherwise the ve hicle cannot be locked .
A WARNING
--When you lock yo ur vehicle from o utside,
nobody - espec ia lly children - shou ld re­
main inside the vehicle. Remember,
when you lock the vehicle from the out­
side the wi ndows cannot be opened from
the inside.
- When you leave the veh icle, always re­
move the ign ition key and take it with
you. This will prevent passengers (chil­
d ren, fo r ex ample) from acci dentally be­
i n g lo cked in the vehicle shou ld they acci­
denta lly press the power locking switch
in the front doors.
- Do not leave ch ildren inside the vehicle
unsupervised. In an emergency it would
be impossible to open the doors from
the o utside witho ut the key.
(J} Tips
It i s no t possible to re -open the doo r fo r a
brief pe riod directly after closing it. This
allows you to ensure that the doo rs are
properly locked.
Anti-theft alarm system
The anti-theft alarm triggers an alarm if any­
one attempts to break into the vehicle.
The anti-theft alarm system triggers an audi­
ble ala rm and turns on the emergency flashe r
if an unautho rized interfe rence with the veh i­
cl e is sensed by the sys tem.
How is the anti-theft alarm system
switched on?
T he anti-theft alarm system is switched on
whe n you lock the ve hicle. The system is ac ti­
vated approximate ly 30 seconds after the ve­
hicle is locked. The indicato r ligh t on top o f
the door trim start flashing rapid ly for 30 sec -
onds and then blink slowly. ..,.

Clear vision Lights
Switching the headlights on and off
In the "AUTO" position, a light sensor auto·
matically switch es t he head· and taillights on
and off in r espons e to light conditions .
Fig. 53 Instrument pane l: lig ht sw itch
The ligh t sw itch m ust not be overturned pas t
the stops in
eit her direct ion .
Sw itching on automatic headlight control
,.. Turn the light switch to AUTO ¢ fig . 53 .
Swi tching on the side m ark e r lights
,.. Turn the light switch to :;oo:;.
Sw itching on the headlights and high
be am
,.. Turn the light switch to io .
,.. Push the high beam lever forward towards
the instrument panel
9 page 60 .
Switching off the light s
,.. Turn the light switch to 0.
The headlights only wo rk when the ignition is
sw itched on. While s tart ing the engine or
when switching
off the ignition, the head ·
lights will go
off and on ly the s ide marker
lights will be on .
Afte r star ting t he engine, the headlights are
automatically adjusted* to the load and angle
of the vehicle (for example, during accelera ·
tion, braking). This prevents oncoming traffic
from experiencing unnecessary headlight glare from your headlights.
Clear vi sion 5 7
If the system is not ope rat ing properly, a
warning symbol in the Auto-Check Control is displayed ¢
page 36.
With the side ma rker ligh ts or he ad ligh ts
switched on, the symbol next to the light
switch i lluminates
:oo :.
Daytime running lights
- USA model s:
The daytime runn ing lights
w il l come on automatically whe n the igni­
tion is t urne d on and the l ight sw itch
¢
fig. 53 is in the O position or the AUTO po ­
sition (only in daylight conditions). The
Day­
time running lights
function can be turned
on and
off in the MMI menu E xter ior l ight ·
ing
¢ page 58.
- Canada models: The dayt ime running lights
w ill come on automatically when the igni·
tion is turned on and the light switch
¢
fig. 53 is in the O position o r the AUTO po ·
sition (only in daylight condit ions) ¢ .&. .
Automatic headlight control
In the switch position AUTO the automatic
headlight control
i s turned on. The low
beams and tail lights are turned on automati·
ca lly through a light sensor as soon as amb i­
ent b rightness (e.g . when driving into a t un­
nel) fa lls below a value p reset a t the factory.
When ambien t brightn ess increases ag ain ,
the low beams are turned
off ag ain automati­
ca lly ¢ .&. .
In the
AUTO posi tion the low beams a re
swi tched
off au tom ati cally when the igni tion
is tur ned
off.
Light Sensor Malfunction
In the event of a light sensor malfunction, the
dr ive r is notified in the instrument cluster dis­
play:
f'gl Automatic head lights / automatic wip ers
defective
For safety reasons the low beams are turned
o n permanently with the switch in
AUTO .
However, you can conti nue to turn the lights
o n and
off using the light switch . Hav e the II>

58 Clear vis ion
lig ht sensor checked as soo n as poss ible at an
author ized Audi dealer or qua lified wor kshop .
.&_ WARNING
-Daytime ru nning lights and automatic
headlights are only intended to assist
the driver. They do not relieve the driver
of his respons ib ility to check the head­
lights and to turn them on manually ac­
co rding to the current light and v is ibi lity
condit ions. For example, fog cannot be
dete cted by the light sensors*. So alw ays
switch on the headlights
io u nder these
weather conditions and when driving in
the dark.
- Crashes can happen when yo u cannot see
the road ahead and when you cannot be seen by other motorists. Always turn on
the headlights so that you can see ahead
and so that others can see yo ur car from
the back.
- Please obey a ll laws when using the
lighting systems described here.
@ Tips
- With the switch in AUTO front fog lights
and rear fog lights cannot be turned on in addition.
- The light senso r for headlight contro l is
l ocated in the rear view m irror mount.
You should therefore not app ly any st ick­
ers to the windsh ield in this area in o rder
to preve nt ma lfunctions o r failures.
- Some exterior lighting functions can be
adjusted
c:> page 58.
-When you remove your key from the igni­
tion while the vehicle's lights are turned
on, a buzzer sou nds as long as the driv­
er's door is open .
- In coo l o r damp weather, t he ins ide of
t h e headlights, turn signa ls and tail
li ghts can fog ove r du e to t he tempera­
tu re diffe re n ce between the inside and
outside. They will cle ar sho rtly after
swi tching them on. This does not affect
t h e service li fe of the lighting . -
In the event o f a light sensor malfunc­
tion, the driver is notified in the instru­
ment cl uster display
c:> page 35 .
Adjusting exterior lighting
The functions are set in the MMI.
• Select: Func tion b utton I CAR !> Con trol but ­
t on
Systems* > Exterior lighting . Or
.. Select: Function button
I CAR !> Con trol but ­
ton
Car systems * > Vehicle settings > Ex te·
rior lighting .
Coming home (Lights when leaving car ),
Leaving home (Light s when unlock ing car )
The coming home f unction ill uminates the
area o utside the vehicle when you tu rn the ig­
nition off and open the driver's door. Depend­
ing on vehicle equ ipment, the f unction can be
switched on and off or the length of t i me the
ligh ts remain on* can be adjusted .
The leaving home illum inates the area outside
the ve hicle when yo u unlock the vehicle . T his
funct ion can be switched on and off .
The Coming home and Leaving home func­
tions only operate when it is dark and the light switch is in the
AUTO pos ition.
Daytime running lights
USA model s: The daytime r unning lights can
be turned on or off using th is function.
Canada model s: Th e fu nction canno t be
tu rned off .
It is activated automatically each
time the ignition is t urned on. This menu item
is shown "greyed out" .
Front fog lights
Fig. 54 Instrument pa nel: light switch
