2012 AUDI A7 rear view mirror

2 Table of content s
Vehicle lite ratu re .. .. .. .. .. ... .
5
About thi s Owner' s Manual . . . 6
C ontr ols and equi pm ent .. ... .
Ins truments and controls .. . .
General illustration ...... ... .. ... .
Instruments and warning /
indicator lights ........ .. .. .. . .
Instruments ............ ... .. ... .
Warning/indicator lights .. ... ... .. .
Driver information display .... .. ... .
On-Board Diagnostic system (OBD) . . .
Opening and closing .. .. .... . .
Keys .. ...... ........... .. .. ... .
Power locking system ..... .. .. .. . .
Rear lid .. .. ........ ........ .... .
Child safety lock for the rear doors .. .
Power windows ............... .. .
Valet park ing . ........... .. .. ... .
Sliding/tilting sun roof ... .. .. .. .. . .
Clear vi sion ................... .
Lights . .. .. .. . .......... .. .. .. . .
I nter ior lights ............ .. .. .. . .
V1s 1on .......... ......... ... ... .
Wiper and washer system ... .... .. .
Mirrors .... .............. ... ... .
Seats and storage ...... ... ... .
General recommendations ... .... . .
Front seats ... ........... .. .. ... .
Head restraints .............. ... .
Seat memory . ........... .... ... .
Ashtray .. .. ... .... ...... .. .. .. . .
C igarette lighter .............. .. . .
12-vo lt sockets ............ ... .. . .
Sto rage ................. .. .. ... .
Roof rack ............... .. .. .. . .
L uggage compartment ... ... ... .. .
Pass-through with ski sack ... .. ... .
Warm and cold ............ ... .
C limate controls ......... ... .. ... .
Three-zone climate control ... .. ... .
8
8
8
10
10
11
22
27
29
29
31
35
37
38
39
39
41
41
44
45
45
47
so
so
51
52
53
54
54
55
55
57
59
62
64
64
65 Four
-zone automatic climate control .
Steering wheel heating ...... ... .. .
On the road ... ... ....... ... .. .
Steering . ..... .. ... ....... ..... .
Starting and stopping the engine .. . .
E lectromechanical parking brake . .. . 67
69
70
70
71
74
Speed warning system . . . . . . . . . . . . . 76
Cru ise control . . . . . . . . . . . . . . . . . . . . 77
Adaptive crui se control and
braking guard . . . . . . . . . . . . . . . . .
79
Introduction . . . . . . . . . . . . . . . . . . . . . 79
General information . . . . . . . . . . . . . . 79
Adaptive cruise control . . . . . . . . . . . . 81
Audi braking gua rd . . . . . . . . . . . . . . . 85
Messages . . . . . . . . . . . . . . . . . . . . . . . 86
Audi side assist . . . . . . . . . . . . . . . 88
Lane Change Assistant. . . . . . . . . . . . . 88
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Audi drive select . . . . . . . . . . . . . . 96
Driv ing set tings . . . . . . . . . . . . . . . . . . 96
Night vision a ssistant . . . . . . . . . 98
N ight vision assistant with detec ted
pedestrian marking . . . . . . . . . . . . . . . 98
Automatic Transmission . . . . . . 102
t. t
. ® 1p ronic ..... .. ... .. ..... ... .. . 102
Parking system . . . . . . . . . . . . . . . . 108
Genera l informa tion . . . . . . . . . . . . . . 108
Audi parking system p lus . . . . . . . . . . 108
Audi parking system plus with rear
view camera . . . . . . . . . . . . . . . . . . . . . 109
Adjusting the d isplay and warn ing
tones. .... .... .. ............. ... 113
Error messages 114
Homelink® . . . . . . . . . . . . . . . . . . . . 115
Universal remote control. .......... 115
Safet y first . . . . . . . . . . . . . . . . . . . . 118
Driving Safely . . . . . . . . . . . . . . . . . 118
General notes . . . . . . . . . . . . . . . . . . . . 118
Proper occupant seating positions . . . 119

32 Openin g and clo sing
- When you leave the vehicle, always take
the ignition key with you. This will pre­
vent passengers (children, for example)
from accidentally being locked in the ve­
hicle should they accidentally press the
power locking switch in the doors.
- Do not leave children ins ide the veh icle
unsupervised. In an emergency it would
be impossible to open the doors from
the outside without the key.
- Applies to vehicles with power side door
closer*:
- When closing a door, make sure noth­
ing can inter fere with the door. This
could cause ser ious persona l injury.
- You can stop the door from closing at
any time by pulling on the inside or
outside door handle.
- In the event of a c rash with airbag de­
ployment a ll locked doors will be auto­
matically unlocked to g ive access to the
vehicle occupants from the outside.
- If the power lock ing system should ma l­
funct ion, you can lock the dr iver's door
using the mechanical key¢
page 35.
- If the power lock ing system should fail,
you can sti ll open the fue l tank flap in an
emergency ¢
page 214.
- You are we ll advised not to keep valua ­
bles inside an unattended vehicle, visib le
or not . Even a properly locked vehicle
cannot provide the sec urity of a safe.
- If the LED in the upper edge of the driv­
er's door panel comes on fo r abo ut 30
seconds afte r the vehicle is locked, the re
i s a ma lfunction in the power loc king or
the anti- theft warn ing system. Have the
malfunction corre cte d by an author ized
A udi dealersh ip or qua lified repai r fac ili ­
ty .
Setting power locking
The driver can determine the functions for
power locking in the MMI .
.,. Select: I CAR I function button > Car systems
contro l butto n > Vehicle settings > Cent ral
lo cking .
Unloc k doors -
You can dec ide if All doors or
only the
Dr iver shou ld unlock. The rear lid al­
so unlocks when
All is selected . If you select
Driver in a vehicle with a convenience key*,
o nl y th e doo r whose hand le you p ull will un­
lock.
If you se lect
Driver , all the doors and rear lid
will unlock if you press the
CD button on the re­
mote control maste r key twice .
Lock exterior trunk handle -If you select On ,
the rear l id handle is locked . In this case the
rear lid can be opened with the b utton
,c::5 on
the maste r key or with the
,c::5 button in the
drive r's door . In veh icles with a convenience
key*, you ca n still open the re ar lid using the
hand le if an authorized maste r key is near the
proximity sensor .
Fold mirrors* -If you selec t On, the exterior
rearview m irrors fold in au toma tica lly w hen
yo u press the
CD bu tton o n the remote contro l
master key or touch the sensor* in the handle .
Lock wh en d riving -If you select On, t he vehi­
cl e locks automa tica lly when driv ing. A ll of
t h e doors and rea r lid lock .
Tone when locking -When you select On, a
c o nfirmat io n tone sounds when yo u lock the
vehicle.

48 Clear vis ion
another gear, the new mirror position is stor ­
ed and assign ed to the key you a re using.
The mirror goes back in to its origina l posit io n
once yo u drive forward faster than 9 mph (15
km/h) or switch the ignition
off.
~ WARNING
- Curved ( i.e. convex) mirror s urfaces in­
crease your field of view. Remember that
vehicles or other objects will appear
smaller a nd fa rther away than when seen
in a flat m irror . If you use this mirro r to
est imate distances of following vehicles
when changing lanes, you cou ld estimate
incorrectly and cause an ac cident .
-
@ Note
-If the mirro r hous ing is moved uninten ­
t ionally (for example, whi le park ing your
vehicle), then you must first fo ld the mi r­
r or electri cally. Do not readjust the m ir­
r or ho us in g manua lly . You could damage
the motor which con trols the mirror .
- If you wash t he vehi cle in an au tomatic
c ar wash, yo u m ust fold the e xterior m ir­
rors in to reduce the risk of damage to
the mirrors. Never fold power fo lding ex ­
terior mi rrors* by hand. Only fold them
i n and out us ing t he power contro ls.
@ Tips
- The exterior mirror settings are stored
with the memory funct ion *
~ page 53.
- If there is a malfunct ion i n the elect rical
system, you can still adjust the exter ior
mirrors by pressing the edge of the mir­
ror.
Dimming the mirrors
F ig . 4 3 Auto ma tic d immin g rearview mirro r*
Manu al anti-glare adjustment
.,. Move the small leve r (located on the bot­
tom edge of the mirror) to the rear.
Automatically dimming mirrors*
.,. To dim the rearview m irror and both exteri­
or m irrors, press the@ button . The diode
® turns on . The rearview and exterior mir­
rors dim automatically when light shines on
them, for examp le from headlights on ave­
hicle to the rear .
A WARNING
=
Electrolyte fluid can lea k from automatic
d imm ing mirro rs if the g lass is broken .
E lectro lyte fluid can irr itate sk in, eyes a nd
r espira to ry system .
- Repeated or prolonged exposu re to e lec­
trolyte can ca u se irritation to the respira­
t ory sys tem, especially among people
wit h asthma or other resp iratory condi­
tions . Get fresh air immediately by leav ­
ing the vehicle or, if that is not possib le,
open w indows and doors all the way .
- If electrolyte gets into the eyes, fl ush
them thorough ly with large amou nts of
clean water for at least 15 minutes; medical attention is recommended.
- If electrolyte contacts skin, fl ush affect­
ed area with clean water for at least 15 minutes a nd then wash affected area
with soap and water; medical atte ntion
is recommended. Thoroughly wash af­
fect ed clothing and shoes before re use .

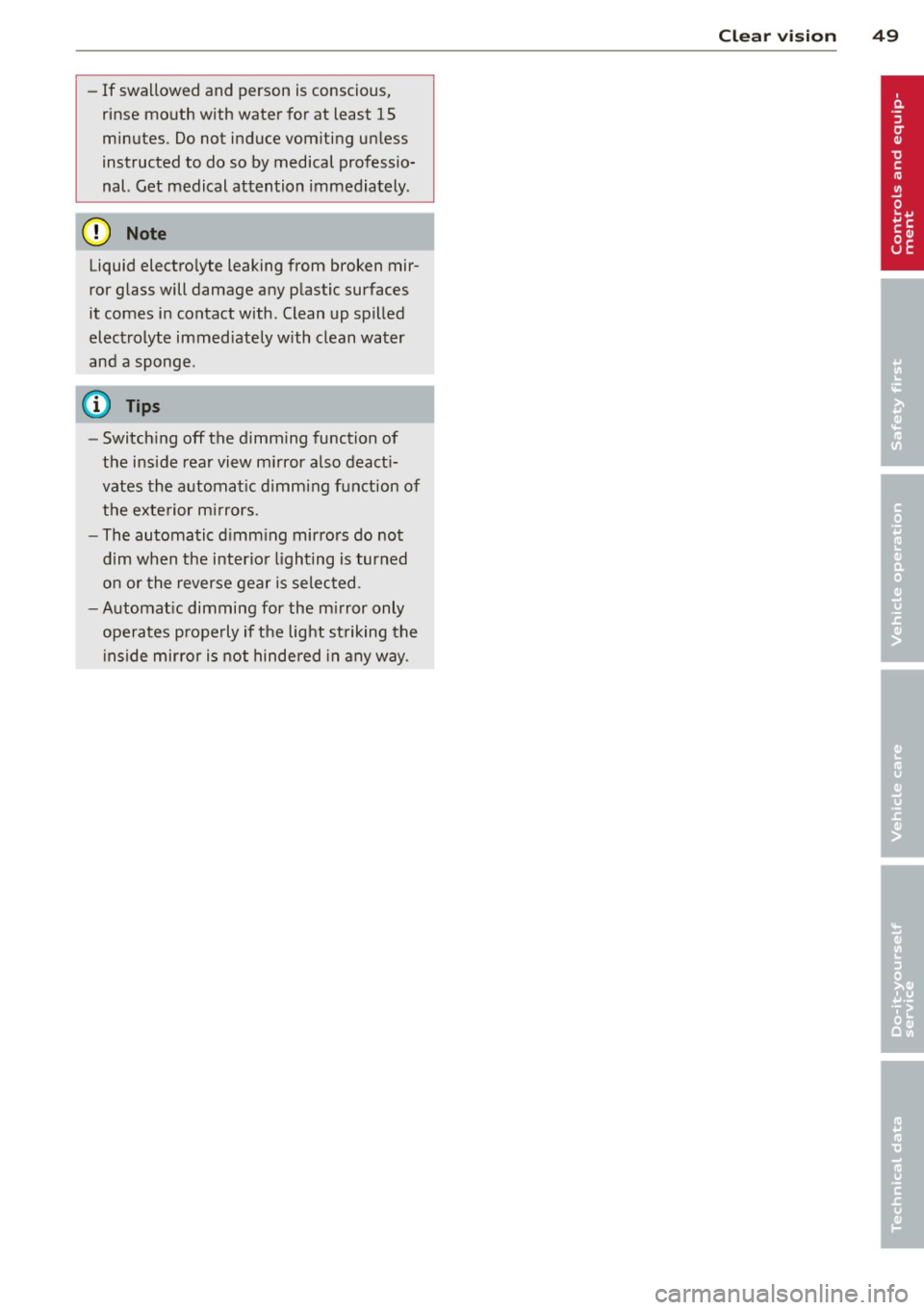

-If swallowed and person is conscious,
rinse mouth with water for at least 15
minutes. Do not induce vomiting unless
instructed to do so by medical professio­
nal. Get medical attention immediately.
(D Note
Liquid electrolyte leaking from broken mir­
ror glass will damage any plastic surfaces
it comes in contact with. Clean up spilled
electrolyte immediately with clean water
and a sponge.
@ Tips
- Switching off the dimming function of
the inside rear view mirror also deacti­
vates the automatic dimming function of
the exterior mirrors.
- The automatic dimming mirrors do not
dim when the interior lighting is turned
on or the reverse gear is selected.
- Automatic dimming for the mirror only
operates properly if the light striking the
inside mirror is not hindered in any way.
Clear vision 49

Removing the head restraints
• Fo ld the backrest fo rward c:> page 60.
• Move the head restraint upward as far as it
can go.
• Press the release
c:> fig. 48 with the me­
chanical key
c:> page 30 and the button
-arrow-
c:> fig . 47. Pull the head restraint out
of the backrest at the same time
c:> _&. .
Install ing the head restraints
• Slide the posts on the head restraint down
into the guides until you feel the posts lock
into place .
• Press the button -arrow-
c:> fig. 47 and slide
t h e head restraint all the way down . You
should not be able to pull the head restraint
out of the backrest .
So that the driver can have a better view to
the rear, the head restraints should be pushed
down completely when the rear seats are not
occupied .
_& WARNING
-Only remove the rear seat head restraints
when necessary in order to install a chi ld
seat . Install the head restraint again im­
mediately once the child seat is removed.
Driving without head restraints or with
head restraints that are not properly ad­
justed increases the risk of serious or fa­
tal neck injury dramatically .
- Read and heed all WARNINGS
<=> page 122.
Seat memory
Description
Applies to vehicles: with memory functio n
The memory function allows you to quickly
and easi ly store and recall personal seating
profiles for the driver . The memory function is
operated through the master key and the
memory buttons in the driver's door.
The driver's seating profi le is stored and as­
signed to the master key each time the vehicle is locked. The seating profile is recalled auto-
Seats and storage 53
matically when the vehicle is unlocked. If two
people use one vehicle, it is recommended
that each person always uses "their own" master key.
Two seating profiles can be stored in each of
the driver's door. Once stored, these seating
profiles can be recalled at any time.
The following sett ings are stored:
- Dr iver's seat
- Steering wheel*
- Both exterior rearview mirrors*
Remote control key
Applies to vehicles: with memory function
To assign the driver's seat settings to the re­
mote control key when locking the veh icle, the
funct io n must be switched on .
• Select: ICAR ifunction button>
Car systems
control button > Vehicle settings> Seats>
Driver seat> Remote control key> On .
(D Tips
If you do not want another driver's set­
tings to be assigned to the remote control
key, switch off the memory function using
the MMI or the IOFF i button
c:> page 53.
Memory buttons
Applies to vehicles: with memory function
Fig. 49 Driver 's doo r: memo ry fun ction b uttons
The memory buttons are located in the driv­
er's door.
• To store a seating profile , press the
!SE T!
button and then one of the memory but­
tons.

90 Audi side assist
signal light will come on as soon as the other
vehicle is in your blind spot and is detected by
side assist. When the difference in speed is
greater, the signa l light will not come on.
Informational and alert stage signals
Applies to vehicles: with side assist
Side assist has two s ignal stages:
- the informational stage signal, and
- the a le rt stage signa l.
Side assist helps you by using the appropriate
signal stage, depending on whethe r or not
you have activated the turn signal, and thus
have indicated that you are or are not chang­
ing lanes.
Informational stage signal
As long as you have not activated the turn sig­
nal, side assist informs you of detec ted vehi ­
cles that are registered as being in a notable
l ocation if you were to change lanes. Whenev ­
er the detected vehicle's difference in speed
and distance is registered by side assist as no­
table, the signal light on the respective m irror
produces muted illumination.
The brightness of the informational stage sig­
na l is designed not to be as intense, so that it
does not interfere with your view of the road
when you are driving and have no intention of
changing lanes. When you look in the outside
mirror, you can clearly see the informat ional
stage signal.
Alert stage signal
When you activate the turn signal, and side
assist has detected a vehicle in a notable loca­
tion on that part icular side, the signal l ight on
this side mirror flashes bright ly . The repeated
brief and bright flashing of the alert stage
signal reminds you to carefully check traffic to
the rear in the outside mirror and over your
shoulder, so that yo u can safely complete the
lane change
c::> & in Safety tips on page 94.
(D Tips
The brightness of the signal light on the
outside m irrors can be adjusted with the
MMI c::> page 93.
Driving situation: Fast approaching
vehicles
Applies to vehicles: with side assist
©
@
Fig. 94 Side ass ist: Fast approach ing ve hicles
@ Signal on outside mirror does not light
up
No vehicle was detected by the sensors . The
signal on the o utside mirror does not light up
c::> & in Safety tips on page 94.
@ Informational stage signal lights up
A fast approaching vehicle - in the left-hand
lane for example - was detected by the sen­
sors . Although this vehicle is still far away, it
should be taken into account if yo u were to
change lanes, due to the considerab le differ­
ence in speed. The informational stage s ignal
on the outside mirror lights up
c::> page 90 . ..,.

94 Audi side assist
right of your travel lane, depending on wheth­
er you drive in the center of your lane or closer
to the edge.
If you drive in narrow lanes, s ide ass ist's de­
tection area may a lso include other lanes -es­
pecia lly if you tend to drive on the edge of
your lane¢
fig. 99. Under these condit ions,
vehicles can also be detected that are two lanes away, and side assist then could switch
between the informat ional and warning stage
signals .
When driving in very w ide lanes, vehicles in
the adjacent lane may not be detected be­
cause they are not inside the detection area .
Notes
Messages in instrument cluster display
Applies to vehicles: with side assis t
If side assist turns off automatically, the indi­
cator light on the button wi ll go out and you
will see a message in the instrument cluster
d isplay:
Audi side assist: not available. sensors
blocked
The side assist sensors are built into the rear
bumper on the left and right (not visible on
the outside)
¢ page 88, fig. 91 . To ensure that
you do not adversely affect the way side assist
functions, foreign objects (such as stickers or
b icycle racks) should not be attached to the
a rea on the rear bumper where the sensors
are located. If side assist functions are ad­
versely affected, you will see this message in
the instrument cluster display. Remove any ­
thing that may be blocking the sensors .
If no vehicle is detected for a longer period of
time while driving, side assist will also switc h
off a utomatica lly.
Audi side assist currently not available
If there is a temporary problem (such as the
ve hicle's battery charge being low), s ide ass ist
cannot be activated tempo rari ly.
Audi side assist: system fault
Have the system checked by an authorized Au­
di dealer or qualified workshop.
Audi side assist: not available when
towing
T he radar senso r's view is limited when tow­
ing a trai le r. For vehicles with a fa ctory instal ­
led towing hitch or a trailer hitch that was in­
stalled later according to factory specifica­
tions, side assist is automatically deactivated
as soon as the electrical connection to the
trailer's electrical socket is made, and this sta­
tus message appears in the instrument clus ­
ter display . Deactivation cannot be guaran­
teed when using a retrofitted towing hitch
that was
not installed according to factory
specifications.
Safety tips
Appl ies to vehicles : wi th side assist
The side assist detection may be limited when
driving aro und narrow street corners, on hilly
streets, and under poor weather cond itions.
It is possible that the radar sensors may also
detect other objects, such as high or stag­
gered guardrails .
Side assist does not measure actual lane
width. The system assumes a fixed lane width.
Detection in the left and right lanes is based
o n this ass umed lane width . When driving on
narrow roads or when driving to the left or
right of the center of a trave l lane, it is poss i­
ble that vehicles will be detected that are
not
in the lane next to the lane you are using.
A WARNING
- Improper reliance on the side assist sys­
tem can cause collis ion s and serious per­
sonal injury:
- Never rely only on side assist when
changing lanes .
- Always check rear view mirrors to make
sure that it is safe to change lanes.
- Side assist cannot detect all vehicles un-
der all conditions- danger of accident! ..,.

segments move closer to the vehicle. The col­
lision area has been reached when the next to
last segment is displayed. Do not continue
driving farther
c:> ,& !
A WARNING
- Sensors have blind spots in which objects
cannot be detected . Pay special attention
to small children and animals because
the sensors cannot always detect them .
- The parking system cannot replace the
driver's attention. The driver alone is re­
sponsible for parking and similar driving
maneuvers.
-Always keep your eyes on the veh icle's
surround ings, using the rear
view mirror
as well.
(D Note
Low obstacles already signaled by a warn­
ing can disappear from the system 's detec­
tion range as they are approached and will
not continue to be signaled. Objects such
as barrier chains, trailer draw bars, thin
pa inted vertical poles or fences may not be
detected by the system, posing risk of
damage.
(D Tips
- The sensors must be kept clean and free
of snow and ice for the park assist to op­
erate.
- You can change the volume and pitch of
the signals as well as the display
<=> page 113.
-What appears in the display is time-de­
l ayed.
Parking system 109
Audi parking system
plus with rear view
camera
Introduction
App lies to vehicles: park ing system p lus wit h rear view
came ra
Fig. 118 Park ing mode 1: reverse parking
Fig . 1 19 Park ing mode 2: parallel parking
This parking system integrates a rearview
camera
in addition to the audio and visual
parking system signals
¢ page 108.
0 0 ± .. a,
You can choose between two modes to assist
you w ith parking. For example, you can use
"parking mode 1" when parking in a parking
space or garage
c:> fig . 118. When you want to
park para llel to the edge of the street, select
"p arking mode 2"
<=>fig. 119 .
