remain continuously illuminated. This se­
quence will continue upon subsequent vehicle
start-ups as long as the malfunction exists.
When the malfunction indicator is illuminat­
ed, the system may not be able to detect or
signal low tire pressure as intended . TPMS
malfunct ions may occur for a variety of rea­
sons, including the installation of replace­
ment or alternate tires or wheels on the vehi­
cle that prevent the TPMS from functioning
properly . Always check the TPMS malfunction
tellta le after replacing one or more tires or
wheels on your vehicle to ensure that the re­
placement or alternate tires and wheels allow
the TPMS to continue to function properly.

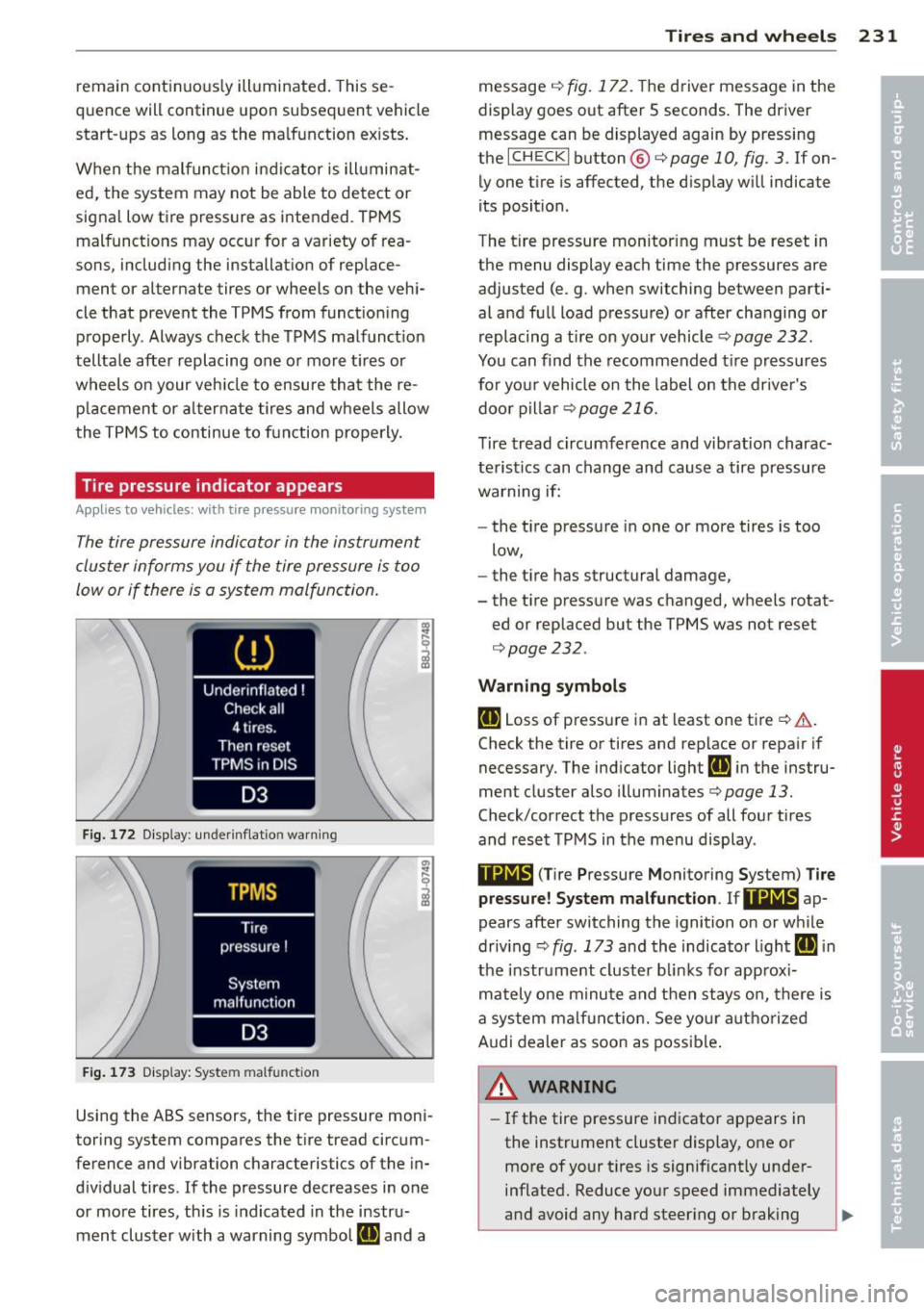

Tire pressure indicator appears
Appl ies to vehicles: with tire pressur e monitoring sys te m
The tire pressure indicator in the instrument
cluster informs you if the tire pressure is too
low or if there is a system malfunction.
Fig. 172 Display : underinflation warning
Fig. 173 Display: System malfunction
Using the ABS sensors, the tire pressure moni ­
toring system compares the tire tread circum­
ference and vibration characteristics of the in­
dividual tires. If the pressure decreases in one
or more tires, this is indicated in the instru­
ment cluster with a warning symbol
ti] and a
Tires and wheels 231
message r=!) fig. 172. The driver message in the
display goes out after 5 seconds. The driver
message can be displayed again by pressing
the
ICHECKI button @¢ page 10, fig . 3 . If on­
ly one tire is affected, the display will indicate
its position .
The tire pressure monitoring must be reset in
the menu display each time the pressures are
adjusted (e .g. when switching between parti­
al and full load pressure) or after changing or
replacing a tire on your vehicle¢
page 232.
You can find the recommended tire pressures
for your vehicle on the label on the driver's
door pillar¢
page 216.
Tire tread circumference and vibration charac­
teristics can change and cause a tire pressure
warning if:
- the tire pressure in one or more tires is too
low,
- the tire has structural damage,
- the tire pressure was changed, wheels rotat- ed or replaced but the TPMS was not reset
¢page 232.
Warning symbols
ti] Loss of pressure in at least one tire¢&.
Check the tire or tires and replace or repair if
necessary. The indicator light
ti] in the instru­
ment cluster also illuminates
¢page 13.
Check/correct the pressures of all four tires
and reset TPMS in the menu display .
11@1&1 (Tire Pressure Monitoring System) Tire
pressure! System malfunction . Ifll@IS, ap­
pears after switching the ignition on or while
driving ¢
fig. 173 and the indicator light ti] in
the instrument cluster blinks for approx i­
mately one minute and then stays on, there is
a system malfunction. See your autho rized
Audi dealer as soon as possible.
A WARNING
-If the tire pressure indicator appears in
the instrument cluster display, one or
more of your tires is significantly under­
inflated. Reduce your speed immediately
and avoid any hard steering or braking ..,.

232 Tires and wheels
maneuvers. Stop as soon as possible and
check the tires and their pressures. In­
flate the tire pressure to the proper pres­
sure as indicated on the vehicle's tire
pressure label ¢
page 216. Driving on a
significantly under-inf lated tire causes
the tire to overheat and can lead to tire
failure. Under-inflation also is likely to
impair the vehicle's handling and stop­
ping ability.
- T he driver is responsible for maintain ing
the correct tire pressures. You must
check the tire pressures regularly.
- Under certain cond itions (such as a spor­
ty driving style, winter conditions or un­
paved roads), the pressure monitor indi­
cator may be delayed.
- Ask your authorized Audi dealer if run­
flat tires may be used on your vehicle .
Your vehicle registration becomes invalid
if you use these tires when not permit­
ted. Damage to your veh icle or acc idents
could also result .
(D Tips
- The tire pressure monitoring system
stops working when there is an ESP/ABS malfunction .
- Using snow chains may result in a system
malfunction.
- Tires with the identification "AO" or "RO"
have been specially matched with your
Audi. We recommend using only these
tires because they meet the highest
standards regarding safety and driving
characteristics when used correctly. Your
a uthorized Audi dea ler will g ladly pro­
v ide you w ith more information.
Reset tire pressure monitoring system
(Stepl)
Applies to veh icles: w ith tire pressure monitoring system
If the tire pressure is adjusted, wheels ore ro­
tated or changed, the TPMS must be reset in
the menu display.
----- ®
Fig. 174 Wipe r lever: Contro ls fo r the menu d isplay
Fig. 175 Disp lay: S ta rt m enu
I Rese t I button @ and rocker switch @
¢ fig. 17 4 functions:
To open the menu
" Press the I Reset ! button @ unt il the menu
disp lay¢
fig. 175 appears
Selections and settings
" Press the rocker switch @ to reach a menu
d isp lay. The switch is operated the same as
the display (up/down) .
Entering and confirming
" Press the I Reset I button @.
Returning to the Start menu
" Press the I Rese t I button longer than 2 sec­
onds to return from any menu level to the
Start menu.

@ Tips
-Before resetting the TPMS, the current
pressures of
all four tires must corre­
spond t o the specified va lues. Adjust the
tire pressu re and reset the pressure in
the tire pressure mon itor ing system ac­
cord ing to the load yo u are carry ing
~pag e
216.
- Do not store the tire pressures if snow
cha ins a re installed. Otherw ise the sys­
tem could malfunction.
Reset tire pressure monitoring system
(Step2}
Applies to vehicles: with tire pressure monitoring system
Fig. 1 76 Display: Tire pressure
Fig. 1 77 Display: Tire pressure
I Reset ! button @ and rock e r swit ch @
~ page 232, fig . 17 4 func tions:
Storing tire pressures
.. Turn on the ignition .
.. Se lect the menu:
> Adjusting * > Tire pres-
sure
> Store .
Entering and confirming
.. Se lect the menu : Store now
.. Press the
I Reset I button @ .
.. Se lect the menu : Confirm
Tires and wheels 233
.. Press the I Reset I button @.
Returning to the Start menu
.. Press the I Reset ! button longer than 2 sec­
onds to re tur n from any menu level to the
S ta rt men u.
{!) Tips
Befo re resetting the TPMS, t he cur rent
p re ssu res of
all four tires mus t corres pond
to the speci fied val ues. Adjus t the tire
pr essure and rese t the pressure in the ti re
press ure monitoring system acco rding to
the load you are carry ing
~ page 216 .
