“Alfa DNA” SYSTEM
(Dynamic control system)
This device allows, using switch A-fig. 80 (on the central tunnel),
three response modes to be selected according to driving style
and road conditions:
❍d = Dynamic (for sporty driving)
❍n = Normal (normal driving mode)
❍a = All Weather (driving mode for poor grip conditions, i.e. rain
and snow on the road)
The device also acts on the dynamic vehicle control systems (en-
gine, steering, VDC system, instrument panel).
When the lever A-fig. 80 is moved to “d” position, the activation
of “Dynamic” mode is confirmed by a temporary variation in the
brightness (flashing) of the instrument panel.
fig. 80A0K0072m
DRIVING MODES
Switch A-fig. 80 is a monostable switch, i.e. it always remains in the
central position. The selected driving mode is indicated by the corre-
sponding LED coming on in the panel and by an indication on the re-
configurable multifunction display, as illustrated below:
A0K0009m
A0K0010m
Dynamic mode (display image available for
versions/markets where
provided)All Weather mode
“Normal” mode
When “Normal” mode is selected, no messages or symbols are
shown on the display.
VDCandASR: operating thresholds set for normal comfort lev-
el for normal driving conditions.
Steering tuning: functions aimed at providing comfort in nor-
mal conditions of use.
DST: Standard braking control coordinated with ABS/VDC.
Standard control over lateral acceleration.
Oversteer compensation: a slight pulse on the steering wheel
encourages the driver to carry out the most appropriate ma-
noeuvre.
Engine: Standard responsiveness
114
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
TURNING “Dynamic” MODE ON/OFF
On
Move lever A-fig. 80 upwards (to the letter “d”) and hold in this
position for 0.5 seconds until the corresponding LED lights up or
the word “Dynamic” appears on the display (see figures). The
switch A will go back to central position after having been released.Electronic Q2: improves traction and reduces understeer in acce-
leration while exiting curves.
RAB: pre-positioning of the brake pads (front and rear) following
a rapid release of the accelerator pedal to reduce braking
times, shorten stopping distances and improve the feel of
the brake pedal.
The activation of the Dynamic mode is also shown by the change
in the instrument panel lighting that, after decreasing, reaches
the highest luminosity and then returns to the previously set va-
lues.
Off
To turn “Dynamic” mode off and go back to “Normal” mode, move
the lever as described above once again. In this case, the LED cor-
responding to “Normal” mode will light up and the words “Nor-
mal on” will appear on the reconfigurable multifunction display
(see figure).
A0K1225gA0K1055g
A0K1052g
VDCandASR: intervention thresholds that allow more enjoy-
able, sportier driving whilst guaranteeing stabil-
ity in the event of loss of control. Improves trac-
tion whilst accelerating on bends.
Steering tuning: sports mode operation.
DST:Standard brake control coordinated with ABS/VDC.
Standard control over lateral acceleration
Oversteer compensation adapted to VDC/ASR intervention
thresholds: a slight pulse on the steering wheel encourage
the driver to carry the most appropriate manoeuvre.
Engine: Prompter response + Overboost to maximise torque (for
versions/markets, where provided).
117
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
TURNING THE SYSTEM ON/OFF MANUALLY
PressTfig. 82 on the dashboard to turn the system on and off
manually.
Turning the Start&Stop system on
A message will appear on the display when the Start&Stop system
is on. In this condition, LED A-fig. 82 located over button
Tis off.
Turning the Start&Stop on
❍Versions with multifunction display: a message will appear on
the display when the Start&Stop system is off.
❍Versions with reconfigurable multifunction display: symbol T
and a message will appear on the display when the Start&Stop
system is off.
LED A-fig. 82 is on when the system is off.
fig. 82A0K0121m
FAILED ENGINE CUT-OUT CONDITIONS
When the system is operating, due to comfort, emission control
and safety reasons, the engine does not stop in some conditions,
among which:
❍engine still cold;
❍very cold outside temperature;
❍battery not sufficiently charged;
❍heated rear windscreen on;
❍windscreen wipers working at maximum speed;
❍particulate filter regeneration in progress (diesel engines only);
❍driver’s door not shut;
❍driver’s seat belt not fastened
❍reverse gear engaged (for example, for parking manoeuvres);
❍for versions equipped with dual zone automatic climate control
system (for versions/markets, where provided), if an adequate
level of thermal comfort has not been reached or MAX-DEF func-
tion activation;
❍during the first period of use, to initialize the system;
In these cases, a message is shown on the display and the sym-
bol
Uwill blink (the latter for versions/markets, where provid-
ed).
If climate comfort is to be favoured, the
Start&Stop system can be disabled, for a contin-
uous operation of the climate control system.
119
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
SAFETY FUNCTIONS
When the engine is stopped by the Start&Stop system, if the dri-
ver releases his/her seat belt and opens the driver’s or passenger’s
door, the engine can be restarted only using the ignition key.
This condition is indicated to the driver by means of a buzzer and
by the symbol
Ublinking on the display (with a message, for
versions/markets, where provided).
ENERGY SAVING FUNCTION
(for versions/markets, where provided)
If, as a result of the engine automatic restarting, the driver does not
carry out any action on the vehicle for over 3 minutes, the Start&Stop
system stops the engine once and for all, to prevent fuel consump-
tion. In these cases, the engine can be restarted only using the ig-
nition key.
NOTEIn any case, it is possible to keep the engine running by de-
activating the Start&Stop system.
IRREGULAR OPERATION
In the event of malfunction, the Start&Stop system is deactivated.
The driver is informed of the fault by the flashing
Usymbol (ver-
sions with multifunction display) or
jsymbol (versions with re-
configurable multifunction display). For versions/markets, where
provided, a message is also displayed. In this case, contact
Alfa Romeo Authorized Services.
STORING THE CAR
In the case of storage, special care must be taken to disconnect the
battery electrical power supply.
Proceed as follows: detach the connector A-fig. 83 (by pressing but-
ton B) from sensor C for monitoring the status of the battery in-
stalled on the battery negative pole D. This sensor should never
be disconnected from the pole except if the battery is replaced.
fig. 83A0K0179m
In case of battery replacement, always contact
Alfa Romeo Authorized Services. Replace the bat-
tery using a new one of the same type (HEAVY
DUTY) and having the same specifications.
125
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
DISPLAY INDICATIONS
(for versions/markets, where provided)
When the sensor is activated, the "Reconfigurable multifunctional
display" (for versions/markets where provided) shows the screen
illustrated in fig. 88a; the information about the presence of and
distance from the obstacle is given by the buzzer and also by a
visual indication on the instrument panel display. If there are se-
veral obstacles, the closest one is indicated.
BUZZER WARNINGS
When reverse gear is engaged a buzzer warning is automatically
activated if there is an obstacle within the range of operation.
The acoustic signal:
❍increases as the distance between the car and the obstacle de-
creases;
❍becomes continuous when the distance between the car and
the obstacle is less that 30 cm and stops immediately if the
distance increases;
❍remains constant if the distance between the vehicle and the
obstacle remains unchanged, whilst if this situation occurs for
the side sensors, the signal is interrupted after about 3 seconds,
for example, to prevent signals in the case of manoeuvres along-
side walls.
IMPORTANT The volume of the audible signal can be adjusted th-
rough the option "Warnings volume" of the "Set-Up menu".
OPERATION WITH TRAILER
Parking sensor operation is automatically turned off when the trail-
er electric cable plug is fitted into the car tow hook socket. The sen-
sors are automatically enabled again when the trailer cable plug
is removed.
The sensor must be free of mud, dirt, snow or ice
in order for the system to work. Be careful not to
scratch or damage the sensors while cleaning them.
Avoid using dry, rough or hard cloths. The sensors should
be washed using clean water with the addition of car sham-
poo if necessary. In washing stations, clean sensors quick-
ly keeping the vapour jet/high pressure washing noz-
zles at a distance of at least 10 cm from the sensors.
fig. 88aA0K0059m
CONTROL PANEL AND INSTRUMENTS
VERSIONS WITH MULTIFUNCTION DISPLAY
A Speedometer
B Multifunction display
C Rev counter
D Fuel level gauge with reserve warning light
E Engine coolant temperature gauge with overheating warning light
mcWarning lights present on diesel versions only. On diesel versions, the end of scale for the rev counter is 6000 rpm
IMPORTANT The illumination of the instrument panel graphics may vary according to versions.
A0K0004m
282
RIGHT-HAND DRIVE VERSIONS

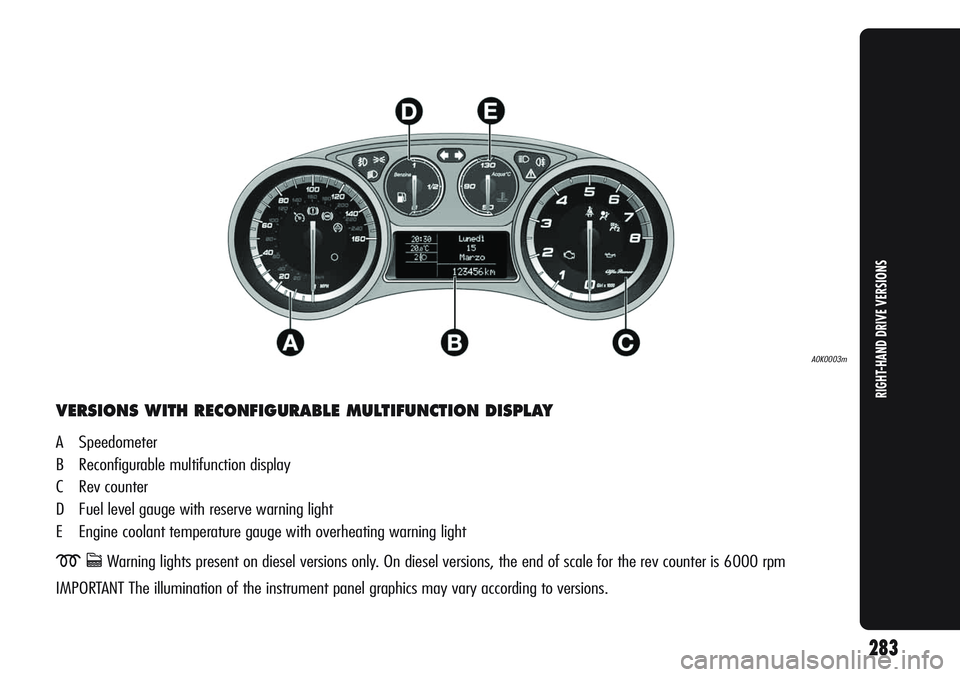

VERSIONS WITH RECONFIGURABLE MULTIFUNCTION DISPLAY
A Speedometer
B Reconfigurable multifunction display
C Rev counter
D Fuel level gauge with reserve warning light
E Engine coolant temperature gauge with overheating warning light
mcWarning lights present on diesel versions only. On diesel versions, the end of scale for the rev counter is 6000 rpm
IMPORTANT The illumination of the instrument panel graphics may vary according to versions.
A0K0003m
283
RIGHT-HAND DRIVE VERSIONS
286
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
– courtesy lights ................... 83
– front ceiling light ................ 81
– glove compartment light ...... 84
– puddle lights ..................... 84
Changing a wheel ................... 162
Changing bulbs
– exterior lights .................... 177
– interior lights ..................... 182
Checking liquid
levels .............208-209-210-211
Child safety lock ..................... 96
Child seat (compliance for use) .. 141
Child seat assembly
“Universal model” ................ 139
Cigar lighter............................ 90
Cleaning and maintenance
– bodywork ......................... 221
– engine compartment ........... 222
– interiors ............................ 223
– leather upholstery .............. 224
– plastic parts........................ 223– seats................................. 223
– windows............................ 222
Climate control system ............. 57
– air vents .....................57-58
Climatic comfort ..................... 59
Clutch .................................... 230
CO
2emissions ......................... 245
CODE card ............................. 41
Control buttons ....................... 23
Controls................................. 85
Courtesy lights ........................ 76
Cruise Control ......................... 79
D.R.L. (Daytime Running Lights) 74
Dashboard............................. 3
Dimensions of the car .............. 236
Dipped beam headlights
– bulb replacement ................ 178
– control............................... 74Dipped beam headlights
– bulb replacement ................ 178
– control............................... 74
Direction indicators
– bulb replacement........... 178-179
– control............................... 75
Direction indicators
– bulb replacement ................ 178
– control............................... 75
Display
– Multifunction display ........... 20
– Reconfigurable multifunction
display ............................. 21
Door locks ............................. 86
Doors..................................... 95
– child safety lock ................. 95
– emergency rear door
locking device .................... 97
– remote locking/unlocking ... 95
DPF (Diesel Particulate Filter) ... 129
DST system............................. 112
