2012 ACURA RL Owners Manual

ROCK: Rock, classic rock and sof t
rock music
COUNTRY: Country music
SOFT: Adult hits and sof t music
TOP 40: Top 40 hits
OLDIES: Nostalgia music and oldies
R & B: Rhythm and blues, and sof t
rhythm and blues
RELIGION: Programs concerned
with religion
CLASSIC: Classical music
JAZZ: Jazz
INFO: News, inf ormation, sports,
talk shows, f oreign language,
personality, public, college, and
weather With the FM band selected, you can
select the program type provided by
the RDS. Press the AUDIO button to
display the radio inf ormation on the
screen. Push down the selector on
the interf ace dial, then turn the knob
to select RDS SEARCH icon. Press
ENTER to set your selection. The
principal RDS categories are shown
as f ollows:
ALL: All RDS category stations When you turn of f this f unction by
pressing the DISP button, the upper
display shows ‘‘RDS INFO OFF.’’
TRAFFIC: Traffic information If the station you are listening to is
not an RDS station, the display
continues to show the f requency
with the RDS inf ormation display
f unction on.
CONT INUED
Radio Data System (RDS) Category
Audio System
Features
219
RDS SEARCH ICON
11/07/20 18:28:25 31SJA670_224
ProCarManuals.com

If the system does not find a station,
‘‘NOTHING’’ blinks f or about f ive
seconds, then the system goes back
to the last selected station. Turn the selector to select an RDS
category. You can use the search or
scan function to find radio stations
on the selected RDS category by
pressing the selector to the right
repeatedly. Press ENTER to set your
selection. If you do nothing while the
RDS category is selected, the
selected category is canceled.You can also select an RDS category
with the TUNE bar. Press either side
( or ) of the TUNE bar to
display an RDS category in the
display. Select a category by pressing
either side of the bar.This f unction searches up and down
a f requency f or the strongest signal
f rom the f requencies that carry the
selected RDS category inf ormation.
This can help you to find a station in
your favorite category. To activate it,
press and release either side
( or ) of the SEEK/SKIP
bar. You will also see the selected
RDScategorynameblinkinginthe
display while searching it. When the
system f inds a station, the selected
RDS category name will be displayed
again for about 5 seconds in the
upper display.
RDS Program Search
Audio System
220
RDS CATEGORYRDS CATEGORY
11/07/20 18:28:33 31SJA670_225
ProCarManuals.com

To activate RDS program search
with the interf ace dial, push the
AUDIO button to display the FM
radio inf ormation on the screen.
Push the selector down, and turn the
knob to select the RDS SEARCH
icon. Press ENTER on the selector.
The screen shows you the RDS
program category list.Turn the knob to the desired RDS
category.
While the RDS category is selected,
move the selector knob to the right
to select SEEK in the upper right
corner of the screen. Then press
ENTER to activate the seek f unction.The scan f unction samples all
stations with strong signals on the
selected RDS category. To activate it,
press and release the SCAN button.
You will see SCAN in the display.
The system will scan f or a station
with a strong signal in the selected
RDS category. You will also see the
selected RDS category name
blinking in the display while
searching it. When the system finds
one, it will stop and play that station
f or about 10 seconds.
CONT INUED
RDS Program SCAN
Audio System
Features
221
RDS CATEGORY LIST
SEEK is selected.SEEK/SCAN ICON
11/07/20 18:28:40 31SJA670_226
ProCarManuals.com

Turn the knob to the desired RDS
category.
To activate RDS program scan with
the interf ace dial, push the AUDIO
button to display the FM radio
inf ormation on the screen. Push the
selector down, and turn the knob to
select the RDS SEARCH icon. Press
ENTER on the selector. The screen
shows you the RDS category list.While the RDS category is selected,
move the selector knob to the right
to select SCAN in the upper right
corner of the screen. Then press
ENTER to activate the scan function. If you do nothing, the system will
scan f or the next strong station and
play it f or 10 seconds. When it plays
a station that you want to listen to,
press the SCAN button again.
If the system does not find a station,
‘‘NOTHING’’ blinks f or about f ive
seconds, then the system goes back
to the last selected station. You can use the RDS program
search or scan f unction even if the
RDS inf ormation display f unction is
of f . In this case, the display shows a
f requency in place of a RDS station
name.
Audio System
222
SEEK/SCAN ICON
RDS CATEGORY LIST
SCAN is selected.
11/07/20 18:28:46 31SJA670_227
ProCarManuals.com

This f unction displays the radio text
inf ormation of the selected RDS
station.
To activate radio text display, use
the interf ace dial. Push the selector
down, and turn the knob to select
RADIO TEXT icon. Press ENTER on
the selector to enter the setting.The display shows up to 64
characters on the selected RDS
station. If the selected RDS station has the
radio text inf ormation, you will see
the text indicator on the screen.
Radio T ext Display
Audio System
Features
223
RADIO TEXT ICONTEXT INDICATOR
11/07/20 18:28:53 31SJA670_228
ProCarManuals.com

Those bands cover these f requen-
cies:
AM band: 530 to 1,710 kHz
FM band: 87.7 to 107.9 MHz
Driving very near the transmitter of
a station that is broadcasting on a
f requency close to the f requency of
the station you are listening to can
also af f ect your radio’s reception.
You may temporarily hear both
stations,orhearonlythestationyou
are close to. The radio can receive the complete
AM and FM bands.How well the radio receives stations
is dependent on many f actors, such
as the distance from the station’s
transmitter, nearby large objects,
and atmospheric conditions.
A radio station’s signal gets weaker
as you get f arther away f rom its
transmitter. If you are listening to an
AM station, you will notice the sound
volume becoming weaker, and the
stationdriftinginandout.If youare
listening to an FM station, you will
see the stereo indicator f lickering of f
and on as the signal weakens.
Eventually, the stereo indicator will
go of f and the sound will f ade
completely as you get out of range of
the station’s signal. Radio stations on the AM band are
assigned f requencies at least 10 kHz
apart (530, 540, 550). Stations on the
FM band are assigned f requencies at
least 0.2 MHz apart (87.9, 88.1, 88.3).
Stations must use these exact
f requencies. It is f airly common f or
stations to round-of f the f requency in
their advertising, so your radio could
display a f requency of 100.9 even
though the announcer may identif y
the station as ‘‘FM101.’’
Audio System
A M/FM Radio Frequencies A M/FM Radio Reception
224
11/07/20 18:29:01 31SJA670_229
ProCarManuals.com

Radio signals, especially on the FM
band, are def lected by large objects
such as buildings and hills. Your
radio then receives both the direct
signal f rom the station’s transmitter,
and the def lected signal. This causes
the sound to distort or flutter. This is
a main cause of poor radio reception
in city driving.Radio reception can be af f ected by
atmospheric conditions such as
thunderstorms, high humidity, and
even sunspots. You may be able to
receive a distant radio station one
day and not receive it the next day
because of a change in conditions.
Electrical interf erence f rom passing
vehicles and stationary sources
(such as garages or parking
structures) can cause temporary
reception problems.
As required by the FCC:
Changes or modif ications not expressly
approved by the party responsible f or
compliance could void the user’s
authority to operate the equipment.
Audio System
Features
225
11/07/20 18:29:07 31SJA670_230
ProCarManuals.com

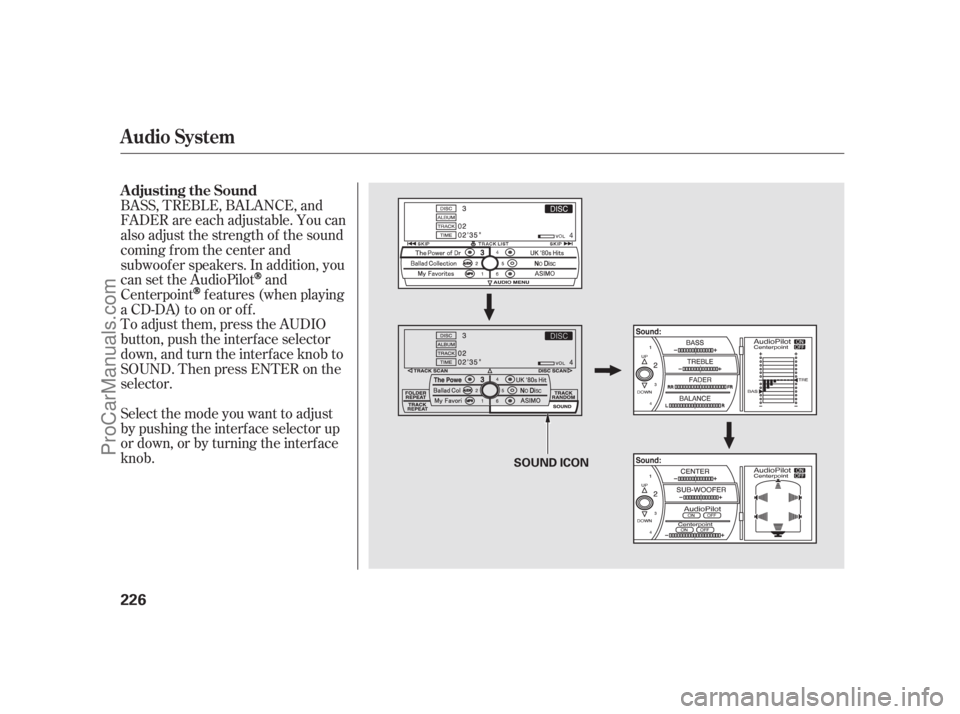

Selectthemodeyouwanttoadjust
by pushing the interf ace selector up
or down, or by turning the interf ace
knob. To adjust them, press the AUDIO
button, push the interf ace selector
down, and turn the interf ace knob to
SOUND. Then press ENTER on the
selector. BASS, TREBLE, BALANCE, and
FADER are each adjustable. You can
also adjust the strength of the sound
coming from the center and
subwoof er speakers. In addition, you
can set the AudioPilot
and
Centerpoint
f eatures (when playing
a CD-DA) to on or of f .
Audio System
Adjusting the Sound
226
SOUND ICON
