2012 ACURA RL display

Turn the knob to the desired RDS
category.
To activate RDS program scan with
the interf ace dial, push the AUDIO
button to display the FM radio
inf ormation on the screen. Push the
selector down, and turn the knob to
select the RDS SEARCH icon. Press
ENTER on the selector. The screen
shows you the RDS category list.While the RDS category is selected,
move the selector knob to the right
to select SCAN in the upper right
corner of the screen. Then press
ENTER to activate the scan function. If you do nothing, the system will
scan f or the next strong station and
play it f or 10 seconds. When it plays
a station that you want to listen to,
press the SCAN button again.
If the system does not find a station,
‘‘NOTHING’’ blinks f or about f ive
seconds, then the system goes back
to the last selected station. You can use the RDS program
search or scan f unction even if the
RDS inf ormation display f unction is
of f . In this case, the display shows a
f requency in place of a RDS station
name.
Audio System
222
SEEK/SCAN ICON
RDS CATEGORY LIST
SCAN is selected.
11/07/20 18:28:46 31SJA670_227
ProCarManuals.com

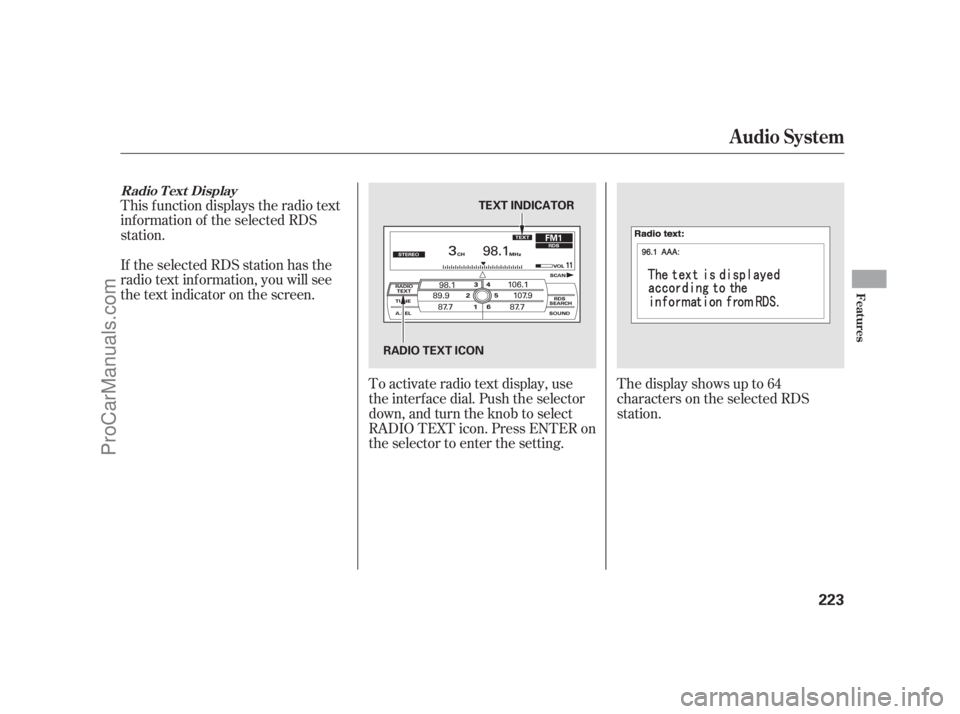

This f unction displays the radio text
inf ormation of the selected RDS
station.
To activate radio text display, use
the interf ace dial. Push the selector
down, and turn the knob to select
RADIO TEXT icon. Press ENTER on
the selector to enter the setting.The display shows up to 64
characters on the selected RDS
station. If the selected RDS station has the
radio text inf ormation, you will see
the text indicator on the screen.
Radio T ext Display
Audio System
Features
223
RADIO TEXT ICONTEXT INDICATOR
11/07/20 18:28:53 31SJA670_228
ProCarManuals.com

Those bands cover these f requen-
cies:
AM band: 530 to 1,710 kHz
FM band: 87.7 to 107.9 MHz
Driving very near the transmitter of
a station that is broadcasting on a
f requency close to the f requency of
the station you are listening to can
also af f ect your radio’s reception.
You may temporarily hear both
stations,orhearonlythestationyou
are close to. The radio can receive the complete
AM and FM bands.How well the radio receives stations
is dependent on many f actors, such
as the distance from the station’s
transmitter, nearby large objects,
and atmospheric conditions.
A radio station’s signal gets weaker
as you get f arther away f rom its
transmitter. If you are listening to an
AM station, you will notice the sound
volume becoming weaker, and the
stationdriftinginandout.If youare
listening to an FM station, you will
see the stereo indicator f lickering of f
and on as the signal weakens.
Eventually, the stereo indicator will
go of f and the sound will f ade
completely as you get out of range of
the station’s signal. Radio stations on the AM band are
assigned f requencies at least 10 kHz
apart (530, 540, 550). Stations on the
FM band are assigned f requencies at
least 0.2 MHz apart (87.9, 88.1, 88.3).
Stations must use these exact
f requencies. It is f airly common f or
stations to round-of f the f requency in
their advertising, so your radio could
display a f requency of 100.9 even
though the announcer may identif y
the station as ‘‘FM101.’’
Audio System
A M/FM Radio Frequencies A M/FM Radio Reception
224
11/07/20 18:29:01 31SJA670_229
ProCarManuals.com

µµ µTo adjust bass
and treble, select BASS or TREBLE,
andpressENTERontheinterface
selector. The current setting is
shownonthedisplay.Turnthe
interf ace knob to the desired level,
and enter your selection by pressing
ENTER on the interf ace selector.These
modes adjust the strength of the
sound coming f rom each speaker.
Fader adjusts the f ront-to-back
strength, while balance adjusts the
side-to-side strength. To adjust f ader
and balance, select FADER or
BALANCE, then press ENTER on
the interf ace selector. The current
setting is shown on the screen. Turn
the interface knob to the desired
level, and enter your selection by
pressing ENTER on the interf ace
selector. To equalize the f ader or
balance, turn the interf ace knob until
the marks on the sound grid come to
the center of the adjustment bar.To
adjust the strength of the sound
f rom the center or subwoof er
speaker, select it and press ENTER
on the interf ace selector. Turn the
interf ace knob to the desired level,
and enter your selection by pressing
ENTER on the interf ace selector.
CONT INUED
BASS/T REBL E FADER/BAL ANCE CENT ER/SUBWOOFER
Audio System
Features
227
11/07/20 18:29:19 31SJA670_232
ProCarManuals.com

µµ
To set this f eature on or of f , select
AudioPilot,andpressENTERonthe
interf ace selector. Turn the interf ace
knob to ON or OFF, and press
ENTER on the interf ace selector.
TheONorOFFindicatorisshown
on the screen.Bose AudioPilot
digital processing monitors sound
within the cabin, and helps
compensate f or unwanted ambient
noise with no perceived change in
audio volume.Bose Centerpointsignal processing processes stereo
and matrix surround recordings to
f ive independent channels, delivering
a multi-channel surround sound
experience, even f rom conventional
stereo discs.
To set this f eature on or of f , select
Centerpoint, and press ENTER on
the interf ace selector. Turn the
interface knob to ON or OFF, and
press ENTER on the interf ace
selector. The ON or OFF indicator is
shownonthedisplay.
Centerpoint
is only available
when listening to a CD (CD-DA).AudioPilot
and Centerpointare
registered trade marks of the Bose
corporation. A udioPilotCenterpoint
Audio System
228
NOTE:
11/07/20 18:29:25 31SJA670_233
ProCarManuals.com

CONT INUED
Except Hawaiian models
Audio System
Playing the XMRadio
Features
229
SCAN
BUTTON UPPER DISPLAY
INTERFACE DIAL POWER/
VOLUME
KNOB
CATEGORY
BUTTONS
AUDIO
DISPLAY
BUTTONDISPLAY/
MODE
BUTTON TUNE
BUTTONS SATELLITE RADIO BUTTON
U.S. models (Technology package model is shown)
and Canadian modelsPRESET BUTTONS
11/07/20 18:29:32 31SJA670_234
ProCarManuals.com

Push the AUDIO button to display
XM inf ormation on the screen. You
can operate the XM Radio system
with the interface dial.
XM Radio receives signals f rom two
satellites to produce clear, high-
quality digital reception. It of f ers
many channels in several categories.
Along with a large selection of
dif f erent types of music, XM Radio
also allows you to view channel and
category selections in the audio
display. Your vehicle is capable of receiving
XM
Radio anywhere in the United
States and Canada, except Hawaii,
Alaska,andPuertoRico.XMisa
registered trademark of Sirius XM
Radio
,Inc.andXMCANADAis a
registered business name of
Canadian Satellite Radio Inc.
To listen to XM Radio, turn the
ignition switch to the ACCESSORY
(I) or ON (II) position, and press the
button. The last channel you
listened to will show in the display.
Adjust the volume by turning the
power/volume knob.
Audio System
Operating the XM Radio
230
11/07/20 18:29:39 31SJA670_235
ProCarManuals.com

µµ
µ µ
CONT INUED
To switch between the
category mode and channel mode,
press and hold the DISP/MODE
button until the mode changes. The
CATEGORY or CHANNEL mode is
displayed on the screen. To switch
the mode with the interf ace dial,
scroll down, select MODE, and press
ENTER on the selector.
In the category mode, such as Jazz,
Rock, Classical, etc., you can
navigate through all of the channels
within that category. In the channel
mode, you can select all of the
available channels.
Each time you press and release the
DISP/MODE button, the audio
display changes in the f ollowing
sequence: channel name, channel
number, category, artist name, and
music title.Onthescreen,youwillseethe
selected CHANNEL (number),
CATEGORY, NAME (artist name),
and TITLE (music title).The scan f unction gives
you a sampling of all channels while
in the channel mode. In the category
mode, only the channels within that
category are scanned. To activate
SCAN, press the SCAN button. To
scan with the interface dial, scroll
down, and push interf ace selector to
the right. You will see SCAN on the
screen.
The system plays each channel in
numerical order f or a f ew seconds,
then selects the next channel. When
you hear a channel you want to
continue listening to, press the
SCAN button or push the interf ace
selector to the right again.
Press either side of the bar to select
another category. You can also
change a category by pushing the
interf ace selector lef t or right. Press either side of the
TUNE bar to change channel
selections. Press the side of the
bar f or higher numbered channels
and the side for lower
numbered channels. You can also
change channels with the interf ace
selector, push down the interf ace
selector to select AUDIO MENU,
then turn the interface knob to
choose TUNE and press ENTER on
the selector. Turn the interface knob
to the appropriate direction. In the
category mode, you can only select
channels within that category.
Audio System
MODE SCA N
CAT EGORY ( or ) TUNE
Features
231
