2012 Acura RDX navigation system

Your vehicle is capable of receiving
XM
®Radio anywhere in the United
States and Canada, except Hawaii,
Alaska, and Puerto Rico. XM is a
registered trademark of Sirius XM
Radio®, Inc. and XM CANADA
®is a
registered business name of
Canadian Satellite Radio Inc.
XM Radio receives signals from two
satellites to produce clear, high-
quality digital reception. It offers
many channels in several categories.
Along with a large selection of
different types of music, XM Radio
also allows you to view channel and
category selections in the audio
display.
CHANNEL MODE
INDICATOR
CATEGORY MODE
INDICATOR
DISP/MODE BUTTONCHANNEL NAME
PRESET
NUMBER
XM BUTTON
SCAN BUTTON SEEK/SKIP
(CATEGORY) BAR
PRESET BARS PWR/VOL KNOB TUNE/FOLDER BAR
CATEGORY NAME
XM BAND
U.S. model is shown.
CONTINUED
Playing the XM
®Radio (Models without navigation system)
179
Features
11/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

Operating the XM Radio
To listen to the XM Radio, turn the
ignition switch to the ACCESSORY
(I) or ON (II) position. Push the
PWR/VOL knob to turn on the audio
system, and press the
button.
Adjust the volume by turning the
PWR/VOL knob. The last channel
you listened to will show on the
audio display.
DISP －Each time you press and
release the DISP/MODE button, the
center display changes in the
following sequence: Channel name,
category, artist name, and music title.
MODE －To switch between the
category mode and channel mode,
press and hold the DISP/MODE
button until the mode changes. A
‘‘ CH ’’(channel) or ‘‘CAT’’ (category)
mode indicator appears on the center
display. To Select a Channel
When in the satellite radio mode, you
can use any of four methods to find
channels: TUNE, SEEK/SKIP
(CATEGORY), SCAN, and the preset
bars.
TUNE
－Press the TUNE/FOLDER
bar to change channel selections.
Press the
side of the bar to tune
to higher numbered channels, and
the
side of the bar to tune to
lower numbered channels. In the
category mode, you can only select
channels within that category.
SEEK/SKIP (CATEGORY) －
Press either side of the SEEK/SKIP
(CATEGORY) bar (
or
)to
select another category. SCAN
－The scan function gives
you a sampling of all channels while
in the channel mode. In the category
mode, only the channels within that
category are scanned. To activate
scan, press the SCAN button. The
system plays each channel in
numerical order for a few seconds,
then selects the next channel. When
you hear a channel you want to
continue listening to, press the
button again.
Playing the XM
®Radio (Models without navigation system)
18011/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

Preset－You can store up to 12
preset channels using each side of
the preset bar. Each side of the bar
stores one channel from the XM1
band and one channel from the XM2
band.
To store a channel:
1. Press the
button. Either
XM1 or XM2 will be shown on the
center display.
2. Use the tune, seek, or scan function to tune to a desired
channel.
In category mode, only channels
within that category can be
selected. In channel mode, all
channels can be selected. 3. Pick a preset number for the
channel you want to store. Press
and hold the appropriate side of
the preset bar until you hear a
beep.
4. Repeat steps 2 and 3 to store the first six channels.
5. Press the
button again. The
other XM band will be shown.
Store the next six channels by
repeating steps 2 and 3.
Once a channel is stored, press and
release the proper side of the preset
bar to tune to it.
Adjusting the Sound
For information, see page 177.
XM Radio Reception
For information, see page 182. XM Radio Display Messages
‘‘
LOADING ’’－ XM is loading the
audio or program information.
‘‘ OFF AIR ’’－ The channel currently
selected is no longer broadcasting.
CONTINUED
Playing the XM
®Radio (Models without navigation system)
181
Features
11/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

‘‘UPDATING ’’－ The encryption
code is being updated. Wait until the
encryption code is fully updated.
Channels 0 and 1 should still work
normally.
‘‘ NO SIGNAL ’’－ The signal is
currently too weak. Move the vehicle
to an area away from tall buildings,
and with an unobstructed view of the
southern horizon.
‘‘ ----’’ －The selected channel
number does not exist, or is not part
of your subscription, or this channel
has no artist or title information at
this time.
‘‘ ANTENNA ’’－ There is a problem
with the XM antenna. Please consult
your dealer.
Signal may be
blocked by
mountains or
large obstacles
to the south. Signal is weaker in
these areas.
SATELLITE GROUND REPEATER
Playing the XM
®Radio (Models without navigation system)
18211/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

Satellite Radio Signals
Satellite radio receives signals from
two satellites to produce clear, high-
quality digital reception. It offers
many channels in several categories.
Along with a large selection of
different types of music, satellite
radio also allows you to view channel
and category selections in the audio
display.
The XM satellites are in orbit over
the equator; therefore, objects south
of the vehicle may cause satellite
reception interruptions. To help
compensate for this, ground-based
repeaters are placed in major
metropolitan areas.
Satellite signals are more likely to be
blocked by tall buildings and
mountains the farther north you
travel from the equator.Depending on where you drive, you
may experience reception problems.
Interference can be caused by any of
these conditions:
●Driving on the north side of an
east/west mountain road.●Driving on the north side of a large
commercial truck on an east/west
road.●Driving in tunnels.●Driving on a road beside a vertical
wall, steep cliff, or hill to the south
of you.●Driving on the lower level of a
multi-tiered road.●Driving on a single lane road
alongside dense trees taller than
50 ft. (15 m) to the south of you.
There may also be other geographic
situations or structures that could
affect satellite radio reception.
As required by the FCC: Changes or modifications not expresslyapproved by the party responsible for
compliance could void the user'sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.
Operation is subject to the following twoconditions: (1) this device may not cause
interference, and (2) this device mustaccept any interference that may causeundesired operation of the device.
CONTINUED
Playing the XM
®Radio (Models without navigation system)
183
Features
11/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

Receiving XM Radio Service
If your XM Radio service has expired
or you purchased your vehicle from a
previous owner, you can listen to a
sampling of the broadcasts available
on XM radio. With the ignition
switch in the ACCESSORY (I) or the
ON (II) position, push the PWR/VOL
knob to turn on the audio system,
and press the
button. A
variety of music types and styles will
play. If you decide to purchase XM Radio
service, contact XM Radio at
www.
xmradio.com,
or at 1-800-852-9696. In
Canada, contact XM CANADA at
www.xmradio.ca,
or at 1-877-209-
0079. You will need to give them
your radio I.D. number and your
credit card number. To get your
radio I.D. number, turn the TUNE
knob until ‘‘0’’ appears in the display.
Your I.D. will appear in the display.
After you've registered with XM
Radio, keep your audio system in the
satellite radio mode while you wait
for activation. This should take about
30 minutes. While waiting for activation, make
sure your vehicle remains in an open
area with good reception. Once your
audio system is activated,
‘‘CAT’’ or
‘‘ CH ’’will appear in the display, and
you'll be able to listen to XM Radio
broadcasts. XM Radio will continue
to send an activation signal to your
vehicle for at least 12 hours from the
activation request. If the service has
not been activated after 36 hours,
contact XM Radio. In Canada, contact
XM CANADA
®.
Playing the XM
®Radio (Models without navigation system)
18411/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

Normal modeMP3/WMA mode
SCAN (D-SCAN) INDICATOR RPT (D-RPT)
INDICATORFOLDER NUMBER
SCAN (F-SCAN)
INDICATOR RPT (F-RPT)
INDICATOR
DISC NUMBER TRACK NUMBER DISC INDICATOR
RDM (F-RDM)
INDICATOR
MP3 MODE
INDICATOR
WMA MODE
INDICATOR
U.S. model is shown.
RDM
INDICATOR
CONTINUED
Playing Discs (Models without navigation system)
185
Features
11/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

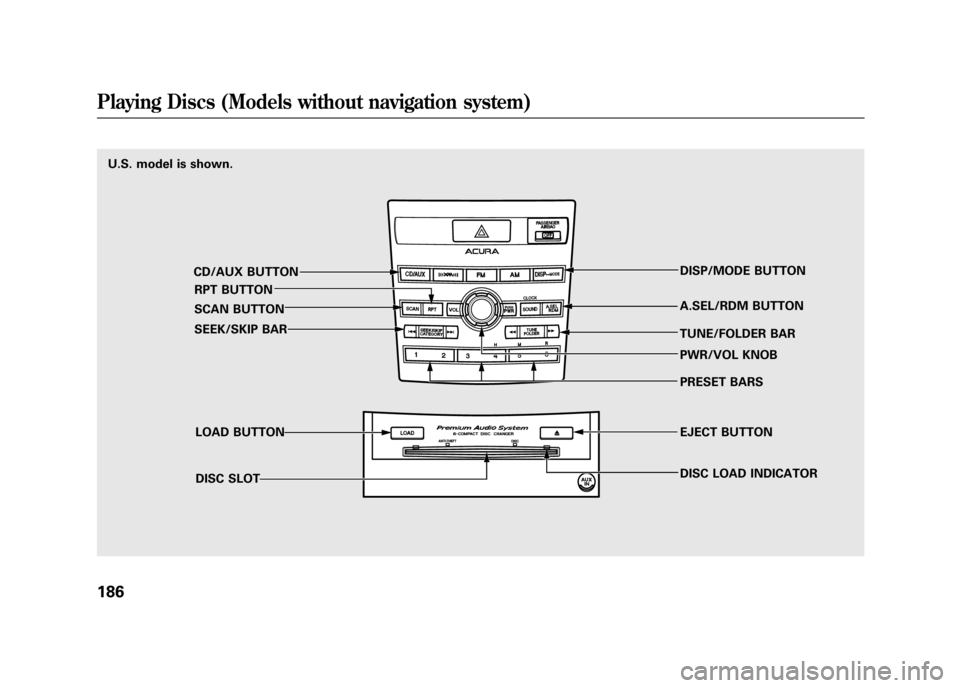

U.S. model is shown.CD/AUX BUTTONRPT BUTTON
SCAN BUTTON
SEEK/SKIP BAR
LOAD BUTTONDISC SLOT DISP/MODE BUTTON
A.SEL/RDM BUTTON
TUNE/FOLDER BAR PWR/VOL KNOB
PRESET BARS
EJECT BUTTON
DISC LOAD INDICATORPlaying Discs (Models without navigation system)18611/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu
