Checking Loads
To accurately check your loads at the
public scale, the vehicle and trailer
should be fully loaded, and all
occupants should stay in the vehicle
while the attendant watches the
scale.1. Check the front gross axle weight.
Limit: 2,888 lbs (1,310 kg)
2. Check the gross vehicle weight.
Limit: 5,952 lbs (2,700 kg)
3. Check the rear gross axle weight.
Limit: 3,175 lbs (1,440 kg)
4. If you cannot weigh the rear axle
directly, you can calculate the rear
gross axle weight by subtracting
the weight in step 1 from the
weight in step 2.
Limit: 3,064 lbs (1,390 kg)
5. Check the gross combined weight.
Limit: 10,053 lbs (4,560 kg)
Remember, maximum gross
combined weight should be
decreased 2% for every 1,000 feet
(305 meters) of elevation.
CONTINUED
Towing a Trailer
491
Driving

6. Check the weight of the hitched
trailer. Write this number down.
7. Check the weight of the unhitched
trailer. Limit: See page 490.
8. Calculate the tongue load. Subtract
the weight in step 6 from the
weight in step 7.
Limit: See page 490.
Recommended: see page 487.
Range: 5-15% for boat trailers
8-15% for other trailersTowing Equipment and
Accessories
Towing generally requires a variety
of supplemental equipment. To
ensure the best quality, we
recommend that you purchase Acura
equipment whenever possible.
Your dealer offers a trailer package
that includes a hitch, a ball mount,
and a wiring harness.
Discuss any additional needs with
your trailer sales or rental agency,
and make sure all equipment is
properly installed, maintained, and
also meets state, federal, province,
and local regulations.
Towing a Trailer492

HitchWe strongly recommend that you
have your dealer install a class 3
hitch. Using non-Acura equipment
may result in serious damage to your
vehicle.
Read the trailer manufacturer's
instructions, and select the
appropriate draw bar for the height of
the trailer you will be towing.Weight Distributing HitchA weight distributing hitch is not
recommended for use with your
vehicle, as an improperly adjusted
weight distributing hitch may reduce
handling, stability, and braking
performance.
Trailer BrakesAcura recommends that any trailer
with a total trailer weight of 1,000 lbs
(450 kg) or more has its own brakes.
There are two common types of
trailer brakes: surge and electric.
Surge brakes are common for boat
trailers, since the brakes will get wet.
If you choose electric brakes, be sure
they are electronically actuated. Do
not attempt to tap into your vehicle's
hydraulic system. No matter how
successful it may seem, any attempt
to attach trailer brakes to your
vehicle's hydraulic system will lower
braking effectiveness and create a
potential hazard.
See your trailer dealer or rental
agency for more information on
installing electric brakes.A 4-pin gray connector is available as
an option at your dealer. This
connector has all of the circuits
required to install most electric
trailer brake controllers. A jumper
harness to adapt your electric trailer
brake controller to the vehicle is
included with the optional Acura
Genuine trailer hitch kit. To obtain a
connector and a trailer hitch kit, see
your dealer.
Have a qualified mechanic install
your trailer brake controller
following the trailer brake controller
manufacturer's instructions. Failure
to properly install the trailer brake
controller may increase the distance
it takes for you to stop your vehicle
when towing a trailer.
CONTINUED
Towing a Trailer
493
Driving

Use this illustration to identify each
terminal in the trailer brake
controller connector.
Safety ChainsAlways use safety chains when you
tow a trailer. Make sure the chains
are secured to the trailer and hitch,
and that they cross under the tongue
and can catch the trailer if it becomes
unhitched. Leave enough slack to
allow the trailer to turn corners
easily, but do not let the chains drag
on the ground.Sway ControlThis device is recommended if your
trailer tends to sway. Your trailer
maker can tell you what kind of sway
control you need and how to install it.Trailer MirrorsMany states and provinces require
special exterior mirrors when towing
a trailer. Even if they don't, you
should install special mirrors if you
cannot clearly see behind you, or if
the trailer creates a blind spot.
Spare TiresWhen towing a trailer, we
recommend that you carry a full-size
spare wheel and tire for your vehicle
and trailer. See page 545 for proper
tire size, page 551 for how to store a
full size wheel and tire, and page 551
for information on changing a flat
tire.
Remember to unhitch the trailer
before changing a flat. Ask your
trailer sales or rental agency where
and how to store the trailer's spare
tire.
BRAKE
(20A)
(BLUE) ELECTRIC BRAKE
(YELLOW)
GROUND
(BLACK)STOP
(LIGHT GREEN)
Towing a Trailer494

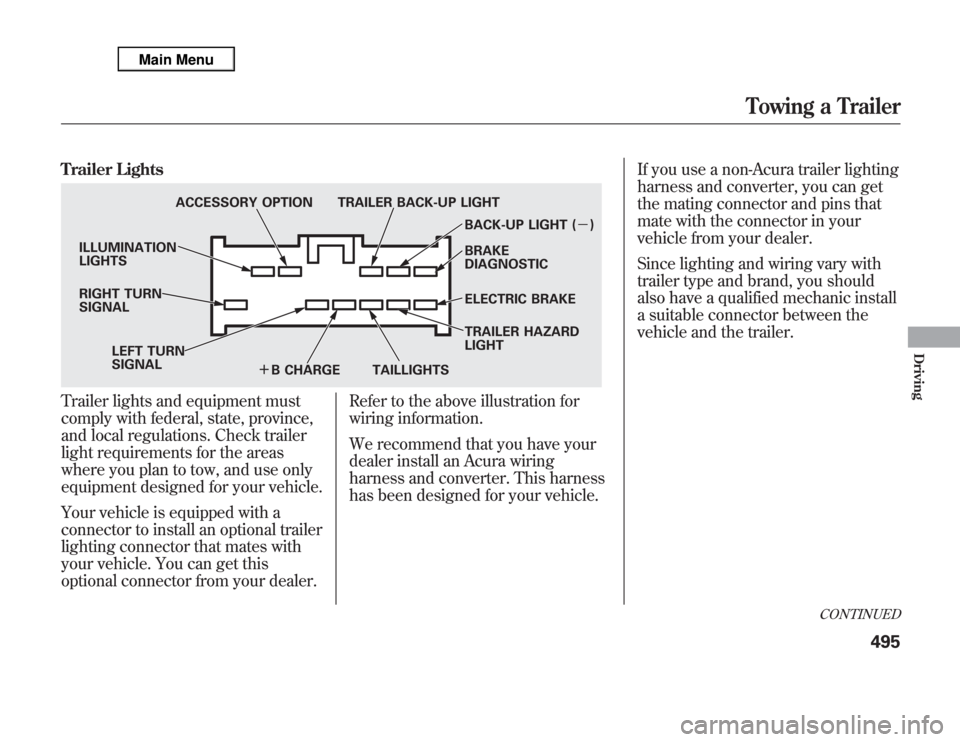

Trailer LightsTrailer lights and equipment must
comply with federal, state, province,
and local regulations. Check trailer
light requirements for the areas
where you plan to tow, and use only
equipment designed for your vehicle.
Your vehicle is equipped with a
connector to install an optional trailer
lighting connector that mates with
your vehicle. You can get this
optional connector from your dealer.Refer to the above illustration for
wiring information.
We recommend that you have your
dealer install an Acura wiring
harness and converter. This harness
has been designed for your vehicle.If you use a non-Acura trailer lighting
harness and converter, you can get
the mating connector and pins that
mate with the connector in your
vehicle from your dealer.
Since lighting and wiring vary with
trailer type and brand, you should
also have a qualified mechanic install
a suitable connector between the
vehicle and the trailer.
ACCESSORY OPTION TRAILER BACK-UP LIGHT
BACK-UP LIGHT (ᤱ)
BRAKE
DIAGNOSTIC
ELECTRIC BRAKE
TRAILER HAZARD
LIGHT
TAILLIGHTS
ᤉB CHARGE LEFT TURN
SIGNAL RIGHT TURN
SIGNAL ILLUMINATION
LIGHTS
CONTINUED
Towing a Trailer
495
Driving

Pre-Tow Checklist
When preparing to tow, and before
driving away, be sure to check the
following:●
The vehicle has been properly
serviced, and the suspension and
the cooling system are in good
operating condition.
●
The trailer has been properly
serviced and is in good condition.
●
All weights and loads are within
limits.
●
The hitch, safety chains, and any
other attachments are secure.
●
All items on and in the trailer are
properly secured and cannot shift
while you drive.
●
The lights and brakes on your
vehicle and the trailer are working
properly.
●
Your vehicle tires and spare are in
good condition and properly
inflated.
●
The trailer tires and spare are in
good condition and inflated as
recommended by the trailer
maker.Driving Safely With a Trailer
The added weight, length, and
height of a trailer will affect your
vehicle's handling and performance,
so driving with a trailer requires
some special driving skills and
techniques.
For your safety and the safety of
others, take time to practice driving
maneuvers before heading for the
open road, and follow the guidelines
in this section.
Towing a Trailer496

Towing Speeds and GearsDrive slower than normal in all
driving situations, and obey posted
speed limits for vehicles with trailers.
Use the D position when towing a
trailer on level roads. See‘‘
Driving on
Hills
’’for additional gear information.
When towing a fixed-sided trailer (e.
g., camper), do not exceed 55 mph
(88 km/h). At higher speeds, the
trailer may sway or affect vehicle
handling.If the automatic transmission fluid
temperature increases and exceeds
the specified limit, the A/T
temperature indicator comes on (see
page 72). You will also see a‘‘A/T
TEMP HIGH’’message on the multi-
information display.
Making Turns and BrakingMake turns more slowly and wider
than normal. The trailer tracks a
smaller arc than your vehicle, and it
can hit or run over something the
vehicle misses.
Allow more time and distance for
braking. Do not brake or turn
suddenly as this could cause the
trailer to jackknife or turn over.
Driving on HillsWhen climbing hills, closely watch
your temperature gauge. If it nears
the red (Hot) mark, turn the air
conditioning off, reduce speed and, if
necessary, pull to the side of the road
to let the engine cool.
If you must stop when facing uphill,
use the foot brake or parking brake.
Do not try to hold the vehicle in place
by pressing on the accelerator, as
this can cause the automatic
transmission to overheat.
When driving down hills, reduce
your speed and shift down to S
position, or use the paddle shifters to
lower gear (3 or 2) in the S position.
When towing a trailer, do not‘‘ride’’
the brakes, and remember, it takes
longer to slow down and stop when
towing a trailer.
CONTINUED
Towing a Trailer
497
Driving

Handling Crosswinds and BuffetingCrosswinds and air turbulence
caused by passing trucks can disrupt
your steering and cause the trailer to
sway. When being passed by a large
vehicle, keep a constant speed, and
steer straight ahead. Do not try to
make quick steering or braking
corrections.Backing UpAlways drive slowly and have
someone guide you when backing
up. Grip the
bottom
of the steering
wheel, then turn the wheel to the left
to get the trailer to move to the left.
Turn the wheel to the right to move
the trailer to the right.
ParkingFollow all normal precautions when
parking, including putting the
transmission in Park and firmly
setting the parking brake. Also, place
wheel chocks at each of the trailer's
tires.
Retrieving a BoatIf the vehicle tires slip when
retrieving a boat from the water,
keep the transmission in the D
position and do not use the
sequential sport shift mode. This
prevents the transmission damage.
Towing Your Vehicle
Your vehicle is not designed to be
towed behind a motor home. If your
vehicle needs to be towed in an
emergency, see page 572.Trailer Stability Assist
Your vehicle is equipped with trailer
stability assist function. This function
works on the same sensors as the
vehicle stability assist (VSA) system.
This function helps to stabilize the
vehicle/trailer combination when the
trailer severely sways or oscillates.
For more information on the VSA
system, see page 473.
If the function detects vehicle/trailer
instability, it checks if the swaying is
caused by the trailer, and if the
trailer swaying or oscillation is
increasing.
The vehicle/trailer combination is
more affected by crosswinds,
buffeting, and improper tongue load.
These conditions can make the
trailer unstable, and cause it to sway.
Towing a Trailer, Trailer Stability Assist498
