2011 YAMAHA YFM700R check engine

EBU17420
TABLE OF CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ............................ 1-1
SAFETY INFORMATION .............................. 2-1
DESCRIPTION .............................................. 3-1
Left view ...................................................... 3-1
Right view.................................................... 3-2
Controls and instruments ............................ 3-3
INSTRUMENT AND CONTROL
FUNCTIONS .................................................. 4-1
Main switch ................................................ 4-1
Indicator lights and warning lights .............. 4-2
Multi-function display .................................. 4-3
Handlebar switches .................................... 4-5
Throttle lever .............................................. 4-6
Speed limiter .............................................. 4-7
Clutch lever ................................................ 4-7
Brake lever ................................................. 4-8
Brake pedal ................................................ 4-8
Parking brake lever .................................... 4-9
Shift pedal ................................................ 4-10
Reverse knob “REV” ................................ 4-10Fuel tank cap ............................................4-11
Fuel ...........................................................4-11
Seat ..........................................................4-13
Adjusting the front shock absorber
assemblies ..............................................4-14
Adjusting the rear shock absorber
assembly .................................................4-19
PRE-OPERATION CHECKS ..........................5-1
Fuel .............................................................5-4
Engine oil ....................................................5-4
Coolant .......................................................5-4
Front and rear brakes .................................5-4
Throttle lever ...............................................5-5
Drive chain ..................................................5-5
Tires ............................................................5-5
Chassis fasteners .......................................5-7
Instruments, lights and switches .................5-7
OPERATION...................................................6-1
Starting the engine ......................................6-1
Shifting ........................................................6-2
Operating the reverse knob and driving
in reverse ..................................................6-4U1AS61E0.book Page 1 Thursday, February 11, 2010 2:17 PM

Engine break-in .......................................... 6-5
Parking ....................................................... 6-5
Parking on a slope ..................................... 6-6
Accessories and loading ............................ 6-7
RIDING YOUR ATV ...................................... 7-1
GETTING TO KNOW YOUR ATV............... 7-2
RIDE WITH CARE AND GOOD
JUDGMENT .............................................. 7-2
BE CAREFUL WHERE YOU RIDE ............. 7-9
TURNING YOUR ATV .............................. 7-12
CLIMBING UPHILL ................................... 7-13
RIDING DOWNHILL.................................. 7-16
CROSSING A SLOPE............................... 7-18
CROSSING THROUGH SHALLOW
WATER ................................................... 7-19
RIDING OVER ROUGH TERRAIN ........... 7-20
SLIDING AND SKIDDING ......................... 7-21
WHAT TO DO IF... .................................... 7-22
WHAT TO DO... ........................................ 7-22
PERIODIC MAINTENANCE AND
ADJUSTMENT ............................................... 8-1
Owner’s manual and tool kit ....................... 8-2
Periodic maintenance chart for
the emission control system ..................... 8-3General maintenance and lubrication
chart ..........................................................8-5
Removing and installing the panel ..............8-9
Checking the spark plug .............................8-9
Engine oil and oil filter element .................8-12
Coolant .....................................................8-16
Cleaning the air filter element ...................8-20
Cleaning the spark arrester ......................8-24
Adjusting the engine idling speed .............8-26
Adjusting the throttle cable free play .........8-27
Valve clearance ........................................8-28
Adjusting the reverse lock release
cable .......................................................8-28
Brakes .......................................................8-28
Checking the front and rear brake pads ...8-29
Checking the brake fluid level ...................8-30
Changing the brake fluid ...........................8-32
Checking the front brake lever free play ...8-32
Checking the brake pedal position ............8-32
Adjusting the parking brake free play .......8-33
Brake light switches ..................................8-34
Adjusting the clutch lever free play ...........8-35
Drive chain slack .......................................8-36
Lubricating the drive chain ........................8-38
Checking and lubricating the cables .........8-39
Checking and lubricating the brake and
clutch levers ............................................8-40
U1AS61E0.book Page 2 Thursday, February 11, 2010 2:17 PM

2-3
2speed when climbing a hill. If you stall or roll
backwards, follow the special procedure for
braking described in this manual. Dismount on
the uphill side or to a side if pointed straight up-
hill. Turn the ATV around and remount, following
the procedure described in this manual.

Always check for obstacles before operating in a
new area.
Never attempt to operate over large obstacles,
such as large rocks or fallen trees. Always follow
proper procedures when operating over obsta-
cles as described in this manual.
Always be careful when skidding or sliding.
Learn to safely control skidding or sliding by
practicing at low speeds and on level, smooth
terrain. On extremely slippery surfaces, such as
ice, go slowly and be very cautious in order to re-
duce the chance of skidding or sliding out of con-
trol.
Never operate an ATV in fast flowing water or in
water deeper than that recommended in this
manual. Remember that wet brakes may have
reduced stopping ability. Test your brakes after
leaving water. If necessary, apply them several
times to let friction dry out the linings.

Always be sure there are no obstacles or people
behind you when you operate in reverse. When
it is safe to proceed in reverse, go slowly.
Always use the size and type of tires specified in
this manual.
Always maintain proper tire pressure as de-
scribed in this manual.
Never modify an ATV through improper installa-
tion or use of accessories.
Never exceed the stated load capacity for an
ATV. Cargo should be properly distributed and
securely attached. Reduce speed and follow in-
structions in this manual for carrying cargo or
pulling a trailer. Allow greater distance for brak-
ing.
WARNING
EWB00071Avoid Carbon Monoxide Poisoning
All engine exhaust contains carbon monoxide,
a deadly gas. Breathing carbon monoxide can
cause headaches, dizziness, drowsiness, nau-
sea, confusion, and eventually death.
Carbon Monoxide is a colorless, odorless,
tasteless gas which may be present even if you
do not see or smell any engine exhaust. Deadly
levels of carbon monoxide can collect rapidly
U1AS61E0.book Page 3 Thursday, February 11, 2010 2:17 PM

4-2
4
EBU26694Indicator lights and warning lights EBU17860Neutral indicator light“”
This indicator light comes on when the transmis-
sion is in the neutral position.EBU17830Reverse indicator light“”
This indicator light comes on when the transmis-
sion is in the reverse position.
EBU26702Coolant temperature warning light“”
This warning light comes on when the engine over-
heats. When this occurs during operation, stop the
engine as soon as it is safe to do so and allow it to
cool down for about 10 minutes.
The electrical circuit of the warning light can be
checked by turning the key to “ON”. The warning
light should come on for a few seconds, and then
go off.
If the warning light does not come on initially when
the key is turned to “ON”, or if the warning light re-
mains on, have a Yamaha dealer check the electri-
cal circuit.NOTICEECB00010
The engine may overheat if the ATV is over-
loaded. In this case, reduce the load to spec-
ification.
Start the engine after making sure that the
warning light is out. Continuous use while
the warning light is on may cause damage to
the engine.
1. Neutral indicator light “N”
2. Reverse indicator light “R”
3. Coolant temperature warning light“”
4. Engine trouble warning light“”
5. Fuel level warning light“”5
412
3
U1AS61E0.book Page 2 Thursday, February 11, 2010 2:17 PM

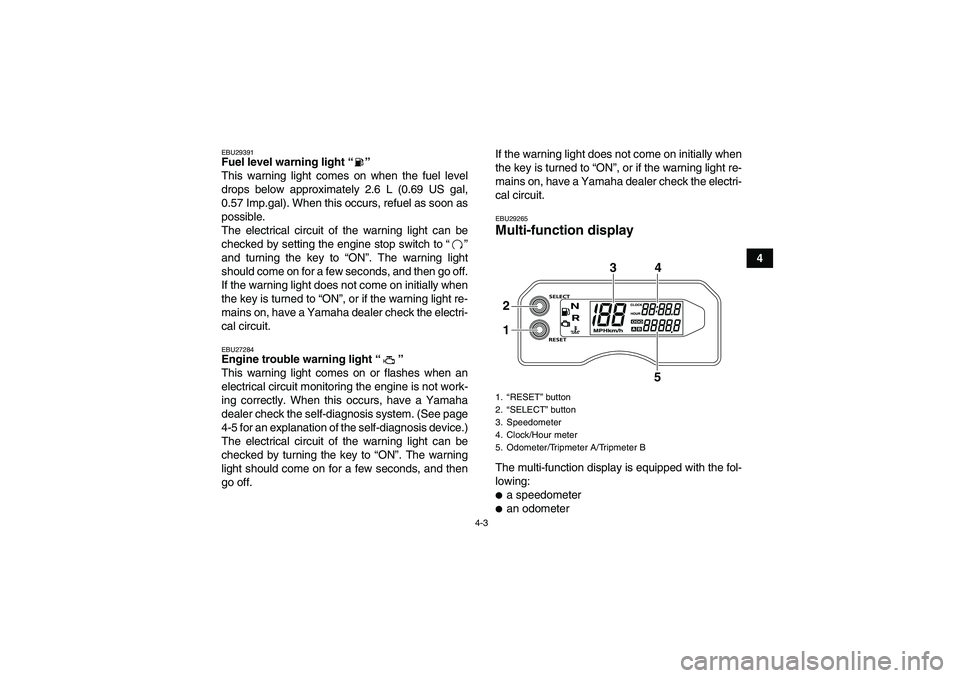

4-3
4
EBU29391Fuel level warning light“”
This warning light comes on when the fuel level
drops below approximately 2.6 L (0.69 US gal,
0.57 Imp.gal). When this occurs, refuel as soon as
possible.
The electrical circuit of the warning light can be
checked by setting the engine stop switch to“”
and turning the key to “ON”. The warning light
should come on for a few seconds, and then go off.
If the warning light does not come on initially when
the key is turned to “ON”, or if the warning light re-
mains on, have a Yamaha dealer check the electri-
cal circuit.EBU27284Engine trouble warning light“”
This warning light comes on or flashes when an
electrical circuit monitoring the engine is not work-
ing correctly. When this occurs, have a Yamaha
dealer check the self-diagnosis system. (See page
4-5 for an explanation of the self-diagnosis device.)
The electrical circuit of the warning light can be
checked by turning the key to “ON”. The warning
light should come on for a few seconds, and then
go off.If the warning light does not come on initially when
the key is turned to “ON”, or if the warning light re-
mains on, have a Yamaha dealer check the electri-
cal circuit.
EBU29265Multi-function display The multi-function display is equipped with the fol-
lowing:
a speedometer
an odometer1.“RESET” button
2.“SELECT” button
3. Speedometer
4. Clock/Hour meter
5. Odometer/Tripmeter A/Tripmeter B2
134
5
U1AS61E0.book Page 3 Thursday, February 11, 2010 2:17 PM

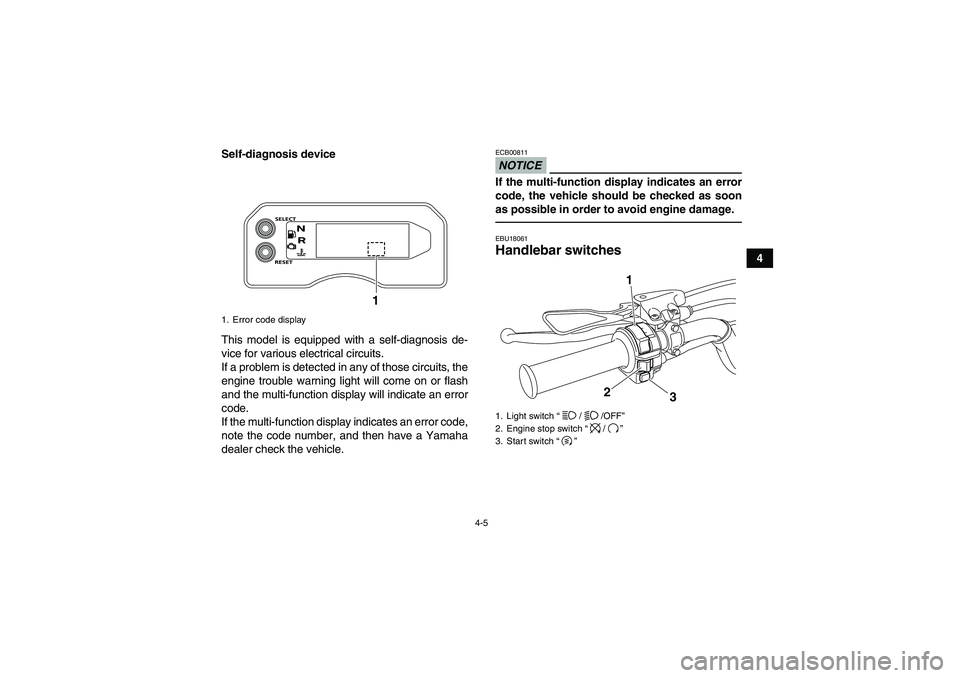

4-5
4 Self-diagnosis device
This model is equipped with a self-diagnosis de-
vice for various electrical circuits.
If a problem is detected in any of those circuits, the
engine trouble warning light will come on or flash
and the multi-function display will indicate an error
code.
If the multi-function display indicates an error code,
note the code number, and then have a Yamaha
dealer check the vehicle.
NOTICEECB00811If the multi-function display indicates an error
code, the vehicle should be checked as soon
as possible in order to avoid engine damage.EBU18061Handlebar switches
1. Error code display
1
1. Light switch“//OFF”
2. Engine stop switch“/”
3. Start switch“”
1
2
3
U1AS61E0.book Page 5 Thursday, February 11, 2010 2:17 PM

4-7
4 Before starting the engine, check the throttle to be
sure it is operating smoothly. Make sure it returns
to the idle position as soon as the lever is released.
EBU18323Speed limiter Your ATV is equipped with an adjustable speed
limiter. The speed limiter keeps the throttle from
fully opening, even when the throttle lever is
pushed to the maximum.
1. Loosen the locknut.
2. To increase the maximum engine power avail-
able and the maximum speed of the ATV, turn
the adjusting screw in direction (a). To de-
crease the maximum engine power available
and the maximum speed of the ATV, turn the
adjusting screw in direction (b). Do not turn
the adjusting screw out more than 12 mm
(0.47 in) or the throttle cable could be dam-
aged. Always make sure the throttle lever free
play is adjusted to 2.0–4.0 mm (0.08–0.16 in).
(See page 8-27.) WARNING! Improper ad-
justment of the speed limiter and throttle
could cause throttle cable damage or im-
proper throttle operation. You could lose
control, resulting in an accident.
[EWB00241]
3. Tighten the locknut.EBU18382Clutch lever The clutch lever is located on the left handlebar
and the ignition circuit cut-off system is incorporat-
ed in the clutch lever holder. To disengage the
clutch, pull the clutch lever toward the handlebar
grip. To engage the clutch, release the clutch lever.
The clutch lever should be pulled rapidly and re-1. Locknut
2. Adjusting screw
3. No more than 12 mm (0.47 in)
3
12
(a) (b)
U1AS61E0.book Page 7 Thursday, February 11, 2010 2:17 PM

5-1
5
EBU19201
PRE-OPERATION CHECKS
EBU19224Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always
follow the inspection and maintenance procedures and schedules described in the Owner’s Manual.
WARNING
EWB00481Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equip-
ment damage. Do not operate the vehicle if you find any problem. If a problem cannot be corrected
by the procedures provided in this manual, have the vehicle inspected by a Yamaha dealer.Before using this vehicle, check the following points:
ITEM ROUTINE PAGE
FuelCheck fuel level in fuel tank, and add recommended fuel if neces-
sary.
Check fuel line for leakage. Correct if necessary.4-11, 5-4
Engine oilCheck oil level in engine, and add recommended oil to specified lev-
el if necessary.
Check ATV for oil leakage. Correct if necessary.5-4, 8-12
CoolantCheck coolant level in reservoir, and add recommended coolant to
specified level if necessary.
Check cooling system for leakage. Correct if necessary.5-4, 8-16
U1AS61E0.book Page 1 Thursday, February 11, 2010 2:17 PM
