Page 21 of 140
4-3
4
EBU18061Handlebar switches
EBU18080Engine stop switch“/”
Set this switch to “ ” before starting the engine.
The engine stop switch controls the ignition and
stops the engine when it is running. Use this switch
to stop the engine in an emergency situation. The
engine will not start or run when this switch is set
to “ ”.EBU18100Start switch“”
Push this switch to crank the engine with the start-
er.
1. Light switch “ / / ”
2. Start switch “ ”
3. Horn switch “ ”
4. Hazard switch “ ”
5. Turn signal switch “ / ”
12345
1. Engine stop switch “ / ”
U33B70E0.book Page 3 Wednesday, June 11, 2008 1:38 PM
Page 22 of 140
4-4
4
NOTICEECB00050See the starting instructions on page 6-1 priorto starting the engine.EBU28061Light switch“//”
Set the switch to “ ” to turn on the high beam.
Set this switch to “ ” to turn on the low beam.
Set the switch to “ ” to turn off the headlight.NOTICEECB00030Do not use the headlight with the engine turned
off for an extended period of time, otherwise
the battery may discharge to the point that the
starter motor will not operate properly. If this
should happen, remove the battery and re-charge it.EBU27990Turn signal switch“/”
To signal a right-hand turn, push this switch
to “ ”. To signal a left-hand turn, push this switch
to “ ”. When released, the switch returns to the
center position. To cancel the turn signal lights,
push the switch in after it has returned to the center
position.
EBU18170Horn switch“”
Press the switch to sound the horn.EBUM0220Hazard switch“”
Turn this switch to “ ” to turn on the hazard lights
(simultaneous flashing of all turn signal lights).
The hazard lights are used in case of an emergen-
cy or to warn other drivers when your vehicle is
stopped where it might be a traffic hazard.NOTICEECB00860Do not use the hazard lights for an extended
length of time with the engine not running, oth-erwise the battery may discharge.EBU18280Throttle lever Once the engine is running, movement of the throt-
tle lever will increase the engine speed.
Regulate the speed of the ATV by varying the
throttle position. Because the throttle is spring-
loaded, the ATV will decelerate, and the engine will
return to an idle any time the hand is removed from
the throttle lever.
U33B70E0.book Page 4 Wednesday, June 11, 2008 1:38 PM

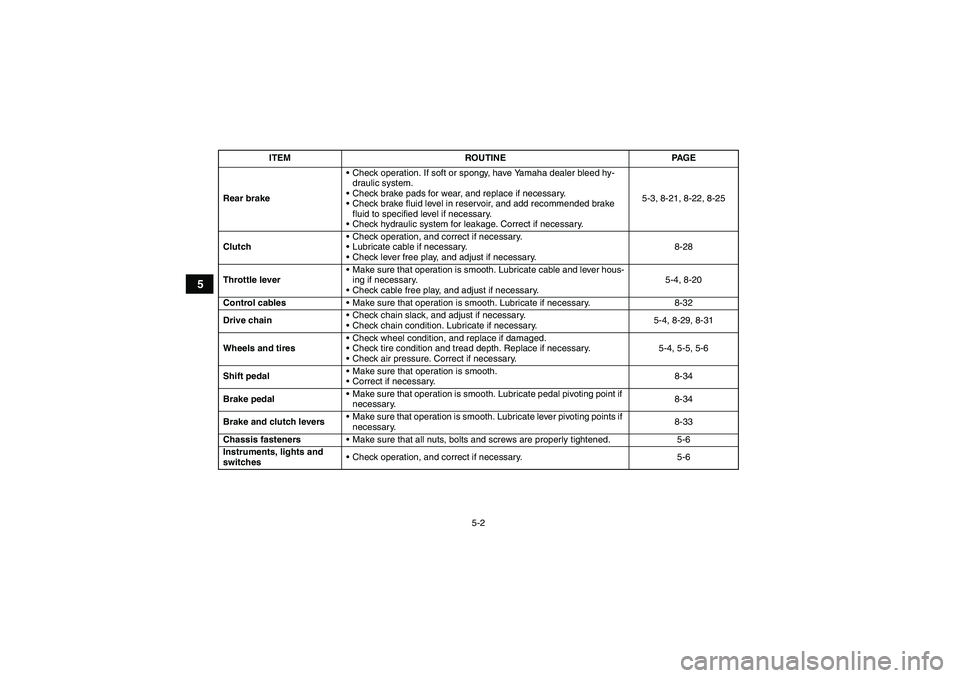

Page 46 of 140
5-2
5
Rear brakeCheck operation. If soft or spongy, have Yamaha dealer bleed hy-
draulic system.
Check brake pads for wear, and replace if necessary.
Check brake fluid level in reservoir, and add recommended brake
fluid to specified level if necessary.
Check hydraulic system for leakage. Correct if necessary.5-3, 8-21, 8-22, 8-25
ClutchCheck operation, and correct if necessary.
Lubricate cable if necessary.
Check lever free play, and adjust if necessary.8-28
Throttle leverMake sure that operation is smooth. Lubricate cable and lever hous-
ing if necessary.
Check cable free play, and adjust if necessary.5-4, 8-20
Control cablesMake sure that operation is smooth. Lubricate if necessary. 8-32
Drive chainCheck chain slack, and adjust if necessary.
Check chain condition. Lubricate if necessary.5-4, 8-29, 8-31
Wheels and tiresCheck wheel condition, and replace if damaged.
Check tire condition and tread depth. Replace if necessary.
Check air pressure. Correct if necessary.5-4, 5-5, 5-6
Shift pedalMake sure that operation is smooth.
Correct if necessary.8-34
Brake pedal Make sure that operation is smooth. Lubricate pedal pivoting point if
necessary.8-34
Brake and clutch leversMake sure that operation is smooth. Lubricate lever pivoting points if
necessary.8-33
Chassis fastenersMake sure that all nuts, bolts and screws are properly tightened. 5-6
Instruments, lights and
switchesCheck operation, and correct if necessary. 5-6 ITEM ROUTINE PAGEU33B70E0.book Page 2 Wednesday, June 11, 2008 1:38 PM
Page 50 of 140
5-6
5
Set the tire pressure when the tires are cold. Set
the tire pressures to the following specifications:
EBU19830Tire wear limit Replace the tire when the tire groove decreases to
3 mm (0.12 in).EBU19840Chassis fasteners Make sure that all nuts, bolts and screws are prop-
erly tightened.EBU19850Instruments, lights and switches Check that all instruments, lights and switches are
working properly. Correct if necessary.
1. Low-pressure tire gaugeRecommended pressure:
Fro nt
27.5 kPa (0.275 kgf/cm², 4.0 psi)
Rear
27.5 kPa (0.275 kgf/cm², 4.0 psi)
Minimum:
Fro nt
24.5 kPa (0.245 kgf/cm², 3.6 psi)
Rear
24.5 kPa (0.245 kgf/cm², 3.6 psi)
1. Tire wear limit
U33B70E0.book Page 6 Wednesday, June 11, 2008 1:38 PM
Page 51 of 140
6-1
6
EBU19880
OPERATION
EBU19900Read the Owner’s Manual carefully before riding
the ATV.
WARNING
EWB00630Read the Owner’s Manual carefully to become
familiar with all controls in order to help pre-
vent any loss of control, which could cause an
accident or injury. If there is a control or func-
tion you do not understand, ask your Yamahadealer.EBU20181Starting a cold engine
WARNING
EWB00640Always make sure all control cables work
smoothly before you begin riding in cold
weather. If the control cables are frozen or do
not work smoothly, you could be unable to
control the ATV, which could lead to an acci-dent or collision.
NOTICEECB00150See the “Engine break-in” section on page 6-5prior to operating the engine for the first time.
1. Set the parking brake.
2. Turn the fuel cock to “ON”.
3. Turn the main switch to “ON” and the engine
stop switch to“”.
4. Shift the transmission into neutral. The neutral
indicator light should come on. If the indicator
light does not come on, have a Yamaha deal-
er check the electrical circuit.TIPThis model is equipped with an ignition circuit cut-
off system. The engine can be started under the
following conditions.The transmission is in neutral.The clutch is disengaged with the transmission
in gear. However, it is recommended to shift intoneutral before starting the engine.
5. Use the starter (choke) in reference to the fig-
ure:
U33B70E0.book Page 1 Wednesday, June 11, 2008 1:38 PM
Page 53 of 140
6-3
6
TIPThe engine is warm when it responds normally tothe throttle with the starter (choke) turned off.EBU20291Starting a warm engine Follow the same procedure as for starting a cold
engine, with the exception that the starter (choke)
is not required when the engine is warm. Instead,
start the engine with the throttle slightly open.EBU20520Shifting This ATV has a 5-speed forward transmission. The
transmission allows you to control the amount of
power you have available at a given speed or for
starting, accelerating, climbing hills, etc.
To shift into neutral, return the throttle lever to the
closed position, apply the clutch, and then repeat-
edly depress the shift pedal until it stops.
When it stops, it will be in first gear. Raise the pedal
slightly to reach the neutral position.
EBU28111To start out and accelerate
1. Release the throttle lever, and then release
the parking brake.NOTICEECB00200Always close the throttle before shifting gears,
otherwise damage to the engine and drive trainmay result.
2. Pull the clutch lever to disengage the clutch.
3. Shift into first gear.
4. Open the throttle gradually and at the same
time, release the clutch lever slowly.1. Shift pedal
2. Neutral position
1
2
2 3 4 5N1
U33B70E0.book Page 3 Wednesday, June 11, 2008 1:38 PM
Page 71 of 140
7-13
7
WARNING
EWB01720Always open the throttle gradually and release
the clutch lever slowly. Otherwise, the ATV
could wheelie which would increase thechance of an accident.NOTICEECB00230Do not shift gears without releasing the throt-
tle. Damage to the engine or drive train may oc-cur.
When slowing down or stopping, release the throt-
tle and apply the brakes smoothly and evenly. As
you slow down, shift to a lower gear. Be sure that
the engine has sufficiently slowed before engaging
a lower gear. Improper use of the brakes or shifting
can cause the tires to lose traction, reducing con-
trol and increasing the possibility of an accident.
WARNING
EWB01560Make sure the engine has sufficiently slowed
before shifting to a lower gear. Engaging a low-
er gear when the engine speed is too highcould cause the wheels to stop rotating.TURNING YOUR ATV
To achieve maximum traction on unpaved surfac-
es, the two rear wheels are mounted solidly on one
axle and turn together at the same speed. There-
fore, unless the wheel on the inside of the turn is al-
lowed to slip or lose some traction, the ATV will
resist turning. A special turning technique must be
used to allow the ATV to make turns quickly and
easily. It is essential that this skill be learned first at
low speed.
WARNING
EWB01570Always follow proper procedures for turning
as described in this Owner’s Manual. Practice
turning at low speeds before attempting to turn
at faster speeds. Do not turn at speeds too fastfor your skills or the conditions.
As you approach a curve, slow down and begin to
turn the handlebars in the desired direction. As you
do so, put your weight on the footboard to the out-
side of the turn (opposite your desired direction)
and lean your upper body into the turn. Use the
throttle to maintain an even speed through the turn.
This maneuver will let the wheel on the inside of
the turn slip slightly, allowing the ATV to make the
turn properly.
U33B70E0.book Page 13 Wednesday, June 11, 2008 1:38 PM
Page 77 of 140
7-19
7 As you travel across a slope, lean your body in the
uphill direction. It may be necessary to correct the
steering when riding on loose surfaces by pointing
the front wheels slightly uphill. When riding on
slopes, be sure not to make sharp turns either up
or down hill.
If your ATV does begin to tip over, gradually steer
in the downhill direction if there are no obstacles in
your path. As you regain proper balance, gradually
steer again in the direction you wish to travel.
WARNING
EWB01631Never attempt to turn the ATV around on any
hill until you have mastered the turning tech-
nique as described in the Owner’s Manual on
level ground. Be very careful when turning on
any hill. Avoid crossing the side of a steep hill
if possible.
When crossing the side of a hill:Always follow proper procedures as de-
scribed in the Owner’s Manual.Avoid hills with excessively slippery or loose
surfaces.Shift your weight to the uphill side of theATV.CROSSING THROUGH SHALLOW WATER
The ATV can be used to cross slow moving, shal-
low water of up to a maximum of 35 cm (14 in) in
depth. Before entering the water, choose your path
carefully. Enter where there is no sharp drop off,
and avoid rocks or other obstacles which may be
slippery or upset the ATV. Drive slowly and care-
fully.
U33B70E0.book Page 19 Wednesday, June 11, 2008 1:38 PM
