8-39
8 ject in place of the proper fuse. An
improper fuse or a substitute object can
cause damage to the electrical system,
which could lead to a fire.
[EWB02172]
3. Turn the key to “ON” and turn on the electrical
circuits to check if the devices operate.
4. If the fuse immediately blows again, have a
Yamaha dealer check the electrical system.
5. Install the battery holding plate by installing
the bolts, and then hook the band to secure
the owner’s tool kit.
6. Install the seat.EBU25443Replacing a headlight bulb If a headlight bulb burns out, replace it as follows.
1. Remove the headlight unit by removing the
bolt.2. Disconnect the headlight coupler.
3. Remove the headlight bulb holder cover. Specified fuses:
Fuse:
15.0 A
1. Headlight unit
2. Bolt
1 2
U1BT61E0.book Page 39 Tuesday, April 6, 2010 1:28 PM

8-40
84. Remove the headlight bulb holder by pushing
it in and turning it counterclockwise, and then
remove the burnt-out bulb.5. Place a new headlight bulb into position.
NOTICE: Do not touch the glass part of the
headlight bulb to keep it free from oil, oth-
erwise the transparency of the glass, the
luminosity of the bulb, and the bulb life will
be adversely affected. Thoroughly clean
off any dirt and fingerprints on the head-
light bulb using a cloth moistened with al-
cohol or thinner.
[ECB00651]
1. Headlight bulb holder cover
2. Headlight coupler
1
2
1. Headlight bulb holder
1
U1BT61E0.book Page 40 Tuesday, April 6, 2010 1:28 PM

8-41
8 6. Install the headlight bulb holder by pushing it
in and turning it clockwise.
7. Install the headlight bulb holder cover.
8. Connect the headlight coupler.
9. Install the headlight unit by installing the bolt.
10. Adjust the headlight beam if necessary.

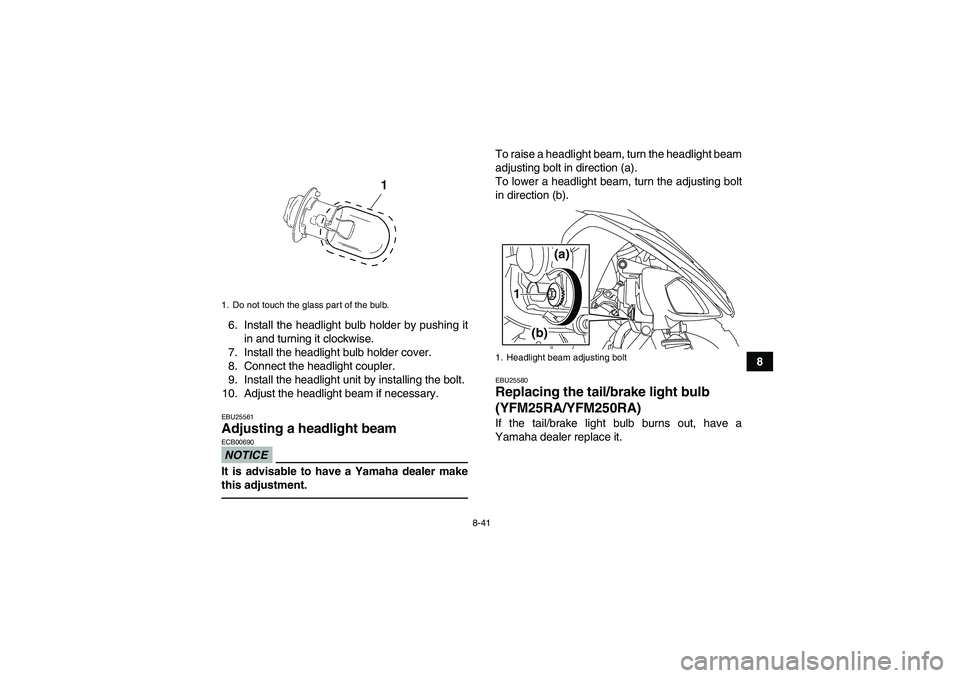

EBU25561Adjusting a headlight beam NOTICEECB00690It is advisable to have a Yamaha dealer make
this adjustment.
To raise a headlight beam, turn the headlight beam
adjusting bolt in direction (a).
To lower a headlight beam, turn the adjusting bolt
in direction (b).EBU25580Replacing the tail/brake light bulb
(YFM25RA/YFM250RA)If the tail/brake light bulb burns out, have a
Yamaha dealer replace it.
1. Do not touch the glass part of the bulb.
1
1. Headlight beam adjusting bolt
1(a)
(b)
U1BT61E0.book Page 41 Tuesday, April 6, 2010 1:28 PM

10-4
10
Rim size:
9 x 8.0ATFront brake:Type:
Dual disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4Rear brake:Type:
Single disc brake
Operation:
Right foot operation
Recommended fluid:
DOT 4Front suspension:Type:
Double wishbone
Spring/shock absorber type:
YFM250RA Coil spring/oil damper
YFM250RSEA Coil spring/gas-oil damper
YFM25RA Coil spring/oil damper
YFM25RSEA Coil spring/gas-oil damper
Wheel travel:
190 mm (7.5 in)Rear suspension:Type:
Swingarm
Spring/shock absorber type:
Coil spring/gas-oil damperWheel travel:
200 mm (7.9 in)
Electrical system:Ignition system:
DC CDI
Charging system:
AC magnetoBattery:Model:
YTZ7S
Voltage, capacity:
12 V, 6.0 AhHeadlight:Bulb type:
Krypton bulbBulb voltage, wattage × quantity:Headlight:
12 V, 30/30 W × 2
Tail/brake light:
YFM250RA 12 V, 5.0/21.0 W × 1
YFM25RA 12 V, 5.0/21.0 W × 1
Tail/brake light:
YFM250RSEA LED
YFM25RSEA LED
Neutral indicator light:
12 V, 1.7 W × 1Fuse:Fuse:
15.0 A
