2011 YAMAHA XT660Z engine

ECAS0040
The following warning lights and
indicator lights should come on for
a few seconds, then go off.
Neutral indicator light
Turn signal indicator light
High beam indicator light
Engine trouble warning light
Coolant temperature warning
light
Immobilizer system indicator
light
ABS warning light (for ABS
model)
If a warning or indicator light does
not go off, see page 3-4 for the
corresponding warning and indica-
tor light circuit check.
2. Shift the transmission into the
neutral position.
TIP
When the transmission is in the neu-
tral position, the neutral indicator light
should be on, otherwise have a
Yamaha dealer check the electrical
circuit.
3. Start the engine by pushing the
start switch. NOTICE: For maxi-
mum engine life, never accele-
rate hard when the engine is
cold!
[ECA11041]
TIP
If the engine fails to start, release the
start switch, wait a few seconds, and
then try again. Each starting attempt
should be as short as possible to pre-
serve the battery. Do not crank the
engine more than 10 seconds on any
one attempt.
TIP
The engine is warm when it quickly
responds to the throttle.
EAU16671
Shifting
1. Shift pedal
2. Neutral position
Shifting gears lets you control the
amount of engine power available for
starting off, accelerating, climbing
hills, etc.
The gear positions are shown in the
illustration.
TIP
To shift the transmission into the neu-
tral position, press the shift pedal
down repeatedly until it reaches the
end of its travel, and then slightly rai-
se it.
NOTICE
OPERATION AND IMPORTANT RIDING POINTS
5-2
5
56P-F8199-E0 30/6/10 09:24 Página 44

ECA10260
Even with the transmission in
the neutral position, do not
coast for long periods of time
with the engine off, and do not
tow the motorcycle for long
distances. The transmission is
properly lubricated only when
the engine is running. Inade-
quate lubrication may damage
the transmission.
Always use the clutch while
changing gears to avoid dama-
ging the engine, transmission,
and drive train, which are not
designed to withstand the
shock of forced shifting.
EAU16810
Tips for reducing fuel
consumption
Fuel consumption depends largely on
your riding style. Consider the follo-
wing tips to reduce fuel consumption:
Shift up swiftly, and avoid high
engine speeds during accelera-
tion.
Do not rev the engine while shif-
ting down, and avoid high engine
speeds with no load on the engi-
ne.
Turn the engine off instead of let-
ting it idle for an extended length
of time (e.g., in traffic jams, at
traffic lights or at railroad cros-
sings).
EAU16841
Engine break-in
There is never a more important
period in the life of your engine than
the period between 0 and 1600 km
(1000 mi). For this reason, you should
read the following material carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1600 km (1000 mi). The various parts
in the engine wear and polish them-
selves to the correct operating clea-
rances. During this period, prolonged
full-throttle operation or any condition
that might result in engine overhea-
ting must be avoided.
EAU17101
0–1000 km (0–600 mi)
Avoid prolonged operation above
4500 r/min. NOTICE: After 1000
km (600 mi) of operation, the
engine oil must be changed,
and the oil filter element repla-
ced.
[ECA11151]
1000–1600 km (600–1000 mi)
Avoid prolonged operation above
6000 r/min.
NOTICE
OPERATION AND IMPORTANT RIDING POINTS
5-3
5
56P-F8199-E0 30/6/10 09:24 Página 45

1600 km (1000 mi) and beyond
The vehicle can now be operated
normally.
ECA10310
Keep the engine speed out of
the tachometer red zone.
If any engine trouble should
occur during the engine break-
in period, immediately have a
Yamaha dealer check the vehi-
cle.
EAU17213
Parking
When parking, stop the engine, and
then remove the key from the main
switch.
EWA10311
Since the engine and exhaust
system can become very hot,
park in a place where pedes-
trians or children are not likely
to touch them and be burned.
Do not park on a slope or on
soft ground, otherwise the
vehicle may overturn, increa-
sing the risk of a fuel leak and
fire.
Do not park near grass or other
flammable materials which
might catch fire.
WARNING
NOTICE
OPERATION AND IMPORTANT RIDING POINTS
5-4
5
56P-F8199-E0 30/6/10 09:24 Página 46

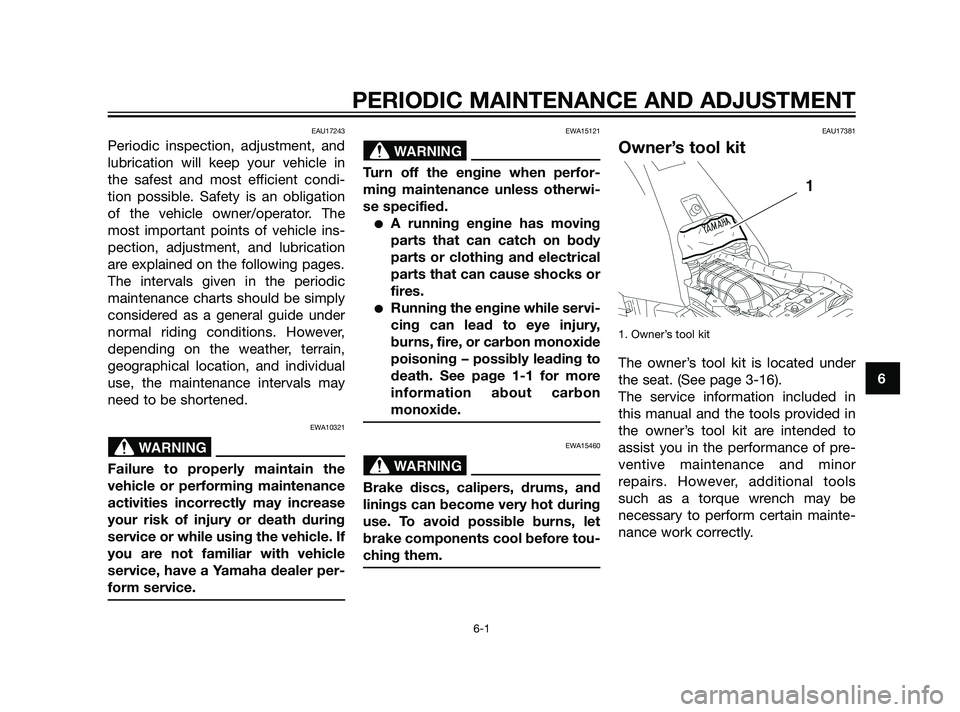

PERIODIC MAINTENANCE AND ADJUSTMENT
6-1
6
EAU17243
Periodic inspection, adjustment, and
lubrication will keep your vehicle in
the safest and most efficient condi-
tion possible. Safety is an obligation
of the vehicle owner/operator. The
most important points of vehicle ins-
pection, adjustment, and lubrication
are explained on the following pages.
The intervals given in the periodic
maintenance charts should be simply
considered as a general guide under
normal riding conditions. However,
depending on the weather, terrain,
geographical location, and individual
use, the maintenance intervals may
need to be shortened.
EWA10321
Failure to properly maintain the
vehicle or performing maintenance
activities incorrectly may increase
your risk of injury or death during
service or while using the vehicle. If
you are not familiar with vehicle
service, have a Yamaha dealer per-
form service.
EWA15121
Turn off the engine when perfor-
ming maintenance unless otherwi-
se specified.
A running engine has moving
parts that can catch on body
parts or clothing and electrical
parts that can cause shocks or
fires.
Running the engine while servi-
cing can lead to eye injury,
burns, fire, or carbon monoxide
poisoning – possibly leading to
death. See page 1-1 for more
information about carbon
monoxide.
EWA15460
Brake discs, calipers, drums, and
linings can become very hot during
use. To avoid possible burns, let
brake components cool before tou-
ching them.
EAU17381
Owner’s tool kit
1. Owner’s tool kit
The owner’s tool kit is located under
the seat. (See page 3-16).
The service information included in
this manual and the tools provided in
the owner’s tool kit are intended to
assist you in the performance of pre-
ventive maintenance and minor
repairs. However, additional tools
such as a torque wrench may be
necessary to perform certain mainte-
nance work correctly.
WARNING
WARNING
WARNING
56P-F8199-E0 30/6/10 09:24 Página 47

PERIODIC MAINTENANCE AND ADJUSTMENT
6-3
6
EAU46861
TIP
The annual checks must be performed every year, except if a kilometer-based maintenance, or for the UK,
a mileage-based maintenance, is performed instead.
From 50000 km (30000 mi), repeat the maintenance intervals starting from 10000 km (6000 mi).
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and
technical skills.
EAU46910
Periodic maintenance chart for the emission control system
ODOMETER READING
NO. ITEM CHECK OR MAINTENANCE JOBANNUAL
1000 km 10000 km 20000 km 30000 km 40000 kmCHECK
(600 mi) (6000 mi) (12000 mi) (18000 mi) (24000 mi)
1*Fuel line• Check fuel hoses for cracks or
damage.√√√ √√
2Spark plug• Check condition.
• Clean and regap.√√
• Replace.√√
3*Valves• Check valve clearance.
• Adjust.√√
4*Fuel injection• Adjust engine idling speed.√√ √ √ √ √
5*Mufflers and exhaust• Check the screw clamps for
pipeslooseness.√√ √ √ √
• Check the air cut-off valve, reed
6*Air induction systemvalve, and hose for damage.
√√√ √√
• Replace any damaged parts if
necessary.
56P-F8199-E0 30/6/10 09:24 Página 49

PERIODIC MAINTENANCE AND ADJUSTMENT
6-6
6
ODOMETER READING
NO. ITEM CHECK OR MAINTENANCE JOBANNUAL
1000 km 10000 km 20000 km 30000 km 40000 kmCHECK
(600 mi) (6000 mi) (12000 mi) (18000 mi) (24000 mi)
18 *Front fork• Check operation and for oil
leakage.√√√ √
19 *Shock absorber • Check operation and shock
assemblyabsorber for oil leakage.√√√ √
Rear suspension• Check operation.√√√ √
20 *relay arm and
• Lubricate with lithium-soap-
connecting arm
√√
pivoting pointsbased grease.
• Change.
21Engine oil• Check oil level and vehicle for √√ √ √ √ √
oil leakage.
22Engine oil filter
element• Replace.√√ √
• Check coolant level and vehicle
23 *Cooling systemfor coolant leakage.√√√ √√
• Change. Every 3 years
24 *Front and rear brake
switches• Check operation.√√ √ √ √ √
25Moving parts and
cables• Lubricate.√√√ √√
• Check operation and free play.
Throttle grip • Adjust the throttle cable free
26 *housingplay if necessary.√√√ √√
and cable• Lubricate the throttle grip housing
and cable.
56P-F8199-E0 30/6/10 09:24 Página 52

1. Panel mountign bolt
2. Quick fastener
E. Right panel
F. Left panel
To install the panel
1. Place the panel in the original
position.
2. Install the quick fastener and the
bolts.
Panel G
T
o remove the panel
Remove the bolts, and then pull the
panel off at the areas shown.
1. Panel mountign bolt
G. Panel
To install the panel
Place the panel in the original posi-
tion, and then install the bolts.
1. Panel
2. Pin
EAU19604
Checking the spark plug
The spark plug is an important engine
component, which is easy to check.
Since heat and deposits will cause
any spark plug to slowly erode, the
spark plug should be removed and
checked in accordance with the
periodic maintenance and lubrication
chart. In addition, the condition of the
spark plug can reveal the condition of
the engine.
To remove the spark plug
1. Remove the spark plug cap.
1. Spark plug cap
2. Spark plug wrench
PERIODIC MAINTENANCE AND ADJUSTMENT
6-9
6
56P-F8199-E0 30/6/10 09:24 Página 55

2. Remove the spark plug as
shown, with the spark plug
wrench included in the owner’s
tool kit.
To check the spark plug
1. Check that the porcelain insula-
tor around the center electrode of
the spark plug is a medium-to-
light tan (the ideal color when the
vehicle is ridden normally).
TIP
If the spark plug shows a distinctly
different color, the engine could be
operating improperly. Do not attempt
to diagnose such problems yourself.
Instead, have a Yamaha dealer check
the vehicle.
2. Check the spark plug for electro-
de erosion and excessive carbon
or other deposits, and replace it if
necessary.3. Measure the spark plug gap with
a wire thickness gauge and, if
necessary, adjust the gap to spe-
cification.
1. Spark plug gap
To install the spark plug
1. Clean the surface of the spark
plug gasket and its mating surfa-
ce, and then wipe off any grime
from the spark plug threads.
2. Install the spark plug with the
spark plug wrench, and then
tighten it to the specified torque.
TIP
If a torque wrench is not available
when installing a spark plug, a good
estimate of the correct torque is
1/4–1/2 turn past finger tight. Howe-
ver, the spark plug should be tighte-
ned to the specified torque as soon
as possible.
3. Install the spark plug cap.
Tightening torque:
Spark plug:
12.5 Nm (1.25 m·kgf, 9.0 ft·lbf)
Spark plug gap:
0.7–0.8 mm (0.028–0.031 in)
1
ZAUM0037
Specified spark plug:
NGK/CR7E
PERIODIC MAINTENANCE AND ADJUSTMENT
6-10
6
56P-F8199-E0 30/6/10 09:24 Página 56
