2011 YAMAHA XMAX 125 check engine

With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is turned on.
3. Turn the key on.
4. Keep the front or rear brake applied.
5. Push the start switch.
Does the engine start?
With the engine still off:
6. Move the sidestand up.
7. Keep the front or rear brake applied.
8. Push the start switch.
Does the engine start?
With the engine still running:
9. Move the sidestand down.
Does the engine stall?
The system is OK. The scooter can be ridden.The sidestand switch may not be working correctly.
The scooter should not be ridden until
checked by a Yamaha dealer.
The brake switch may not be working correctly.
The scooter should not be ridden until
checked by a Yamaha dealer.
The sidestand switch may not be working correctly.
The scooter should not be ridden until
checked by a Yamaha dealer.
YES NO YES NO NO YES
If a malfunction is noted, have a Yamaha
dealer check the system before riding.
WARNING
INSTRUMENT AND CONTROL FUNCTIONS
3-22
3
37P-F8199-E1 19/2/10 05:09 Página 37

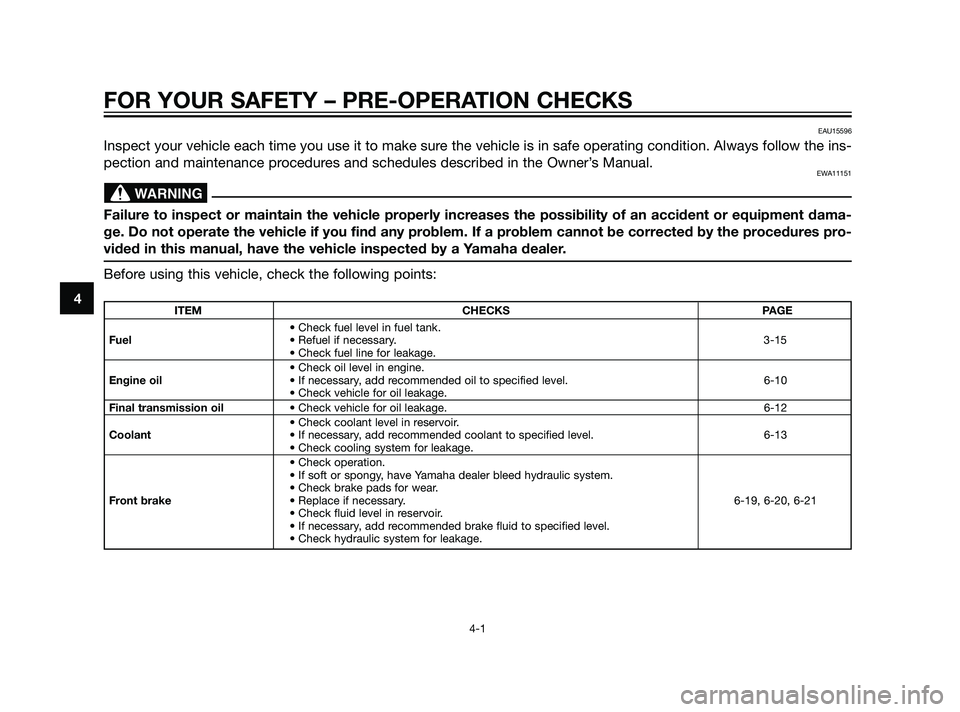

FOR YOUR SAFETY – PRE-OPERATION CHECKS
4-1
4
EAU15596
Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always follow the ins-
pection and maintenance procedures and schedules described in the Owner’s Manual.
EWA11151
Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equipment dama-
ge. Do not operate the vehicle if you find any problem. If a problem cannot be corrected by the procedures pro-
vided in this manual, have the vehicle inspected by a Yamaha dealer.
Before using this vehicle, check the following points:
WARNING
ITEM CHECKS PAGE
• Check fuel level in fuel tank.
Fuel• Refuel if necessary.3-15
• Check fuel line for leakage.
• Check oil level in engine.
Engine oil• If necessary, add recommended oil to specified level. 6-10
• Check vehicle for oil leakage.
Final transmission oil• Check vehicle for oil leakage. 6-12
• Check coolant level in reservoir.
Coolant• If necessary, add recommended coolant to specified level. 6-13
• Check cooling system for leakage.
• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
• Check brake pads for wear.
Front brake• Replace if necessary. 6-19, 6-20, 6-21
• Check fluid level in reservoir.
• If necessary, add recommended brake fluid to specified level.
• Check hydraulic system for leakage.
37P-F8199-E1 19/2/10 05:09 Página 38

ECA15022
If a warning light, indicator light or
indicator does not go off, see
pages 3-4 or 3-6 for the correspon-
ding warning light, indicator light or
indicator circuit check.
2. Close the throttle completely.
3. Start the engine by pushing the
start switch while applying the
front or rear brake. NOTICE: For
maximum engine life, never
accelerate hard when the engi-
ne is cold!
[ECA11041]
1. Rear brake lever
2. Front brake lever
3. Start switch
3. If the engine does not start, rele-
ase the start switch, wait a few
seconds, and then try again.
Each starting attempt should be
as short as possible to preserve
the battery. Do not crank the
engine more than 10 seconds on
any one attempt.EAU45091
Starting off
1. While pulling the rear brake lever
with your left hand and holding
the grab bar with your right hand,
push the scooter off the centers-
tand.
1. Grab bar
2. Sit astride the seat, and then
adjust the rear view mirrors.
3. Switch the turn signals on.
4. Check for oncoming traffic, and
then slowly turn the throttle grip
(on the right) in order to take off.
5. Switch the turn signals off.
NOTICE
OPERATION AND IMPORTANT RIDING POINTS
5-2
5
37P-F8199-E1 19/2/10 05:09 Página 41

EAU16820
Tips for reducing fuel
consumption
Fuel consumption depends largely on
your riding style. Consider the follo-
wing tips to reduce fuel consumption:
Avoid high engine speeds during
acceleration.
Avoid high engine speeds with no
load on the engine.
Turn the engine off instead of let-
ting it idle for an extended length
of time (e.g., in traffic jams, at
traffic lights or at railroad cros-
sings).
EAU16841
Engine break-in
There is never a more important
period in the life of your engine than
the period between 0 and 1600 km
(1000 mi). For this reason, you should
read the following material carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1600 km (1000 mi). The various parts
in the engine wear and polish them-
selves to the correct operating clea-
rances. During this period, prolonged
full-throttle operation or any condition
that might result in engine overhea-
ting must be avoided.
EAUS1810
0–1000 km (0–600 mi)
Avoid prolonged operation above
4000 r/min. NOTICE: After 1000
km (600 mi) of operation, be
sure to replace the engine oil
and final transmission oil.
[ECA11661]
1000–1600 km (600–1000 mi)
Avoid prolonged operation above
6000 r/min.1600 km (1000 mi) and beyond
The vehicle can now be operated
normally.
ECA10310
Keep the engine speed out of
the tachometer red zone.
If any engine trouble should
occur during the engine break-
in period, immediately have a
Yamaha dealer check the vehi-
cle.
NOTICE
OPERATION AND IMPORTANT RIDING POINTS
5-4
5
37P-F8199-E1 19/2/10 05:09 Página 43

PERIODIC MAINTENANCE AND ADJUSTMENT
6-3
6
EAU46861
TIP
The annual checks must be performed every year, except if a kilometer-based maintenance, or for the UK,
a mileage-based maintenance, is performed instead.
From 50000 km (30000 mi), repeat the maintenance intervals starting from 10000 km (6000 mi).
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and
technical skills.
EAU46910
Periodic maintenance chart for the emission control system
ODOMETER READING
NO. ITEM CHECK OR MAINTENANCE JOBANNUAL
1000 km 10000 km 20000 km 30000 km 40000 kmCHECK
(600 mi) (6000 mi) (12000 mi) (18000 mi) (24000 mi)
1*Fuel line• Check fuel hoses for cracks or
damage.√√√ √√
• Check condition.
2Spark plug• Clean and regap.√√
• Replace.√√
3*Valves• Check valve clearance.
• Adjust.√√
4*Fuel injection• Check engine idle speed.√√ √ √ √ √
5*Muffler and exhaust • Check the screw clamp(s) for
pipelooseness.√√ √ √ √
37P-F8199-E1 19/2/10 05:09 Página 47

PERIODIC MAINTENANCE AND ADJUSTMENT
6-5
6
ODOMETER READING
NO. ITEM CHECK OR MAINTENANCE JOBANNUAL
1000 km 10000 km 20000 km 30000 km 40000 kmCHECK
(600 mi) (6000 mi) (12000 mi) (18000 mi) (24000 mi)
• Check bearing play and steering
9*Steering bearingsfor roughness.√√ √ √ √
• Lubricate with lithium-soap-
based grease.Every 20000 km (12000 mi)
10 *Chassis fasteners• Make sure that all nuts, bolts and
screws are properly tightened.√√√ √√
11Front brake lever
pivot shaft• Lubricate with silicone grease.√√√ √√
12Rear brake lever
pivot shaft• Lubricate with silicone grease.√√√ √√
Sidestand, • Check operation.
13 • Lubricate with lithium-soap-√√√ √√
centerstand
based grease.
14 *Sidestand switch• Check operation.√√ √ √ √ √
15 *Front fork• Check operation and for oil
leakage.√√√ √
16 *Shock absorber • Check operation and shock
assembliesabsorbers for oil leakage.√√√ √
• Change. (See pages 3-6
√When the oil change indicator flashes [At 4000 km
17Engine oiland 6-10.) (2500 mi) and every 3000 km (1800 mi) thereafter]
• Check oil level and vehicle for oil
leakage.Every 3000 km (1800 mi)√
18 *Engine oil strainer• Clean.√
37P-F8199-E1 19/2/10 05:09 Página 49

PERIODIC MAINTENANCE AND ADJUSTMENT
6-7
6
EAU38262
TIP
Engine air filter and V-belt air filters
• This model’s engine air filter is equipped with a disposable oil-coated paper element, which must not be cleaned
with compressed air to avoid damaging it.
• The engine air filter element needs to be replaced and the V-belt air filter elements need to be serviced more fre-
quently when riding in unusually wet or dusty areas.
Hydraulic brake service
• After disassembling the brake master cylinders and calipers, always change the fluid. Regularly check the brake
fluid levels and fill the reservoirs as required.
• Every two years replace the internal components of the brake master cylinders and calipers, and change the bra-
ke fluid.
• Replace the brake hoses every four years and if cracked or damaged.
37P-F8199-E1 19/2/10 05:09 Página 51

1. Screw
To install the panel
Place the panel in the original posi-
tion, and then install the screws.
EAU19622
Checking the spark plug
The spark plug is an important engine
component, which should be chec-
ked periodically, preferably by a
Yamaha dealer. Since heat and depo-
sits will cause any spark plug to
slowly erode, it should be removed
and checked in accordance with the
periodic maintenance and lubrication
chart. In addition, the condition of the
spark plug can reveal the condition of
the engine.
The porcelain insulator around the
center electrode of the spark plug
should be a medium-to-light tan (the
ideal color when the vehicle is ridden
normally). If the spark plug shows a
distinctly different color, the engine
could be operating improperly. Do not
attempt to diagnose such problems
yourself. Instead, have a Yamaha
dealer check the vehicle.
If the spark plug shows signs of elec-
trode erosion and excessive carbon
or other deposits, it should be repla-
ced.Before installing a spark plug, the
spark plug gap should be measured
with a wire thickness gauge and, if
necessary, adjusted to specification.
1. Spark plug gap
Clean the surface of the spark plug
gasket and its mating surface, and
then wipe off any grime from the
spark plug threads.
Spark plug gap:
0.8–0.9 mm (0.031–0.035 in)
1
ZAUM0037
Specified spark plug:
NGK/DPR8EA-9
PERIODIC MAINTENANCE AND ADJUSTMENT
6-9
6
37P-F8199-E1 19/2/10 05:09 Página 53
