2011 YAMAHA GRIZZLY 700 engine

4-2
4

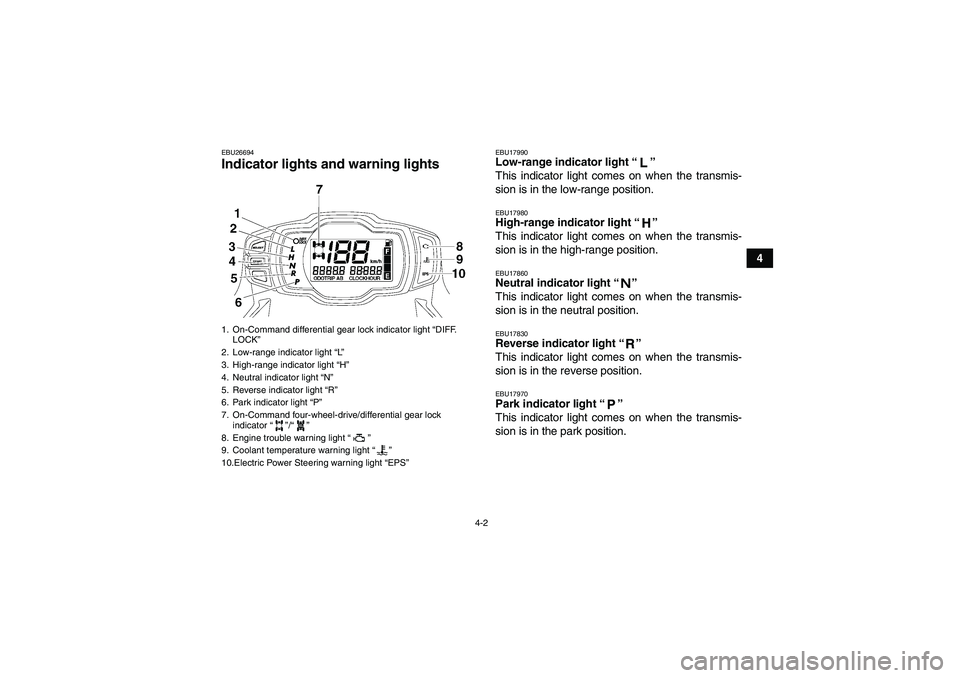

EBU26694Indicator lights and warning lights
EBU17990Low-range indicator light“”
This indicator light comes on when the transmis-
sion is in the low-range position.EBU17980High-range indicator light“”
This indicator light comes on when the transmis-
sion is in the high-range position.EBU17860Neutral indicator light“”
This indicator light comes on when the transmis-
sion is in the neutral position.EBU17830Reverse indicator light“”
This indicator light comes on when the transmis-
sion is in the reverse position.EBU17970Park indicator light“”
This indicator light comes on when the transmis-
sion is in the park position.
1. On-Command differential gear lock indicator light “DIFF.
LOCK”
2. Low-range indicator light “L”
3. High-range indicator light “H”
4. Neutral indicator light “N”
5. Reverse indicator light “R”
6. Park indicator light “P”
7. On-Command four-wheel-drive/differential gear lock
indicator“”/“”
8. Engine trouble warning light“”
9. Coolant temperature warning light“”
10.Electric Power Steering warning light “EPS”U1DT60E0.book Page 2 Wednesday, March 3, 2010 2:51 PM

4-3
4
EBU28664Coolant temperature warning light“”
This warning light comes on when the engine over-
heats. When this occurs during operation, stop the
engine as soon as it is safe to do so and allow it to
cool down for about 10 minutes.
The electrical circuit of the warning light can be
checked by turning the key to “ON”. The warning
light should come on for a few seconds, and then
go off.
If the warning light does not come on initially when
the key is turned to “ON”, or if the warning light re-
mains on, have a Yamaha dealer check the electri-
cal circuit.NOTICEECB00891
The engine may overheat if the ATV is over-
loaded. In this case, reduce the load to spec-
ification.
The engine may also overheat if mud or dirt
has accumulated on the radiator (i.e., after
riding in wet terrain). In this case, see page
8-21 for an explanation on how to access the
radiator.

Start the engine after making sure that the
warning light is out. Continuous use while
the warning light is on may cause damage to
the engine.EBU27284Engine trouble warning light“”
This warning light comes on or flashes when an
electrical circuit monitoring the engine is not work-
ing correctly. When this occurs, have a Yamaha
dealer check the self-diagnosis system. (See page
4-7 for an explanation of the self-diagnosis device.)
The electrical circuit of the warning light can be
checked by turning the key to “ON”. The warning
light should come on for a few seconds, and then
go off.
If the warning light does not come on initially when
the key is turned to “ON”, or if the warning light re-
mains on, have a Yamaha dealer check the electri-
cal circuit.EBU27543Electric Power Steering warning light “EPS”
This warning light comes on when the key is turned
to “ON”, and then goes off once the engine is start-
ed. If the warning light remains on or comes on af-
U1DT60E0.book Page 3 Wednesday, March 3, 2010 2:51 PM

4-4
4 ter the engine is started, the EPS system may not
be working correctly. When this occurs, have a
Yamaha dealer check the EPS system.
The electrical circuit of the warning light can be
checked by turning the key to “ON”. If the warning
light does not come on, have a Yamaha dealer
check the electrical circuit.
TIP
If the engine is stopped using the engine stop
switch and the key is in the “ON” position, the
EPS warning light comes on to indicate that the
power assistance for the steering is not function-
ing.
If the steering load is too heavy (i.e., excessive
steering use when the ATV is traveling at a slow
speed), the power assist is reduced to protect
the EPS motor from overheating.EBU29621On-Command four-wheel-drive indicator“”,
On-Command differential gear lock
indicator“” and indicator light “DIFF.
LOCK”
The On-Command four-wheel-drive indicator“”
comes on when the On-Command four-wheel-
drive switch is set to the “4WD” position.The On-Command differential gear lock
indicator“” and the On-Command differential
gear lock indicator light “DIFF. LOCK” come on
when the On-Command differential gear lock
switch is set to the “LOCK” position.
TIP
Due to the synchronizing mechanism in the dif-
ferential gear case, the four-wheel-drive indica-
tor may not come on until the ATV starts moving.
When the On-Command differential gear lock
switch is set to “LOCK”, the indicator“” and
the indicator light “DIFF. LOCK” will flash until
the differential gear is locked. If the indicator and
the indicator light continue to flash, the differen-
tial is not locked. In this case, start moving to al-
low time for the differential to lock.
U1DT60E0.book Page 4 Wednesday, March 3, 2010 2:51 PM

4-5
4
EBU27298Multi-function display The multi-function display is equipped with the fol-
lowing:
a speedometer
an odometer
two tripmeters (which show the distance trav-
eled since they were last set to zero)
a clock

an hour meter (which shows the total time the
engine has been running)
a fuel meter
a self-diagnosis device
Odometer and tripmeter modes
Pushing the “SELECT” button switches the display
between the odometer mode “ODO” and the trip-
meter modes “TRIP A” and “TRIP B” in the follow-
ing order:
ODO → TRIP A → TRIP B → ODO
To reset a tripmeter, select it by pushing the “SE-
LECT” button, and then push the “RESET” button
for at least three seconds. The tripmeters can be
used to estimate the distance that can be traveled
with a full tank of fuel. This information will enable
you to plan future fuel stops.TIPPushing and holding in the “SELECT” button, and
turning the key to “ON” while the button is pushed,
switches the display between “mph” and “km/h”.Clock mode
Pushing the “CLOCK” button switches the display
between the clock mode “CLOCK” and the hour
meter mode “HOUR” in the following order:
1.“CLOCK” button
2.“RESET” button
3.“SELECT” button
4. Speedometer
5. Fuel meter
6. Clock/Hour meter
7. Odometer/Tripmeter A/Tripmeter BU1DT60E0.book Page 5 Wednesday, March 3, 2010 2:51 PM

4-7
4Self-diagnosis device
This model is equipped with a self-diagnosis de-
vice for various electrical circuits.
If a problem is detected in any of those circuits, the
multi-function display will indicate an error code.
If the multi-function display indicates an error code,
note the code number, and then have a Yamaha
dealer check the vehicle.
NOTICEECB00811If the multi-function display indicates an error
code, the vehicle should be checked as soon
as possible in order to avoid engine damage.
EBU18061Handlebar switches EBU18080Engine stop switch“/”
Set this switch to“” before starting the engine.
The engine stop switch controls the ignition and
stops the engine when it is running. Use this switch
to stop the engine in an emergency situation. The
engine will not start or run when this switch is set
to“”.
1. Error code display
1. Light switch“/ /OFF”
2. Start switch“”
3. Engine stop switch“/”
4. Override switch “OVERRIDE”
5. Horn switch“”
U1DT60E0.book Page 7 Wednesday, March 3, 2010 2:51 PM

4-8
4
EBU18101Start switch“”
Push this switch to crank the engine with the start-
er. See the starting instructions on page 6-1 prior
to starting the engine.EBU18152Light switch“//OFF”
Set this switch to“” to turn on the low beams
and the taillight. Set the switch to“” to turn on
the high beams and the taillight. Set the switch to
“OFF” to turn off all the lights.NOTICEECB00041Do not use the headlights with the engine
turned off for an extended period of time, oth-
erwise the battery may discharge to the point
that the starter motor will not operate properly.
If this should happen, remove the battery and
recharge it. See page 8-55 for battery charging
information.EBU18170Horn switch“”
Press the switch to sound the horn.
EBU18190Override switch “OVERRIDE”
Top speed is normally limited when operating in
differential gear lock. If conditions require more en-
gine power when riding forward, push and hold this
switch to override the differential gear lock speed
limiting function. (See page 4-10.) Releasing the
switch restores the speed limiting function.
While the override switch is pushed, the segments
of the speedometer digits will appear as shown in
the figure.1. Override switch “OVERRIDE”
U1DT60E0.book Page 8 Wednesday, March 3, 2010 2:51 PM

4-13
4

Riding before the differential gear lock is proper-
ly engaged (e.g., when the indicator and indica-
tor light are flashing) will cause the vehicle
speed to be limited until engagement is com-
plete.
When the ATV is in four-wheel-drive differential
gear lock, the maximum traveling speed is limit-
ed to 35 km/h (22 mi/h). However, if conditions
require full engine power to be available, push
and hold the override switch to disable the differ-
ential gear lock speed limiter. (See page 4-8 for
a detailed explanation of this switch.)EBU18282Throttle lever Once the engine is running, pushing the throttle le-
ver will increase the engine speed.
Regulate the speed of the ATV by varying the
throttle position. Because the throttle is spring-
loaded, the ATV will decelerate, and the engine will
return to an idle any time the throttle lever is re-
leased.Before starting the engine, check the throttle to be
sure it is operating smoothly. Make sure it returns
to the idle position as soon as the lever is released.
EBU18323Speed limiter Your ATV is equipped with an adjustable speed
limiter. The speed limiter keeps the throttle from
fully opening, even when the throttle lever is
pushed to the maximum.
1. Loosen the locknut.
2. To increase the maximum engine power avail-
able and the maximum speed of the ATV, turn
the adjusting screw in direction (a). To de-1. Throttle lever
2WD
4WD
1
U1DT60E0.book Page 13 Wednesday, March 3, 2010 2:51 PM

4-14
4 crease the maximum engine power available
and the maximum speed of the ATV, turn the
adjusting screw in direction (b). Do not turn
the adjusting screw out more than 12 mm
(0.47 in) or the throttle cable could be dam-
aged. Always make sure the throttle lever free
play is adjusted to 3.0–5.0 mm (0.12–0.20 in).
(See page 8-44.) WARNING! Improper ad-
justment of the speed limiter and throttle
could cause throttle cable damage or im-
proper throttle operation. You could lose
control, resulting in an accident.
[EWB00241]
3. Tighten the locknut.
EBU18391Front brake lever The front brake lever is located on the right handle-
bar. To apply the front brake, pull the brake lever
toward the handlebar grip.EBU18442Brake pedal and rear brake lever The brake pedal is located on the right side of the
ATV and the rear brake lever is located on the left
handlebar. To apply the rear brake, push down on
the brake pedal or pull the brake lever toward the
handlebar grip.
1. Locknut
2. Adjusting screw
3. No more than 12 mm (0.47 in)
2
1 3
(b)
(a)
1. Front brake lever
